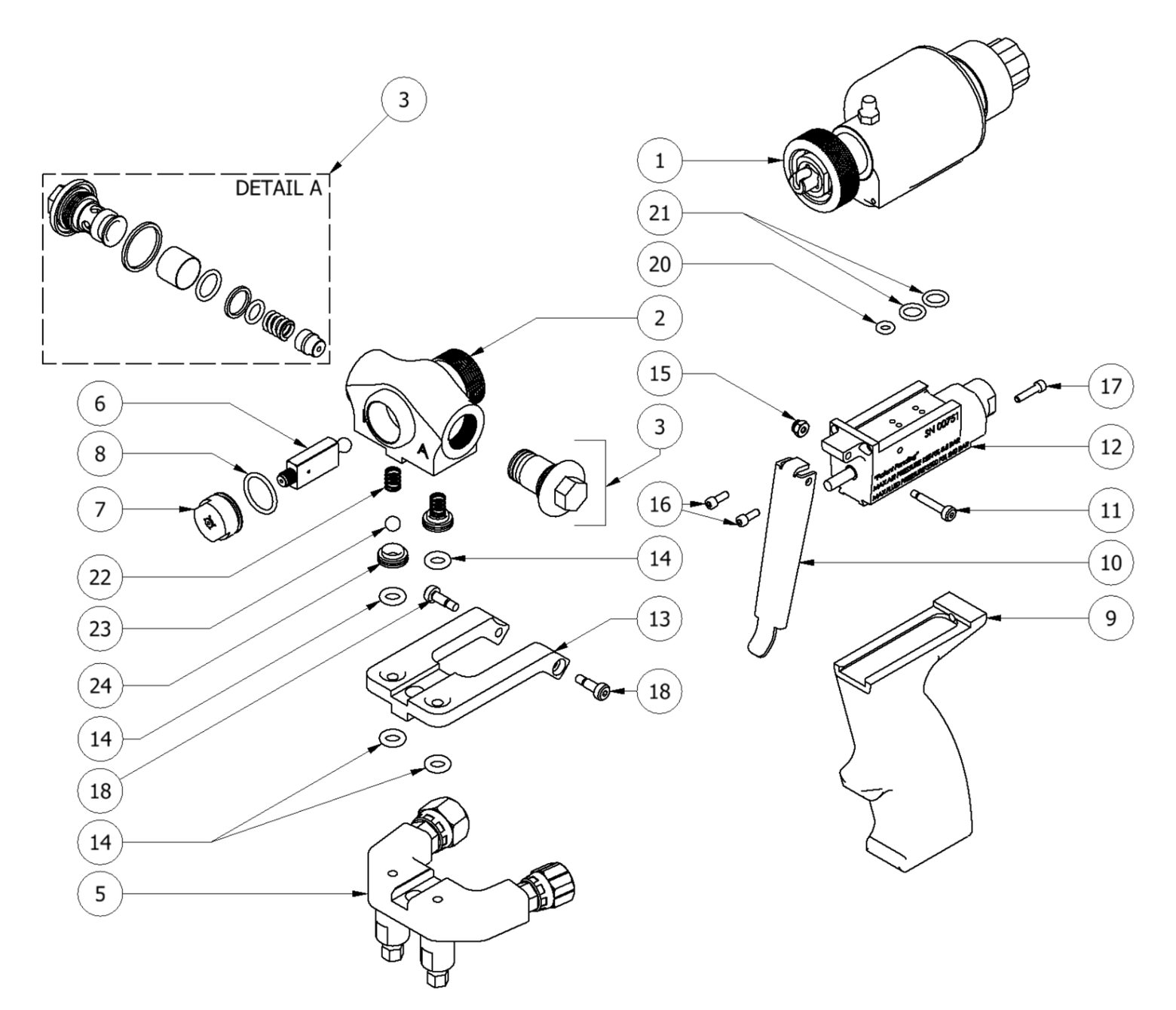

PMC AP-2 Parts Diagram

PMC Polyurethane Machinery OR-804 – O-Ring 2mmx4mm Buna

Item 20 · PMC OR-804 · SKU 58774

$2.50

PMC Polyurethane Machinery Gun Block

Item 2 · PMC GU-816 · SKU 58206

$387.00

PMC Polyurethane Machinery 4-40 Elastic Stop Nut

Item 15 · PMC TN-04191 · SKU 59206

$2.50

PMC Polyurethane Machinery 4-40 X 1/2 Socket Head Cap Screw

Item 17 · PMC TN-831 · SKU 59217

$2.09

Mix chamber

Item 6 · 6 of 9 sizes in stock

In stock: 000, 00, 01, 02, 02X, 03. Other sizes to order.

Note: diamond-plated chamber.

Also made as soft chambers, which need the plastic side seals.

See all sizes

Screen Screw Assembly

Item 3 · two per gun, A side and B side

Screw, seal, screen, o-rings, back-up ring and side seal.

See the Screen Screw Assembly drawing

PMC AP-2 Air Manifold Assembly

Item 12 · PMC GU-843

Sold as an assembly — the individual parts are on its own drawing.

See the Air Manifold Assembly drawing

PMC Polyurethane Machinery PCT Flat Tip O-Ring .016

Item 8 · PMC OR-00042A · SKU 58754

$3.26

PMC Polyurethane Machinery 4-40 X 5/16 Socket Head Cap Screw

Item 16 · PMC TN-830 · SKU 59216

$2.50

Round PCT (pattern control tip)

Item 7 · 7 of 9 sizes in stock

In stock: 00, 01, 01X, 02, 02X, 03, 04. Other sizes to order.

See all sizes

PMC Polyurethane Machinery Shoulder Screw

Item 11 · PMC TN-04190 · SKU 59205

$5.54

PMC Polyurethane Machinery O-Ring -108 Viton

Item 14 · PMC OR-805 · SKU 58775

$3.91

PMC Polyurethane Machinery Trigger

Item 10 · PMC GU-828 · SKU 200464

$77.35

PMC Polyurethane Machinery Check Valve Spring

Item 22 · PMC GU-852 · SKU 58234

$4.18

PMC Polyurethane Machinery Gun Handle #1

Item 9 · PMC GU-827-1 · SKU 58219

$143.35

PMC Polyurethane Machinery Head Latch

Item 13 · PMC GU-842 · SKU 58229

$93.43

PMC Polyurethane Machinery 1/4" Check Valve Ball

Item 23 · PMC GU-853 · SKU 58235

$3.11

PMC Polyurethane Machinery AP2/3 Check Valve Seat

Item 24 · PMC GU-851 · SKU 58233

$14.32

PMC Polyurethane Machinery 5/32 X 5/16 6-32 Shoulder Bolt

Item 18 · PMC GU-808 · SKU 58153

$5.11

PMC Polyurethane Machinery O-Ring -108 Viton

Item 14 · PMC OR-805 · SKU 58775

$3.91

PMC Polyurethane Machinery 5/32 X 5/16 6-32 Shoulder Bolt

Item 18 · PMC GU-808 · SKU 58153

$5.11

PMC Polyurethane Machinery O-Ring -108 Viton

Item 14 · PMC OR-805 · SKU 58775

$3.91

PMC Polyurethane Machinery Coupling Block Assembly

Item 5 · PMC GU-04001 · SKU 58092

$681.00

See the Coupling Block Assembly drawing

Assembly drawingsDrawing from PMC manual MN-04006, page 34

PMC draws the AP-2 as the whole gun plus eight assemblies. Each one is here on its own — pick one.

All 8Complete Air CylinderAir CylinderEnd CapAir ManifoldCoupling BlockManual ValveScreen ScrewTools Supplied with the Gun

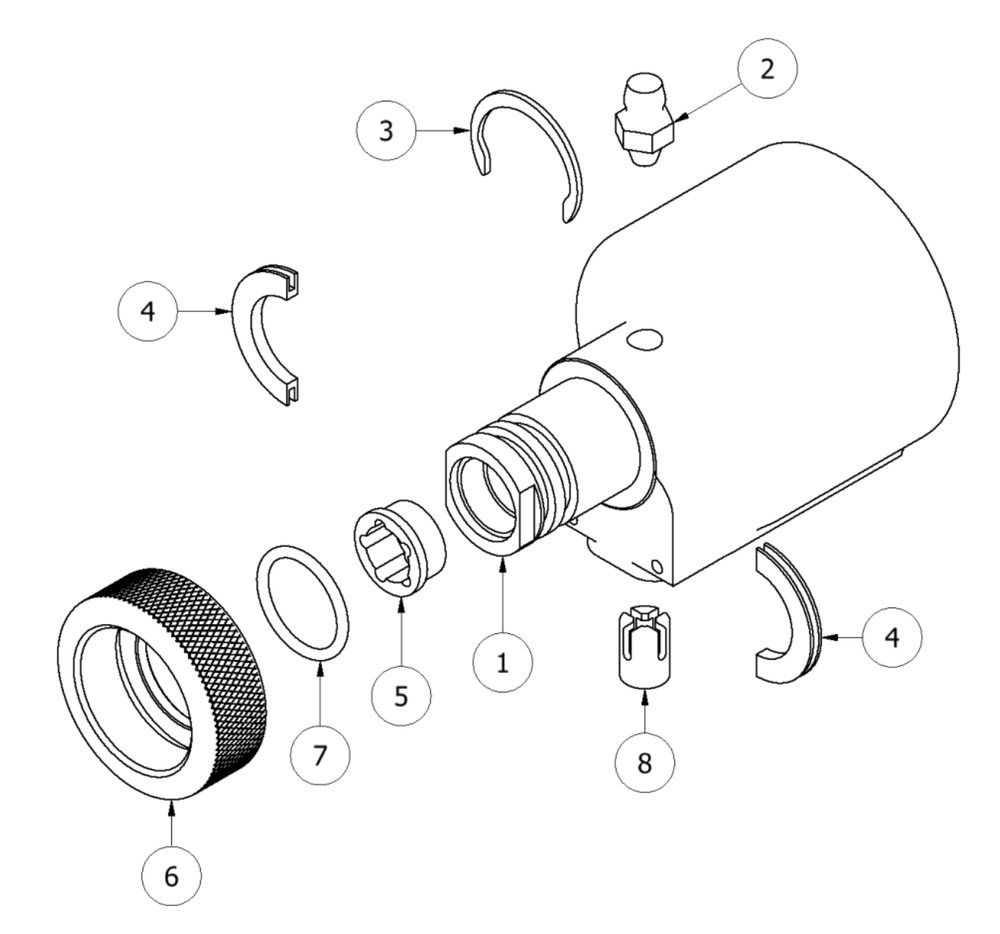

Complete Air Cylinder5 callouts Air Cylinder detail drawing

Air Cylinder9 callouts End Cap detail drawing

End Cap7 callouts Air Manifold detail drawing

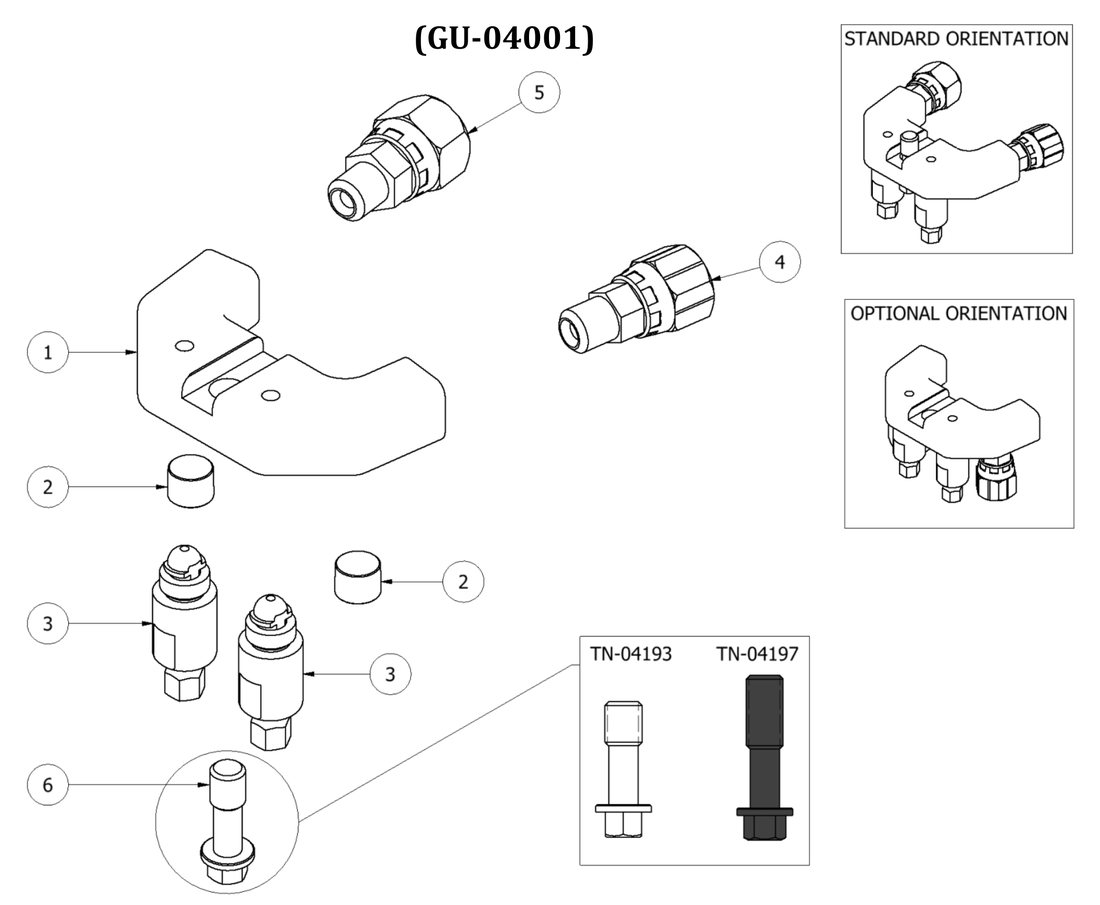

Air Manifold8 callouts Coupling Block detail drawing

Coupling Block8 callouts Manual Valve detail drawing

Manual Valve5 callouts Screen Screw detail drawing

Screen Screw8 callouts Tools Supplied with the Gun detail drawing

Tools Supplied with the Gun9 callouts

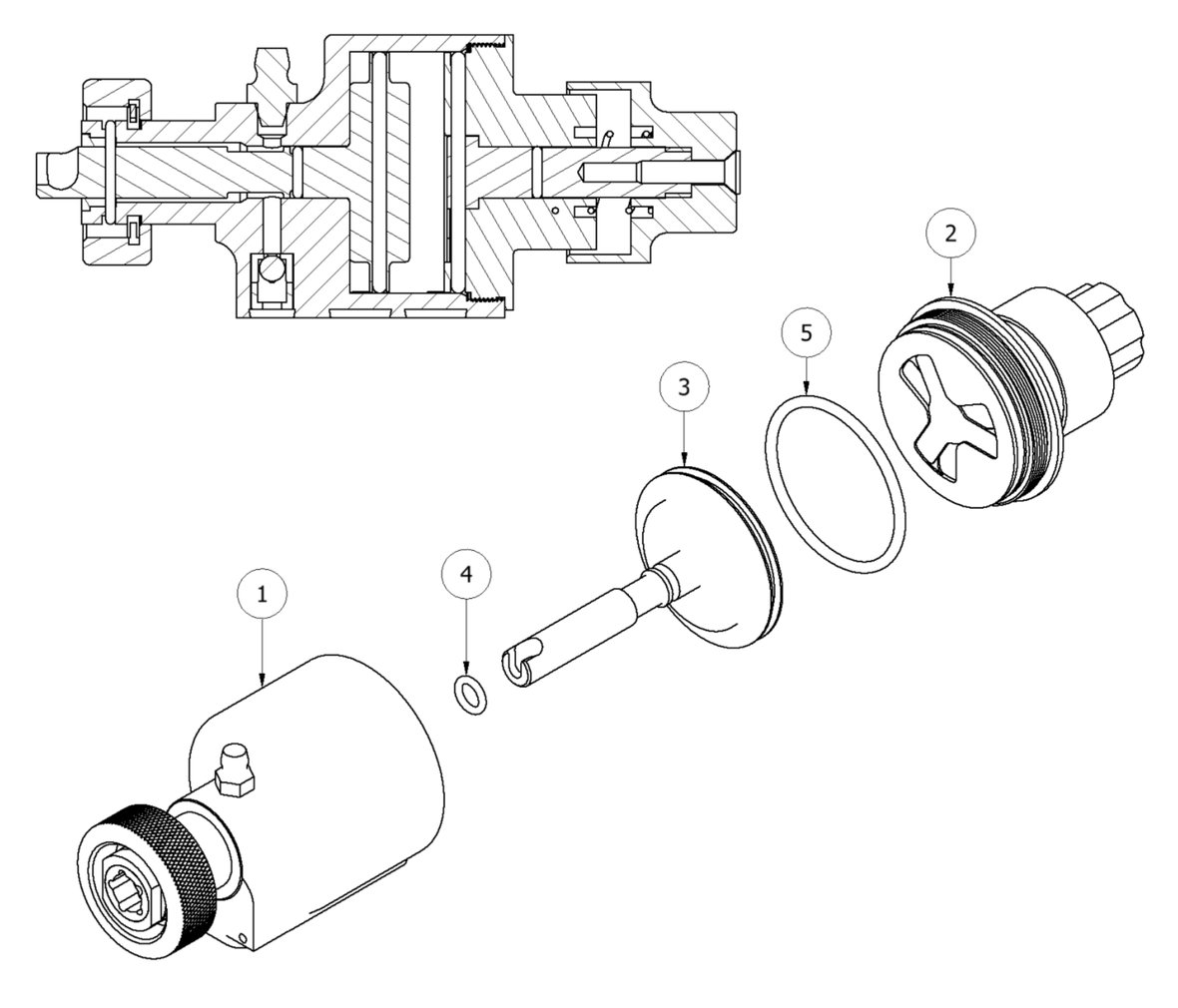

PMC AP-2 Complete Air Cylinder Assembly exploded parts diagram

PMC Polyurethane Machinery End Cap Assembly

Item 2 · PMC GU-844 · SKU 58231

$301.72

See the End Cap Assembly drawing

PMC Polyurethane Machinery O-Ring -129 Viton

Item 5 · PMC OR-00026A · SKU 58746

$2.50

PMC Polyurethane Machinery Piston

Item 3 · PMC GU-802 · SKU 59261

$125.19

PMC Polyurethane Machinery O-Ring -010 80D Aflas

Item 4 · PMC OR-00043B · SKU 58755

$3.26

PMC AP-2 Air Cylinder Assembly

Item 1 · PMC GU-801A

Sold as an assembly — the individual parts are on its own drawing.

See the Air Cylinder Assembly drawing

PMC AP-2 Air Cylinder Assembly exploded parts diagram

PMC Polyurethane Machinery Grease Fitting

Item 2 · PMC TN-04186 · SKU 58814

$3.96

PMC Polyurethane Machinery Side Mount Extension Retaining Ring

Item 3 · PMC GU-836 · SKU 58226

$2.75

PMC Polyurethane Machinery Retainer Ring Split-Set

Item 4 · PMC GU-837 · SKU 58227

$34.14

PMC Polyurethane Machinery Retainer Ring Split-Set

Item 4 · PMC GU-837 · SKU 58227

$34.14

PMC Polyurethane Machinery Air Cylinder

Item 1 · PMC GU-801 · SKU 59262

$349.66

PMC Polyurethane Machinery Air Cylinder Bushing

Item 5 · PMC GU-830 · SKU 58221

$47.20

PMC Polyurethane Machinery PCT Flat Tip O-Ring .016

Item 7 · PMC OR-00042A · SKU 58754

$3.26

PMC Polyurethane Machinery A/p Check Valve

Item 8 · PMC GU-829 · SKU 58220

$41.85

PMC Polyurethane Machinery Lock Collar

Item 6 · PMC GU-812 · SKU 58155

$111.53

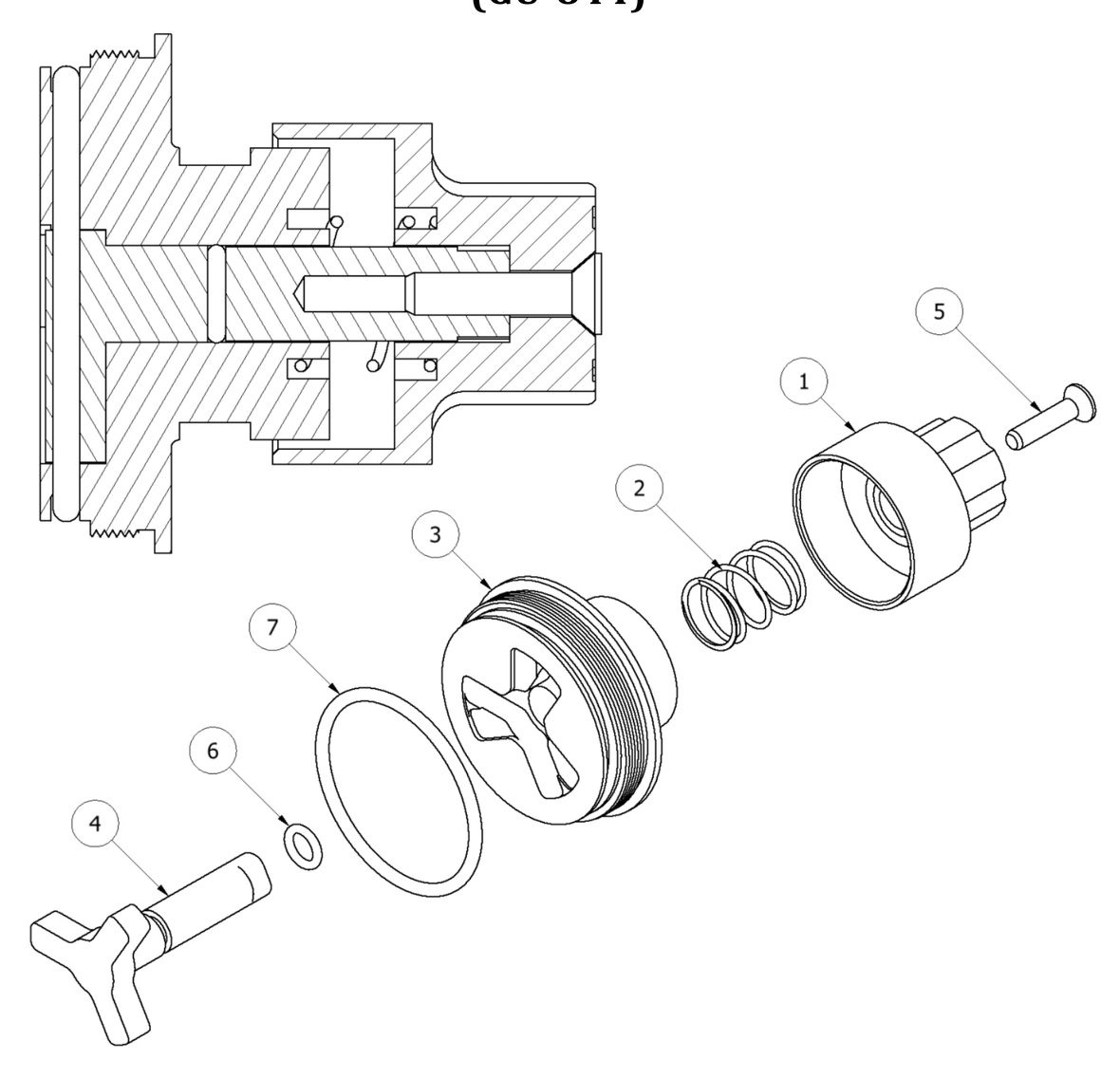

PMC AP-2 End Cap Assembly exploded parts diagram

PMC Polyurethane Machinery Retaining Screw

Item 5 · PMC GU-831 · SKU 58222

$2.50

PMC Polyurethane Machinery Lock Knob

Item 1 · PMC GU-804 · SKU 58149

$202.57

PMC Polyurethane Machinery Spring

Item 2 · PMC GU-806 · SKU 59263

$4.74

PMC Polyurethane Machinery Cylinder End Cap

Item 3 · PMC GU-803 · SKU 58148

$157.04

PMC Polyurethane Machinery O-Ring -129 Viton

Item 7 · PMC OR-00026A · SKU 58746

$2.50

PMC Polyurethane Machinery O-Ring -010 80D Aflas

Item 6 · PMC OR-00043B · SKU 58755

$3.26

PMC Polyurethane Machinery Two Position Stop

Item 4 · PMC GU-807 · SKU 58152

$152.51

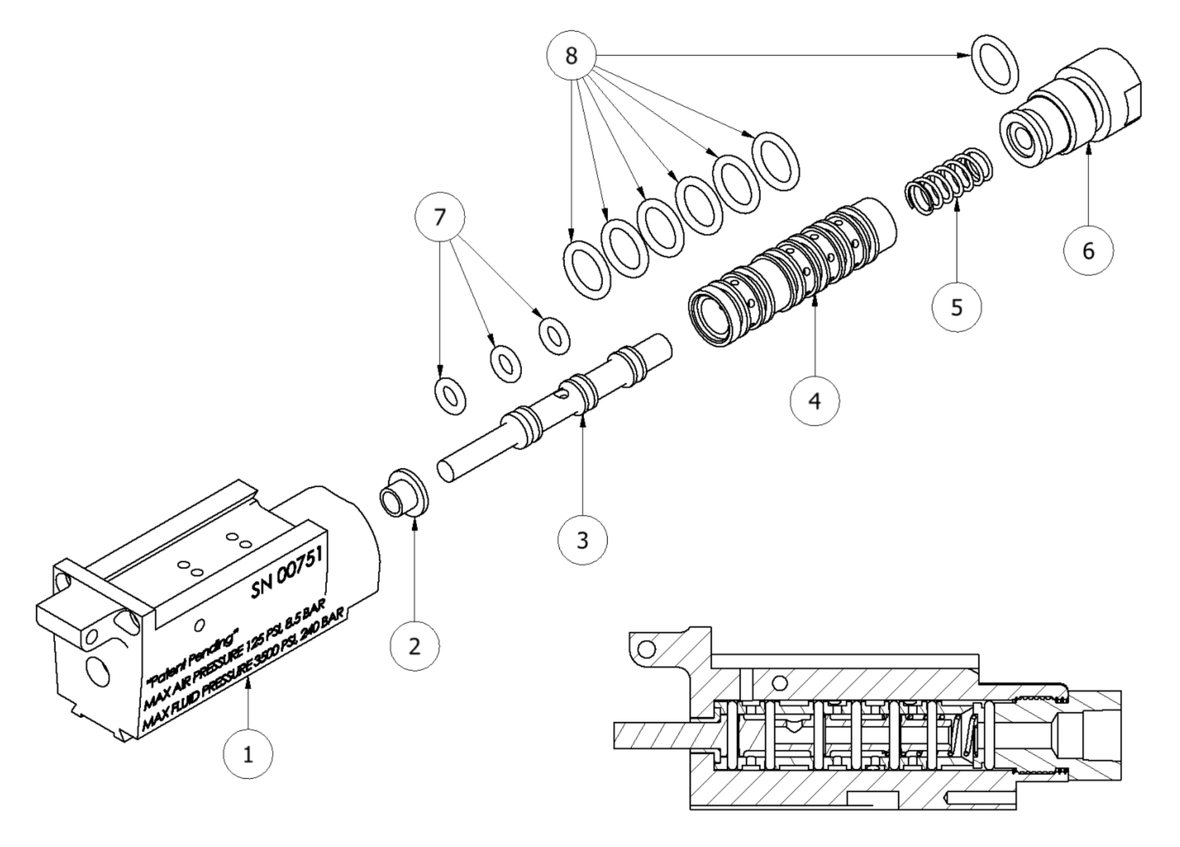

PMC AP-2 Air Manifold Assembly exploded parts diagram

PMC Polyurethane Machinery Viton O-Ring, 9.25×1.78MM OR-803

Item 8 · PMC OR-803 · SKU 200513

$4.00

PMC Polyurethane Machinery O-Ring -008 Viton

Item 7 · PMC OR-00002A · SKU 58736

$3.00

PMC Polyurethane Machinery Hose Adapter

Item 6 · PMC GU-833 · SKU 58223

$43.37

PMC Polyurethane Machinery AP-2 Valve Spring Spool

Item 5 · PMC GU-824 · SKU 58215

$4.75

PMC Polyurethane Machinery Spool Valve Liner

Item 4 · PMC GU-825-1 · SKU 58216

$52.35

PMC Polyurethane Machinery Spool Valve

Item 3 · PMC GU-823 · SKU 58112

$91.35

PMC Polyurethane Machinery Liner Bushing

Item 2 · PMC GU-825-2 · SKU 58217

$13.15

PMC Polyurethane Machinery Air Manifold

Item 1 · PMC GU-826 · SKU 58218

$265.77

PMC AP-2 Coupling Block Assembly exploded parts diagram

PMC Polyurethane Machinery 1/8 NPT X #5 JIC Swivel

Item 5 · PMC RA-00006A · SKU 59061

$32.36

PMC Polyurethane Machinery 1/8 NPT X #6 JIC Swivel

Item 4 · PMC RA-00005A · SKU 59060

$32.36

PMC Polyurethane Machinery Coupling Block Body

Item 1 · PMC GU-04001-01 · SKU 58093

$273.17

PMC Polyurethane Machinery 1/8 NPT Pipe Plug

Item 2 · PMC TN-04192 · SKU 59207

$2.75

PMC Polyurethane Machinery 1/8 NPT Pipe Plug

Item 2 · PMC TN-04192 · SKU 59207

$2.75

PMC Polyurethane Machinery Manual Valve Assembly

Item 3 · PMC GU-020 · SKU 58060

$93.00

See the Manual Valve Assembly drawing

PMC Polyurethane Machinery Manual Valve Assembly

Item 3 · PMC GU-020 · SKU 58060

$93.00

See the Manual Valve Assembly drawing

Coupling block screws

Item 6 · 2 of 2 options in stock

PMC Polyurethane Machinery Coupling Block Mounting Screw
PMC TN-04193$11.61 · Add

PMC Polyurethane Machinery Coupling Block Stabilizer Moun
PMC TN-04197$28.06 · Add

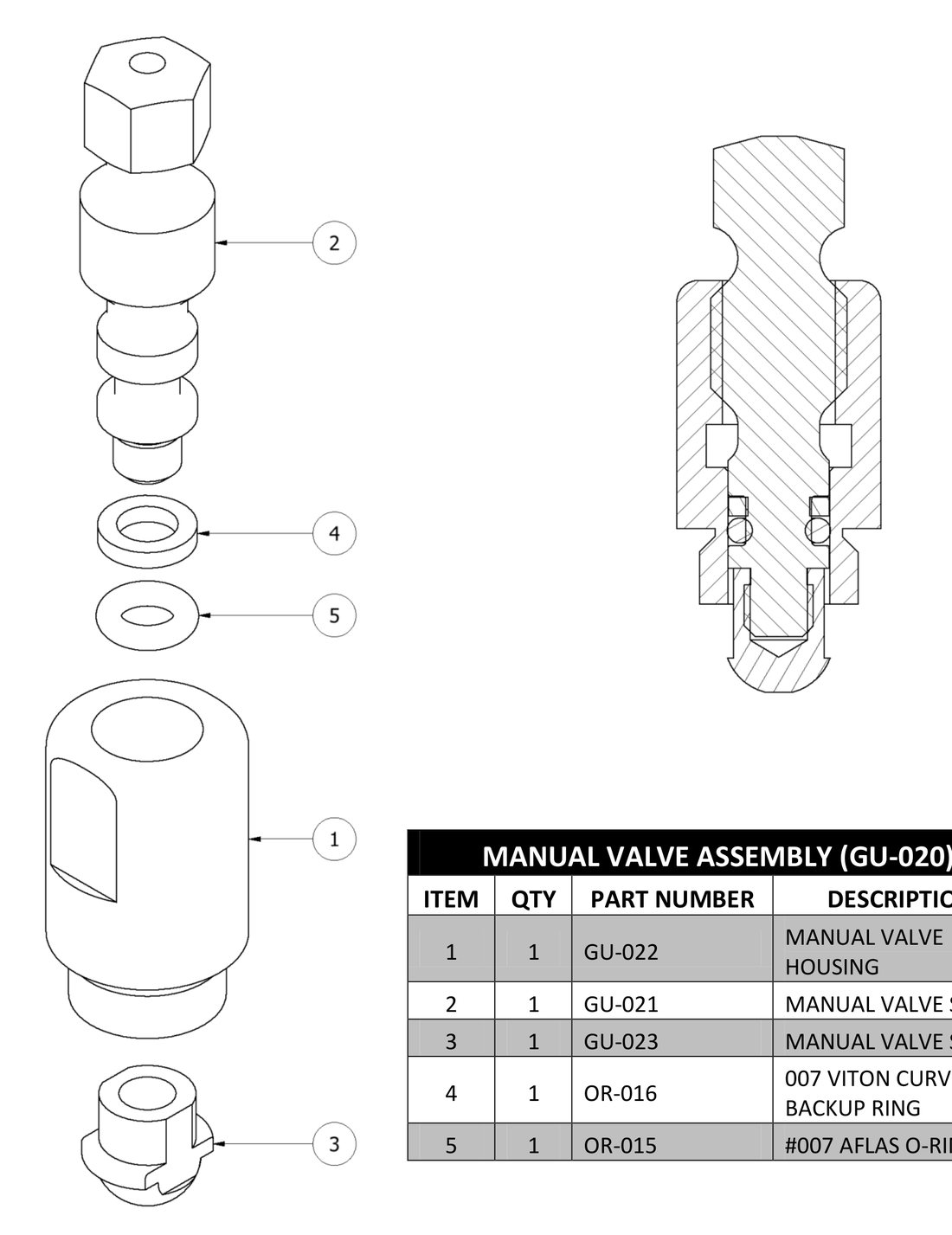

PMC AP-2 Manual Valve Assembly exploded parts diagram

PMC Polyurethane Machinery Manual Valve Stem

Item 2 · PMC GU-021 · SKU 58062

$26.05

PMC Polyurethane Machinery Viton -007 Curved Backup Ring

Item 4 · PMC OR-016 · SKU 58768

$3.11

PMC Polyurethane Machinery O-Ring -007 Aflas

Item 5 · PMC OR-015 · SKU 58767

$3.26

PMC Polyurethane Machinery Manual Valve Housing

Item 1 · PMC GU-022 · SKU 58063

$34.41

PMC Polyurethane Machinery Manual Valve Seat

Item 3 · PMC GU-023 · SKU 58064

$28.09

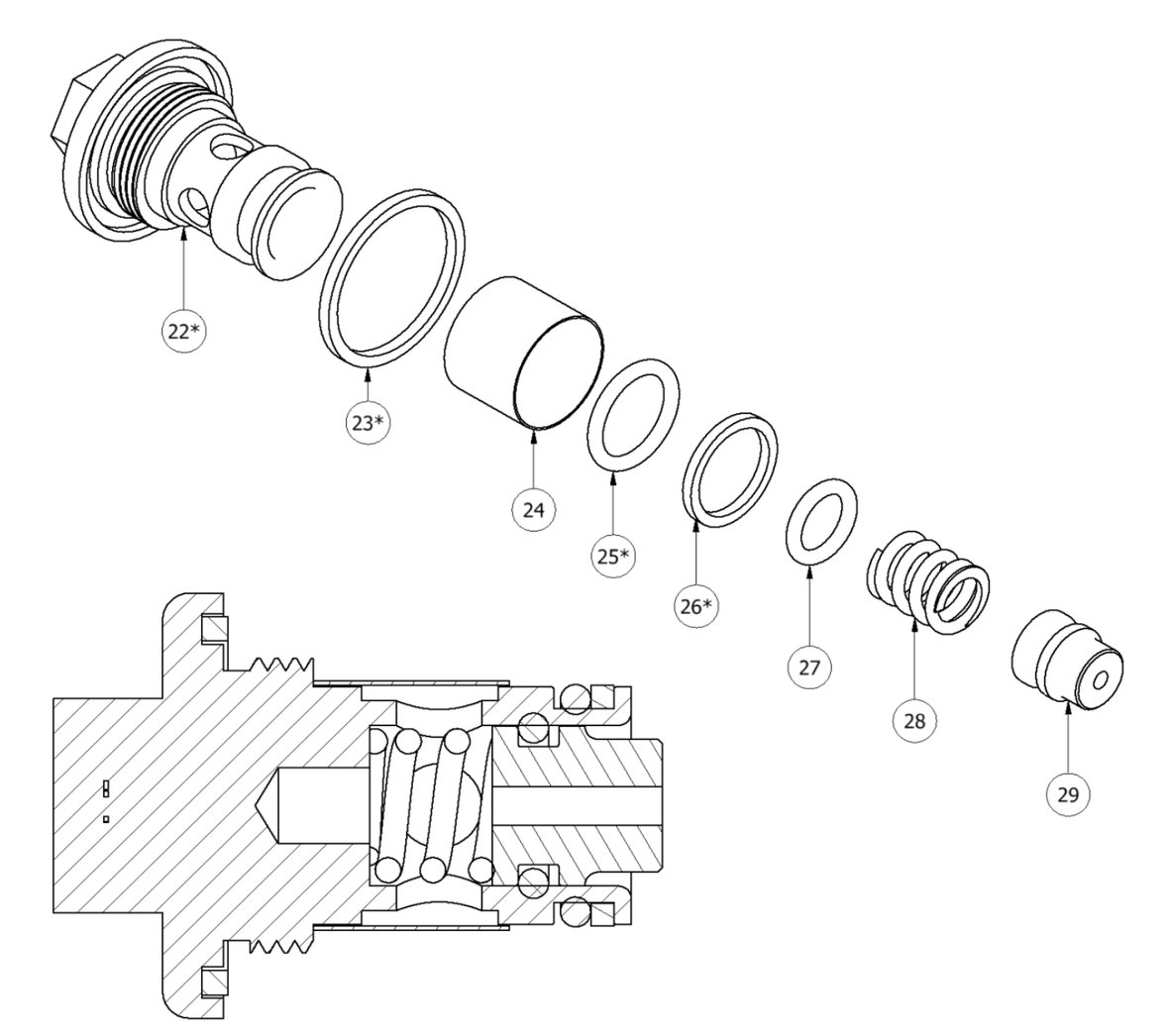

Screen screw

Item 22 · 2 of 2 options in stock

PMC Polyurethane Machinery R-Screen Screw
PMC GU-819-R$112.95 · Add

PMC Polyurethane Machinery A-Screen Screw
PMC GU-819-A$140.40 · Add

PMC Polyurethane Machinery Screen Screw Seal

Item 23 · PMC GU-04007 · SKU 58108

$3.43

Filter screen

Item 24 · 3 of 3 sizes in stock

PMC Polyurethane Machinery Filter Screen 40 Mesh AP2/3
PMC GU-818-40$9.34 · Add

PMC Polyurethane Machinery Filter Screen 60 Mesh AP2/3
PMC GU-818-60$9.34 · Add

PMC Polyurethane Machinery Filter Screen 80 Mesh AP2/3
PMC GU-818-80$5.90 · Add

PMC Polyurethane Machinery O-Ring -013 80D Aflas

Item 25 · PMC OR-801 · SKU 58771

$3.00

Note: we stock revision A of this o-ring.

PMC Polyurethane Machinery Back Up Ring -013

Item 26 · PMC OR-800 · SKU 58770

$5.55

PMC Polyurethane Machinery O-Ring -010 80D Aflas

Item 27 · PMC OR-00043B · SKU 58755

$3.26

PMC Polyurethane Machinery Side Seal Spring

Item 28 · PMC SP-04005 · SKU 59148

$6.48

Side seal

Item 29 · 1 of 2 options in stock

PMC Polyurethane Machinery Side Seal Steel GU-817-90
PMC GU-817-90$72.00 · Add

PMC Side Seal, 180 (for chambers 03 and 04)
PMC GU-817-180~~Ask us~~

Soft chambers take the plastic side seal, GU-817-90D.

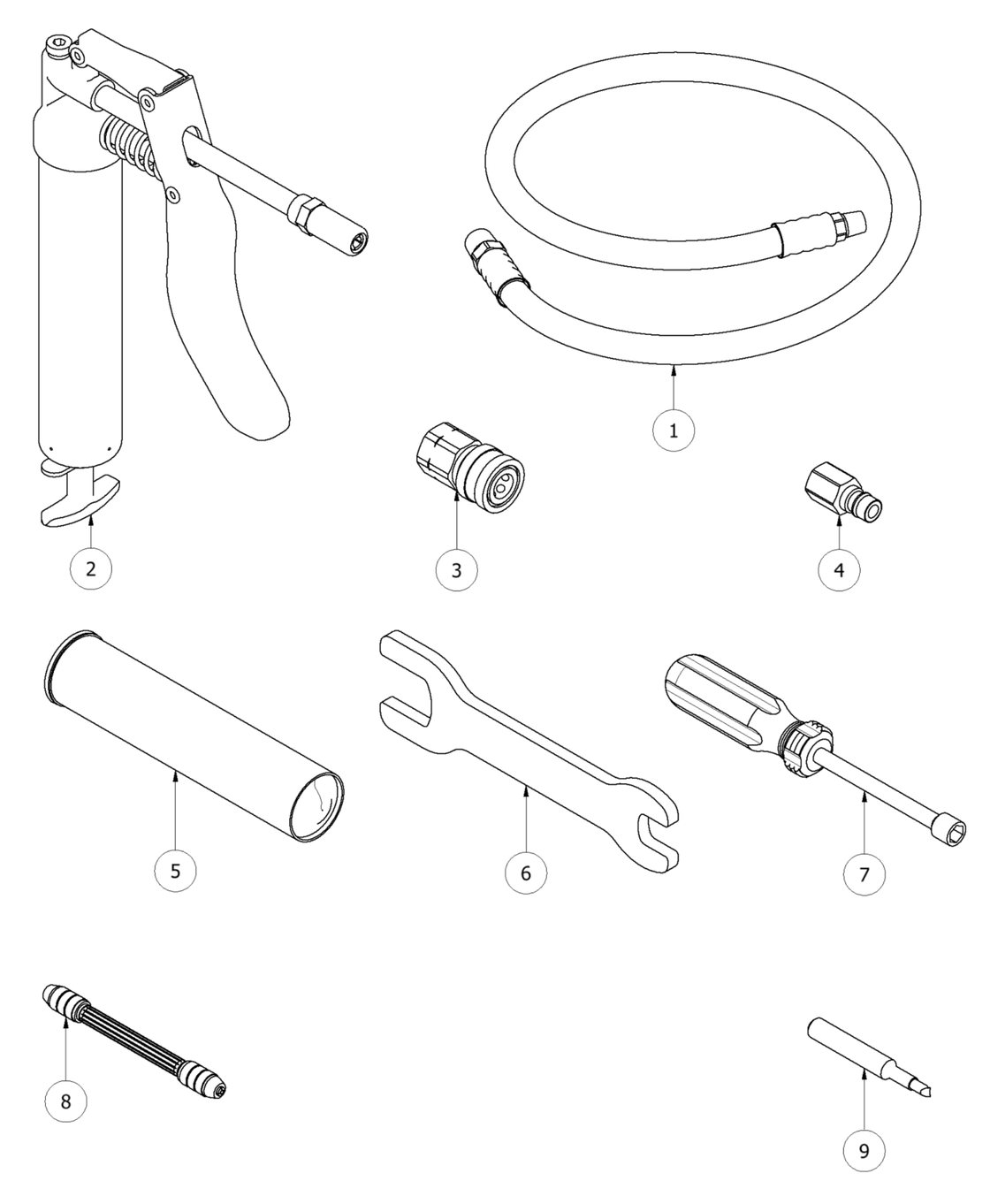

PMC AP-2 Tools Supplied with the Gun exploded parts diagram

PMC Polyurethane Machinery Air Hose, 1/8 NPT – 2ft.

Item 1 · PMC GU-04019 · SKU 58115

$36.67

PMC Polyurethane Machinery Grease Gun

Item 2 · PMC TL-00002 · SKU 59167

$38.45

PMC Quick Disconnect, Female

Item 3 · PMC GU-04021

Not listed online yet — we can order it for you.

PMC Quick Disconnect, Male

Item 4 · PMC GU-04022

Not listed online yet — we can order it for you.

PMC Polyurethane Machinery Grease Tube

Item 5 · PMC TL-04003 · SKU 59173

$10.88

PMC Polyurethane Machinery Open End Wrench

Item 6 · PMC TL-09 · SKU 59182

$18.39

PMC 5/16 Spintite Nut Driver

Item 7 · PMC TL-04001

Not listed online yet — we can order it for you.

We stock a 5/16 in. nut driver (Pacoa G-Force).

PMC Double-Ended Pin Vise

Item 8 · PMC GP-00101

Not listed online yet — we can order it for you.

We stock a double-ended pin vise (Macsimum MAC616).

PMC Check Valve Removal Tool

Item 9 · PMC TL-10

Not listed online yet — we can order it for you.

PMC Polyurethane Machinery Ap-Ex O-Ring Kit

Resources

Manuals, Rebuild Kits & the Gun

Manuals & DocumentsRebuild & Repair KitsBuy the Gun

Service ManualPMC MN-04006 Part identification drawingsmanual p. 34 Reactor Parts & Accessories BrochureGraco 349104

PDFs open in a new tab. The reference numbers on the diagram above match manual MN-04006.

The o-ring kits cover the wear seals on the drawing above. The side seal kit is the one that goes on an AP-2 or AP-3 that has been run hot — and the seal itself is sold on its own in steel, engineered resin and Delrin, with its spring, when only that has worn.

PMC 200080 · SKU 200080

$16.55

PMC Polyurethane Machinery O-Ring Kit AP-3

PMC 201118 · SKU 201118

$19.70

PMC Polyurethane Machinery Side Seal Kit AP2/3, .125 Steel

PMC 202265 · SKU 58589

$136.27

PMC Polyurethane Machinery Side Seal Steel GU-817-90

PMC 202247 · SKU 58208

$72.00

PMC Polyurethane Machinery .125 Engr Resin Side Seal

PMC 202454 · SKU 202454

$72.00

PMC Polyurethane Machinery Delrin Side Seal, 125 – GU81790D

PMC 202248 · SKU 59334

$29.45

PMC Polyurethane Machinery Side Seal Spring

PMC SP-04005 · SKU 59148

$6.48

PMC Polyurethane Machinery AP2 Solvent Flush Kit, 2.5 Ga

PMC 200426 · SKU 200426

$565.70
