PMC PH-25
Parts diagram
PMC PH-25 — Spray Foam Proportioner
Hover or tap any number on the drawing to see the part and add it to your cart.

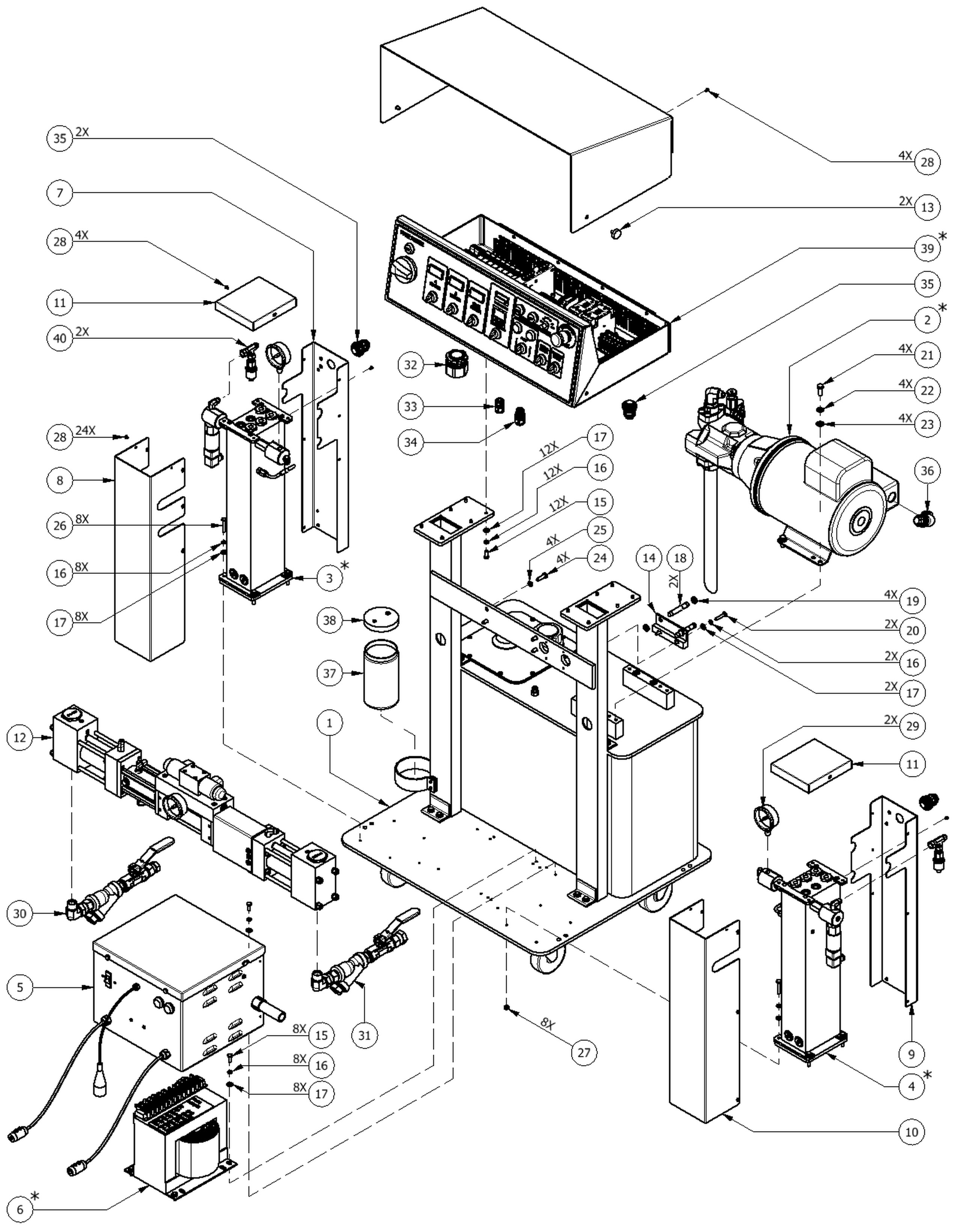

The machineDrawing from PMC manual MN-04014, page 88
Priced onlineAsk us for a price
35
PMC Straight conduit connector
Item 35 · PMC EL-05230-02
Not listed online yet — we can order it for you.
Ask for a price28
PMC part 28
Item 28
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us7
PMC Polyurethane Machinery Back Left Cover Heater
Item 7 · PMC CL-02001-05A · SKU 57811
$56.18
13
PMC Polyurethane Machinery Console Knobs
Item 13 · PMC EL-05220-01 · SKU 57852
$2.95
28
PMC part 28
Item 28
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us39
PMC Console assembly
Item 39 · PMC EL-501-31
Not listed online yet — we can order it for you.
Ask for a price35
PMC Straight conduit connector
Item 35 · PMC EL-05230-02
Not listed online yet — we can order it for you.
Ask for a price11
PMC Heat cover
Item 11 · PMC CL-02001-07A
Not listed online yet — we can order it for you.
Ask for a price2
PMC Polyurethane Machinery PreHeater A, 6.000kw, Classic
Item 2 · PMC PH-3 · SKU 58841
$4,505.88
40
PMC part 40
Item 40
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us21
PMC part 21
Item 21
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us32
PMC Heyco sr incoming power
Item 32 · PMC EL-00088-01A
Not listed online yet — we can order it for you.
Ask for a price22
PMC part 22
Item 22
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us33
PMC Polyurethane Machinery Heyco #6 Awg Strain Relief
Item 33 · PMC EL-000P12 · SKU 57841
$4.97
23
PMC part 23
Item 23
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us28
PMC part 28
Item 28
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us17
PMC part 17
Item 17
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us34
PMC Polyurethane Machinery Strain Relief
Item 34 · PMC EL-000P13 · SKU 57842
$8.55
16
PMC part 16
Item 16
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us36
PMC Rt angle conduit connnector
Item 36 · PMC EL-05230-03
Not listed online yet — we can order it for you.
Ask for a price8
PMC Polyurethane Machinery Front Left Cover Heater
Item 8 · PMC CL-02001-06A · SKU 57812
$58.79
15
PMC part 15
Item 15
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us26
PMC part 26
Item 26
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us25
PMC part 25
Item 25
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us18
PMC Polyurethane Machinery 12mm Proxsw
Item 18 · PMC EL-153 · SKU 57936
$151.91
24
PMC part 24
Item 24
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us14
PMC Reversing switch
Item 14 · PMC MQ-01005A
Not listed online yet — we can order it for you.
Ask for a price16
PMC part 16
Item 16
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us3
PMC Polyurethane Machinery PreHeater R-Side 6kw
Item 3 · PMC PH-4 · SKU 58846
$4,505.88
19
PMC part 19
Item 19
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us38
PMC Polyurethane Machinery Lube Bottle Lid
Item 38 · PMC MQ-01009-02A · SKU 58715
$2.20
17
PMC part 17
Item 17
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us20
PMC part 20
Item 20
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us16
PMC part 16
Item 16
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us37
PMC Polyurethane Machinery Lube Bottle
Item 37 · PMC MQ-01009-01A · SKU 58714
$4.14
17
PMC part 17
Item 17
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us1
29
PMC Pressure gauge 0-3000
Item 29 · 2 versions
PMC Polyurethane Machinery Pressure Gauge 0-3000 PSI
PMC HI-05028$97.63 · Add
PMC HI-05028$97.63 · Add
PMC Polyurethane Machinery Pressure Gauge 0-5000
PMC HI-00035$116.48 · Add
PMC HI-00035$116.48 · Add
12
PMC Pumpline assembly
Item 12 · PMC PL-1A
Not listed online yet — we can order it for you.
Ask for a price11
PMC Heat cover
Item 11 · PMC CL-02001-07A
Not listed online yet — we can order it for you.
Ask for a price30

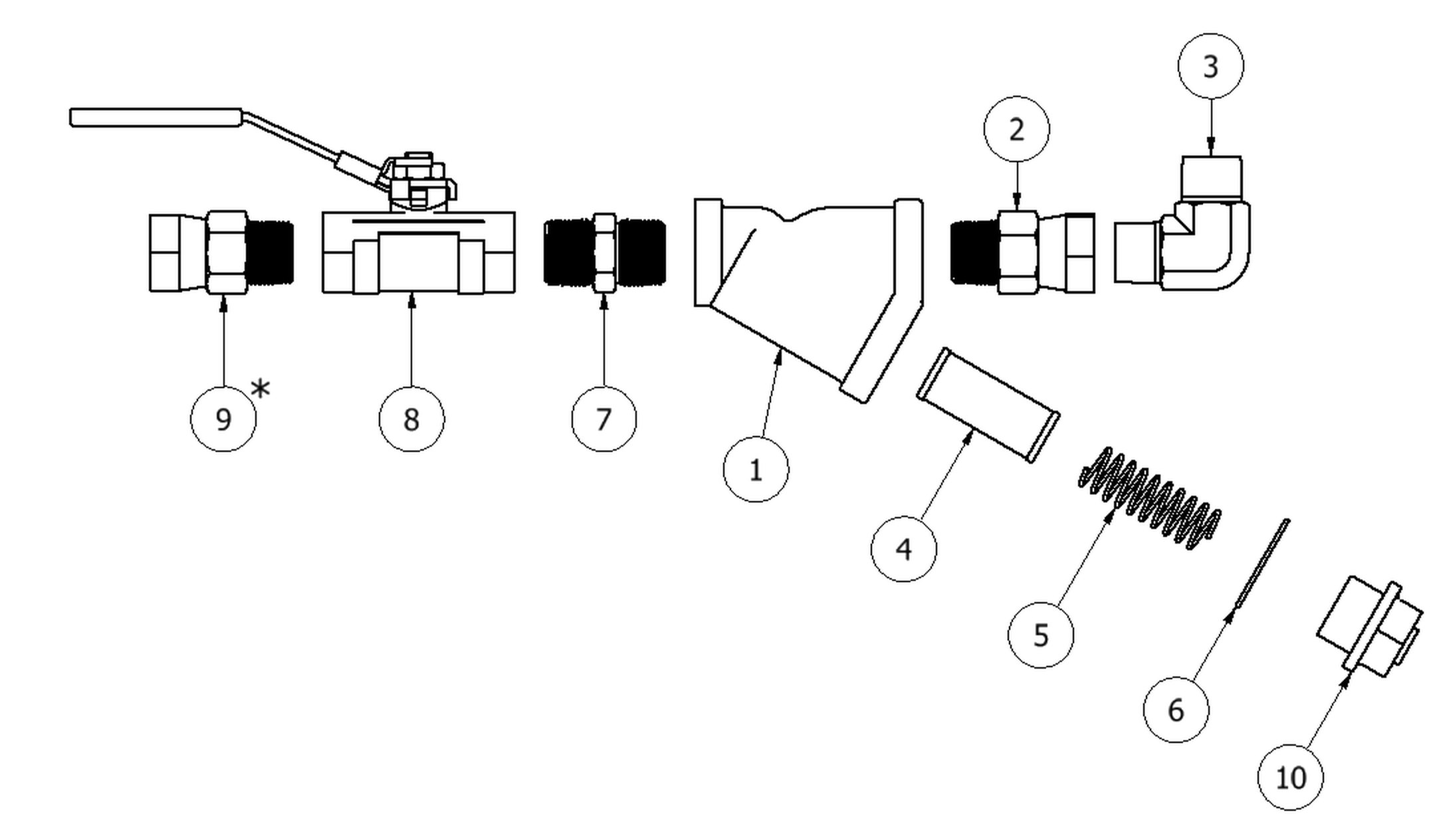

PMC Polyurethane Machinery Y- Strainer Assembly – A-Side
Item 30 · PMC YS-1 · SKU 60183
$339.20
5
PMC part 5
Item 5
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us15
PMC part 15
Item 15
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us31
PMC Y-strainer assembly "r"
Item 31 · PMC YS-2
Not listed online yet — we can order it for you.
Ask for a price27
PMC part 27
Item 27
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us9
PMC Polyurethane Machinery Back Right Cover Heater
Item 9 · PMC CL-02002-05A · SKU 57814
$58.42
16
PMC part 16
Item 16
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us4
PMC “r” side heater
Item 4 · PMC PH-12
Not listed online yet — we can order it for you.
Ask for a price17
PMC part 17
Item 17
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us10
PMC Polyurethane Machinery Front Right Cover Heater
Item 10 · PMC CL-02002-06A · SKU 57815
$62.98
6
PMC Polyurethane Machinery 90v Transformer
Item 6 · PMC EL-05225 · SKU 57860
$2,581.30
Drawing from PMC manual MN-04014, page 84
PMC documents the PH-25 one assembly at a time. Sixteen of them — pick one, or follow a link from the machine above.
12
PMC part 12
Item 12
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us7
PMC Case drain return tube 3/8
Item 7 · PMC HI-05041
Not listed online yet — we can order it for you.
Ask for a price8
PMC Case drain return tube 1/2
Item 8 · PMC HI-05042
Not listed online yet — we can order it for you.
Ask for a price16
PMC part 16
Item 16
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us15
PMC part 15
Item 15
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us4
PMC Hydraulic fill strainer
Item 4 · PMC HI-00047A
Not listed online yet — we can order it for you.
Ask for a price14
PMC part 14
Item 14
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us5
PMC Tank top grommet
Item 5 · PMC HI-00002-A-1
Not listed online yet — we can order it for you.
Ask for a price1
PMC Upright assembly
Item 1 · PMC FR-2
Not listed online yet — we can order it for you.
Ask for a price13
PMC part 13
Item 13
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us6
PMC Polyurethane Machinery Sight, Gauge Tank
Item 6 · PMC HI-00001A · SKU 58271
$86.45
11
PMC part 11
Item 11
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us10
PMC Lube bottle bracket
Item 10 · PMC MQ-01008A
Not listed online yet — we can order it for you.
Ask for a price3
PMC Tank top gasket
Item 3 · PMC HI-00014-03A
Not listed online yet — we can order it for you.
Ask for a price16
PMC part 16
Item 16
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us15
PMC part 15
Item 15
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us14
PMC part 14
Item 14
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us9
2
PMC Polyurethane Machinery 4″ Swivel Caster
Item 2 · PMC TN-05704 · SKU 59215
$210.10
17
PMC part 17
Item 17
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us18
PMC part 18
Item 18
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us10
PMC Serrated washer 5/16
Item 10 · PMC PU-05008-1
Not listed online yet — we can order it for you.
Ask for a price2

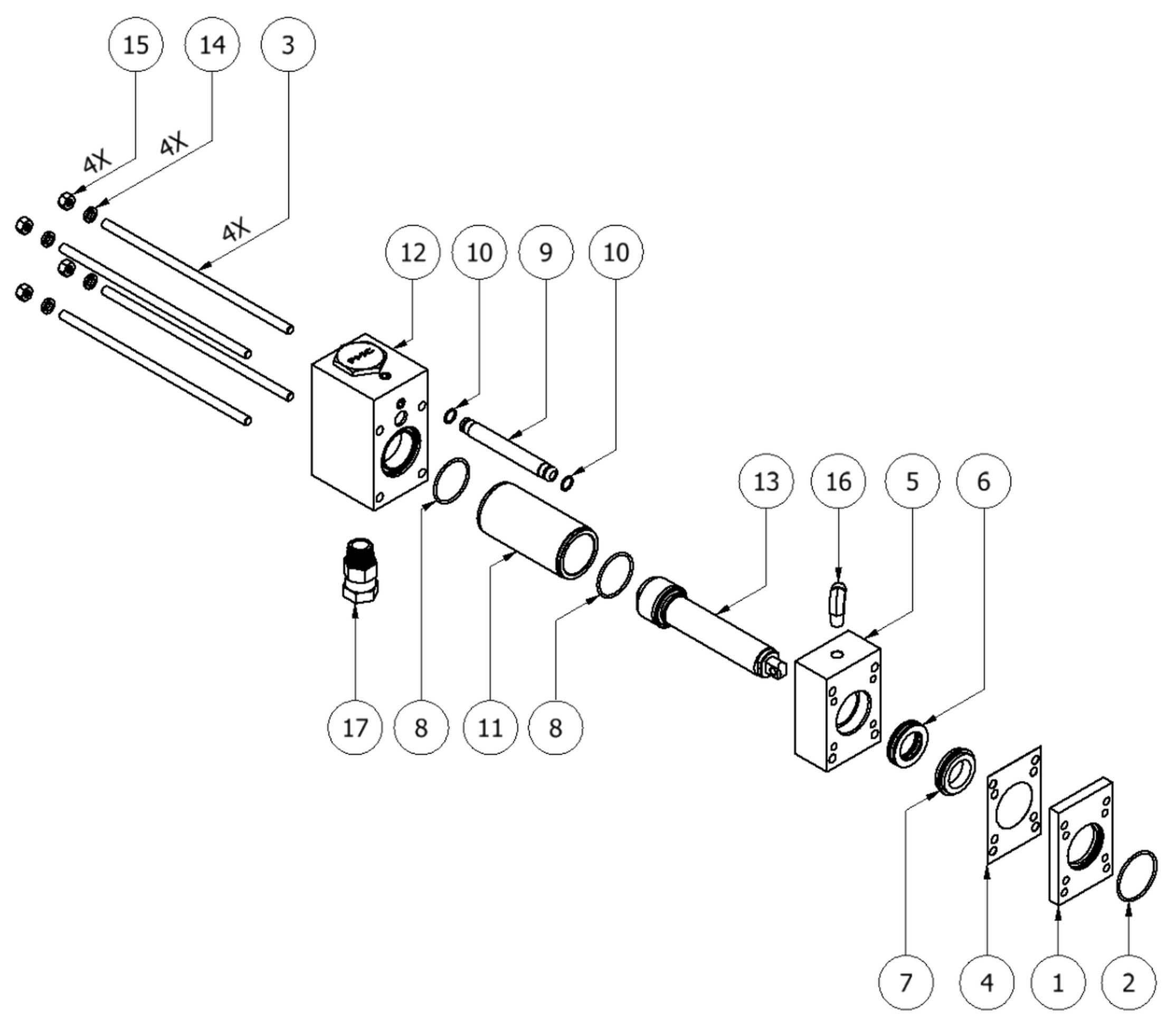

PMC “a” pump assembly, size 120 (see page 64)
Item 2 · PMC PU-05001-120
Not listed online yet — we can order it for you.
Ask for a price9
PMC Polyurethane Machinery Mounting Bolt
Item 9 · PMC PU-05008 · SKU 59015
$3.56
7
PMC Polyurethane Machinery Male Elbow 3/8 X 1/4
Item 7 · PMC RA-00066A · SKU 59067
$18.36
5
PMC Lube cylinder
Item 5 · PMC PU-05003
Not listed online yet — we can order it for you.
Ask for a price6
PMC Polyurethane Machinery Pump Cylinder Plug
Item 6 · PMC RA-00065A · SKU 59066
$5.48
8
PMC Polyurethane Machinery Male Elbow 1/2 X 3/8
Item 8 · PMC RA-00067A · SKU 59068
$11.84
11
PMC Polyurethane Machinery Activator Plate Cover
Item 11 · PMC PU-01027 · SKU 58901
$95.02
10
PMC Serrated washer 5/16
Item 10 · PMC PU-05008-1
Not listed online yet — we can order it for you.
Ask for a price13
PMC part 13
Item 13
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us4
PMC Polyurethane Machinery Clevis Pin
Item 4 · PMC PU-05007 · SKU 59014
$96.32
3

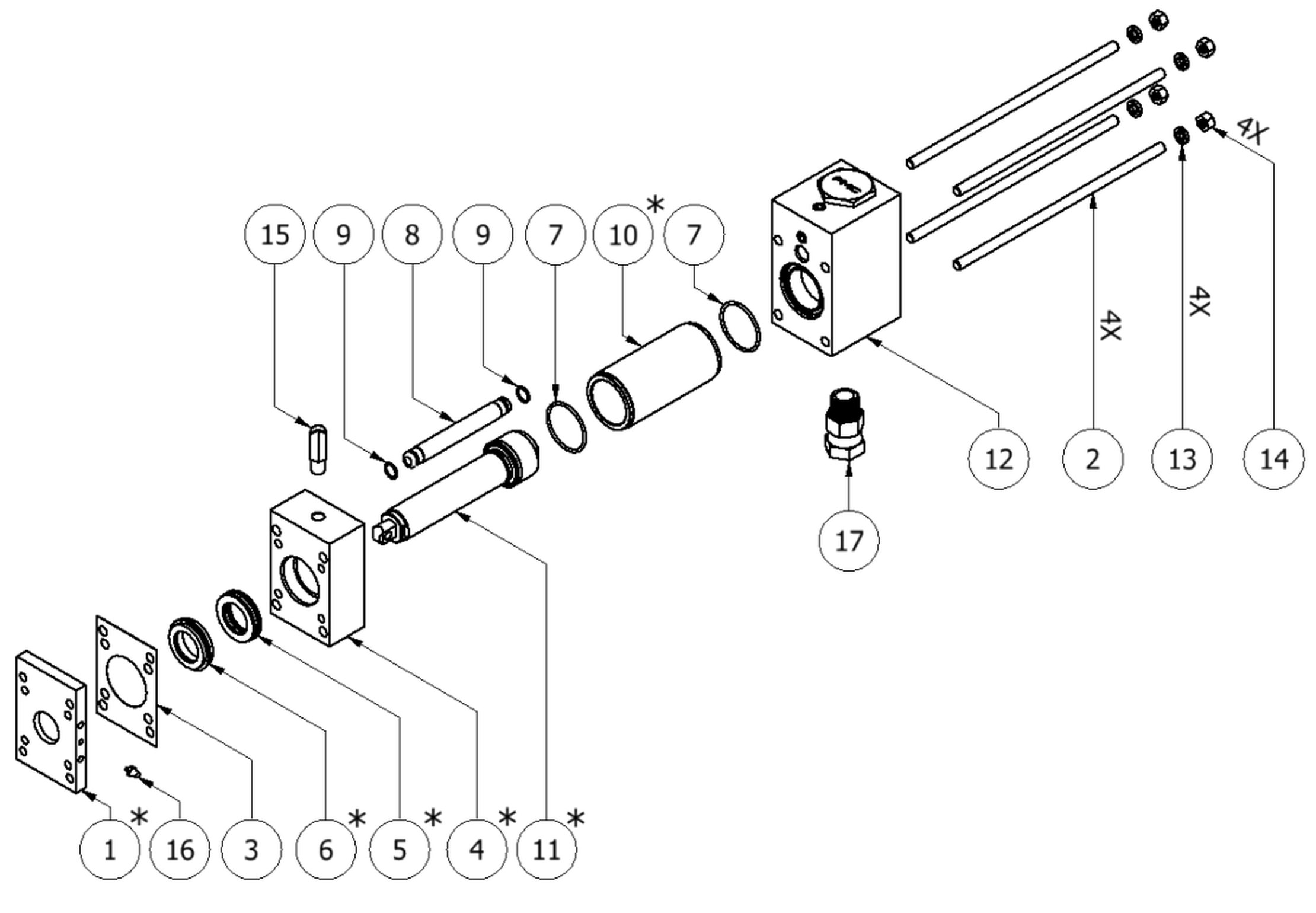

PMC “r” pump assembly, size 120 (see page 62)
Item 3 · PMC PU-05002-120
Not listed online yet — we can order it for you.
Ask for a price9
PMC Polyurethane Machinery Mounting Bolt
Item 9 · PMC PU-05008 · SKU 59015
$3.56
12
PMC part 12
Item 12
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us1

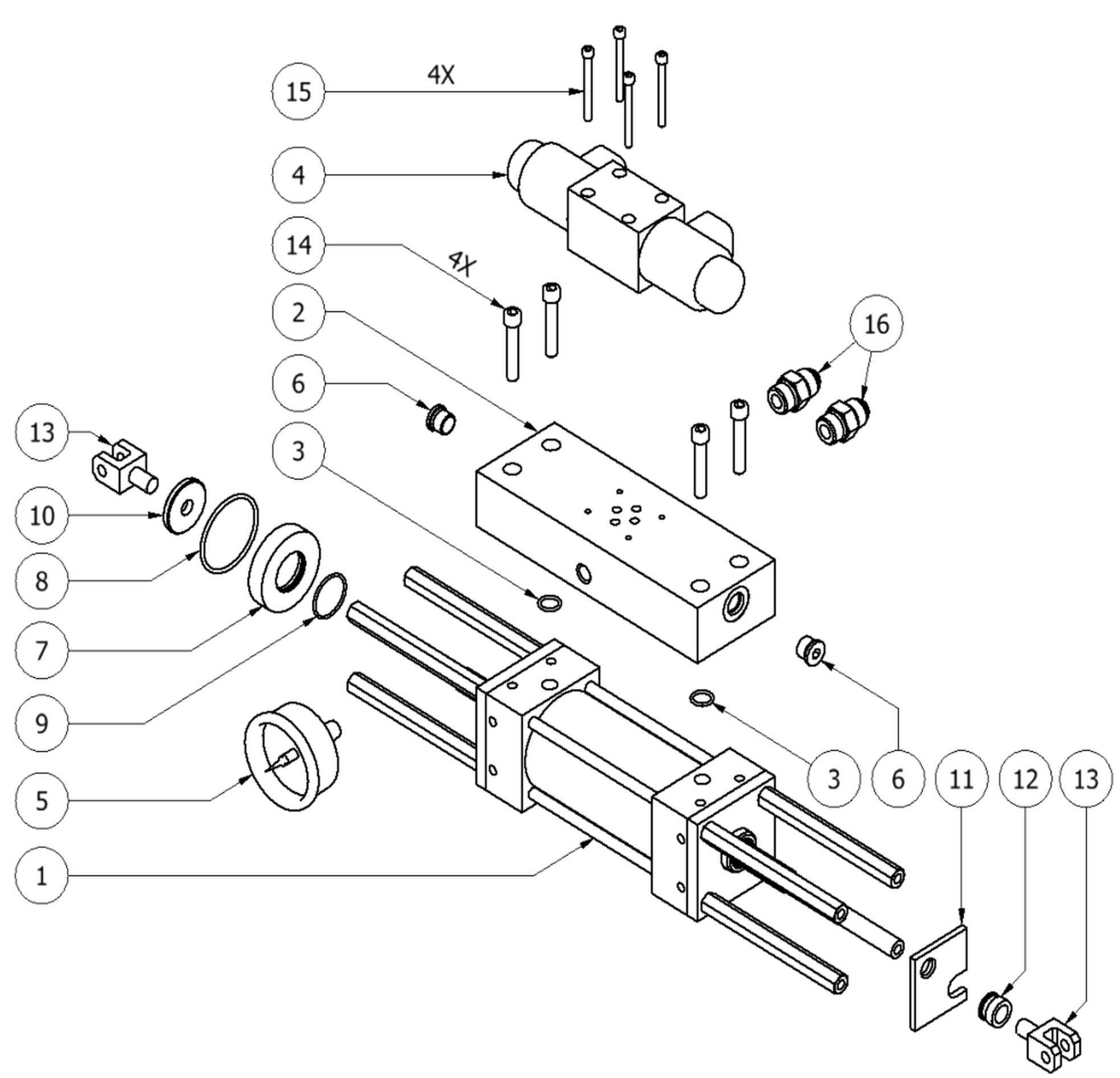

PMC Hydraulic cylinder complete (see page 58)
Item 1 · PMC HI-01
Not listed online yet — we can order it for you.
Ask for a price4
PMC Polyurethane Machinery Clevis Pin
Item 4 · PMC PU-05007 · SKU 59014
$96.32
15
PMC part 15
Item 15
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us4
PMC Directional valve
Item 4 · PMC HI-05003
Not listed online yet — we can order it for you.
Ask for a price14
PMC part 14
Item 14
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us2
PMC Polyurethane Machinery Classic Hydraulic Manifold
Item 2 · PMC HI-05070 · SKU 58389
$263.73
16
PMC 3/4-16 o-ring x 3/4-16 jic nip to an item number represents a part that is different for specific models. in the part list table for details. 58
Item 16 · PMC HI-05012
Not listed online yet — we can order it for you.
Ask for a price6
PMC 6 orb plug
Item 6 · PMC HI-05070-4
Not listed online yet — we can order it for you.
Ask for a price13
PMC Polyurethane Machinery Clevis, Hydraulic
Item 13 · PMC PU-05006 · SKU 59013
$238.18
3
PMC 2mmx12.5mm 75 viton brown
Item 3 · PMC OR-00038A
Not listed online yet — we can order it for you.
Ask for a price10
8
PMC Polyurethane Machinery 136 Viton Lube Cylinder O-Ring
Item 8 · PMC OR-00020A · SKU 58743
$5.06
7
9
PMC Polyurethane Machinery Lube Cylinder -024 O-Ring
Item 9 · PMC OR-00044A · SKU 58756
$2.11
11
12
3
PMC 2mmx12.5mm 75 viton brown
Item 3 · PMC OR-00038A
Not listed online yet — we can order it for you.
Ask for a price6
PMC 6 orb plug
Item 6 · PMC HI-05070-4
Not listed online yet — we can order it for you.
Ask for a price13
PMC Polyurethane Machinery Clevis, Hydraulic
Item 13 · PMC PU-05006 · SKU 59013
$238.18
5
PMC Press gauge 0-2000 psi
Item 5 · PMC HI-05040
Not listed online yet — we can order it for you.
Ask for a price1

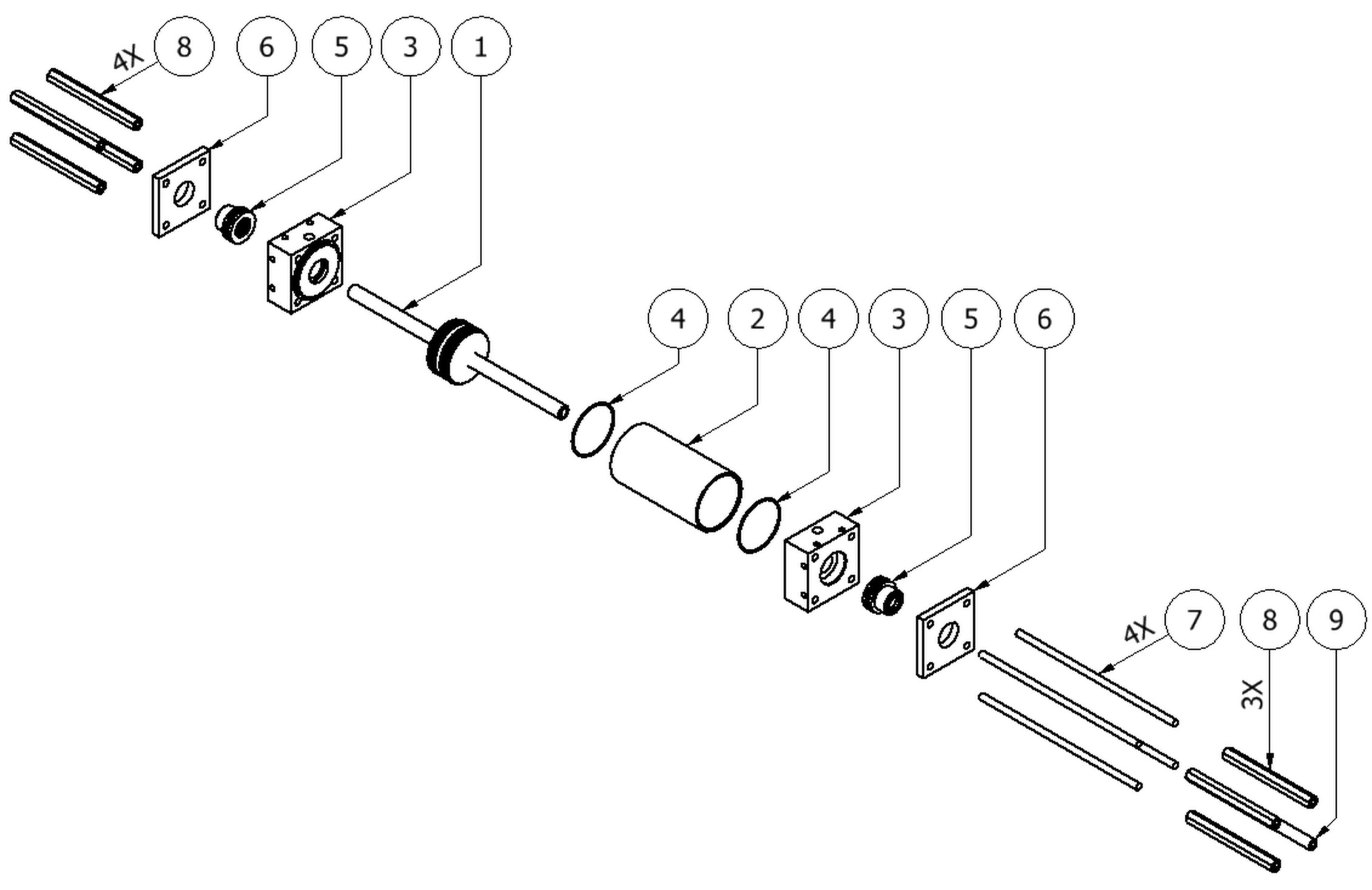

PMC Hydraulic cylinder assembly (see page 59)
Item 1 · PMC HI-05025A
Not listed online yet — we can order it for you.
Ask for a price6
PMC Retainer flange
Item 6 · PMC HI-05025-10
Not listed online yet — we can order it for you.
Ask for a price1
PMC part 1
Item 1
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us8
PMC Hydraulic standoff
Item 8 · PMC HI-05025-11
Not listed online yet — we can order it for you.
Ask for a price5
PMC part 5
Item 5
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us3
PMC Port block
Item 3 · PMC HI-05025-9
Not listed online yet — we can order it for you.
Ask for a price6
PMC Retainer flange
Item 6 · PMC HI-05025-10
Not listed online yet — we can order it for you.
Ask for a price4
PMC O-ring #036 viton
Item 4 · PMC OR-00040A
Not listed online yet — we can order it for you.
Ask for a price2
PMC Hydraulic cylinder
Item 2 · PMC HI-05025-8
Not listed online yet — we can order it for you.
Ask for a price4
PMC O-ring #036 viton
Item 4 · PMC OR-00040A
Not listed online yet — we can order it for you.
Ask for a price3
PMC Port block
Item 3 · PMC HI-05025-9
Not listed online yet — we can order it for you.
Ask for a price5
PMC part 5
Item 5
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us8
PMC Hydraulic standoff
Item 8 · PMC HI-05025-11
Not listed online yet — we can order it for you.
Ask for a price7
9
PMC Reversing switch standoff an item number represents a part that is different for specific models. the part list table for details. 59
Item 9 · PMC HI-05025-12
Not listed online yet — we can order it for you.
Ask for a price2
1
5
PMC O-ring #218 hyd cylinder rod number represents a part that is different for specific models. list table for details. 60
Item 5 · PMC OR-00039A
Not listed online yet — we can order it for you.
Ask for a price3

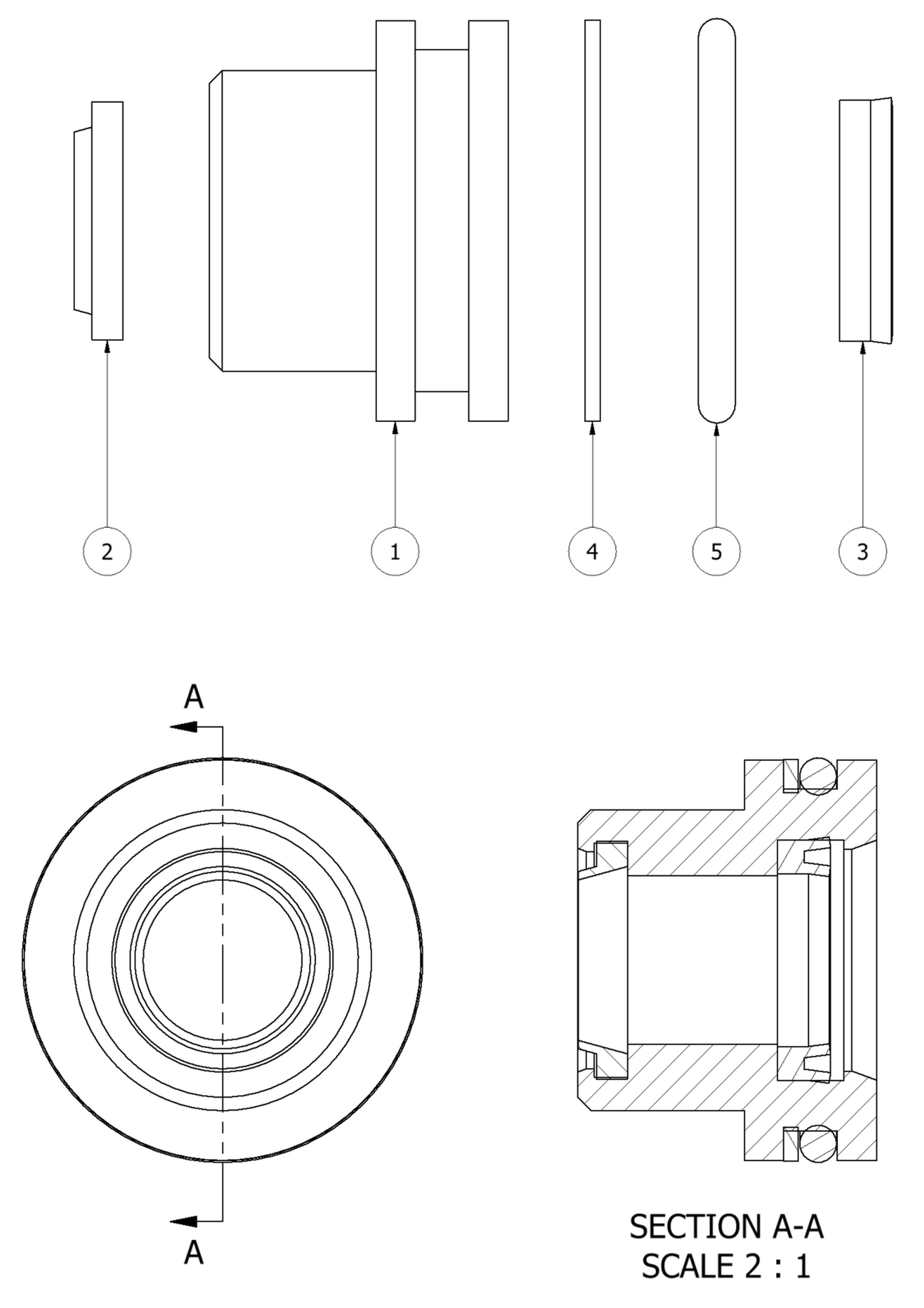

PMC Shaft seal
Item 3 · PMC HI-05025-5
Not listed online yet — we can order it for you.
Ask for a price4
PMC Back-up ring
Item 4 · PMC HI-05025-6
Not listed online yet — we can order it for you.
Ask for a price3
4
PMC Back up ring
Item 4 · PMC HI-05025-2
Not listed online yet — we can order it for you.
Ask for a price2
3
4
PMC Back up ring
Item 4 · PMC HI-05025-2
Not listed online yet — we can order it for you.
Ask for a price1
PMC Polyurethane Machinery Hydraulic Clsc Piston
Item 1 · PMC HI-05025-7 · SKU 60493
$809.14
8

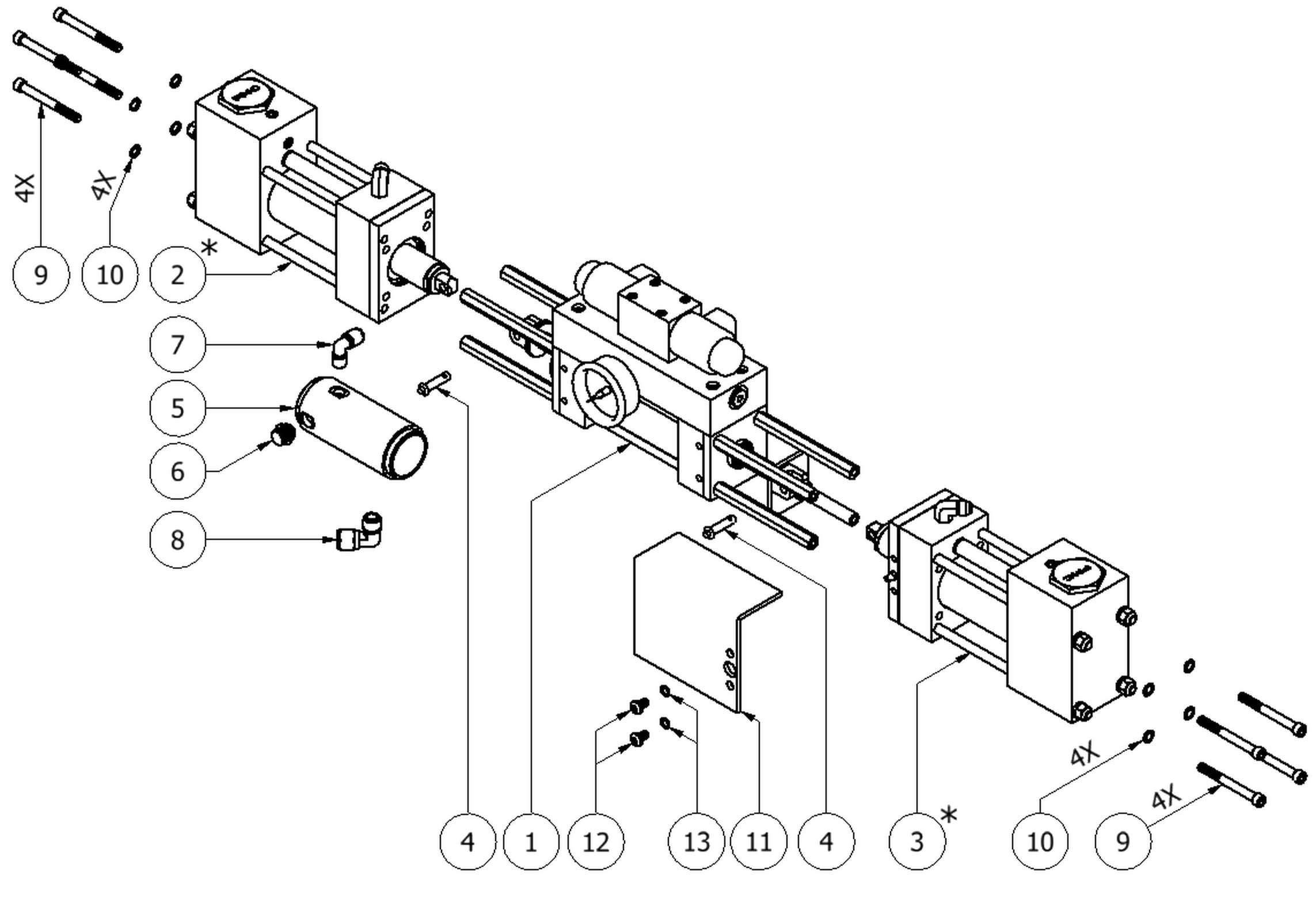

PMC Crossover tube
Item 8 · PMC PU-05017
Not listed online yet — we can order it for you.
Ask for a price15
PMC 1/4 npt x 9/16-18 jic 90 deg e
Item 15 · PMC HI-05038
Not listed online yet — we can order it for you.
Ask for a price9
9
10
7
PMC Polyurethane Machinery Viton 90D Pump Cy #133 O-Ring
Item 7 · PMC OR-00046A · SKU 58758
$12.98
7
PMC Polyurethane Machinery Viton 90D Pump Cy #133 O-Ring
Item 7 · PMC OR-00046A · SKU 58758
$12.98
12
PMC part 12
Item 12
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us2
13
14
17
PMC 3/4 mpt x 3/4 fpt sw next to an item number represents a part that is different for specific in the part list table for details.
Item 17 · PMC HI-05016
Not listed online yet — we can order it for you.
Ask for a price16
PMC Polyurethane Machinery Grease Fitting
Item 16 · PMC TN-04186 · SKU 58814
$3.96
1
PMC "r" packing retainer flange
Item 1 · PMC PU-05032-80
Not listed online yet — we can order it for you.
Ask for a price6
PMC Shaft bearing, 120, r
Item 6 · PMC PU-03010
Not listed online yet — we can order it for you.
Ask for a price11
PMC part 11
Item 11
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us3
PMC Polyurethane Machinery Cylinder Flange Gasket
Item 3 · PMC PU-01013A · SKU 60240
$15.08
5
PMC Polyurethane Machinery Triple Lip Seal, 120 Pump
Item 5 · PMC PU-03000 · SKU 58902
$112.02
4
14
15
3
10
12
PMC part 12
Item 12
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us10
9
PMC Crossover tube
Item 9 · PMC PU-05017
Not listed online yet — we can order it for you.
Ask for a price16
PMC 1/4 npt x 9/16-18 jic 90 deg e
Item 16 · PMC HI-05038
Not listed online yet — we can order it for you.
Ask for a price13
PMC part 13
Item 13
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us6
PMC Polyurethane Machinery Triple Lip Seal, 120 Pump
Item 6 · PMC PU-03000 · SKU 58902
$112.02
5
8
PMC Polyurethane Machinery Viton 90D Pump Cy #133 O-Ring
Item 8 · PMC OR-00046A · SKU 58758
$12.98
11
17
PMC 3/4 mpt x 3/4 fpt sw item number represents a part that is different for specific models. part list table for details. 65
Item 17 · PMC HI-05016
Not listed online yet — we can order it for you.
Ask for a price8
PMC Polyurethane Machinery Viton 90D Pump Cy #133 O-Ring
Item 8 · PMC OR-00046A · SKU 58758
$12.98
1
PMC "a" packing retainer flange
Item 1 · PMC PU-05013
Not listed online yet — we can order it for you.
Ask for a price2
PMC Polyurethane Machinery 136 Viton Lube Cylinder O-Ring
Item 2 · PMC OR-00020A · SKU 58743
$5.06
7
PMC Polyurethane Machinery A-Side Shaft Bearing, 120
Item 7 · PMC PU-03005 · SKU 58907
$32.86
4
PMC Polyurethane Machinery Cylinder Flange Gasket
Item 4 · PMC PU-01013A · SKU 60240
$15.08
13
12
3
10
PMC part 10
Item 10
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us8
PMC Crossover tube
Item 8 · PMC PU-05017
Not listed online yet — we can order it for you.
Ask for a price9
9
11
PMC part 11
Item 11
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us14
PMC 1/4 npt x 9/16-18 jic 90 deg e
Item 14 · PMC HI-05038
Not listed online yet — we can order it for you.
Ask for a price6
PMC Triple lip seal, 80
Item 6 · PMC PU-03001
Not listed online yet — we can order it for you.
Ask for a price5
PMC Pump flange
Item 5 · PMC PU-05014-80
Not listed online yet — we can order it for you.
Ask for a price17
PMC Shaft bearing, 80, a
Item 17 · PMC PU-03006
Not listed online yet — we can order it for you.
Ask for a price18
PMC 3/4 mpt x 3/4 fpt sw an item number represents a part that is different for specific models. the part list table for details. 67
Item 18 · PMC HI-05016
Not listed online yet — we can order it for you.
Ask for a price15
PMC Cylinder
Item 15 · PMC PU-05012-80
Not listed online yet — we can order it for you.
Ask for a price7
PMC Polyurethane Machinery Viton 90D Pump Cy #133 O-Ring
Item 7 · PMC OR-00046A · SKU 58758
$12.98
7
PMC Polyurethane Machinery Viton 90D Pump Cy #133 O-Ring
Item 7 · PMC OR-00046A · SKU 58758
$12.98
16
PMC Retaining ring, 80, 60, a
Item 16 · PMC PU-03016
Not listed online yet — we can order it for you.
Ask for a price1
PMC “a” packing retainer flange
Item 1 · PMC PU-05013
Not listed online yet — we can order it for you.
Ask for a price2
PMC Polyurethane Machinery 136 Viton Lube Cylinder O-Ring
Item 2 · PMC OR-00020A · SKU 58743
$5.06
4
PMC Polyurethane Machinery Cylinder Flange Gasket
Item 4 · PMC PU-01013A · SKU 60240
$15.08
1

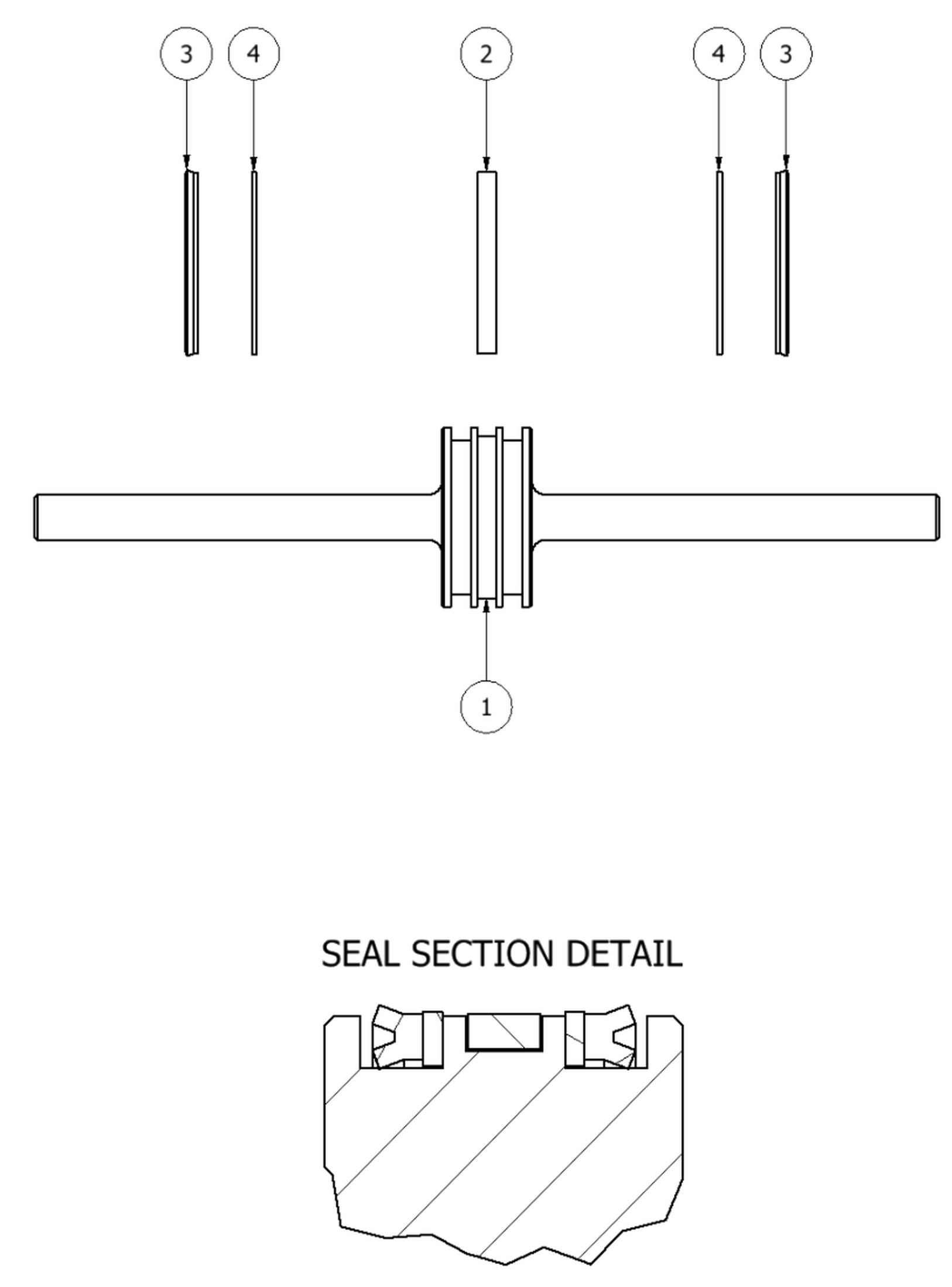

PMC Piston shaft
Item 1 · 2 versions
PMC Polyurethane Machinery Piston Shaft & Cap, 120
PMC PU-05011-120$742.12 · Add
PMC PU-05011-120$742.12 · Add
PMC Polyurethane Machinery Piston Shaft & Cap, 80
PMC PU-05011-80$949.22 · Add
PMC PU-05011-80$949.22 · Add
2
PMC Piston bearing, 120
Item 2 · PMC PU-05041
Not listed online yet — we can order it for you.
Ask for a price3
PMC Polyurethane Machinery Piston Seal, 120 Pump
Item 3 · PMC PU-01016A-012 · SKU 58893
$77.51
4
PMC Polyurethane Machinery Snap Ring, 80 Pump
Item 4 · PMC PU-05030-80 · SKU 60451
$6.90
1
PMC Piston shaft
Item 1 · 2 versions
PMC Polyurethane Machinery Piston Shaft & Cap, 120
PMC PU-05011-120$742.12 · Add
PMC PU-05011-120$742.12 · Add
PMC Polyurethane Machinery Piston Shaft & Cap, 80
PMC PU-05011-80$949.22 · Add
PMC PU-05011-80$949.22 · Add
5
PMC Piston clevis
Item 5 · PMC PU-05031
Not listed online yet — we can order it for you.
Ask for a price6
PMC Polyurethane Machinery Pin, 120 Pump
Item 6 · PMC PU-05029 · SKU 60177
$3.26
11
PMC Pump retainer nut
Item 11 · PMC PU-05023-R
Not listed online yet — we can order it for you.
Ask for a price12
PMC Polyurethane Machinery Pump Retainer Nut 05023-1 Gasket
Item 12 · PMC PU-05023-1 · SKU 59330
$9.63
10
PMC Discharge ball
Item 10 · PMC PU-05025
Not listed online yet — we can order it for you.
Ask for a price9
PMC Polyurethane Machinery Discharge Seat
Item 9 · PMC PU-05024 · SKU 59030
$160.32
8
PMC Polyurethane Machinery Discharge Ball Seat Gasket
Item 8 · PMC PU-01003-IG · SKU 58881
$44.61
6
7
PMC Polyurethane Machinery 218 Aflas 80D O-Ring
Item 7 · PMC OR-00051B · SKU 58766
$3.83
5
PMC Polyurethane Machinery Spring
Item 5 · PMC PU-05021 · SKU 58151
$12.83
4
3
PMC Polyurethane Machinery Inlet Seat
Item 3 · PMC PU-05019 · SKU 59025
$217.98
2
PMC Polyurethane Machinery Inlet Ball Seat Gasket
Item 2 · PMC PU-01003-DG · SKU 58880
$31.60
13
PMC Polyurethane Machinery Pipe Plug 1/4-18; 7/8 Taper
Item 13 · PMC HI-05067 · SKU 58386
$7.94
1
8
PMC part 8
Item 8
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us11
PMC 1/2 npt flush seal pipe plug
Item 11 · PMC HI-05037
Not listed online yet — we can order it for you.
Ask for a price7
PMC Polyurethane Machinery Thermal Limit Overtemp Switch
Item 7 · PMC EL-00006A · SKU 57826
$48.95
21
PMC part 21
Item 21
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us14
PMC GM-05423-10
Item 14 · PMC GM-05423-10
Not listed online yet — we can order it for you.
Ask for a price20
13
PMC Phenolic standoff
Item 13 · PMC GM-05423-9
Not listed online yet — we can order it for you.
Ask for a price2

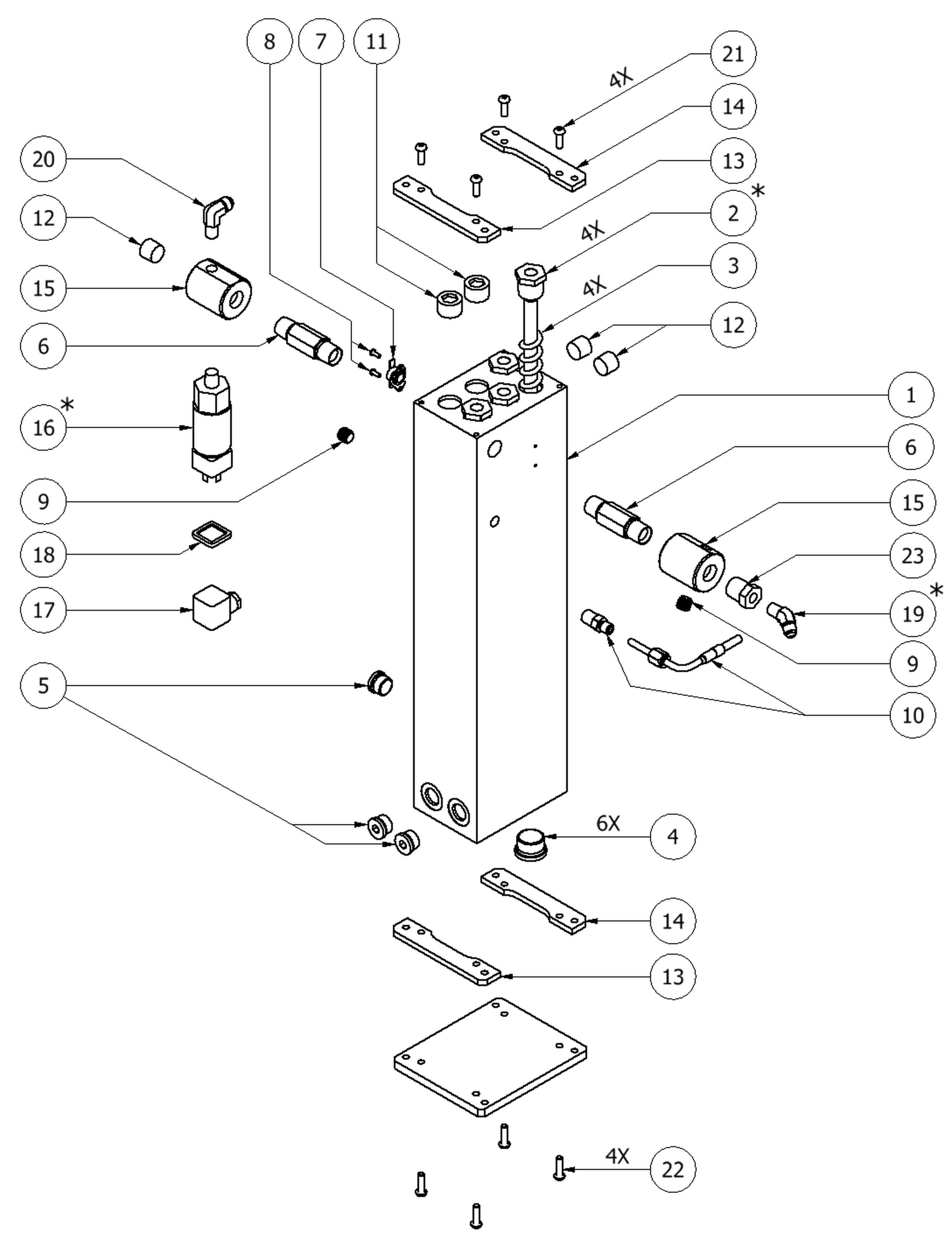

PMC Heater assembly "r" side
Item 2 · 2 versions
PMC Polyurethane Machinery Fire Rod, 1250w, 3/4 NPT, 17.5
PMC GM-05423-1250$229.55 · Add
PMC GM-05423-1250$229.55 · Add
PMC Polyurethane Machinery PreHeater R-Side 6kw
PMC PH-4$4,505.88 · Add
PMC PH-4$4,505.88 · Add
12
PMC Phenolic standoff
Item 12 · PMC HI-05035
Not listed online yet — we can order it for you.
Ask for a price3
PMC Spring 18"
Item 3 · PMC GM-05423-7
Not listed online yet — we can order it for you.
Ask for a price15
PMC part 15
Item 15
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us12
PMC Phenolic standoff
Item 12 · PMC HI-05035
Not listed online yet — we can order it for you.
Ask for a price6
PMC 1/2 npt long hex nipple
Item 6 · PMC EL-05032
Not listed online yet — we can order it for you.
Ask for a price1
PMC Polyurethane Machinery PreHeater A, 6.000kw, Classic
Item 1 · PMC PH-3 · SKU 58841
$4,505.88
16
PMC Polyurethane Machinery Pressure Switch, 2200psi
Item 16 · PMC EL-42-2200 · SKU 57998
$168.00
6
PMC 1/2 npt long hex nipple
Item 6 · PMC EL-05032
Not listed online yet — we can order it for you.
Ask for a price9
PMC Thermocouple
Item 9 · PMC HI-05036
Not listed online yet — we can order it for you.
Ask for a price15
PMC part 15
Item 15
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us18
PMC Polyurethane Machinery Solenoid Valve Conn. Gasket
Item 18 · PMC EL-00053 · SKU 57839
$2.07
23
PMC Polyurethane Machinery 1/2″ NPTF Male X 1/4″ NPTF F
Item 23 · PMC 200219 · SKU 200219
$3.18
17
PMC Polyurethane Machinery Solenoid Valve Connector
Item 17 · PMC EL-00052 · SKU 57838
$11.46
19
PMC Outlet heater fitting “a” 1/4 npt x 9/16-18 jic 90 deg e
Item 19 · PMC HI-05026
Not listed online yet — we can order it for you.
Ask for a price9
PMC Thermocouple
Item 9 · PMC HI-05036
Not listed online yet — we can order it for you.
Ask for a price5
PMC 3/4-16 o-ring plug
Item 5 · PMC HI-05033
Not listed online yet — we can order it for you.
Ask for a price10
PMC 3/4 npt flush seal pipe plug
Item 10 · PMC HI-05021
Not listed online yet — we can order it for you.
Ask for a price4
14
PMC GM-05423-10
Item 14 · PMC GM-05423-10
Not listed online yet — we can order it for you.
Ask for a price13
PMC Phenolic standoff
Item 13 · PMC GM-05423-9
Not listed online yet — we can order it for you.
Ask for a price22
PMC part 22
Item 22
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us3

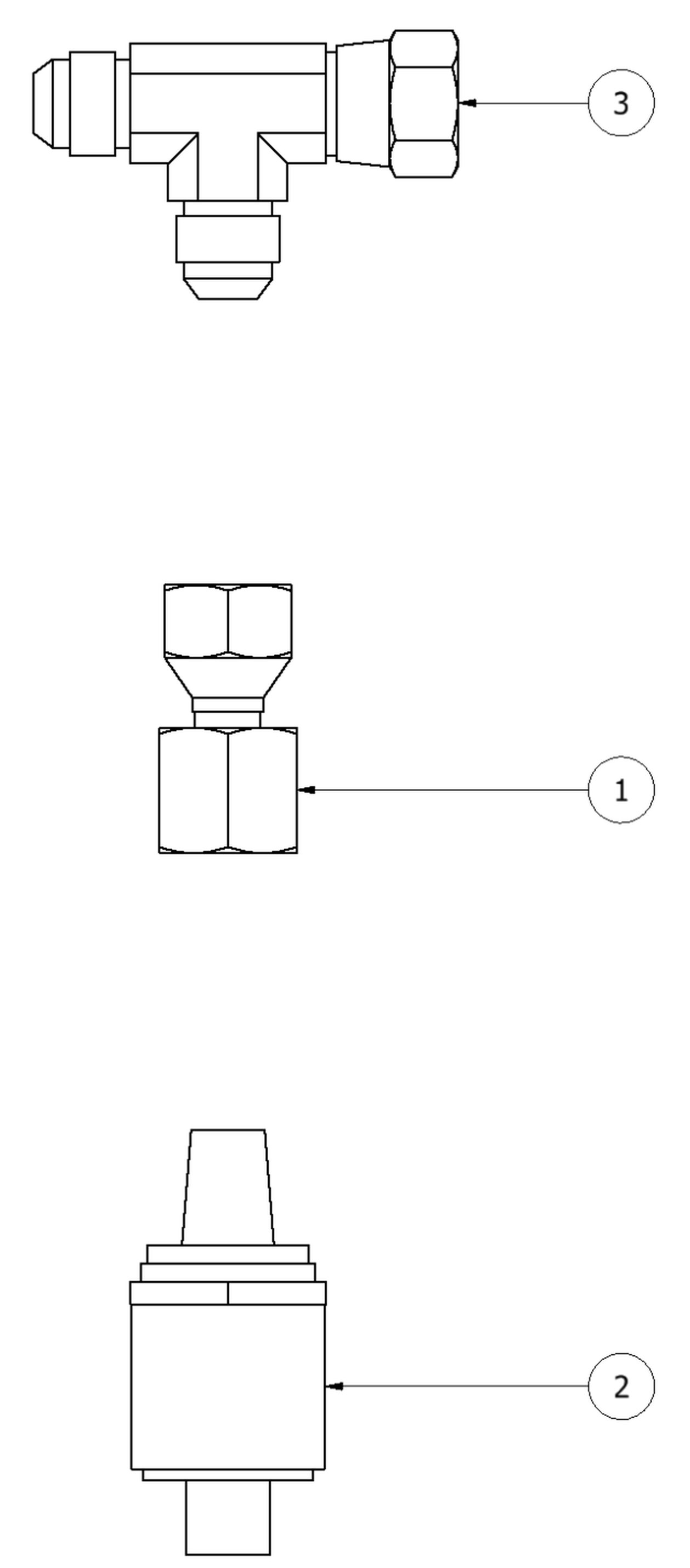

PMC 6 jic swivel nut run tee number represents a part that is different for specific models. list table for details. 76
Item 3 · PMC HI-05006-5
Not listed online yet — we can order it for you.
Ask for a price1
PMC 1/4 npt x 6 jic gauge fitting
Item 1 · PMC HI-05006-6
Not listed online yet — we can order it for you.
Ask for a price2
PMC 0-5000 pressure transducer
Item 2 · PMC EL-195
Not listed online yet — we can order it for you.
Ask for a price1

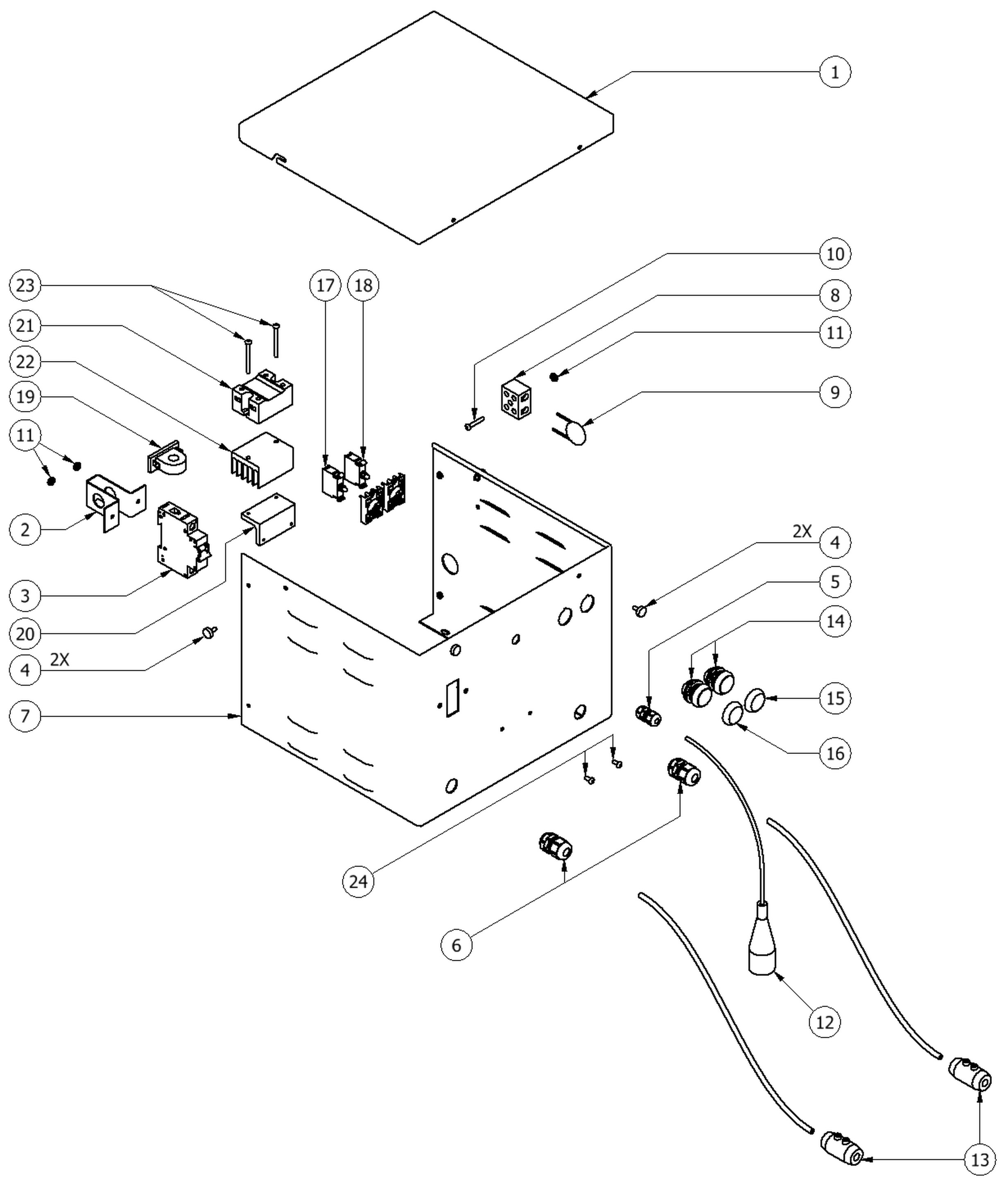

PMC Transformer cover
Item 1 · PMC RM-05700-26
Not listed online yet — we can order it for you.
Ask for a price10
PMC part 10
Item 10
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us18
23
PMC part 23
Item 23
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us17
8
PMC Polyurethane Machinery Terminal Block
Item 8 · PMC EL-192 · SKU 57968
$10.63
21
PMC Polyurethane Machinery Hose Heat Relay
Item 21 · PMC EL-35 · SKU 57990
$314.00
11
PMC part 11
Item 11
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us22
9
PMC Polyurethane Machinery Inrush Current Limiter
Item 9 · PMC EL-193 · SKU 57969
$18.26
19
11
PMC part 11
Item 11
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us2
PMC Polyurethane Machinery Mounting Plate for Hose Breake
Item 2 · PMC EL-00118A-00-1 · SKU 57845
$17.38
4
PMC Transformer knob
Item 4 · PMC EL-05700-27
Not listed online yet — we can order it for you.
Ask for a price5
PMC Polyurethane Machinery Heyco SR Thermocouple
Item 5 · PMC EL-000P7 · SKU 57843
$4.97
3
PMC Polyurethane Machinery Circuit Breaker, 63A, 1 Pole
Item 3 · PMC EL-150 · SKU 57933
$47.13
14
PMC Light housing
Item 14 · PMC EL-134
Not listed online yet — we can order it for you.
Ask for a price20
PMC Relay bracket
Item 20 · PMC EL-35-2
Not listed online yet — we can order it for you.
Ask for a price4
PMC Transformer knob
Item 4 · PMC EL-05700-27
Not listed online yet — we can order it for you.
Ask for a price15
7
PMC Transformer cover
Item 7 · PMC RM-05700-25
Not listed online yet — we can order it for you.
Ask for a price16
24
PMC part 24
Item 24
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us6
PMC Polyurethane Machinery Heyco #6 Awg Strain Relief
Item 6 · PMC EL-000P12 · SKU 57841
$4.97
12
PMC Polyurethane Machinery Thermocouple Harness, 24″
Item 12 · PMC EL-05235 · SKU 57870
$60.80
13
PMC Polyurethane Machinery Connector Body Heat Hose
Item 13 · PMC KT-00029A-1 · SKU 58509
$32.19
3
PMC Polyurethane Machinery Screen, 30 Mesh
Item 3 · PMC RA-00074-03-30A · SKU 59073
$18.12
2
PMC 3/4" swivel fitting
Item 2 · PMC HI-05016
Not listed online yet — we can order it for you.
Ask for a price8
PMC 3/4" ball valve
Item 8 · PMC RA-00078A
Not listed online yet — we can order it for you.
Ask for a price9
PMC 3/4" x 3/4" swivel fitting "r" side
Item 9 · PMC HI-05016
Not listed online yet — we can order it for you.
Ask for a price7
PMC 3/4" hex nipple
Item 7 · PMC HI-05017
Not listed online yet — we can order it for you.
Ask for a price1
PMC Polyurethane Machinery Y-Strainer Assembly
Item 1 · PMC RA-00074-00A · SKU 59070
$167.69
4
PMC Replacement screen
Item 4 · 2 versions
PMC Polyurethane Machinery Screen, 80 Mesh
PMC RA-00074-03-80A$15.08 · Add
PMC RA-00074-03-80A$15.08 · Add
PMC Polyurethane Machinery Screen, 60 Mesh
PMC RA-00074-03-60A$25.25 · Add
PMC RA-00074-03-60A$25.25 · Add
5
PMC Polyurethane Machinery Filter Screen Spring
Item 5 · PMC SP-00009A · SKU 59144
$9.48
6
PMC Polyurethane Machinery Gasket Y-Strainer
Item 6 · PMC RA-00074-02A · SKU 59071
$8.07
10
PMC Y-strainer nut
Item 10 · PMC RA-00074-04
Not listed online yet — we can order it for you.
Ask for a price1

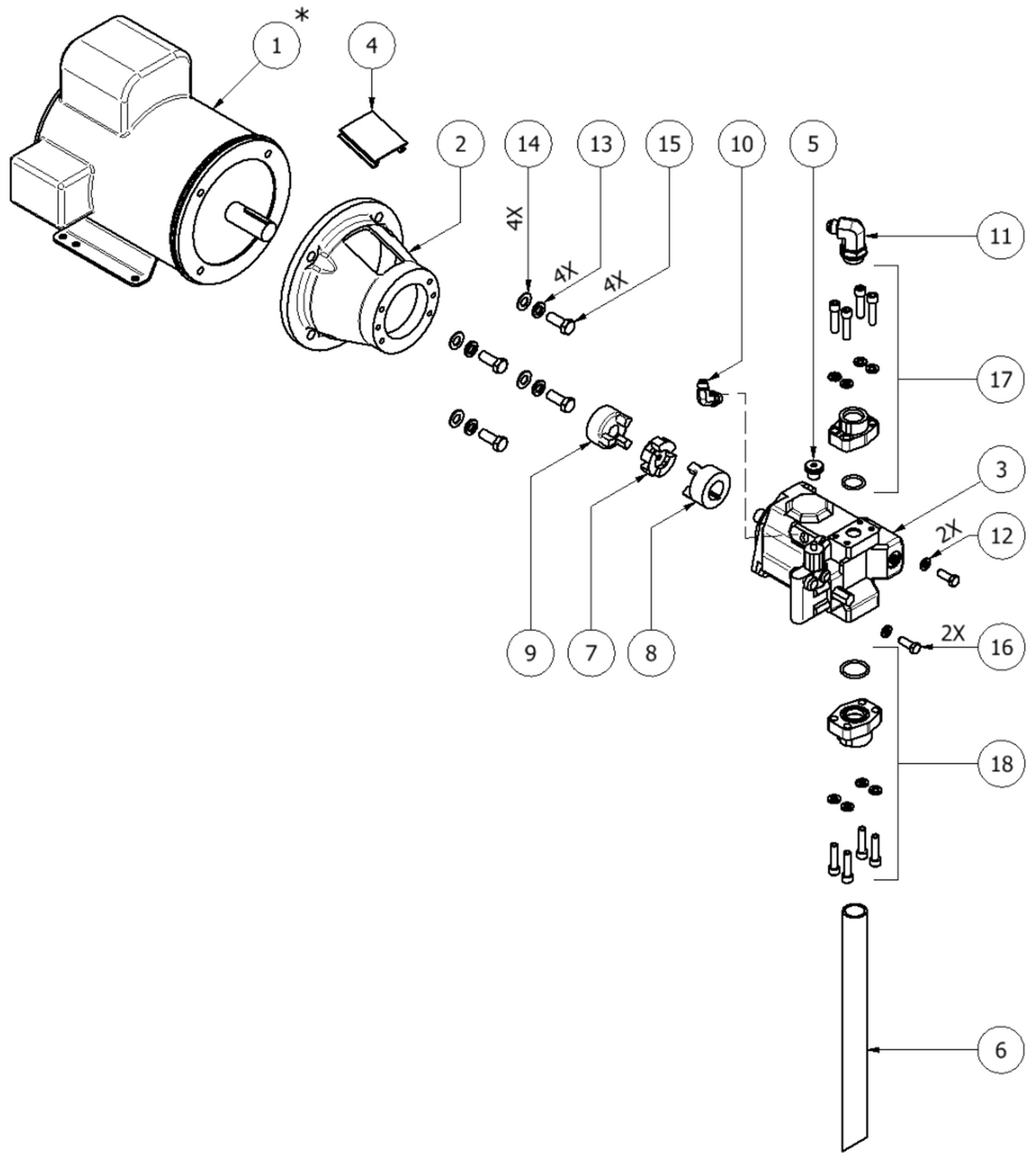

PMC Polyurethane Machinery Electric Motor, 5HP, 1ph, 60Hz
Item 1 · PMC EL-05222 · SKU 57856
$1,544.57
4
PMC Access cover
Item 4 · PMC HI-00005-03
Not listed online yet — we can order it for you.
Ask for a price2
PMC Bell housing
Item 2 · PMC HI-05001
Not listed online yet — we can order it for you.
Ask for a price13
PMC part 13
Item 13
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us15
PMC part 15
Item 15
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us10
PMC Polyurethane Machinery 9/16-18 O-Ring X 9/16-18 JIC 9
Item 10 · PMC HI-05007 · SKU 58308
$22.14
14
PMC part 14
Item 14
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us5
PMC Control knob
Item 5 · PMC HI-05004-1
Not listed online yet — we can order it for you.
Ask for a price11
PMC Fitting 1-1/16 o-ring x 3/4-16 jic
Item 11 · PMC HI-05008
Not listed online yet — we can order it for you.
Ask for a price17
PMC Polyurethane Machinery 1-1/16-12 Outlet Flange
Item 17 · PMC HI-05009 · SKU 58310
$80.02
3
PMC Polyurethane Machinery Hydraulic Pump, 18CC
Item 3 · PMC HI-05004 · SKU 58298
$3,283.59
12
PMC part 12
Item 12
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us16
PMC part 16
Item 16
PMC prints this number on the drawing but leaves it out of the PH-25’s own list — tell us your machine and we will work out what you need.
Ask us8
PMC Polyurethane Machinery Magnaloy Hub, 3/4 X 3/16
Item 8 · PMC HI-00065-03 · SKU 58284
$56.27
9
PMC Polyurethane Machinery Magnaloy Hub, 1-1/8 X 1/4
Item 9 · PMC HI-00065-02 · SKU 58283
$57.56
7
PMC Polyurethane Machinery Magnaloy Insert, 9.45HP
Item 7 · PMC HI-00067 · SKU 58285
$37.75
18
PMC Polyurethane Machinery 1″ NPT Inlet Flange
Item 18 · PMC HI-05010 · SKU 58311
$90.05
6
PMC 1x16 black pipe for hydraulic
Item 6 · PMC HI-00049A
Not listed online yet — we can order it for you.
Ask for a priceResources
Manuals, Service Parts & the Machine
Service ManualPMC MN-04014Maintenance schedulemanual p. 42Replacement kits — what each one containsmanual p. 50Part identification drawingsmanual p. 57
PDFs open in a new tab. The reference numbers on the diagram above match manual MN-04014.
PMC sells the PH-25 pump wet end as rebuild kits rather than loose seals — one per pump size and side. The hydraulic cylinder kit is the other thing these machines need.
Rebuilding something not listed here? Tell us what you need and we will quote it.
The complete PMC PH-25, by heater size and phase. Machines are ordered in — ask us for current lead time.
Buy this machine
Related machines you may also like
Machines are usually special order. Ask us for availability and lead time.
88 of 296 dots are priced online. The rest we quote. Reference numbers match PMC manual MN-04014.
| Assembly | Item | Part | PMC # | SKU | Price | |
|---|---|---|---|---|---|---|
| The machine | 1 | PMC Motor line assy | FR-1 | — | Ask us | Ask |
| The machine | 2 | PMC Polyurethane Machinery PreHeater A, 6.000kw, Classic | PH-3 | 58841 | $4,505.88 | Add |
| The machine | 3 | PMC Polyurethane Machinery PreHeater R-Side 6kw | PH-4 | 58846 | $4,505.88 | Add |
| The machine | 4 | PMC “r” side heater | PH-12 | — | Ask us | Ask |
| The machine | 6 | PMC Polyurethane Machinery 90v Transformer | EL-05225 | 57860 | $2,581.30 | Add |
| The machine | 7 | PMC Polyurethane Machinery Back Left Cover Heater | CL-02001-05A | 57811 | $56.18 | Add |
| The machine | 8 | PMC Polyurethane Machinery Front Left Cover Heater | CL-02001-06A | 57812 | $58.79 | Add |
| The machine | 9 | PMC Polyurethane Machinery Back Right Cover Heater | CL-02002-05A | 57814 | $58.42 | Add |
| The machine | 10 | PMC Polyurethane Machinery Front Right Cover Heater | CL-02002-06A | 57815 | $62.98 | Add |
| The machine | 11 | PMC Heat cover | CL-02001-07A | — | Ask us | Ask |
| The machine | 12 | PMC Pumpline assembly | PL-1A | — | Ask us | Ask |
| The machine | 13 | PMC Polyurethane Machinery Console Knobs | EL-05220-01 | 57852 | $2.95 | Add |
| The machine | 14 | PMC Reversing switch | MQ-01005A | — | Ask us | Ask |
| The machine | 18 | PMC Polyurethane Machinery 12mm Proxsw | EL-153 | 57936 | $151.91 | Add |
| The machine | 29 | PMC Polyurethane Machinery Pressure Gauge 0-3000 PSI | HI-05028 | 58340 | $97.63 | Add |
| The machine | 30 | PMC Polyurethane Machinery Y- Strainer Assembly – A-Side | YS-1 | 60183 | $339.20 | Add |
| The machine | 31 | PMC Y-strainer assembly "r" | YS-2 | — | Ask us | Ask |
| The machine | 32 | PMC Heyco sr incoming power | EL-00088-01A | — | Ask us | Ask |
| The machine | 33 | PMC Polyurethane Machinery Heyco #6 Awg Strain Relief | EL-000P12 | 57841 | $4.97 | Add |
| The machine | 34 | PMC Polyurethane Machinery Strain Relief | EL-000P13 | 57842 | $8.55 | Add |
| The machine | 35 | PMC Straight conduit connector | EL-05230-02 | — | Ask us | Ask |
| The machine | 36 | PMC Rt angle conduit connnector | EL-05230-03 | — | Ask us | Ask |
| The machine | 37 | PMC Polyurethane Machinery Lube Bottle | MQ-01009-01A | 58714 | $4.14 | Add |
| The machine | 38 | PMC Polyurethane Machinery Lube Bottle Lid | MQ-01009-02A | 58715 | $2.20 | Add |
| The machine | 39 | PMC Console assembly | EL-501-31 | — | Ask us | Ask |

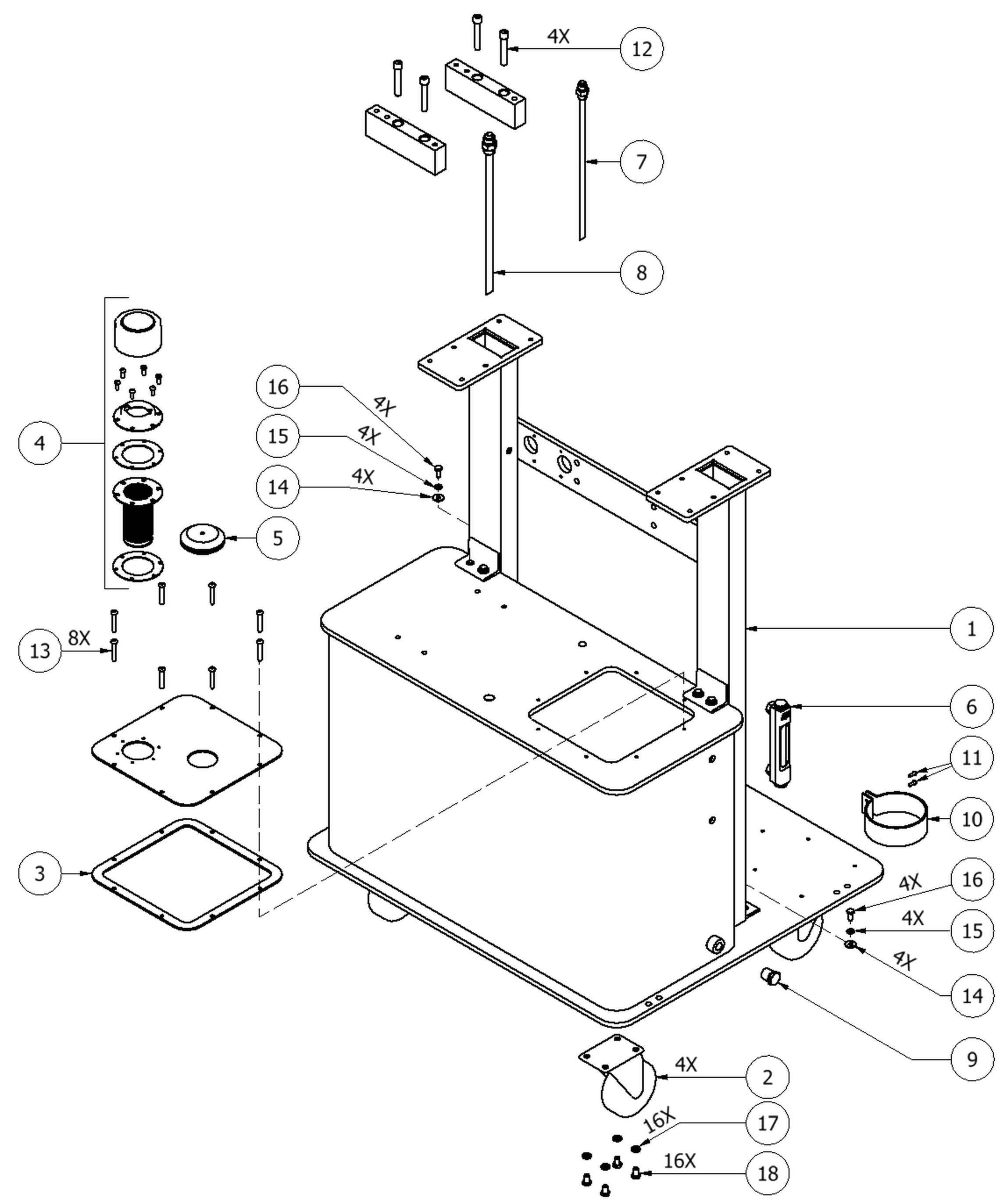

| Frame & tank | 1 | PMC Upright assembly | FR-2 | — | Ask us | Ask |
| Frame & tank | 2 | PMC Polyurethane Machinery 4″ Swivel Caster | TN-05704 | 59215 | $210.10 | Add |
| Frame & tank | 3 | PMC Tank top gasket | HI-00014-03A | — | Ask us | Ask |
| Frame & tank | 4 | PMC Hydraulic fill strainer | HI-00047A | — | Ask us | Ask |
| Frame & tank | 5 | PMC Tank top grommet | HI-00002-A-1 | — | Ask us | Ask |
| Frame & tank | 6 | PMC Polyurethane Machinery Sight, Gauge Tank | HI-00001A | 58271 | $86.45 | Add |
| Frame & tank | 7 | PMC Case drain return tube 3/8 | HI-05041 | — | Ask us | Ask |
| Frame & tank | 8 | PMC Case drain return tube 1/2 | HI-05042 | — | Ask us | Ask |
| Frame & tank | 9 | PMC Drain plug | HI-05048 | — | Ask us | Ask |
| Frame & tank | 10 | PMC Lube bottle bracket | MQ-01008A | — | Ask us | Ask |
| Pumpline | 1 | PMC Hydraulic cylinder complete (see page 58) | HI-01 | — | Ask us | Ask |
| Pumpline | 2 | PMC “a” pump assembly, size 120 (see page 64) | PU-05001-120 | — | Ask us | Ask |
| Pumpline | 3 | PMC “r” pump assembly, size 120 (see page 62) | PU-05002-120 | — | Ask us | Ask |
| Pumpline | 4 | PMC Polyurethane Machinery Clevis Pin | PU-05007 | 59014 | $96.32 | Add |
| Pumpline | 5 | PMC Lube cylinder | PU-05003 | — | Ask us | Ask |
| Pumpline | 6 | PMC Polyurethane Machinery Pump Cylinder Plug | RA-00065A | 59066 | $5.48 | Add |
| Pumpline | 7 | PMC Polyurethane Machinery Male Elbow 3/8 X 1/4 | RA-00066A | 59067 | $18.36 | Add |
| Pumpline | 8 | PMC Polyurethane Machinery Male Elbow 1/2 X 3/8 | RA-00067A | 59068 | $11.84 | Add |
| Pumpline | 9 | PMC Polyurethane Machinery Mounting Bolt | PU-05008 | 59015 | $3.56 | Add |
| Pumpline | 10 | PMC Serrated washer 5/16 | PU-05008-1 | — | Ask us | Ask |
| Pumpline | 11 | PMC Polyurethane Machinery Activator Plate Cover | PU-01027 | 58901 | $95.02 | Add |
| Cylinder, complete | 1 | PMC Hydraulic cylinder assembly (see page 59) | HI-05025A | — | Ask us | Ask |
| Cylinder, complete | 2 | PMC Polyurethane Machinery Classic Hydraulic Manifold | HI-05070 | 58389 | $263.73 | Add |
| Cylinder, complete | 3 | PMC 2mmx12.5mm 75 viton brown | OR-00038A | — | Ask us | Ask |
| Cylinder, complete | 4 | PMC Directional valve | HI-05003 | — | Ask us | Ask |
| Cylinder, complete | 5 | PMC Press gauge 0-2000 psi | HI-05040 | — | Ask us | Ask |
| Cylinder, complete | 6 | PMC 6 orb plug | HI-05070-4 | — | Ask us | Ask |
| Cylinder, complete | 7 | PMC End cap | PU-05004 | — | Ask us | Ask |
| Cylinder, complete | 8 | PMC Polyurethane Machinery 136 Viton Lube Cylinder O-Ring | OR-00020A | 58743 | $5.06 | Add |
| Cylinder, complete | 9 | PMC Polyurethane Machinery Lube Cylinder -024 O-Ring | OR-00044A | 58756 | $2.11 | Add |
| Cylinder, complete | 10 | PMC Baffle | PU-05005 | — | Ask us | Ask |
| Cylinder, complete | 11 | PMC Plate | PU-05009 | — | Ask us | Ask |
| Cylinder, complete | 12 | PMC Bushing | PU-05010 | — | Ask us | Ask |
| Cylinder, complete | 13 | PMC Polyurethane Machinery Clevis, Hydraulic | PU-05006 | 59013 | $238.18 | Add |
| Cylinder, complete | 16 | PMC 3/4-16 o-ring x 3/4-16 jic nip to an item number represents a part that is different for specific models. in the part list table for details. 58 | HI-05012 | — | Ask us | Ask |
| Cylinder | 2 | PMC Hydraulic cylinder | HI-05025-8 | — | Ask us | Ask |
| Cylinder | 3 | PMC Port block | HI-05025-9 | — | Ask us | Ask |
| Cylinder | 4 | PMC O-ring #036 viton | OR-00040A | — | Ask us | Ask |
| Cylinder | 6 | PMC Retainer flange | HI-05025-10 | — | Ask us | Ask |
| Cylinder | 7 | PMC Tie rod | HI-05025-14 | — | Ask us | Ask |
| Cylinder | 8 | PMC Hydraulic standoff | HI-05025-11 | — | Ask us | Ask |
| Cylinder | 9 | PMC Reversing switch standoff an item number represents a part that is different for specific models. the part list table for details. 59 | HI-05025-12 | — | Ask us | Ask |
| Cylinder seals | 1 | PMC Bushing | HI-05025-13 | — | Ask us | Ask |
| Cylinder seals | 2 | PMC Rod wiper | HI-05025-4 | — | Ask us | Ask |
| Cylinder seals | 3 | PMC Shaft seal | HI-05025-5 | — | Ask us | Ask |
| Cylinder seals | 4 | PMC Back-up ring | HI-05025-6 | — | Ask us | Ask |
| Cylinder seals | 5 | PMC O-ring #218 hyd cylinder rod number represents a part that is different for specific models. list table for details. 60 | OR-00039A | — | Ask us | Ask |
| Cylinder piston | 1 | PMC Polyurethane Machinery Hydraulic Clsc Piston | HI-05025-7 | 60493 | $809.14 | Add |
| Cylinder piston | 2 | PMC Wear ring | HI-05025-3 | — | Ask us | Ask |
| Cylinder piston | 3 | PMC U cup | HI-05025-1 | — | Ask us | Ask |
| Cylinder piston | 4 | PMC Back up ring | HI-05025-2 | — | Ask us | Ask |
| R pump | 1 | PMC "r" packing retainer flange | PU-05032-80 | — | Ask us | Ask |
| R pump | 2 | PMC Tie rod | PU-05026 | — | Ask us | Ask |
| R pump | 3 | PMC Polyurethane Machinery Cylinder Flange Gasket | PU-01013A | 60240 | $15.08 | Add |
| R pump | 4 | PMC Pump flange | PU-05014 | — | Ask us | Ask |
| R pump | 5 | PMC Polyurethane Machinery Triple Lip Seal, 120 Pump | PU-03000 | 58902 | $112.02 | Add |
| R pump | 6 | PMC Shaft bearing, 120, r | PU-03010 | — | Ask us | Ask |
| R pump | 7 | PMC Polyurethane Machinery Viton 90D Pump Cy #133 O-Ring | OR-00046A | 58758 | $12.98 | Add |
| R pump | 8 | PMC Crossover tube | PU-05017 | — | Ask us | Ask |
| R pump | 9 | PMC O-ring | OR-00011A | — | Ask us | Ask |
| R pump | 10 | PMC Cylinder | PU-05012 | — | Ask us | Ask |
| R pump | 13 | PMC Washer | PU-05027 | — | Ask us | Ask |
| R pump | 14 | PMC Nut | PU-05028 | — | Ask us | Ask |
| R pump | 15 | PMC 1/4 npt x 9/16-18 jic 90 deg e | HI-05038 | — | Ask us | Ask |
| R pump | 16 | PMC Polyurethane Machinery Grease Fitting | TN-04186 | 58814 | $3.96 | Add |
| R pump | 17 | PMC 3/4 mpt x 3/4 fpt sw next to an item number represents a part that is different for specific in the part list table for details. | HI-05016 | — | Ask us | Ask |
| A pump, 120 | 1 | PMC "a" packing retainer flange | PU-05013 | — | Ask us | Ask |
| A pump, 120 | 2 | PMC Polyurethane Machinery 136 Viton Lube Cylinder O-Ring | OR-00020A | 58743 | $5.06 | Add |
| A pump, 120 | 3 | PMC Tie rod | PU-05026 | — | Ask us | Ask |
| A pump, 120 | 4 | PMC Polyurethane Machinery Cylinder Flange Gasket | PU-01013A | 60240 | $15.08 | Add |
| A pump, 120 | 5 | PMC Pump flange | PU-05014 | — | Ask us | Ask |
| A pump, 120 | 6 | PMC Polyurethane Machinery Triple Lip Seal, 120 Pump | PU-03000 | 58902 | $112.02 | Add |
| A pump, 120 | 7 | PMC Polyurethane Machinery A-Side Shaft Bearing, 120 | PU-03005 | 58907 | $32.86 | Add |
| A pump, 120 | 8 | PMC Polyurethane Machinery Viton 90D Pump Cy #133 O-Ring | OR-00046A | 58758 | $12.98 | Add |
| A pump, 120 | 9 | PMC Crossover tube | PU-05017 | — | Ask us | Ask |
| A pump, 120 | 10 | PMC O-ring | OR-00011A | — | Ask us | Ask |
| A pump, 120 | 11 | PMC Cylinder | PU-05012 | — | Ask us | Ask |
| A pump, 120 | 14 | PMC Washer | PU-05027 | — | Ask us | Ask |
| A pump, 120 | 15 | PMC Nut | PU-05028 | — | Ask us | Ask |
| A pump, 120 | 16 | PMC 1/4 npt x 9/16-18 jic 90 deg e | HI-05038 | — | Ask us | Ask |
| A pump, 120 | 17 | PMC 3/4 mpt x 3/4 fpt sw item number represents a part that is different for specific models. part list table for details. 65 | HI-05016 | — | Ask us | Ask |

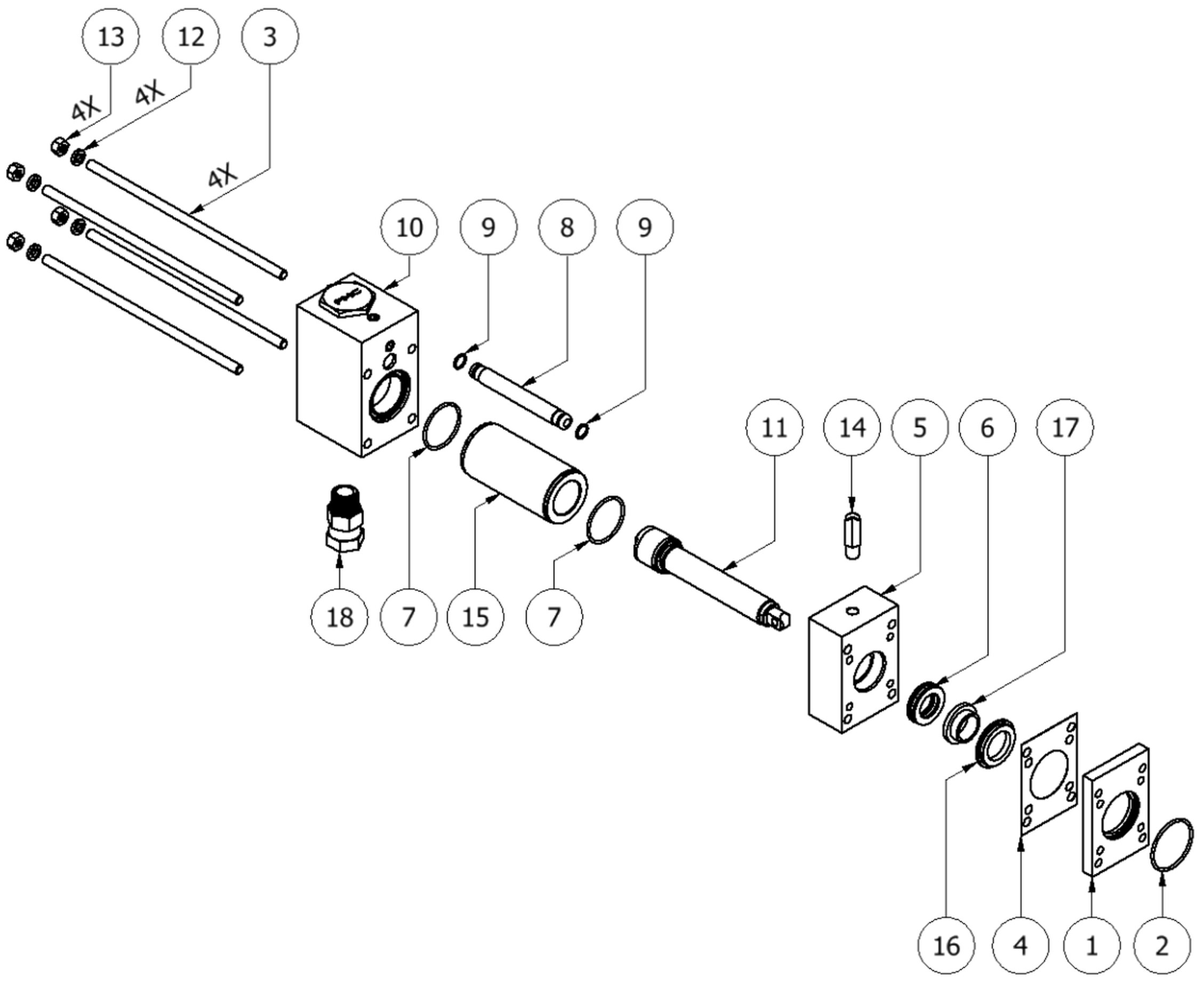

| A pump, 80 | 1 | PMC “a” packing retainer flange | PU-05013 | — | Ask us | Ask |
| A pump, 80 | 2 | PMC Polyurethane Machinery 136 Viton Lube Cylinder O-Ring | OR-00020A | 58743 | $5.06 | Add |
| A pump, 80 | 3 | PMC Tie rod | PU-05026 | — | Ask us | Ask |
| A pump, 80 | 4 | PMC Polyurethane Machinery Cylinder Flange Gasket | PU-01013A | 60240 | $15.08 | Add |
| A pump, 80 | 5 | PMC Pump flange | PU-05014-80 | — | Ask us | Ask |
| A pump, 80 | 6 | PMC Triple lip seal, 80 | PU-03001 | — | Ask us | Ask |
| A pump, 80 | 7 | PMC Polyurethane Machinery Viton 90D Pump Cy #133 O-Ring | OR-00046A | 58758 | $12.98 | Add |
| A pump, 80 | 8 | PMC Crossover tube | PU-05017 | — | Ask us | Ask |
| A pump, 80 | 9 | PMC O-ring | OR-00011A | — | Ask us | Ask |
| A pump, 80 | 12 | PMC Washer | PU-05027 | — | Ask us | Ask |
| A pump, 80 | 13 | PMC Nut | PU-05028 | — | Ask us | Ask |
| A pump, 80 | 14 | PMC 1/4 npt x 9/16-18 jic 90 deg e | HI-05038 | — | Ask us | Ask |
| A pump, 80 | 15 | PMC Cylinder | PU-05012-80 | — | Ask us | Ask |
| A pump, 80 | 16 | PMC Retaining ring, 80, 60, a | PU-03016 | — | Ask us | Ask |
| A pump, 80 | 17 | PMC Shaft bearing, 80, a | PU-03006 | — | Ask us | Ask |
| A pump, 80 | 18 | PMC 3/4 mpt x 3/4 fpt sw an item number represents a part that is different for specific models. the part list table for details. 67 | HI-05016 | — | Ask us | Ask |
| Pump piston | 1 | PMC Polyurethane Machinery Piston Shaft & Cap, 120 | PU-05011-120 | 60172 | $742.12 | Add |
| Pump piston | 2 | PMC Piston bearing, 120 | PU-05041 | — | Ask us | Ask |
| Pump piston | 3 | PMC Polyurethane Machinery Piston Seal, 120 Pump | PU-01016A-012 | 58893 | $77.51 | Add |
| Pump piston | 4 | PMC Polyurethane Machinery Snap Ring, 80 Pump | PU-05030-80 | 60451 | $6.90 | Add |
| Pump piston | 5 | PMC Piston clevis | PU-05031 | — | Ask us | Ask |
| Pump piston | 6 | PMC Polyurethane Machinery Pin, 120 Pump | PU-05029 | 60177 | $3.26 | Add |

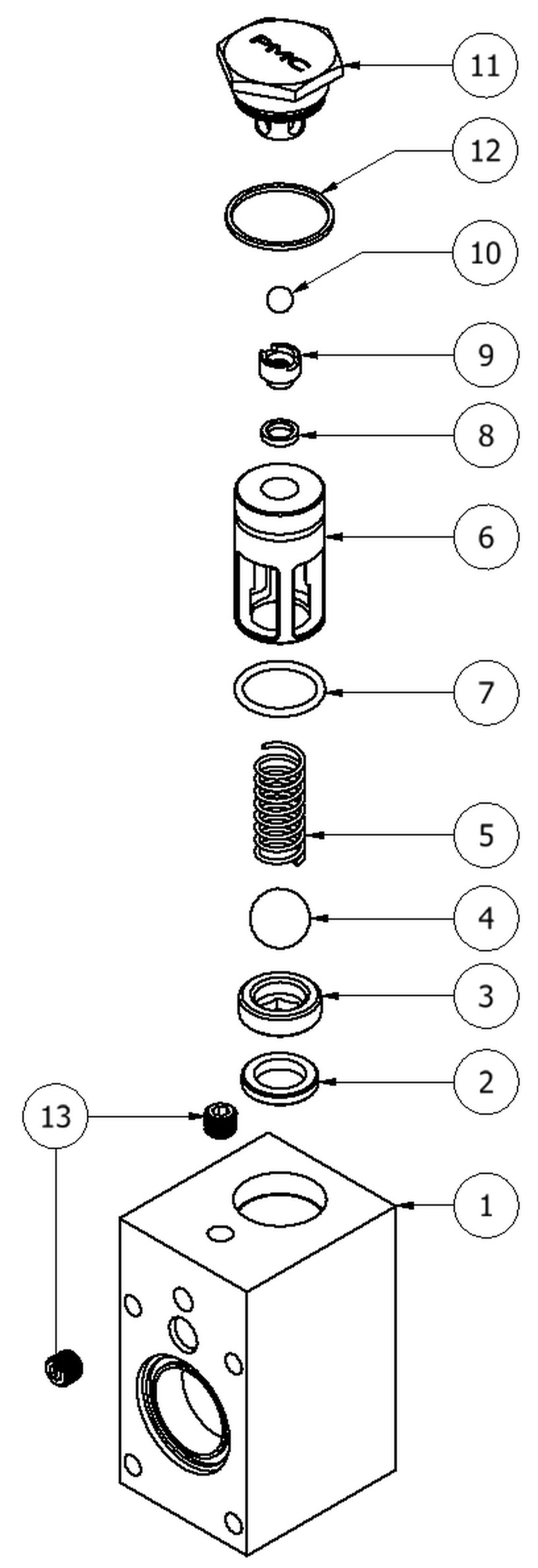

| Pump base | 1 | PMC Pump base | PU-05018 | — | Ask us | Ask |
| Pump base | 2 | PMC Polyurethane Machinery Inlet Ball Seat Gasket | PU-01003-DG | 58880 | $31.60 | Add |
| Pump base | 3 | PMC Polyurethane Machinery Inlet Seat | PU-05019 | 59025 | $217.98 | Add |
| Pump base | 4 | PMC Inlet ball | PU-05020 | — | Ask us | Ask |
| Pump base | 5 | PMC Polyurethane Machinery Spring | PU-05021 | 58151 | $12.83 | Add |
| Pump base | 6 | PMC Sleeve | PU-05022A | — | Ask us | Ask |
| Pump base | 7 | PMC Polyurethane Machinery 218 Aflas 80D O-Ring | OR-00051B | 58766 | $3.83 | Add |
| Pump base | 8 | PMC Polyurethane Machinery Discharge Ball Seat Gasket | PU-01003-IG | 58881 | $44.61 | Add |
| Pump base | 9 | PMC Polyurethane Machinery Discharge Seat | PU-05024 | 59030 | $160.32 | Add |
| Pump base | 10 | PMC Discharge ball | PU-05025 | — | Ask us | Ask |
| Pump base | 11 | PMC Pump retainer nut | PU-05023-R | — | Ask us | Ask |
| Pump base | 12 | PMC Polyurethane Machinery Pump Retainer Nut 05023-1 Gasket | PU-05023-1 | 59330 | $9.63 | Add |
| Pump base | 13 | PMC Polyurethane Machinery Pipe Plug 1/4-18; 7/8 Taper | HI-05067 | 58386 | $7.94 | Add |
| Heater | 1 | PMC Polyurethane Machinery PreHeater A, 6.000kw, Classic | PH-3 | 58841 | $4,505.88 | Add |
| Heater | 2 | PMC Polyurethane Machinery Fire Rod, 1250w, 3/4 NPT, 17.5 | GM-05423-1250 | 58038 | $229.55 | Add |
| Heater | 3 | PMC Spring 18" | GM-05423-7 | — | Ask us | Ask |
| Heater | 4 | PMC 12 orb plug | HI-05034 | — | Ask us | Ask |
| Heater | 5 | PMC 3/4-16 o-ring plug | HI-05033 | — | Ask us | Ask |
| Heater | 6 | PMC 1/2 npt long hex nipple | EL-05032 | — | Ask us | Ask |
| Heater | 7 | PMC Polyurethane Machinery Thermal Limit Overtemp Switch | EL-00006A | 57826 | $48.95 | Add |
| Heater | 9 | PMC Thermocouple | HI-05036 | — | Ask us | Ask |
| Heater | 10 | PMC 3/4 npt flush seal pipe plug | HI-05021 | — | Ask us | Ask |
| Heater | 11 | PMC 1/2 npt flush seal pipe plug | HI-05037 | — | Ask us | Ask |
| Heater | 12 | PMC Phenolic standoff | HI-05035 | — | Ask us | Ask |
| Heater | 13 | PMC Phenolic standoff | GM-05423-9 | — | Ask us | Ask |
| Heater | 14 | PMC GM-05423-10 | GM-05423-10 | — | Ask us | Ask |
| Heater | 16 | PMC Polyurethane Machinery Pressure Switch, 2200psi | EL-42-2200 | 57998 | $168.00 | Add |
| Heater | 17 | PMC Polyurethane Machinery Solenoid Valve Connector | EL-00052 | 57838 | $11.46 | Add |
| Heater | 18 | PMC Polyurethane Machinery Solenoid Valve Conn. Gasket | EL-00053 | 57839 | $2.07 | Add |
| Heater | 19 | PMC Outlet heater fitting “a” 1/4 npt x 9/16-18 jic 90 deg e | HI-05026 | — | Ask us | Ask |
| Heater | 20 | PMC HI-05038 | HI-05038 | — | Ask us | Ask |
| Heater | 23 | PMC Polyurethane Machinery 1/2″ NPTF Male X 1/4″ NPTF F | 200219 | 200219 | $3.18 | Add |
| Transducer | 1 | PMC 1/4 npt x 6 jic gauge fitting | HI-05006-6 | — | Ask us | Ask |
| Transducer | 2 | PMC 0-5000 pressure transducer | EL-195 | — | Ask us | Ask |
| Transducer | 3 | PMC 6 jic swivel nut run tee number represents a part that is different for specific models. list table for details. 76 | HI-05006-5 | — | Ask us | Ask |
| Transformer cover | 1 | PMC Transformer cover | RM-05700-26 | — | Ask us | Ask |
| Transformer cover | 2 | PMC Polyurethane Machinery Mounting Plate for Hose Breake | EL-00118A-00-1 | 57845 | $17.38 | Add |
| Transformer cover | 3 | PMC Polyurethane Machinery Circuit Breaker, 63A, 1 Pole | EL-150 | 57933 | $47.13 | Add |
| Transformer cover | 4 | PMC Transformer knob | EL-05700-27 | — | Ask us | Ask |
| Transformer cover | 5 | PMC Polyurethane Machinery Heyco SR Thermocouple | EL-000P7 | 57843 | $4.97 | Add |
| Transformer cover | 6 | PMC Polyurethane Machinery Heyco #6 Awg Strain Relief | EL-000P12 | 57841 | $4.97 | Add |
| Transformer cover | 7 | PMC Transformer cover | RM-05700-25 | — | Ask us | Ask |
| Transformer cover | 8 | PMC Polyurethane Machinery Terminal Block | EL-192 | 57968 | $10.63 | Add |
| Transformer cover | 9 | PMC Polyurethane Machinery Inrush Current Limiter | EL-193 | 57969 | $18.26 | Add |
| Transformer cover | 12 | PMC Polyurethane Machinery Thermocouple Harness, 24″ | EL-05235 | 57870 | $60.80 | Add |
| Transformer cover | 13 | PMC Polyurethane Machinery Connector Body Heat Hose | KT-00029A-1 | 58509 | $32.19 | Add |
| Transformer cover | 14 | PMC Light housing | EL-134 | — | Ask us | Ask |
| Transformer cover | 15 | PMC Wht lens | EL-136 | — | Ask us | Ask |
| Transformer cover | 16 | PMC Red lens | EL-137 | — | Ask us | Ask |
| Transformer cover | 17 | PMC Light unit | EL-132-R | — | Ask us | Ask |
| Transformer cover | 18 | PMC Light unit | EL-132-W | — | Ask us | Ask |
| Transformer cover | 19 | PMC Transformer | EL-37 | — | Ask us | Ask |
| Transformer cover | 20 | PMC Relay bracket | EL-35-2 | — | Ask us | Ask |
| Transformer cover | 21 | PMC Polyurethane Machinery Hose Heat Relay | EL-35 | 57990 | $314.00 | Add |
| Transformer cover | 22 | PMC Heat sink | EL-35-1 | — | Ask us | Ask |
| Y-strainer | 1 | PMC Polyurethane Machinery Y-Strainer Assembly | RA-00074-00A | 59070 | $167.69 | Add |
| Y-strainer | 2 | PMC 3/4" swivel fitting | HI-05016 | — | Ask us | Ask |
| Y-strainer | 3 | PMC Polyurethane Machinery Screen, 30 Mesh | RA-00074-03-30A | 59073 | $18.12 | Add |
| Y-strainer | 4 | PMC Polyurethane Machinery Screen, 80 Mesh | RA-00074-03-80A | 59075 | $15.08 | Add |
| Y-strainer | 5 | PMC Polyurethane Machinery Filter Screen Spring | SP-00009A | 59144 | $9.48 | Add |
| Y-strainer | 6 | PMC Polyurethane Machinery Gasket Y-Strainer | RA-00074-02A | 59071 | $8.07 | Add |
| Y-strainer | 7 | PMC 3/4" hex nipple | HI-05017 | — | Ask us | Ask |
| Y-strainer | 8 | PMC 3/4" ball valve | RA-00078A | — | Ask us | Ask |
| Y-strainer | 9 | PMC 3/4" x 3/4" swivel fitting "r" side | HI-05016 | — | Ask us | Ask |
| Y-strainer | 10 | PMC Y-strainer nut | RA-00074-04 | — | Ask us | Ask |
| Motor line | 1 | PMC Polyurethane Machinery Electric Motor, 5HP, 1ph, 60Hz | EL-05222 | 57856 | $1,544.57 | Add |
| Motor line | 2 | PMC Bell housing | HI-05001 | — | Ask us | Ask |
| Motor line | 3 | PMC Polyurethane Machinery Hydraulic Pump, 18CC | HI-05004 | 58298 | $3,283.59 | Add |
| Motor line | 4 | PMC Access cover | HI-00005-03 | — | Ask us | Ask |
| Motor line | 5 | PMC Control knob | HI-05004-1 | — | Ask us | Ask |
| Motor line | 6 | PMC 1x16 black pipe for hydraulic | HI-00049A | — | Ask us | Ask |
| Motor line | 7 | PMC Polyurethane Machinery Magnaloy Insert, 9.45HP | HI-00067 | 58285 | $37.75 | Add |
| Motor line | 8 | PMC Polyurethane Machinery Magnaloy Hub, 3/4 X 3/16 | HI-00065-03 | 58284 | $56.27 | Add |
| Motor line | 9 | PMC Polyurethane Machinery Magnaloy Hub, 1-1/8 X 1/4 | HI-00065-02 | 58283 | $57.56 | Add |
| Motor line | 10 | PMC Polyurethane Machinery 9/16-18 O-Ring X 9/16-18 JIC 9 | HI-05007 | 58308 | $22.14 | Add |
| Motor line | 11 | PMC Fitting 1-1/16 o-ring x 3/4-16 jic | HI-05008 | — | Ask us | Ask |
| Motor line | 17 | PMC Polyurethane Machinery 1-1/16-12 Outlet Flange | HI-05009 | 58310 | $80.02 | Add |
| Motor line | 18 | PMC Polyurethane Machinery 1″ NPT Inlet Flange | HI-05010 | 58311 | $90.05 | Add |
