Graco Probler P2 Parts Diagram

← Back to Parts & Diagrams

Graco Probler P2 — Parts Diagram

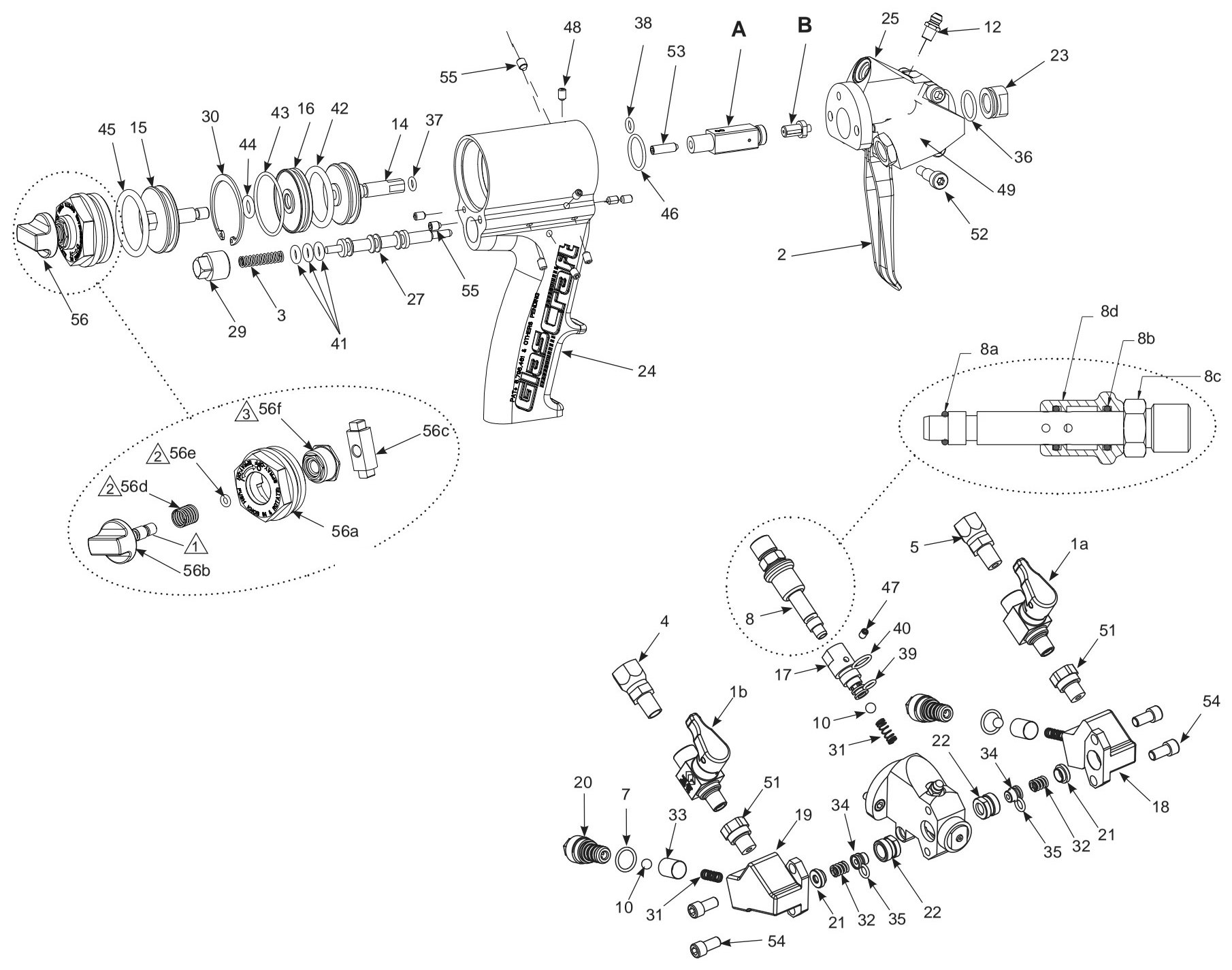

The same exploded drawing we have on the wall in our Brooklyn store. Find your part on the picture, hover the red number sitting on it, and add it straight to your cart. No part number needed.
Priced & ready to orderAsk us for a price

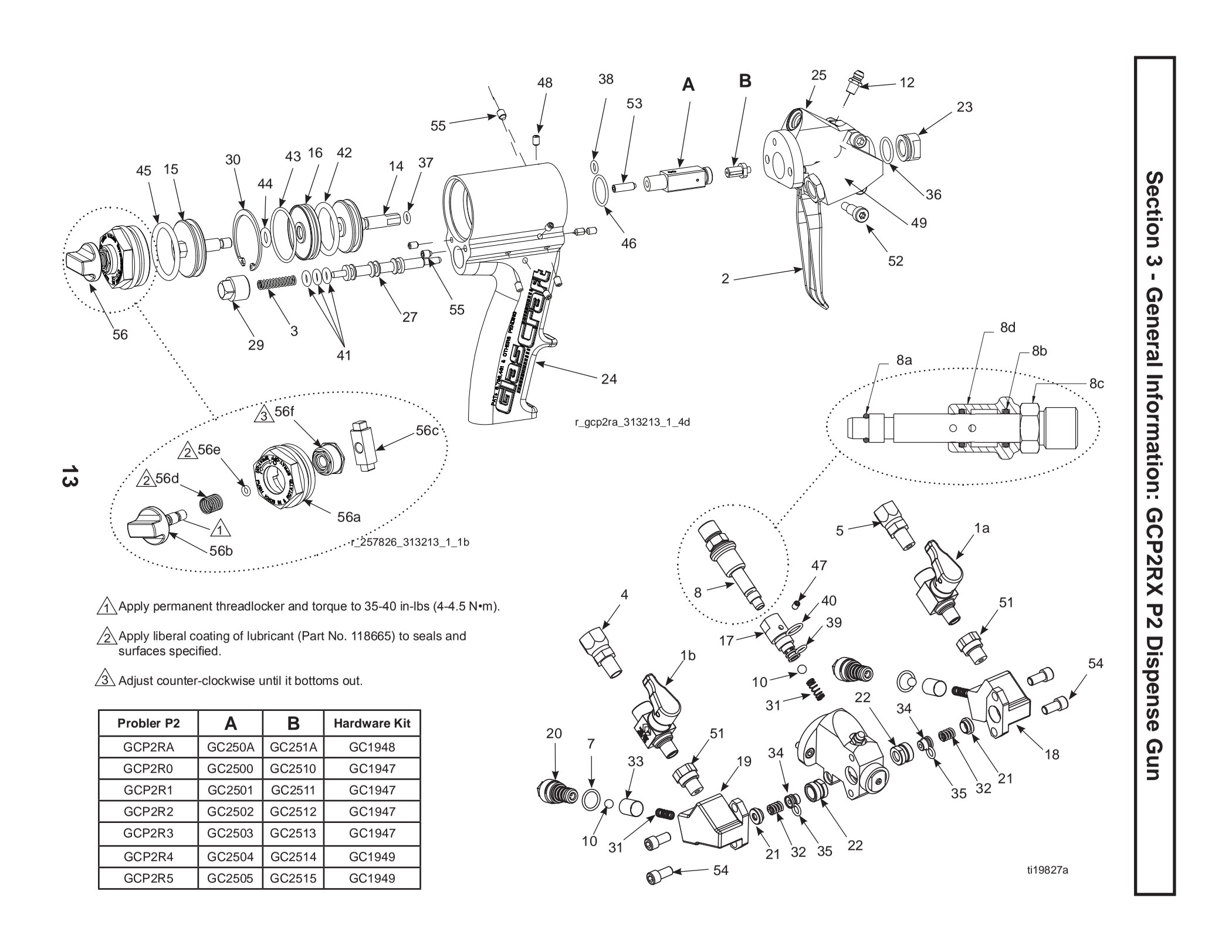

Graco Probler P2 dispense gun exploded parts diagram
2
Graco Probler Gun Trigger – #2

Graco Probler Gun Trigger – #2

Ref 2 · SKU 19054
$116.50
ViewAdd to cart
3
Graco Compression .240 OD #3 Spring

Graco Compression .240 OD #3 Spring

Ref 3 · SKU 54158
$6.20
ViewAdd to cart
4
Graco Swivel U 4 Hose Manifold #4 #12e

Graco Swivel U 4 Hose Manifold #4 #12e

Ref 4 · SKU 117634
$16.20
ViewAdd to cart
5
Graco Swivel U 2 Hose Manifold #5 #12f

Graco Swivel U 2 Hose Manifold #5 #12f

Ref 5 · SKU 117635
$16.80
ViewAdd to cart
7

O-ring

Ref 7 · Graco GC0044
Not listed online yet — we can order it for you.
Ask for a price
8
Graco Assembly Switch Air #8 Switch

Graco Assembly Switch Air #8 Switch

Ref 8 · SKU 53579
$420.00
ViewAdd to cart
A
Graco Mix Chamber P2 Round Kit, 02

Graco Mix Chamber P2 Round Kit, 02

Ref A · SKU 54204
$324.00
ViewAdd to cart
B
Graco Insert Mix Chamber Kit, 02 GC2512

Graco Insert Mix Chamber Kit, 02 GC2512

Ref B · SKU 54211
$42.20
ViewAdd to cart
10
Graco Ball, 1/4 Dia, 302 Stainless Steel – #10 GC0259

Graco Ball, 1/4 Dia, 302 Stainless Steel – #10 GC0259

Ref 10 · SKU 53624
$3.00
ViewAdd to cart
12
Graco Grease Ref #25± & #12 Fitting

Graco Grease Ref #25± & #12 Fitting

Ref 12 · SKU 100846
$7.50
ViewAdd to cart
14

Graco Air Probler 2 #14 Piston, 1-3/8

Ref 14 · SKU 53963
$236.00
ViewAdd to cart
15
Graco Air Probler 2 #15 Piston, 1-1/2

Graco Air Probler 2 #15 Piston, 1-1/2

Ref 15 · SKU 53964
$242.50
ViewAdd to cart
16
Graco Spacer, Cylinder, Probler 2 #16

Graco Spacer, Cylinder, Probler 2 #16

Ref 16 · SKU 53965
$87.50
ViewAdd to cart
17
Graco Insert, Valve, Air Ref #17

Graco Insert, Valve, Air Ref #17

Ref 17 · SKU 53966
$61.25
ViewAdd to cart
18
Graco P2 Ref #18 16N599 Side ISO Block

Graco P2 Ref #18 16N599 Side ISO Block

Ref 18 · SKU 56978
$283.00
ViewAdd to cart
19
Graco P2 Ref #19 Side Poly Block

Graco P2 Ref #19 Side Poly Block

Ref 19 · SKU 56977
$283.00
ViewAdd to cart
1a
Graco A Side Valve Kit – #1a

Graco A Side Valve Kit – #1a

Ref 1a · SKU 256459
$259.50
ViewAdd to cart
1b
Graco B Side Valve Kit – #1b

Graco B Side Valve Kit – #1b

Ref 1b · SKU 256460
$255.00
ViewAdd to cart
20
Graco Valve Check 16P010 #20 Filter

Graco Valve Check 16P010 #20 Filter

Ref 20 · SKU 57176
$115.50
ViewAdd to cart
21
Graco Seal P2 Kit – #21

Graco Seal P2 Kit – #21

Ref 21 · SKU 54194
$21.60
ViewAdd to cart
22
Graco Seal Housing P2 Kit – #22

Graco Seal Housing P2 Kit – #22

Ref 22 · SKU 54196
$105.50
ViewAdd to cart
23
Graco Front Probler 2 Tip – #23

Graco Front Probler 2 Tip – #23

Ref 23 · SKU 53979
$80.75
ViewAdd to cart
24

Graco Handle P2 Kit – #24

Ref 24 · SKU 54201
$627.00
ViewAdd to cart
25
Graco Head, Probler 2 – #25 GC1916

Graco Head, Probler 2 – #25 GC1916

Ref 25 · SKU 53980
$969.00
ViewAdd to cart
27
Graco Trigger Probler 2 Piston – #27

Graco Trigger Probler 2 Piston – #27

Ref 27 · SKU 53982
$301.00
ViewAdd to cart
29
Graco Trigger Probler 2 Plug – #29

Graco Trigger Probler 2 Plug – #29

Ref 29 · SKU 53984
$76.00
ViewAdd to cart
30
Graco Retaining Internal Ring – #30

Graco Retaining Internal Ring – #30

Ref 30 · SKU 53985
$5.95
ViewAdd to cart
31
Graco .24 OD X 5/8 Long Spring – #31x

Graco .24 OD X 5/8 Long Spring – #31x

Ref 31 · SKU 53986
$6.20
ViewAdd to cart
32
Graco .30 OD X 3/8 Long Spring – #32

Graco .30 OD X 3/8 Long Spring – #32

Ref 32 · SKU 53987
$6.85
ViewAdd to cart
33

Graco Filter P2 Kit, 40 Mesh – #33

Ref 33 · SKU 54198
$16.60
ViewAdd to cart
34
Graco Side Seal P2 Kit

Graco Side Seal P2 Kit

Ref 34 · SKU 54200
$27.90
ViewAdd to cart
35
Graco Packing O-Ring

Graco Packing O-Ring

Ref 35 · SKU 111450
$36.80
ViewAdd to cart
36
Graco O-Ring Fusion AP Gun – #36

Graco O-Ring Fusion AP Gun – #36

Ref 36 · SKU 117517
$10.70
ViewAdd to cart
37
Graco Packing O-Rings – #37 C20988

Graco Packing O-Rings – #37 C20988

Ref 37 · SKU 56679
$10.80
ViewAdd to cart
38
Graco O-Ring Viton O-Ring, 2-009 – #38

Graco O-Ring Viton O-Ring, 2-009 – #38

Ref 38 · SKU 54036
$2.35
ViewAdd to cart
39
Graco Packing O-Ring – #39

Graco Packing O-Ring – #39

Ref 39 · SKU 56678
$7.30
ViewAdd to cart
40
Graco O-Ring Viton O-Ring, 2-013 – #40

Graco O-Ring Viton O-Ring, 2-013 – #40

Ref 40 · SKU 54037
$7.50
ViewAdd to cart
41

Graco O-Ring Viton O-Ring, 2-107 – #41 GC2058

Ref 41 · SKU 54038
$6.65
ViewAdd to cart
42
Graco Packing O-Ring – #42

Graco Packing O-Ring – #42

Ref 42 · SKU 56680
$8.15
ViewAdd to cart
43
Premium Spray Products Packing O-Ring – #43 107563

Premium Spray Products Packing O-Ring – #43 107563

Ref 43 · SKU 56681
$14.30
ViewAdd to cart
44
Premium Spray Products Viton O-Ring, 2-109 – #44

Premium Spray Products Viton O-Ring, 2-109 – #44

Ref 44 · SKU 56976
$20.30
ViewAdd to cart
45
Graco Packing O-Ring – #45 C20207

Graco Packing O-Ring – #45 C20207

Ref 45 · SKU 56682
$21.60
ViewAdd to cart
46
Graco O-Ring Viton O-Ring, 2-017 – #46

Graco O-Ring Viton O-Ring, 2-017 – #46

Ref 46 · SKU 54040
$5.20
ViewAdd to cart
47
Graco Set Half Dog Screw, #8 – #47

Graco Set Half Dog Screw, #8 – #47

Ref 47 · SKU 54051
$5.15
ViewAdd to cart
48
Graco Set Flpt Stainless Steel -#48 Screw, #8, 3/16

Graco Set Flpt Stainless Steel -#48 Screw, #8, 3/16

Ref 48 · SKU 54053
$1.75
ViewAdd to cart
49
Graco Shdc SS .190-32X.375 #49* Screw

Graco Shdc SS .190-32X.375 #49* Screw

Ref 49 · SKU 54099
$7.50
ViewAdd to cart
51
Graco Mxf Adapter, 1/8 NPT – #51

Graco Mxf Adapter, 1/8 NPT – #51

Ref 51 · SKU 57288
$17.50
ViewAdd to cart
52
Graco Shoulder Screw, 1/4X10-24STL #52

Graco Shoulder Screw, 1/4X10-24STL #52

Ref 52 · SKU 54113
$21.00
ViewAdd to cart
53
Graco Set Cppt .190-32X.625 #53 Screw

Graco Set Cppt .190-32X.625 #53 Screw

Ref 53 · SKU 54117
$1.30
ViewAdd to cart
54
Graco Shdc SS .250-20X.500 #54 Screw

Graco Shdc SS .250-20X.500 #54 Screw

Ref 54 · SKU 54080
$3.95
ViewAdd to cart
55
Graco Cppt .190-32X.250SE #55 Screw

Graco Cppt .190-32X.250SE #55 Screw

Ref 55 · SKU 54115
$1.20
ViewAdd to cart
56

Graco Assembly Piston Lock P2 Kit – #56

Ref 56 · SKU 258761
$170.50
ViewAdd to cart
8a
Graco Packing O-Ring – #39

Graco Packing O-Ring – #39

Ref 8a · SKU 56678
$7.30
ViewAdd to cart
8b
Graco Packing O-Ring P2 Air Control

Graco Packing O-Ring P2 Air Control

Ref 8b · SKU 56677
$5.60
ViewAdd to cart
8c

Graco Air Tube Switch Valve

Ref 8c · SKU 56979
$194.50
ViewAdd to cart
8d

Graco Air Spool Switch Valve

Ref 8d · SKU 56980
$87.00
ViewAdd to cart
Every numbered part on this drawing is clickable — 55 of 56 are priced online and the rest we will quote. Reference numbers match Graco manual 313213.
RefPartOur SKUPrice
2Graco Probler Gun Trigger – #219054$116.50Add
3Graco Compression .240 OD #3 Spring54158$6.20Add
4Graco Swivel U 4 Hose Manifold #4 #12e117634$16.20Add
5Graco Swivel U 2 Hose Manifold #5 #12f117635$16.80Add
7O-ring — Graco GC0044—Ask usPrice
8Graco Assembly Switch Air #8 Switch53579$420.00Add
AGraco Mix Chamber P2 Round Kit, 0254204$324.00Add
BGraco Insert Mix Chamber Kit, 02 GC251254211$42.20Add
10Graco Ball, 1/4 Dia, 302 Stainless Steel – #10 GC025953624$3.00Add
12Graco Grease Ref #25± & #12 Fitting100846$7.50Add
14Graco Air Probler 2 #14 Piston, 1-3/853963$236.00Add
15Graco Air Probler 2 #15 Piston, 1-1/253964$242.50Add
16Graco Spacer, Cylinder, Probler 2 #1653965$87.50Add
17Graco Insert, Valve, Air Ref #1753966$61.25Add
18Graco P2 Ref #18 16N599 Side ISO Block56978$283.00Add
19Graco P2 Ref #19 Side Poly Block56977$283.00Add
1aGraco A Side Valve Kit – #1a256459$259.50Add
1bGraco B Side Valve Kit – #1b256460$255.00Add
20Graco Valve Check 16P010 #20 Filter57176$115.50Add
21Graco Seal P2 Kit – #2154194$21.60Add
22Graco Seal Housing P2 Kit – #2254196$105.50Add
23Graco Front Probler 2 Tip – #2353979$80.75Add
24Graco Handle P2 Kit – #2454201$627.00Add
25Graco Head, Probler 2 – #25 GC191653980$969.00Add
27Graco Trigger Probler 2 Piston – #2753982$301.00Add
29Graco Trigger Probler 2 Plug – #2953984$76.00Add
30Graco Retaining Internal Ring – #3053985$5.95Add
31Graco .24 OD X 5/8 Long Spring – #31x53986$6.20Add
32Graco .30 OD X 3/8 Long Spring – #3253987$6.85Add
33Graco Filter P2 Kit, 40 Mesh – #3354198$16.60Add
34Graco Side Seal P2 Kit54200$27.90Add
35Graco Packing O-Ring111450$36.80Add
36Graco O-Ring Fusion AP Gun – #36117517$10.70Add
37Graco Packing O-Rings – #37 C2098856679$10.80Add
38Graco O-Ring Viton O-Ring, 2-009 – #3854036$2.35Add
39Graco Packing O-Ring – #3956678$7.30Add
40Graco O-Ring Viton O-Ring, 2-013 – #4054037$7.50Add
41Graco O-Ring Viton O-Ring, 2-107 – #41 GC205854038$6.65Add
42Graco Packing O-Ring – #4256680$8.15Add
43Premium Spray Products Packing O-Ring – #43 10756356681$14.30Add
44Premium Spray Products Viton O-Ring, 2-109 – #4456976$20.30Add
45Graco Packing O-Ring – #45 C2020756682$21.60Add
46Graco O-Ring Viton O-Ring, 2-017 – #4654040$5.20Add
47Graco Set Half Dog Screw, #8 – #4754051$5.15Add
48Graco Set Flpt Stainless Steel -#48 Screw, #8, 3/1654053$1.75Add
49Graco Shdc SS .190-32X.375 #49* Screw54099$7.50Add
51Graco Mxf Adapter, 1/8 NPT – #5157288$17.50Add
52Graco Shoulder Screw, 1/4X10-24STL #5254113$21.00Add
53Graco Set Cppt .190-32X.625 #53 Screw54117$1.30Add
54Graco Shdc SS .250-20X.500 #54 Screw54080$3.95Add
55Graco Cppt .190-32X.250SE #55 Screw54115$1.20Add
56Graco Assembly Piston Lock P2 Kit – #56258761$170.50Add
8aGraco Packing O-Ring – #3956678$7.30Add
8bGraco Packing O-Ring P2 Air Control56677$5.60Add
8cGraco Air Tube Switch Valve56979$194.50Add
8dGraco Air Spool Switch Valve56980$87.00Add
61/4 NPSM air hose, 18 in. — not shown on drawing — Graco 15B772—Ask usPrice
13Swivel fitting — not shown on drawing — Graco GC2394—Ask usPrice
