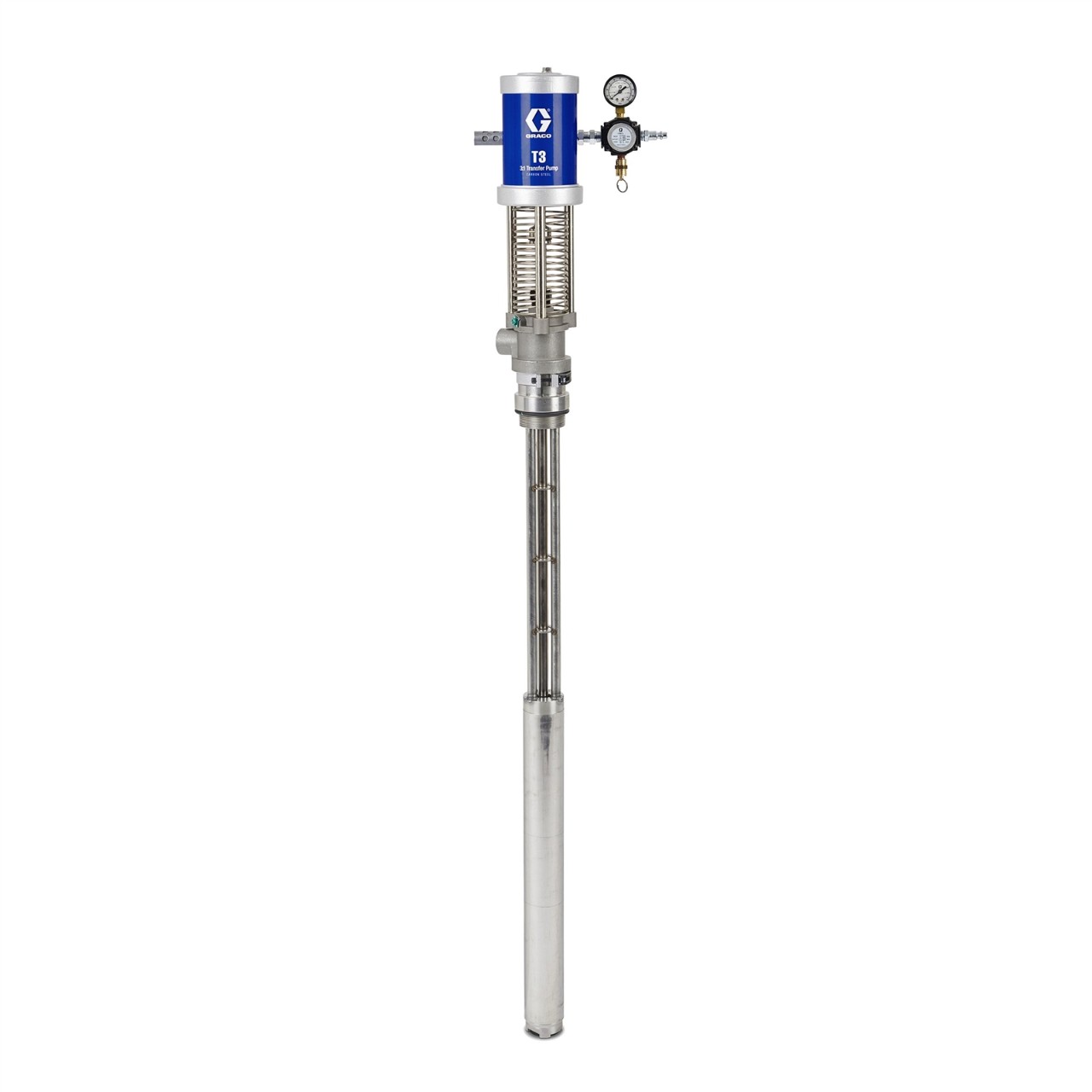

Graco T3 CS Pump

Description

Overview

Graco lists the T3 as a pneumatic piston transfer pump that moves A and B materials to Reactor spray systems. It uses less air pressure than comparable pumps to reach the same fluid pressure.

Specifications

• Brand: Graco
• Manufacturer part number: 24Z834
• Our SKU: 57759
• Ratio: 3:1
• Max flow: 4.5 GPM (17.03 L/min)
• Max working pressure: 315 psi (21.7 bar)
• Max air inlet pressure: 100 psi (6.9 bar)
• Max temperature: 190 F (88 C)
• Wetted material: Carbon steel
• Air inlet: 1/4 in female NPT
• Fluid outlet: 3/4 in female NPT
• Weight: 22 lb (10 kg)
• Sold as: each
