Graco Fusion FX Spray Gun

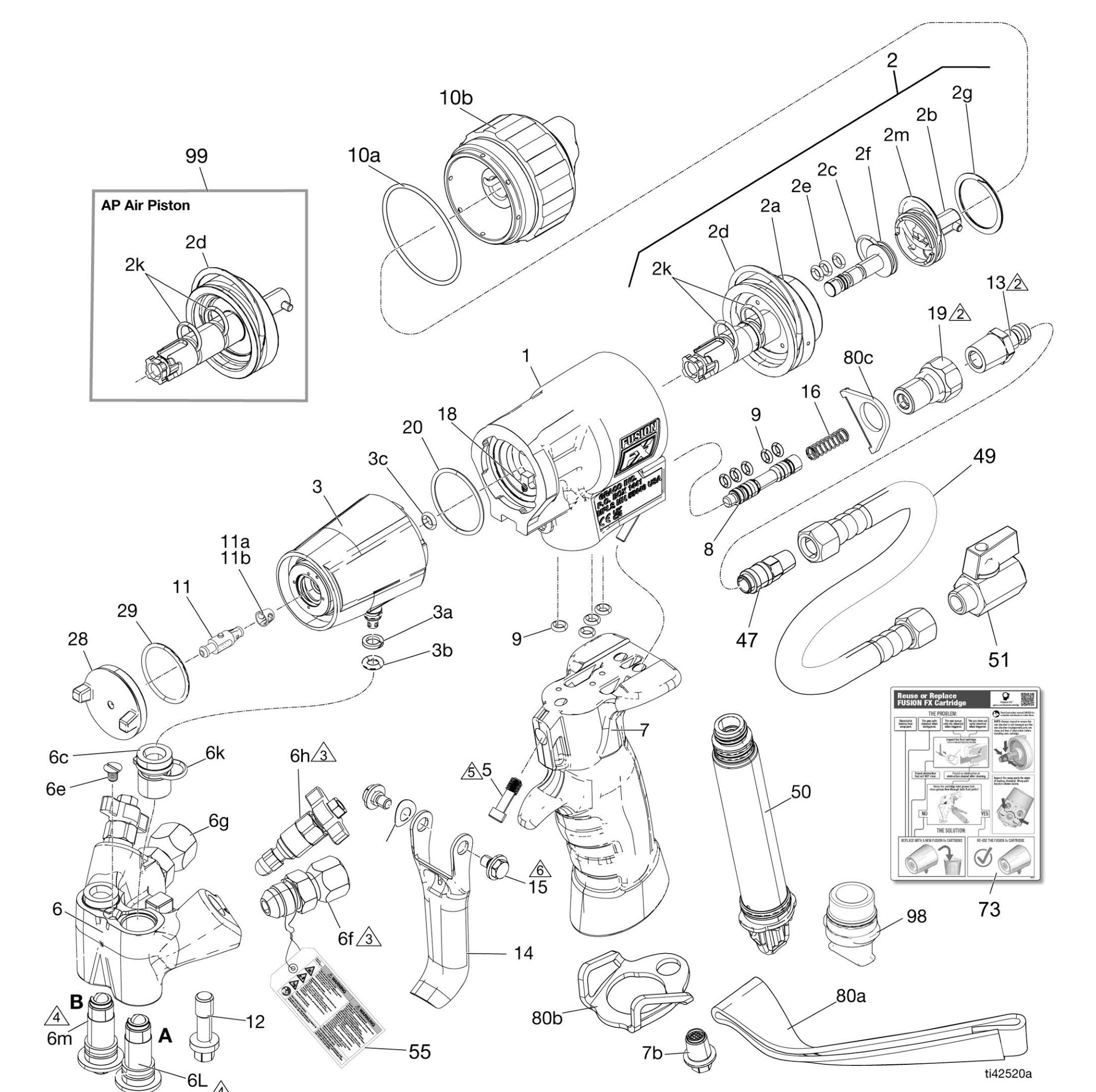

The gunDrawing from Graco manual 3A9329G, page 41
Graco Piston, cs, complete assembly
Graco Ring, retaining, spiral
Graco Cap Safety Rear Fusion FX Kit
Graco Stop, stem, safety, fusion fx
Graco O-Ring 117559
Graco Piston, dosing, fusion fx
Graco O-ring, 031, fx75
Graco Piston, assembly, includes 2d, 2k
Graco Packing, o-ring
Graco O-Ring
Graco Kit, air piston, cs, w/ o-rings
Graco O-ring, 129
Graco O-ring, 129
Graco O-Ring – 118594 – 10pack
Graco O-Ring – 118594 – 10pack
Graco Air Line Fitting, 1/4NPT #35
Graco Fitting, air valve, fusion fx
Graco Body, air section, fusion fx
Graco Bracket, upper
Graco Spring #31
Graco o-ring, air section
Graco O-Ring
Graco Packing, o-ring, 024, fx90
Graco Hose Air, 18 Inc – #6* #49
Graco Kit, o-rings, cs check
Graco Cartridge Fusion FX Kit, 1-pack
Graco Mix Chamber Seal – 2005366 10 Pack
Graco Spool Fusion FX Kit
Graco Seal, mix chamber, high temp, qty
Graco Chamber, mix, fusion (see mix chamber kits on page 44)
Graco Hsg SM Fusn CS O-Ring Kit, 6-Pack
Graco O-ring, back-up, ptfe, 008, non-split
Graco Front Fusion FX w/oring Air Cap
Graco O-Ring
Graco Coupler Line, Air, 1/4NPT – #47
Graco O-ring
Graco Ball Valve, 1/4 NPT #51
Graco O-Ring – 118594 – 10pack
Graco Valve Manifold Fusion FX Kit
Graco Kit, housing check manifold
Graco Bolt Handle Kit
Graco Screw, 8-32 x 0.25, flat head
Graco CS cartridge tube
Graco Swivel Mxf Fitting, #6 JICX#6 JIC
Graco Kit, bolt, trigger, fusion fx
Graco Manifold Fusion FX Kit
Graco Label, instructions
Graco PLug CS Tube Fusion FX Kit
Graco Swivel Mxf Fitting, #5 JICX#5 JIC
Graco Trigger, fusion fx
Graco Strap
Graco Bracket, lower
Graco Bolt, manifold, fusion fx
Graco Filter housing, b-side, fusion fx
Graco Tag Instruction
Graco Plug, breather
Graco Filter housing, a-side, fusion fx
Graco Handle, fusion fx, cs, overmold

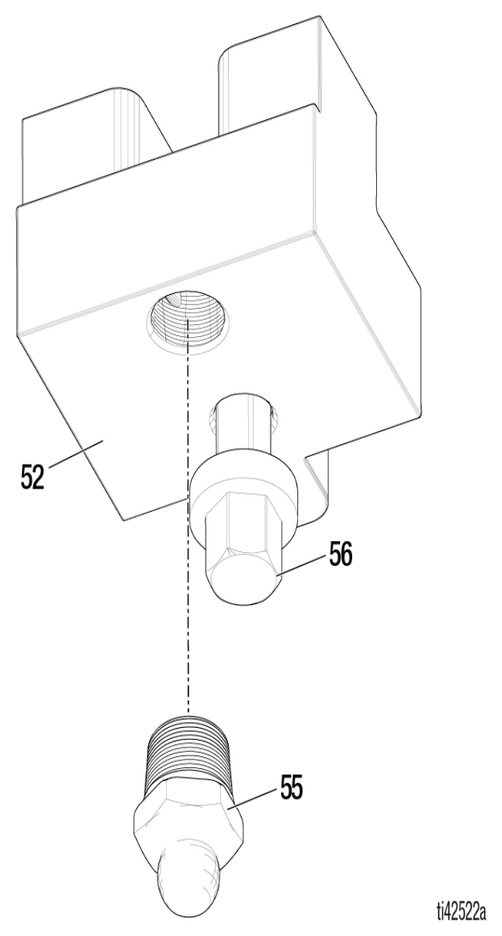

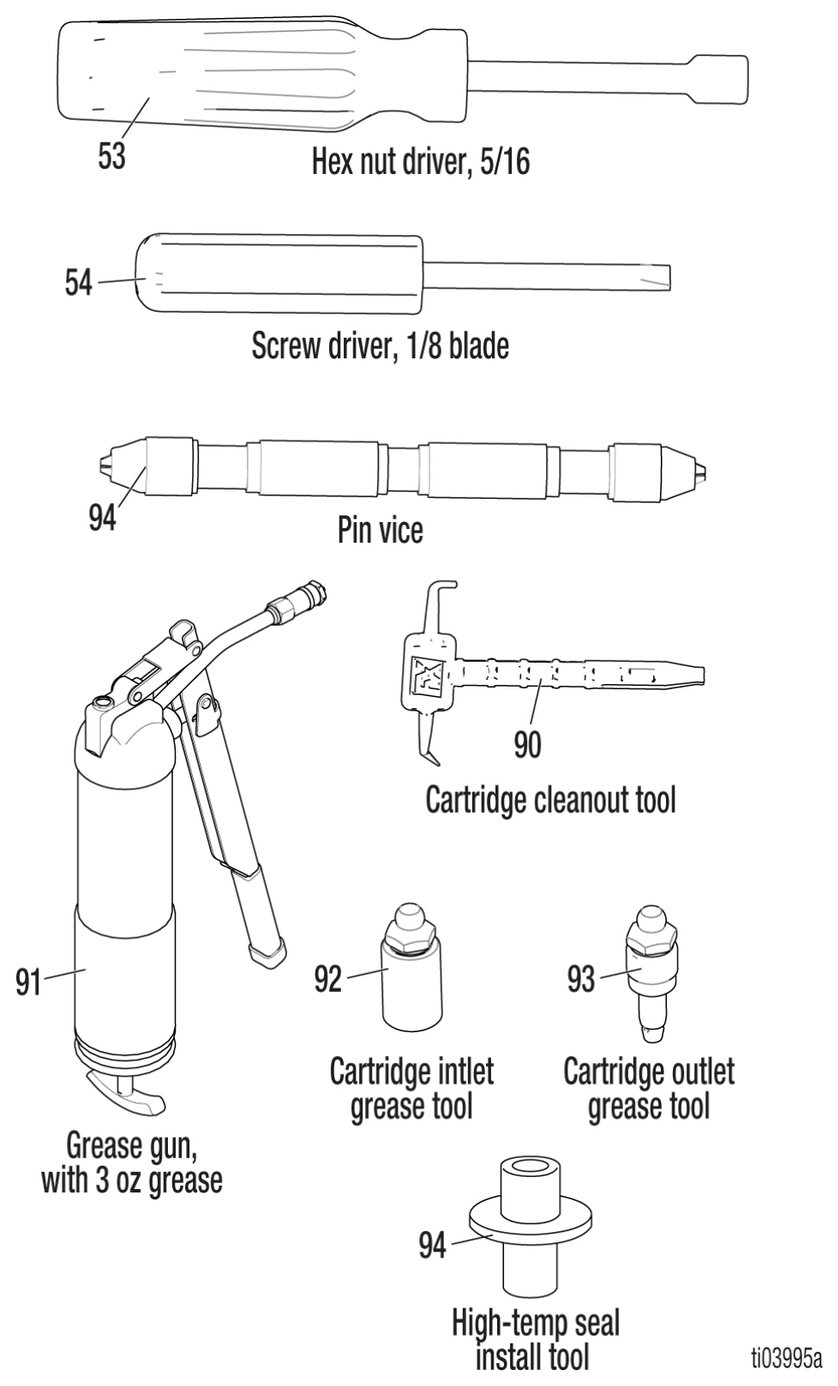

Drawing from Graco manual 3A9329G, page 43
Graco Manifold, gun flush
Graco Bolt, manifold
Graco Fitting, grease
Graco Tool Driver, Nut
Graco Tool Screwdriver, 1/8 BL
Graco Tool, install, seal , qty. 5
Graco Tool, cleanout, cartridge (kit quantity 5)
Graco Kit, tool, grease
Graco Tool Grease Outlet Crtg FX 2004344 Kit
Graco Grease Gun, 3 OZ #46
Graco Tool, install, seal , qty. 5

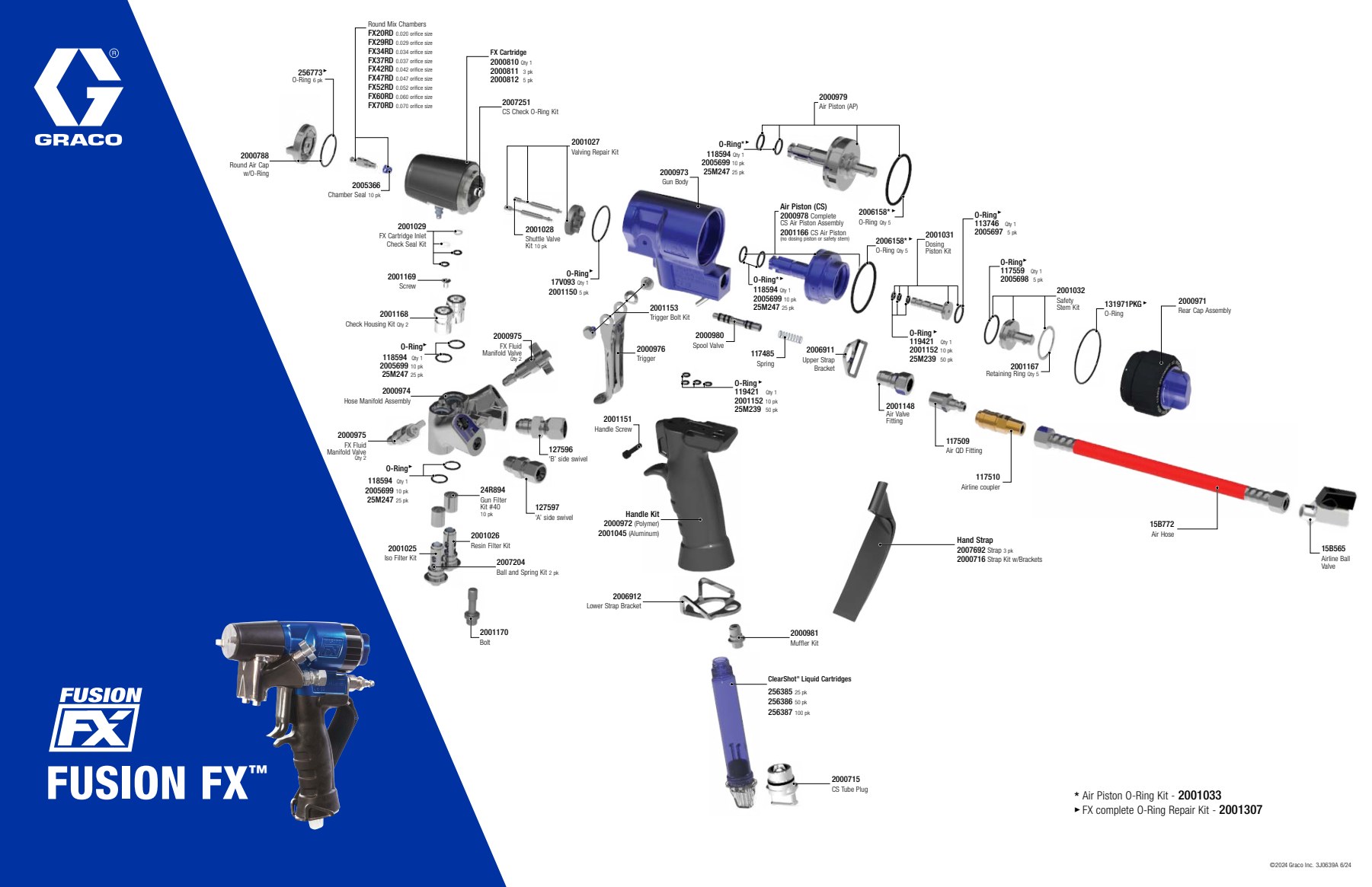

Rebuild Kits, Manuals & the Gun
The complete o-ring repair kit covers every wear seal marked on the drawing. The air-piston and inlet-check kits on their own are the cheaper fix when that is all that is leaking. Below them are the pieces an FX is rebuilt with rather than stripped down: the fluid cartridge, the spool, the rear safety cap.
Rebuilding something not listed here? Tell us what you need and we will quote it.
PDFs open in a new tab. The reference numbers on the diagram above match manual 3A9329G.
The complete Fusion FX gun, supplied with a round mix chamber. Other chamber sizes are in the manual’s mix chamber charts.
Buy this gun
Guns are usually special order. Ask us for availability and lead time.
| Ref | Part | Graco # | SKU | Price | |
|---|---|---|---|---|---|
| 1 | KIT, BODY, AIR SECTION, FUSION FX | 2000973 | - | Ask us | Ask |
| 2 | KIT,AIR PISTON,CS, FUSION FX | 2000978 | - | Ask us | Ask |
| 2a | KIT,AIR PISTON,CS,FUSION FX | 2001166 | - | Ask us | Ask |
| 2b | KIT,SAFETY STEM, FUSION FX | 2001032 | - | Ask us | Ask |
| 2c | KIT,O-RINGS,FX75,#014 | 2005697 | - | Ask us | Ask |
| 2d | KIT,O-RING,AIR PISTON.FUSION FX | 2006158 | - | Ask us | Ask |
| 2e | Graco O-Ring | 119421 | 60373 | $4.85 | Add |
| 2f | KIT,DOSING PISTON, FUSION FX | 2001031 | - | Ask us | Ask |
| 2g | KIT,RETAINING RING,PISTON,FUSION FX | 2001167 | - | Ask us | Ask |
| 2k | Graco O-Ring – 118594 – 10pack | 2005699 | 60367 | $63.20 | Add |
| 2m | Graco O-Ring 117559 | 117559 | 117559 | $4.05 | Add |
| 3 | Graco Cartridge Fusion FX Kit, 1-pack | 2000810 | 60362 | $275.00 | Add |
| 3a | Graco O-ring, back-up, ptfe, 008, non-split | - | - | Ask us | Ask |
| 3b | Graco O-ring | - | - | Ask us | Ask |
| 3c | KIT,O-RING,CS-CHECK | 2007251 | - | Ask us | Ask |
| 5 | Graco Bolt Handle Kit | 2001151 | 60366 | $12.50 | Add |
| 6 | Graco Manifold Fusion FX Kit | 2000974 | 60502 | $785.00 | Add |
| 6L | KIT,FILTER HOUSING, A-SIDE,FUSION FX | 2001025 | - | Ask us | Ask |
| 6c | KIT,CHK,HOUSING,MANF,FUSION FX | 2001168 | - | Ask us | Ask |
| 6d | Graco Bolt Handle Kit | 2001151 | 60366 | $12.50 | Add |
| 6e | KIT,SCREW,FLAT HEAD,8-32 | 2001169 | - | Ask us | Ask |
| 6f | Graco Swivel Mxf Fitting, #5 JICX#5 JIC | 127597 | 60374 | $7.15 | Add |
| 6g | Graco Swivel Mxf Fitting, #6 JICX#6 JIC | 127596 | 60372 | $7.15 | Add |
| 6h | Graco Valve Manifold Fusion FX Kit | 2000975 | 60363 | $165.00 | Add |
| 6k | Graco O-Ring – 118594 – 10pack | 2005699 | 60367 | $63.20 | Add |
| 6m | KIT,FILTER HOUSING, B-SIDE,FUSION FX | 2001026 | - | Ask us | Ask |
| 7 | KIT,HANDLE, FUSION FX | 2000972 | - | Ask us | Ask |
| 7b | KIT,MUFFLER, FUSION FX | 2000981 | - | Ask us | Ask |
| 8 | Graco Spool Fusion FX Kit | 2000980 | 60364 | $28.80 | Add |
| 9 | Graco O-Ring | 119421 | 60373 | $4.85 | Add |
| 10a | O-RING,031, FX75 | 131971PKG | - | Ask us | Ask |
| 10b | Graco Cap Safety Rear Fusion FX Kit | 2000971 | 60358 | $292.50 | Add |
| 11 | Graco Chamber, mix, fusion (see mix chamber kits on page 44) | - | - | Ask us | Ask |
| 11a | Graco Mix Chamber Seal – 2005366 10 Pack | 2005366 | 60368 | $28.50 | Add |
| 11b | KIT,SEAL,TAPER,HIGH TEMP,MC | 2010991 | - | Ask us | Ask |
| 12 | KIT,BOLT,MANF,FUSION FX | 2001170 | - | Ask us | Ask |
| 13 | Graco Air Line Fitting, 1/4NPT #35 | 117509 | 117509 | $16.20 | Add |
| 14 | KIT,TRIGGER, FUSION FX | 2000976 | - | Ask us | Ask |
| 15 | KIT,BOLT,TRIGGER,FUSION FX | 2001153 | - | Ask us | Ask |
| 16 | Graco Spring #31 | 117485 | 117485 | $7.00 | Add |
| 19 | KIT,ADAPTER,AIR | 2001148 | - | Ask us | Ask |
| 20 | PACKING, O-RING, 024, FX90 | 17V093 | - | Ask us | Ask |
| 28 | Graco Front Fusion FX w/oring Air Cap | 2000788 | 60369 | $35.00 | Add |
| 29 | Graco Hsg SM Fusn CS O-Ring Kit, 6-Pack | 256773 | 256773 | $76.75 | Add |
| 47 | Graco Coupler Line, Air, 1/4NPT – #47 | 117510 | 117510 | $52.00 | Add |
| 49 | Graco Hose Air, 18 Inc – #6* #49 | 15B772 | 56611 | $41.30 | Add |
| 51 | Graco Ball Valve, 1/4 NPT #51 | 15B565 | 19002 | $20.80 | Add |
| 55 | Graco Tag Instruction | 172479 | 56982 | $4.00 | Add |
| 73 | Graco Label, instructions | - | - | Ask us | Ask |
| 80 | KIT, STRAP, HANDLE, FUSION FX | 2000716 | - | Ask us | Ask |
| 80a | KIT,STRAP,HANDLE,FUSION FX | 2007692 | - | Ask us | Ask |
| 80b | KIT,BRACKET,STRAP,HANDLE | 2006912 | - | Ask us | Ask |
| 80c | KIT,BRACKET,STRAP,AIR SECTION | 2006911 | - | Ask us | Ask |
| 98 | Graco PLug CS Tube Fusion FX Kit | 2000715 | 60365 | $29.30 | Add |
| 99 | KIT,AIR PISTON,AP, FUSION FX | 2000979 | - | Ask us | Ask |
| 52 | KIT, MANIFOLD, FLUSH, FUSION FX | 2000660 | - | Ask us | Ask |
| 53 | Graco Tool Driver, Nut | 117642 | 117642 | $24.90 | Add |
| 54 | Graco Tool Screwdriver, 1/8 BL | 118575 | 56987 | $5.70 | Add |
| 55 | FITTING, LUBTN, ST | 100054 | - | Ask us | Ask |
| 56 | KIT,BOLT,MANF,FUSION FX | 2001170 | - | Ask us | Ask |
| 90 | KIT,TOOL,CLEAN-OUT,FUSION FX | 2005061 | - | Ask us | Ask |
| 91 | Graco Grease Gun, 3 OZ #46 | 117792 | 117792 | $70.50 | Add |
| 92 | KIT,TOOL,GREASE,INLET,CRTG,FX | 2004345 | - | Ask us | Ask |
| 93 | Graco Tool Grease Outlet Crtg FX 2004344 Kit | 2004344 | 60527 | $23.50 | Add |
| 94 | KIT, TOOL, SEAL INSTALLATION | 2011351 | - | Ask us | Ask |
Graco Fusion FX parts FAQ
How do I find the right part for my Graco Fusion FX?
Find the number on the drawing, hover or tap it to see the part, then add it to your cart. If you are unsure, send us your gun model and serial number and we will confirm the fit before you order.
Is The Spray Market an authorized Graco dealer?
Yes. The Spray Market is a Graco authorized dealer with stores in Brooklyn, NY and Bridgeport, CT.
Can I pick up Graco Fusion FX parts in store?
Yes. Pick up at our Brooklyn, NY or Bridgeport, CT store, or order online. Local truck delivery is a $150 flat rate in NY, NJ and CT.
