Parts diagram
Graco Reactor 2 E-30 — Spray Foam Proportioner
Hover or tap any number on the drawing to see the part and add it to your cart.
The machineDrawing from Graco manual 333024W, page 76
Priced onlineAsk us for a price
21
Graco Machine Slot Hex 118444 Screw
Ref 21 · Graco 118444 · SKU 60187
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$5.25
49
Graco Label, made in the usa
Ref 49
Graco 15Y118
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
2
Graco Enclosure, electrical
Ref 2
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us58
Graco Label, branding, e-30, elite
Ref 58 · 2 versions
Graco 16W218
LABEL, BRANDING, E-30 · 10 kW, 15 kWAsk for a price
LABEL, BRANDING, E-30 · 10 kW, 15 kWAsk for a price
Graco 16W321
Elite 10 kW, Elite 15 kWAsk for a price
Elite 10 kW, Elite 15 kWAsk for a price
26
Graco Cap, tube, square
Ref 26
Graco 111218
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
21
Graco Machine Slot Hex 118444 Screw
Ref 21 · Graco 118444 · SKU 60187
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$5.25
11
Graco Cover, motor
Ref 11
Graco 16W765
COVER,PAINTED,MOTOR · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
COVER,PAINTED,MOTOR · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
32
Graco Fan Cooling Kit, 120MM
Ref 32 · Graco 24U847 · SKU 60144
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$161.50
90
Graco Label, Branding, Reactor 16W213
Ref 90 · Graco 16W213 · SKU 60267
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$10.50
Also on the Reactor 2 E-XP2.
34
Graco Flat Washer
Ref 34 · Graco 151395 · SKU 60469
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$50.25
Also on the Reactor 2 E-XP2.
22
Graco Mch Phil Pan HD; 1.5in X #6-32 117683 Screw
Ref 22 · Graco 117683 · SKU 60467
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$3.05
63
Graco Module, mcm
Ref 63 · 2 versions
Graco Module Gca MCM2200 Fio R2 Kit
Graco 24U832 · Elite 10 kW, Elite 15 kW$1,220.00 · Add
Graco 24U832 · Elite 10 kW, Elite 15 kW$1,220.00 · Add
Graco 24U831
10 kW, 15 kWAsk for a price
10 kW, 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
91
25
Graco Cap Hex HD Screw
Ref 25 · Graco 111800 · SKU 60512
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$5.38
31
Graco Guard, Finger
Ref 31 · Graco 115836 · SKU 60468
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$5.30
38
Graco Bolt, carriage, 1/2-13 x 3.5 l
Ref 38
Graco 127277
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
60
Graco Repair Cover Kit, 1095, 1595
Ref 60 · Graco 287292 · SKU 60268
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$97.25
Also on the Reactor 2 E-XP2.
39
Graco Keps Hex Nut
Ref 39 · Graco 127278 · SKU 60470
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$4.40
Also on the Reactor 2 E-XP2.
108
51
Graco Kit, asm, pair, elite, reactor
Ref 51 · 2 versions
Graco Assembly Pair Std Reactor Kit
Graco 24U320 · 10 kW, 15 kW$1,450.00 · Add
Graco 24U320 · 10 kW, 15 kW$1,450.00 · Add
Graco 24U321
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 97 · Elite 10 kW, Elite 15 kWAsk for a price
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 97 · Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
60
Graco Repair Cover Kit, 1095, 1595
Ref 60 · Graco 287292 · SKU 60268
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$97.25
Also on the Reactor 2 E-XP2.
50
Graco Proportioner, module, e-30
Ref 50
Graco 24V150
KIT, PROPORTIONER, E-30, R2 · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
KIT, PROPORTIONER, E-30, R2 · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
106
Graco Cable, gca, m12-5p, m/f, 0.3 m
Ref 106
Graco 17R703
0.3M Male/Female M12-5P GCA Cable · Elite 10 kW, Elite 15 kWAsk for a price
0.3M Male/Female M12-5P GCA Cable · Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 3 E-30 and Reactor 3 E-20.
24
Graco Nut, hex, flanged
Ref 24
Graco 112731
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
Also on the Reactor 2 E-XP2.
68
Graco Label, identification
Ref 68
Graco 16X250
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
47
Graco Plug Pipe Headles
Ref 47 · Graco 104765 · SKU 104765
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$17.80
37
89
Graco Fitting, swivel, 3/4 npt x 1 npsm
Ref 89
Graco 16W967
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 3 E-30.
20
Graco HH Flanged Screw, 1/4-20 X .375
Ref 20 · Graco 119865 · SKU 60429
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$5.10
41
Graco Connector, power, male, 4 pin
Ref 41
Graco 16X095
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
56
Graco Fitting Elbow, 1/8 NPT
Ref 56 · Graco 191892 · SKU 191892
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$38.70
Also on the Reactor 2 E-XP2.
51
Graco Kit, asm, pair, elite, reactor
Ref 51 · 2 versions
Graco Assembly Pair Std Reactor Kit
Graco 24U320 · 10 kW, 15 kW$1,450.00 · Add
Graco 24U320 · 10 kW, 15 kW$1,450.00 · Add
Graco 24U321
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 97 · Elite 10 kW, Elite 15 kWAsk for a price
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 97 · Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
90
Graco Label, Branding, Reactor 16W213
Ref 90 · Graco 16W213 · SKU 60267
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$10.50
Also on the Reactor 2 E-XP2.
21
Graco Machine Slot Hex 118444 Screw
Ref 21 · Graco 118444 · SKU 60187
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$5.25
57
Graco Plated 116746 Barbed Fitting
Ref 57 · Graco 116746 · SKU 116746
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$10.70
Also on the Reactor 2 E-XP2.
68
Graco Label, identification
Ref 68
Graco 16X250
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
89
Graco Fitting, swivel, 3/4 npt x 1 npsm
Ref 89
Graco 16W967
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 3 E-30.
16
Graco Tube, a-side, outlet, 10kw
Ref 16 · 2 versions
Graco 24U836
KIT, FLUID TUBE, A, OUTLET · 10 kW, Elite 10 kWAsk for a price
KIT, FLUID TUBE, A, OUTLET · 10 kW, Elite 10 kWAsk for a price
Graco 24U835
KIT, FLUID TUBE, A, OUTLET · 15 kW, Elite 15 kWAsk for a price
KIT, FLUID TUBE, A, OUTLET · 15 kW, Elite 15 kWAsk for a price
18
Graco Gasket, manifold
Ref 18
Graco 15B456
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
14
Graco Tube, b-side, outlet, 15kw
Ref 14 · 2 versions
Graco 24U839
KIT, FLUID TUBE, B, OUTLET · 15 kW, Elite 15 kWAsk for a price
KIT, FLUID TUBE, B, OUTLET · 15 kW, Elite 15 kWAsk for a price
Graco 24U840
KIT, FLUID TUBE, B, OUTLET · 10 kW, Elite 10 kWAsk for a price
KIT, FLUID TUBE, B, OUTLET · 10 kW, Elite 10 kWAsk for a price
Also on the Reactor 2 E-XP2.
51
Graco Kit, asm, pair, elite, reactor
Ref 51 · 2 versions
Graco Assembly Pair Std Reactor Kit
Graco 24U320 · 10 kW, 15 kW$1,450.00 · Add
Graco 24U320 · 10 kW, 15 kW$1,450.00 · Add
Graco 24U321
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 97 · Elite 10 kW, Elite 15 kWAsk for a price
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 97 · Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
6
Graco Manifold, fluid
Ref 6
Graco 24U704
MANIFOLD, fluid; see Fluid Manifold, page 90 · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
MANIFOLD, fluid; see Fluid Manifold, page 90 · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Graco no longer lists this part number.
Also on the Reactor 2 E-XP2.
19
Graco Elbow Fitting, 3/8 NPT X #8 JIC
Ref 19 · Graco 125643 · SKU 60163
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$42.10
Also on the Reactor 2 E-XP2.
23
Graco Flanged Hex HD Screw
Ref 23 · Graco 113796 · SKU 60511
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$2.75
55
Graco Tube, pressure relief
Ref 55
Graco 24U845
KIT, TUBE, PRESSURE RELIEF · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
KIT, TUBE, PRESSURE RELIEF · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
13
Graco Tube, b-side, inlet, 15kw
Ref 13 · 2 versions
Graco 24U837
KIT, FLUID TUBE, B, INLET · 15 kW, Elite 15 kWAsk for a price
KIT, FLUID TUBE, B, INLET · 15 kW, Elite 15 kWAsk for a price
Graco 24U838
KIT, FLUID TUBE, B, INLET · 10 kW, Elite 10 kWAsk for a price
KIT, FLUID TUBE, B, INLET · 10 kW, Elite 10 kWAsk for a price
Also on the Reactor 2 E-XP2.
37
7
1
Graco Frame
Ref 1
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us73
Graco Reducer #6 X #10 JIC Fitting
Ref 73 · Graco 117677 · SKU 117677
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$44.80
19
Graco Elbow Fitting, 3/8 NPT X #8 JIC
Ref 19 · Graco 125643 · SKU 60163
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$42.10
Also on the Reactor 2 E-XP2.
75
Graco Cap, 9/16-18 jic cap-aluminum
Ref 75
Graco 299520
CAP, PLUG 3/8 TUBE · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
CAP, PLUG 3/8 TUBE · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
15
Graco Tube, a-side, inlet, 10kw
Ref 15 · 2 versions
Graco Fluid Tube A Inlet 24U833 Kit
Graco 24U833 · 15 kW, Elite 15 kW$105.50 · Add
Graco 24U833 · 15 kW, Elite 15 kW$105.50 · Add
Graco 24U834
10 kW, Elite 10 kWAsk for a price
10 kW, Elite 10 kWAsk for a price
Also on the Reactor 2 E-XP2.
12
Graco Cover, heater, rear
Ref 12
Graco 16W764
COVER,PAINTED,HEATER,REAR · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
COVER,PAINTED,HEATER,REAR · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
9
Graco Connector, Wire, 6AWG
Ref 9 · Graco 261821 · SKU 261821
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$76.50
Also on the Reactor 2 E-XP2.
72
Graco Reducer #5 X #8 JIC Fitting
Ref 72 · Graco 117502 · SKU 117502
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$41.20
55
Graco Tube, pressure relief
Ref 55
Graco 24U845
KIT, TUBE, PRESSURE RELIEF · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
KIT, TUBE, PRESSURE RELIEF · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
72
Graco Reducer #5 X #8 JIC Fitting
Ref 72 · Graco 117502 · SKU 117502
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$41.20
20
Graco HH Flanged Screw, 1/4-20 X .375
Ref 20 · Graco 119865 · SKU 60429
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$5.10
74
Graco Cap, 1/2-20 jic cap-aluminum
Ref 74
Graco 299521
CAP, PLUG, 5/16 TUBE · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
CAP, PLUG, 5/16 TUBE · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
103
Graco Screw, flange, hex hd
Ref 103
Graco 113161
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
98
Graco Enclosure, terminal block
Ref 98
Graco 24W204
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
107
71
Graco Screw, mach, phillips, tooth wash
Ref 71
Graco 16X129
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
102
Graco Bracket, mounting
Ref 102
Graco 17D955
PLATE,MOUNTING,PAINTED · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
PLATE,MOUNTING,PAINTED · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
99
Graco Enclosure, cover
Ref 99
Graco 24A234
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Graco no longer lists this part number.
Also on the Reactor 2 E-XP2.
105
Graco Meter, flow, res
Ref 105
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us48
Graco Cover, top, din rail
Ref 48
Graco 16V268
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
101
Graco Label, Designation
Ref 101 · Graco 172953 · SKU 60386
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$8.35
5
Graco Heater, 7.5kw, 1 zone, rtd
Ref 5 · 2 versions
Graco Heater RTD Kit, 7.5KW, 1 Zone
Graco 24U842 · 15 kW, Elite 15 kW$1,734.00 · Add
Graco 24U842 · 15 kW, Elite 15 kW$1,734.00 · Add
Graco 24U843
HEATER, 10kw, 2 zone, RTD; Fluid Heater, page 84 · 10 kW, Elite 10 kWAsk for a price
HEATER, 10kw, 2 zone, RTD; Fluid Heater, page 84 · 10 kW, Elite 10 kWAsk for a price
Also on the Reactor 2 E-XP2.
23
Graco Flanged Hex HD Screw
Ref 23 · Graco 113796 · SKU 60511
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$2.75
100
Graco Label, caution
Ref 100
Graco 189930
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
67
33
Graco Enclosure, lower, din rail
Ref 33
Graco 24R685
COVER, DINRAIL · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
COVER, DINRAIL · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
23
Graco Flanged Hex HD Screw
Ref 23 · Graco 113796 · SKU 60511
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$2.75
104
Graco Meter, flow, iso
Ref 104
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask usDrawing from Graco manual 333024W, page 77
Graco documents the E-30 one assembly at a time. Nine of them — pick one, or follow a link from the machine above.
81
Graco Wall Mount Bracket
Ref 81 · Graco 16V806 · SKU 60547
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$26.30
Also on the Reactor 2 E-XP2.
85
Graco Keps Hex Nut
Ref 85 · Graco 127278 · SKU 60470
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$4.40
Also on the Reactor 2 E-XP2.
24
Graco Nut, hex, flanged
Ref 24
Graco 112731
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
Also on the Reactor 2 E-XP2.
2
Graco Enclosure, electrical
Ref 2
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us61
Graco Painted Control Box Cover
Ref 61 · Graco 16W766 · SKU 60427
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$428.00
95
Graco Label, insite
Ref 95
Graco 16X154
Elite 10 kW, Elite 15 kWAsk for a price
Elite 10 kW, Elite 15 kWAsk for a price
Graco no longer supplies this part and offers no replacement for it.
Also on the Reactor 2 E-XP2.
62
Graco Latch, Door 16W596
Ref 62 · Graco 16W596 · SKU 60260
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$42.40
20
Graco HH Flanged Screw, 1/4-20 X .375
Ref 20 · Graco 119865 · SKU 60429
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$5.10
71
Graco Screw, mach, phillips, tooth wash
Ref 71
Graco 16X129
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
70
Graco Mchn Pnh w/Ext Tooth Wash Screw
Ref 70 · Graco 127296 · SKU 60428
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$4.40
35
Graco Grommet
Ref 35
Graco 120685
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
40
Graco Grommet, rubber
Ref 40
Graco 127282
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
94
Graco Tie, cable, 6 in.
Ref 94
Graco 127377
Elite 10 kW, Elite 15 kWAsk for a price
Elite 10 kW, Elite 15 kWAsk for a price
Graco no longer supplies this part and offers no replacement for it.
Also on the Reactor 2 E-XP2.
37
8
Graco Cover, transformer
Ref 8
Graco 24R684
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
4
Graco Bracket, tsl, bottle
Ref 4
Graco 16X531
BRACKET, PAINTED, TSL, BOTTLE · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
BRACKET, PAINTED, TSL, BOTTLE · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
23
Graco Flanged Hex HD Screw
Ref 23 · Graco 113796 · SKU 60511
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$2.75
10
Graco Heater Shroud 24U841 Kit
Ref 10 · Graco 24U841 · SKU 59497
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$878.00
Also on the Reactor 2 E-XP2.
88
Graco Module Gca Adm ReCTR2 Kit
Ref 88 · Graco 24U854 · SKU 57684
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$1,065.00
27
Graco Nut, hex, flange head
Ref 27
Graco 110996
NUT, HEX, FLANGED · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
NUT, HEX, FLANGED · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
22
Graco Mch Phil Pan HD; 1.5in X #6-32 117683 Screw
Ref 22 · Graco 117683 · SKU 60467
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$3.05
29
Graco Washer, lock ext
Ref 29
Graco 103181
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
32
Graco Fan Cooling Kit, 120MM
Ref 32 · Graco 24U847 · SKU 60144
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$161.50
30
Graco Washer, lock
Ref 30
Graco 100020
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Also on the Reactor 2 E-XP2.
28
Graco Screw, tapping pnhd
Ref 28
Graco 104859
SCREW, tapping pnhd; 5/16 in. x #10-16 · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
SCREW, tapping pnhd; 5/16 in. x #10-16 · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
Also on the Reactor 2 E-XP2.
3
Graco Bottle Assembly, Complete
Ref 3 · Graco 246995 · SKU 246995
10 kW, 15 kW, Elite 10 kW, Elite 15 kW
$203.00
Also on the Reactor 2 E-XP2.
27
Graco Nut, hex, flange head
Ref 27
Graco 110996
NUT, HEX, FLANGED · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
NUT, HEX, FLANGED · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
17
Graco Transformer, 4090va, 230/90
Ref 17
Graco 247812 replaces 15K742
KIT, TRANSFORMER, 4090VA, 230/90 · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
KIT, TRANSFORMER, 4090VA, 230/90 · 10 kW, 15 kW, Elite 10 kW, Elite 15 kWAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
Also on the Reactor 2 E-XP2.
1
Graco Frame
Ref 1
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us114
Graco Lock Spring (Hi-Collar) Washer
Ref 114 · Graco 106115 · SKU 106115
$4.30
Also on the Reactor 2 E-XP2.
107
113
Graco Cap Socket HD Screw
Ref 113 · Graco 114666 · SKU 60449
$5.00
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
104
Graco Repair Gear Kit, 1095, 1595
Ref 104 · Graco 287290 · SKU 287290
$266.50
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
118
Graco Washer, thrust (1595)
Ref 118
Graco 116192
WASHER, THRUSTAsk for a price
WASHER, THRUSTAsk for a price
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
125
Graco Label, torque
Ref 125
Graco 187437
Ask for a price
Ask for a price
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
126
101
Graco Motor Brushless Kit, 2HP
Ref 101 · Graco 24U050 · SKU 57595
$2,780.00
Also on the Reactor 2 E-XP2.
103
Graco Kit Repair Housing Bearing 245927
Ref 103 · Graco 245927 · SKU 245927
$201.00
Also on the Reactor 3 E-30.
102
Graco Repair Drive Housing Kit
Ref 102 · Graco 17W869 · SKU 60087
$729.00
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
104
Graco Repair Gear Kit, 1095, 1595
Ref 104 · Graco 287290 · SKU 287290
$266.50
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
118
Graco Washer, thrust (1595)
Ref 118
Graco 116192
WASHER, THRUSTAsk for a price
WASHER, THRUSTAsk for a price
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
102
Graco Repair Drive Housing Kit
Ref 102 · Graco 17W869 · SKU 60087
$729.00
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
105
Graco Conn Rod Replacement Kit
Ref 105 · Graco 241279 · SKU 241279
$370.00
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
112
Graco Machine Torx Hex Wash Screw
Ref 112 · Graco 15C753 · SKU 57596
$1.70
108
121
Graco Reed M8-4-PIN Switch
Ref 121 · Graco 24P728 · SKU 60351
$255.00
Also on the Reactor 2 E-XP2.
110
Graco Spring, retaining
Ref 110
Graco 183169
Ask for a price
Ask for a price
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
122
Graco Hxhd Thd Cut Screw, 4-40 X .375
Ref 122 · Graco 127301 · SKU 60450
$4.40
111
Graco Str Hdls Pin
Ref 111 · Graco 183210 · SKU 60226
$29.50
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
116
Graco Retaining Nut
Ref 116 · Graco 193394 · SKU 60227
$32.60
Also on the Reactor 3 E-30.
114
Graco Lock Spring (Hi-Collar) Washer
Ref 114 · Graco 106115 · SKU 106115
$4.30
Also on the Reactor 2 E-XP2.
113
Graco Cap Socket HD Screw
Ref 113 · Graco 114666 · SKU 60449
$5.00
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
107
106
Graco Pump, displacement, b-side
Ref 106
Graco 2007125 replaces 245972
KIT,REACTOR PUMP,DISPL.,.743/479.22Ask for a price
KIT,REACTOR PUMP,DISPL.,.743/479.22Ask for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
Also on the Reactor 3 E-30.
108
120
Graco Magnet (E20)
Ref 120 · Graco 116618 · SKU 116618
$9.80
125
Graco Label, torque
Ref 125
Graco 187437
Ask for a price
Ask for a price
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
103
Graco Kit Repair Housing Bearing 245927
Ref 103 · Graco 245927 · SKU 245927
$201.00
Also on the Reactor 3 E-30.
126
105
Graco Conn Rod Replacement Kit
Ref 105 · Graco 241279 · SKU 241279
$370.00
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
110
Graco Spring, retaining
Ref 110
Graco 183169
Ask for a price
Ask for a price
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
111
Graco Str Hdls Pin
Ref 111 · Graco 183210 · SKU 60226
$29.50
Also on the Reactor 2 E-XP2 and Reactor 3 E-30.
116
Graco Retaining Nut
Ref 116 · Graco 193394 · SKU 60227
$32.60
Also on the Reactor 3 E-30.
115
Graco Displ. W/lube .743 2007119 Pump
Ref 115 · Graco 246832 · SKU 246832
$3,020.00
209
Graco Swtich, over temperature
Ref 209
Graco 2007109 replaces 15B137
KIT,SWITCH, OVER TEMP. · 10 kW machines, 15 kW machinesAsk for a price
KIT,SWITCH, OVER TEMP. · 10 kW machines, 15 kW machinesAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
213
Graco Screw, machine, pnhd
Ref 213 · 2 versions
Graco Burst Disc Kit
Graco 247520 · 10 kW machines, 15 kW machines$233.00 · Add
Graco 247520 · 10 kW machines, 15 kW machines$233.00 · Add
Graco 124131
SCREW, machine, pnhd; 5/16 in. x #6-32 · 10 kW machines, 15 kW machinesAsk for a price
SCREW, machine, pnhd; 5/16 in. x #6-32 · 10 kW machines, 15 kW machinesAsk for a price
212
Graco Sensor, rtd
Ref 212
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us211
Graco Fitting, compression
Ref 211
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us206
Graco Thermocouple Adapter
Ref 206 · Graco 15H306 · SKU 60414
10 kW machines, 15 kW machines
$91.25
204
Graco Conn Fitting, 3/4SAE X 1/2 JIC
Ref 204 · Graco 121309 · SKU 121309
10 kW machines, 15 kW machines
$21.50
207
214
Graco ref 214
on the Fluid heater drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-30’s own parts list — tell us your machine and we will work out what you need.
Ask us203
Graco Fitting, plug, hollow, hex, 1-3/16 sae
Ref 203
Graco 15H305
FITTING,PLUG HOLOW HEX 1-3/16 SAE · 10 kW machines, 15 kW machinesAsk for a price
FITTING,PLUG HOLOW HEX 1-3/16 SAE · 10 kW machines, 15 kW machinesAsk for a price
205
205
203
Graco Fitting, plug, hollow, hex, 1-3/16 sae
Ref 203
Graco 15H305
FITTING,PLUG HOLOW HEX 1-3/16 SAE · 10 kW machines, 15 kW machinesAsk for a price
FITTING,PLUG HOLOW HEX 1-3/16 SAE · 10 kW machines, 15 kW machinesAsk for a price
208
Graco Immerson (2550W Heater, 230V) 2007112
Ref 208 · Graco 16A110 · SKU 57608
10 kW machines, 15 kW machines
$506.00
Also on the Reactor 2 E-XP2.
201
Graco Heater, machined, dual zone
Ref 201 · 2 versions
Graco Machined Heater, 2Zone, 3500psi
Graco 15K825 · 10 kW machines$722.00 · Add
Graco 15K825 · 10 kW machines$722.00 · Add
Graco 15J090
HEATER, machined, 1 zone · 15 kW machinesAsk for a price
HEATER, machined, 1 zone · 15 kW machinesAsk for a price
210
Graco Mixer, Immersion Heater #309
Ref 210 · Graco 15B135 · SKU 57744
10 kW machines, 15 kW machines
$51.25
Also on the Reactor 2 E-XP2.
202
Graco O-Ring – 124132 – #315
Ref 202 · Graco 124132 · SKU 124132
10 kW machines, 15 kW machines
$3.10

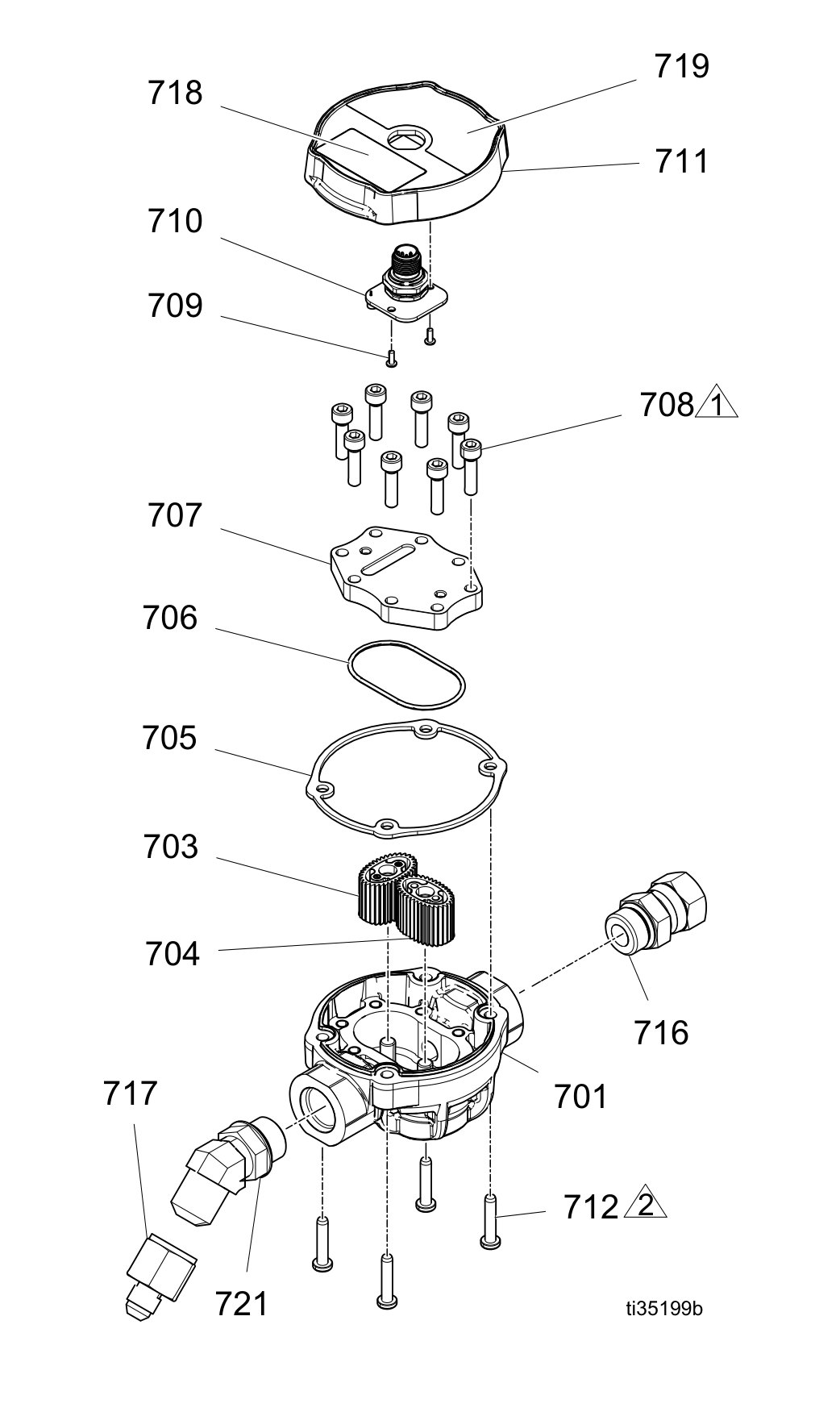

719
Graco Label, branding, g-2000
Ref 719
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us718
Graco Label, blank
Ref 718
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us711
Graco Cover, meter
Ref 711
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us710
Graco Board, assembly, ratio monitor
Ref 710
Graco 24E134PKG
Ask for a price
Ask for a price
Graco no longer lists this part number.
709
Graco Screw, thd forming, pnh
Ref 709
Graco 110163PKG
Ask for a price
Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
708
707
Graco Cap, meter
Ref 707
Graco 17Y062PKG
Ask for a price
Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
706
705
703
Graco Gear, magnets, sd/matrix
Ref 703
Graco 25C298
GEAR, OVAL, METERING, FLATAsk for a price
GEAR, OVAL, METERING, FLATAsk for a price
Also on the Reactor 2 E-XP2.
704
716
Graco Fitting, swivel, jic, 10 x 3/4-16 orb, b-side, res
Ref 716 · 2 versions
Graco 25E486PKG
FITTING,SWIVEL,JIC-08,3/4-16 ORBAsk for a price
FITTING,SWIVEL,JIC-08,3/4-16 ORBAsk for a price
Graco 25E474PKG
FITTING,SWIVEL,JIC,10X3/4-16 ORBAsk for a price
FITTING,SWIVEL,JIC,10X3/4-16 ORBAsk for a price
Also on the Reactor 2 E-XP2.
717
Graco Fitting, reducer #6 x #10 (jic), b-side, res
Ref 717 · 2 versions
Graco Reducer #5 X #8 JIC Fitting
Graco 117502$41.20 · Add
Graco 117502$41.20 · Add
Graco Reducer #6 X #10 JIC Fitting
Graco 117677$44.80 · Add
Graco 117677$44.80 · Add
701
Graco Housing, 3/4” orb, w/ pins, sub-assembly
Ref 701
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us712
721
Graco Fitting, adapter, saw-orb x jic, a-side, iso
Ref 721 · 2 versions
Graco 17Y236
FITTING,45 DEG ELBOW, 3/4 X 3/4Ask for a price
FITTING,45 DEG ELBOW, 3/4 X 3/4Ask for a price
Graco 17Y235
FITTING,45 DEG ELBOW, 3/4 X 7/8Ask for a price
FITTING,45 DEG ELBOW, 3/4 X 7/8Ask for a price
Also on the Reactor 2 E-XP2.
408
Graco Hex Jam Nut
Ref 408 · Graco 112309 · SKU 112309
$6.45
406
Graco Handle Left Red ISO Kit
Ref 406 · Graco 247788 · SKU 247788
$42.50
Also on the Reactor 2 E-XP2.
403
Graco Qfluid 102814 Gauge, 5000PSI
Ref 403 · Graco 102814 · SKU 102814
$108.50
407
Graco Handle Right Blue Resin Kit
Ref 407 · Graco 247789 · SKU 247789
$42.50
Also on the Reactor 2 E-XP2.
408
Graco Hex Jam Nut
Ref 408 · Graco 112309 · SKU 112309
$6.45
416
Graco Compression Spring
Ref 416 · Graco 150829 · SKU 150829
$11.40
416
Graco Compression Spring
Ref 416 · Graco 150829 · SKU 150829
$11.40
402
Graco Valve Drain Cartridge 247824 Kit
Ref 402 · Graco 247824 · SKU 60522
$401.00
405
Graco Sensor, pressure, fluid outlet
Ref 405
Graco 2007100 replaces 15M669
KIT, SENSOR PRESSURE, FLUID OUTLETAsk for a price
KIT, SENSOR PRESSURE, FLUID OUTLETAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
Also on the Reactor 2 E-XP2.
412
Graco Elbow MA Fitting, 3/4SAE X 1/2J
Ref 412 · Graco 121312 · SKU 121312
$12.40
414
Graco O-ring, ptfe
Ref 414
Graco 111457
O-Ring Packing, PTFEAsk for a price
O-Ring Packing, PTFEAsk for a price
Also on the Reactor 2 E-XP2.
413
402
Graco Valve Drain Cartridge 247824 Kit
Ref 402 · Graco 247824 · SKU 60522
$401.00
404
401
Graco Manifold, fluid
Ref 401
Graco 2008292
Ask for a price
Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
Also on the Reactor 2 E-XP2.
412
Graco Elbow MA Fitting, 3/4SAE X 1/2J
Ref 412 · Graco 121312 · SKU 121312
$12.40
404
411
Graco Fitting, 3/4 orb x #8 jic
Ref 411
Graco 17Y236
FITTING,45 DEG ELBOW, 3/4 X 3/4Ask for a price
FITTING,45 DEG ELBOW, 3/4 X 3/4Ask for a price
Also on the Reactor 2 E-XP2.
415
Graco Label, caution
Ref 415
Graco 189285
LABEL, SAFETY, BURNAsk for a price
LABEL, SAFETY, BURNAsk for a price
Also on the Reactor 2 E-XP2.
419
Graco Fitting, 3/4 orb x #10 jic
Ref 419
Graco 17Y235
FITTING,45 DEG ELBOW, 3/4 X 7/8Ask for a price
FITTING,45 DEG ELBOW, 3/4 X 7/8Ask for a price
Also on the Reactor 2 E-XP2.
413
419
Graco Fitting, 3/4 orb x #10 jic
Ref 419
Graco 17Y235
FITTING,45 DEG ELBOW, 3/4 X 7/8Ask for a price
FITTING,45 DEG ELBOW, 3/4 X 7/8Ask for a price
Also on the Reactor 2 E-XP2.
411
Graco Fitting, 3/4 orb x #8 jic
Ref 411
Graco 17Y236
FITTING,45 DEG ELBOW, 3/4 X 3/4Ask for a price
FITTING,45 DEG ELBOW, 3/4 X 3/4Ask for a price
Also on the Reactor 2 E-XP2.
478
451
Graco Enclosure
Ref 451
Graco 24U087
Ask for a price
Ask for a price
Graco no longer supplies this part and offers no replacement for it.
Also on the Reactor 2 E-XP2.
454
Graco Fan Cooling Kit, 80MM
Ref 454 · Graco 24U848 · SKU 57606
$115.00
Also on the Reactor 2 E-XP2.
468
Graco Cap, tube, square
Ref 468
Graco 1112118
Ask for a price
Ask for a price
Graco no longer lists this part number.
Also on the Reactor 2 E-XP2.
471
Graco Keps Hex Nut
Ref 471 · Graco 127278 · SKU 60470
$4.40
Also on the Reactor 2 E-XP2.
455
Graco Discnnt Door Mounted 24R736 Switch
Ref 455 · Graco 24R736 · SKU 60518
$492.00
Also on the Reactor 2 E-XP2.
460
Graco Knob, Operator Disconnect Yellow Red Switch
Ref 460 · Graco 123967 · SKU 123967
$86.75
Also on the Reactor 2 E-XP2.
457
479
Graco Label, Safety, Multi Language
Ref 479 · Graco 16X049 · SKU 60421
$19.10
Also on the Reactor 2 E-XP2.
479
Graco Label, Safety, Multi Language
Ref 479 · Graco 16X049 · SKU 60421
$19.10
Also on the Reactor 2 E-XP2.
479
Graco Label, Safety, Multi Language
Ref 479 · Graco 16X049 · SKU 60421
$19.10
Also on the Reactor 2 E-XP2.
473
458
Graco Nut, strain relief, m40 thread
Ref 458
Graco 255048
KIT, NUT, STRAIN RLF, M40Ask for a price
KIT, NUT, STRAIN RLF, M40Ask for a price
Also on the Reactor 2 E-XP2.
469
459
Graco Bushing, strain relief, m40 thread
Ref 459
Graco 255047
KIT, BUSHING, STRAIN RLF, M40Ask for a price
KIT, BUSHING, STRAIN RLF, M40Ask for a price
478
479
Graco Label, Safety, Multi Language
Ref 479 · Graco 16X049 · SKU 60421
$19.10
Also on the Reactor 2 E-XP2.
470
461
466
Graco Nut, keps, hex head
Ref 466
Graco 133505
KIT, SWIVEL, SD GREASE 3/8Ask for a price
KIT, SWIVEL, SD GREASE 3/8Ask for a price
Also on the Reactor 2 E-XP2.
476
Graco Module, breaker
Ref 476
Graco 24U850
KIT, MODULE, BRKR, HG REACTORAsk for a price
KIT, MODULE, BRKR, HG REACTORAsk for a price
Also on the Reactor 2 E-XP2.
472
464
Graco Wire, grounding, door
Ref 464
Graco 194337
Ask for a price
Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
466
Graco Nut, keps, hex head
Ref 466
Graco 133505
KIT, SWIVEL, SD GREASE 3/8Ask for a price
KIT, SWIVEL, SD GREASE 3/8Ask for a price
Also on the Reactor 2 E-XP2.
453
Graco Module Gca Mzhp REACTOR2 Kit
Ref 453 · Graco 24U855 · SKU 57605
$944.00
Also on the Reactor 2 E-XP2.
502
Graco Harness, hose out
Ref 502
Graco 16V515
HARNESS,HOSE OUT, NG REACTORAsk for a price
HARNESS,HOSE OUT, NG REACTORAsk for a price
Listed with the drawing.
Also on the Reactor 2 E-XP2.
462,463
Refs 462,463
2 parts on one leader
Graco Washer, lock external
Ref 462
Graco 103181
WASHER, LOCK, EXTAsk for a price
WASHER, LOCK, EXTAsk for a price
Also on the Reactor 2 E-XP2.
Graco Screw, machine, pan head
Ref 463
Graco 124131
SCREW, machine, pan head; 5/16 in. x #6-32Ask for a price
SCREW, machine, pan head; 5/16 in. x #6-32Ask for a price
503
Graco Module, din rail, term blk, power sup
Ref 503
Graco 16U522
MODULE, DIN RAIL, TERM BLK, PWR SUPAsk for a price
MODULE, DIN RAIL, TERM BLK, PWR SUPAsk for a price
Also on the Reactor 2 E-XP2.
505
Graco Module, sys surge protector
Ref 505
Graco 2007103 replaces 16U530
KIT,MODULE, SYS SRG PROTAsk for a price
KIT,MODULE, SYS SRG PROTAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
504
Graco Module, din rail, circuit breakers
Ref 504
Graco 16U526
MODULE, din rail, circuit breakers; see Power Supply and Terminal BlocAsk for a price
MODULE, din rail, circuit breakers; see Power Supply and Terminal BlocAsk for a price
Graco no longer lists this part number.
Also on the Reactor 2 E-XP2.
503
Graco Module, din rail, term blk, power sup
Ref 503
Graco 16U522
MODULE, DIN RAIL, TERM BLK, PWR SUPAsk for a price
MODULE, DIN RAIL, TERM BLK, PWR SUPAsk for a price
Also on the Reactor 2 E-XP2.
504
Graco Module, din rail, circuit breakers
Ref 504
Graco 16U526
MODULE, din rail, circuit breakers; see Power Supply and Terminal BlocAsk for a price
MODULE, din rail, circuit breakers; see Power Supply and Terminal BlocAsk for a price
Graco no longer lists this part number.
Also on the Reactor 2 E-XP2.
504
Graco Module, din rail, circuit breakers
Ref 504
Graco 16U526
MODULE, din rail, circuit breakers; see Power Supply and Terminal BlocAsk for a price
MODULE, din rail, circuit breakers; see Power Supply and Terminal BlocAsk for a price
Graco no longer lists this part number.
Also on the Reactor 2 E-XP2.
502
Graco Harness, hose out
Ref 502
Graco 16V515
HARNESS,HOSE OUT, NG REACTORAsk for a price
HARNESS,HOSE OUT, NG REACTORAsk for a price
Also on the Reactor 2 E-XP2.
501
Graco Harness, breaker module
Ref 501
Graco 16U529
HARNESS, BRKR MOD, NG REACTORAsk for a price
HARNESS, BRKR MOD, NG REACTORAsk for a price
Also on the Reactor 2 E-XP2.
505
Graco Module, sys surge protector
Ref 505
Graco 2007103 replaces 16U530
KIT,MODULE, SYS SRG PROTAsk for a price
KIT,MODULE, SYS SRG PROTAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
513
Graco Cover, end
Ref 513
Graco 126383
Ask for a price
Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
Also on the Reactor 2 E-XP2.
515
517
511
518
Graco Bridge, jumper
Ref 518
Graco 120573
BRIDGE,PLUG-IN,(JUMPER)Ask for a price
BRIDGE,PLUG-IN,(JUMPER)Ask for a price
Also on the Reactor 2 E-XP2.
512
Graco Block, clamp, end
Ref 512
Graco 126811
Clamp End BlockAsk for a price
Clamp End BlockAsk for a price
Also on the Reactor 2 E-XP2.
514
Graco Block, terminal
Ref 514
Graco 126382
Ask for a price
Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
Also on the Reactor 2 E-XP2.
512
Graco Block, clamp, end
Ref 512
Graco 126811
Clamp End BlockAsk for a price
Clamp End BlockAsk for a price
Also on the Reactor 2 E-XP2.
516
521
Graco Rail, din
Ref 521
Graco 514014
RAIL, DIN; 35 mm x 7.5 mm x 8.625 in.Ask for a price
RAIL, DIN; 35 mm x 7.5 mm x 8.625 in.Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
Also on the Reactor 2 E-XP2.
522
Graco Terminal, end stop
Ref 522
Graco 255045 replaces 120838
KIT, BLOCK, CLAMP ENDAsk for a price
KIT, BLOCK, CLAMP ENDAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
525
Graco Circuit, breaker, 2p, 40a, ul489
Ref 525
Graco 17A317
CIRCUIT,BREAKER, 2P,40A, UL489,ABAsk for a price
CIRCUIT,BREAKER, 2P,40A, UL489,ABAsk for a price
523
Graco Circuit, breaker, 1 pole, 50a, c curve
Ref 523
Graco 255026 replaces 17A319
KIT, CKT BRKR, 1 POLE, 50A, C CRVAsk for a price
KIT, CKT BRKR, 1 POLE, 50A, C CRVAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
524
Graco Circuit, breaker, 2p, 20a, ul489
Ref 524
Graco 17A314
CIRCUIT,BREAKER, 2P,20A, UL489,ABAsk for a price
CIRCUIT,BREAKER, 2P,20A, UL489,ABAsk for a price
522
Graco Terminal, end stop
Ref 522
Graco 255045 replaces 120838
KIT, BLOCK, CLAMP ENDAsk for a price
KIT, BLOCK, CLAMP ENDAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
531
Graco Rail, din
Ref 531
Graco 514014
RAIL, DIN; 35 mm x 7.5 mm x 8.625 in.Ask for a price
RAIL, DIN; 35 mm x 7.5 mm x 8.625 in.Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
Also on the Reactor 2 E-XP2.
534
535
Graco Power Supply, 24V
Ref 535 · Graco 126453 · SKU 126453
$235.00
532
Graco Terminal, end stop
Ref 532
Graco 255045 replaces 120838
KIT, BLOCK, CLAMP ENDAsk for a price
KIT, BLOCK, CLAMP ENDAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
532
Graco Terminal, end stop
Ref 532
Graco 255045 replaces 120838
KIT, BLOCK, CLAMP ENDAsk for a price
KIT, BLOCK, CLAMP ENDAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
532
Graco Terminal, end stop
Ref 532
Graco 255045 replaces 120838
KIT, BLOCK, CLAMP ENDAsk for a price
KIT, BLOCK, CLAMP ENDAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
533
536
617
Graco Fitting, union adapter
Ref 617
Graco 158383
FITTING, UNION, ADAPTER, STRAIGHT · EliteAsk for a price
FITTING, UNION, ADAPTER, STRAIGHT · EliteAsk for a price
Also on the Reactor 2 E-XP2.
602
Graco Union Swivel Fitting, 3/4″
Ref 602 · Graco 118459 · SKU 118459
Elite, Standard
$19.80
616
615
Graco Transducer, pressure, temperature (includes foam)
Ref 615
Graco 24U851
KIT, TRANSDUCER, PRESS, TEMP · EliteAsk for a price
KIT, TRANSDUCER, PRESS, TEMP · EliteAsk for a price
Also on the Reactor 2 E-XP2.
613
Graco Ball 3/4 NPT Fem Valve, 6000PSI
Ref 613 · Graco 109077 · SKU 109077
Elite, Standard
$126.50
614
Graco Nipple Hex Fitting
Ref 614 · Graco C20487 · SKU 59585
Elite, Standard
$28.40
601
Graco Fitting, union adapter, 90 degree
Ref 601
Graco 160327
FITTING, UNION, ADAPTER, 90 DEG · Elite, StandardAsk for a price
FITTING, UNION, ADAPTER, 90 DEG · Elite, StandardAsk for a price
Also on the Reactor 2 E-XP2.
618
Graco Fitting, tee 3/4m run x 1/4f
Ref 618
Graco 624545
FITTING,TEE 3/4M RUN X 1/4F BRANC · EliteAsk for a price
FITTING,TEE 3/4M RUN X 1/4F BRANC · EliteAsk for a price
Also on the Reactor 2 E-XP2.
610
Graco Thermometer Viscon HP Housing
Ref 610 · Graco 15D757 · SKU 60131
Elite, Standard
$69.00
Also on the Reactor 2 E-XP2.
604
Graco Thermometer Dial Kit
Ref 604 · Graco 24U852 · SKU 57735
Elite, Standard
$155.00
Also on the Reactor 2 E-XP2.
603
Graco Manifold Strainer Wye Kit
Ref 603 · Graco 247503 · SKU 247503
Elite, Standard
$502.00
Also on the Reactor 2 E-XP2.
606
Graco Filter, replacement
Ref 606
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us605
Graco Gauge Pressure Fluid 24U853 Kit
Ref 605 · Graco 24U853 · SKU 59348
Elite, Standard
$123.00
Also on the Reactor 2 E-XP2.
607
Graco O-Ring FX75 Packing – Y-Strainer O-Ring
Ref 607 · Graco 128061 · SKU 128061
Elite, Standard
$37.90
Also on the Reactor 2 E-XP2.
608
Graco Filter Cap
Ref 608 · Graco 16V879 · SKU 57592
Elite, Standard
$88.25
Also on the Reactor 2 E-XP2.
609
Graco Plug, 1/4MP with Hex HD
Ref 609 · Graco 555808 · SKU 555808
Elite, Standard
$3.90
Also on the Reactor 2 E-XP2.
Resources
Service Parts, Manuals & the Machine
What an electric Reactor 2 gets through: the displacement pumps and their seals, the heater RTD and shroud, the drain valve cartridge, the modules. This is the machine we stock the most parts for — the drawings above carry the rest.
Rebuilding something not listed here? Tell us what you need and we will quote it.
Repair & Parts ManualGraco 333024WSafety Warnings & Isocyanate Informationmanual p. 7E-30 parts listsmanual p. 76Recommended spare partsmanual p. 102Reactor Parts & Accessories BrochureGraco 349104
PDFs open in a new tab. The reference numbers on the diagram above match manual 333024W.
The complete Reactor 2 E-30, and the packaged systems built around it. Machines are ordered in — ask us for current lead time.
Buy this machine
Related machines you may also like
Graco Reactor 2 E-30 ElitePkg Fusion PC Gun, (5) Htd Hose WXtrm-Wrap, 15kW, 230
View machine →Graco FH2111 · SKU 60290
$53,620.00
Machines are usually special order. Ask us for availability and lead time.
107 of 270 dots are priced online. The rest we quote. Reference numbers match Graco manual 333024W.
| Ref | Assembly | Part | Graco # | SKU | Price | |
|---|---|---|---|---|---|---|
| 1 | The machine | Graco Frame | — | — | Ask us | Ask |
| 2 | The machine | Graco Enclosure, electrical | — | — | Ask us | Ask |
| 3 | The machine | Graco Bottle Assembly, Complete | 246995 | 246995 | $203.00 | Add |
| 4 | The machine | BRACKET, PAINTED, TSL, BOTTLE | 16X531 | — | Ask us | Ask |
| 5 | The machine | Graco Heater RTD Kit, 7.5KW, 1 Zone | 24U842 | 59255 | $1,734.00 | Add |
| 6 | The machine | Graco Manifold, fluid | 24U704 | — | Not sold separately | Ask |
| 7 | The machine | INSULATOR, FOAM, HEATER | 16W654 | — | Ask us | Ask |
| 8 | The machine | COVER, TRANSFORMER | 24R684 | — | Ask us | Ask |
| 9 | The machine | Graco Connector, Wire, 6AWG | 261821 | 261821 | $76.50 | Add |
| 10 | The machine | Graco Heater Shroud 24U841 Kit | 24U841 | 59497 | $878.00 | Add |
| 11 | The machine | COVER,PAINTED,MOTOR | 16W765 | — | Ask us | Ask |
| 12 | The machine | COVER,PAINTED,HEATER,REAR | 16W764 | — | Ask us | Ask |
| 13 | The machine | KIT, FLUID TUBE, B, INLET | 24U837 | — | Ask us | Ask |
| 14 | The machine | KIT, FLUID TUBE, B, OUTLET | 24U839 | — | Ask us | Ask |
| 15 | The machine | Graco Fluid Tube A Inlet 24U833 Kit | 24U833 | 60246 | $105.50 | Add |
| 16 | The machine | KIT, FLUID TUBE, A, OUTLET | 24U836 | — | Ask us | Ask |
| 17 | The machine | KIT, TRANSFORMER, 4090VA, 230/90 | 247812 was 15K742 | — | Ask us | Ask |
| 18 | The machine | GASKET, MANIFOLD | 15B456 | — | Ask us | Ask |
| 19 | The machine | Graco Elbow Fitting, 3/8 NPT X #8 JIC | 125643 | 60163 | $42.10 | Add |
| 20 | The machine | Graco HH Flanged Screw, 1/4-20 X .375 | 119865 | 60429 | $5.10 | Add |
| 21 | The machine | Graco Machine Slot Hex 118444 Screw | 118444 | 60187 | $5.25 | Add |
| 22 | The machine | Graco Mch Phil Pan HD; 1.5in X #6-32 117683 Screw | 117683 | 60467 | $3.05 | Add |
| 23 | The machine | Graco Flanged Hex HD Screw | 113796 | 60511 | $2.75 | Add |
| 24 | The machine | Graco Nut, hex, flanged | 112731 | — | Not sold separately | Ask |
| 25 | The machine | Graco Cap Hex HD Screw | 111800 | 60512 | $5.38 | Add |
| 26 | The machine | CAP,TUBE,SQUARE | 111218 | — | Ask us | Ask |
| 27 | The machine | NUT, HEX, FLANGED | 110996 | — | Ask us | Ask |
| 28 | The machine | Graco Screw, tapping pnhd | 104859 | — | Not sold separately | Ask |
| 29 | The machine | WASHER, LOCK, EXT | 103181 | — | Ask us | Ask |
| 30 | The machine | WASHER, LOCK | 100020 | — | Ask us | Ask |
| 31 | The machine | Graco Guard, Finger | 115836 | 60468 | $5.30 | Add |
| 32 | The machine | Graco Fan Cooling Kit, 120MM | 24U847 | 60144 | $161.50 | Add |
| 33 | The machine | COVER, DINRAIL | 24R685 | — | Ask us | Ask |
| 33a | The machine | Graco Kit, module, din rail, heater | 24U849 | — | Not sold separately | Ask |
| 33b | The machine | INSULATOR, FOAM, DINRAIL | 16W667 | — | Ask us | Ask |
| 33c | The machine | Graco Cover, bottom, din rail | — | — | Ask us | Ask |
| 33d | The machine | NUT,KEPS,HEX HD | 113505 | — | Ask us | Ask |
| 34 | The machine | Graco Flat Washer | 151395 | 60469 | $50.25 | Add |
| 35 | The machine | GROMMET | 120685 | — | Ask us | Ask |
| 36 | The machine | GROMMET,RUBBER | 114269 | — | Ask us | Ask |
| 37 | The machine | TIE, CABLE, FIR TREE | 125625 | — | Ask us | Ask |
| 38 | The machine | BOLT, CARRIAGE, 1/2-13 X 3.5 L | 127277 | — | Ask us | Ask |
| 39 | The machine | Graco Keps Hex Nut | 127278 | 60470 | $4.40 | Add |
| 40 | The machine | GROMMET, RUBBER | 127282 | — | Ask us | Ask |
| 41 | The machine | CONNECTOR, POWER, MALE, 4 PIN | 16X095 | — | Ask us | Ask |
| 42 | The machine | TIE, CABLE, 7.5 INCH | 125871 | — | Ask us | Ask |
| 43 | The machine | Graco Fts RTD Single Hose Kit | 24K207 | 57278 | $611.00 | Add |
| 44 | The machine | BRIDGE,PLUG-IN JUMPER, UT35 | 24R725 | — | Ask us | Ask |
| 45 | The machine | TAPE, ELECTRICAL | 106569 | — | Ask us | Ask |
| 46 | The machine | CABLE, OVER-TEMP, SINGLE REACTOR | 24T242 | — | Ask us | Ask |
| 47 | The machine | Graco Plug Pipe Headles | 104765 | 104765 | $17.80 | Add |
| 48 | The machine | COVER, TOP, DINRAIL | 16V268 | — | Ask us | Ask |
| 49 | The machine | LABEL, MADE IN THE USA | 15Y118 | — | Ask us | Ask |
| 50 | The machine | KIT, PROPORTIONER, E-30, R2 | 24V150 | — | Ask us | Ask |
| 51 | The machine | Graco Assembly Pair Std Reactor Kit | 24U320 | 59561 | $1,450.00 | Add |
| 53 | The machine | Graco M8 4P F TO M12 8P M 1.5M Cable | 24T050 | 60146 | $222.00 | Add |
| 54 | The machine | CABLE,M12 5P, FEM - MALE, 2.0M | 16W130 | — | Ask us | Ask |
| 55 | The machine | KIT, TUBE, PRESSURE RELIEF | 24U845 | — | Ask us | Ask |
| 56 | The machine | Graco Fitting Elbow, 1/8 NPT | 191892 | 191892 | $38.70 | Add |
| 57 | The machine | Graco Plated 116746 Barbed Fitting | 116746 | 116746 | $10.70 | Add |
| 58 | The machine | LABEL, BRANDING, E-30 | 16W218 | — | Ask us | Ask |
| 59 | The machine | KIT,MODULE, SYS SRG PROT | 2007103 was 16U530 | — | Ask us | Ask |
| 60 | The machine | Graco Repair Cover Kit, 1095, 1595 | 287292 | 60268 | $97.25 | Add |
| 61 | The machine | Graco Painted Control Box Cover | 16W766 | 60427 | $428.00 | Add |
| 62 | The machine | Graco Latch, Door 16W596 | 16W596 | 60260 | $42.40 | Add |
| 63 | The machine | Graco Module Gca MCM2200 Fio R2 Kit | 24U832 | 59524 | $1,220.00 | Add |
| 64 | The machine | Graco Tsl, 1 Quart Bottle | 206995 | 206995 | $47.90 | Add |
| 65 | The machine | TSL Throat Seal Liquid, 8 oz (sold in multiples of 6) | 206994 | — | Ask us | Ask |
| 67 | The machine | TRIM,EDGE PROTECTION | 114225 | — | Ask us | Ask |
| 68 | The machine | LABEL, IDENTIFICATION | 16X250 | — | Ask us | Ask |
| 70 | The machine | Graco Mchn Pnh w/Ext Tooth Wash Screw | 127296 | 60428 | $4.40 | Add |
| 71 | The machine | SCREW, MACH, PHILLIPS, TOOTH WASH | 16X129 | — | Ask us | Ask |
| 72 | The machine | Graco Reducer #5 X #8 JIC Fitting | 117502 | 117502 | $41.20 | Add |
| 73 | The machine | Graco Reducer #6 X #10 JIC Fitting | 117677 | 117677 | $44.80 | Add |
| 74 | The machine | CAP, PLUG, 5/16 TUBE | 299521 | — | Ask us | Ask |
| 75 | The machine | CAP, PLUG 3/8 TUBE | 299520 | — | Ask us | Ask |
| 79 | The machine | Graco Fluid, oxide inhibitor | 261843 | — | Not sold separately | Ask |
| 81 | The machine | Graco Wall Mount Bracket | 16V806 | 60547 | $26.30 | Add |
| 82 | The machine | 10 Pack of ADM Protective Covers | 2007121 was 15V551 | — | Ask us | Ask |
| 83 | The machine | KIT,DRUM LEVEL, METAL | 24M174 was 24K409 | — | Ask us | Ask |
| 84 | The machine | KIT,DRUM LEVEL, METAL | 24M174 was 24K411 | — | Ask us | Ask |
| 85 | The machine | Graco Keps Hex Nut | 127278 | 60470 | $4.40 | Add |
| 88 | The machine | Graco Module Gca Adm ReCTR2 Kit | 24U854 | 57684 | $1,065.00 | Add |
| 89 | The machine | FITTING, SWIVEL, 3/4 NPT X 1 NPSM | 16W967 | — | Ask us | Ask |
| 90 | The machine | Graco Label, Branding, Reactor 16W213 | 16W213 | 60267 | $10.50 | Add |
| 91 | The machine | NUT, HEX, FLANGE HEAD | 115942 | — | Ask us | Ask |
| 92 | The machine | SUPPRESSOR, ROUND SNAP FERRITE .260 | 15D906 | — | Ask us | Ask |
| 93 | The machine | SLEEVE, SPLIT, WIRE, 1.50 ID | 127368 | — | Ask us | Ask |
| 94 | The machine | Graco Tie, cable, 6 in. | 127377 | — | Not sold separately | Ask |
| 95 | The machine | Graco Label, insite | 16X154 | — | Not sold separately | Ask |
| 96 | The machine | MANUAL,QUICK GUIDE,STARTUP | 333091 | — | Ask us | Ask |
| 97 | The machine | MANUAL,QUICK GUIDE,SHUTDOWN | 333092 | — | Ask us | Ask |
| 98 | The machine | ENCLOSURE,TERMINAL BLOCK | 24W204 | — | Ask us | Ask |
| 99 | The machine | Graco Enclosure, cover | 24A234 | — | Not sold separately | Ask |
| 100 | The machine | LABEL, CAUTION | 189930 | — | Ask us | Ask |
| 101 | The machine | Graco Label, Designation | 172953 | 60386 | $8.35 | Add |
| 102 | The machine | PLATE,MOUNTING,PAINTED | 17D955 | — | Ask us | Ask |
| 103 | The machine | SCREW, FLANGE, HEX HD | 113161 | — | Ask us | Ask |
| 104 | The machine | Graco Meter, flow, iso | — | — | Ask us | Ask |
| 105 | The machine | Graco Meter, flow, res | — | — | Ask us | Ask |
| 106 | The machine | 0.3M Male/Female M12-5P GCA Cable | 17R703 | — | Ask us | Ask |
| 107 | The machine | CABLE,GCA,M12-5P,M/F,2.0M | 17Y983 | — | Ask us | Ask |
| 108 | The machine | CONNECTOR,SPLITTER | 25E540 | — | Ask us | Ask |
| 101 | Proportioner module | Graco Motor Brushless Kit, 2HP | 24U050 | 57595 | $2,780.00 | Add |
| 102 | Proportioner module | Graco Repair Drive Housing Kit | 17W869 | 60087 | $729.00 | Add |
| 103 | Proportioner module | Graco Kit Repair Housing Bearing 245927 | 245927 | 245927 | $201.00 | Add |
| 104 | Proportioner module | Graco Repair Gear Kit, 1095, 1595 | 287290 | 287290 | $266.50 | Add |
| 105 | Proportioner module | Graco Conn Rod Replacement Kit | 241279 | 241279 | $370.00 | Add |
| 106 | Proportioner module | KIT,REACTOR PUMP,DISPL.,.743/479.22 | 2007125 was 245972 | — | Ask us | Ask |
| 107 | Proportioner module | WASHER, THRUST | 114699 | — | Ask us | Ask |
| 108 | Proportioner module | WASHER, THRUST | 114672 | — | Ask us | Ask |
| 110 | Proportioner module | SPRING, RETAINING | 183169 | — | Ask us | Ask |
| 111 | Proportioner module | Graco Str Hdls Pin | 183210 | 60226 | $29.50 | Add |
| 112 | Proportioner module | Graco Machine Torx Hex Wash Screw | 15C753 | 57596 | $1.70 | Add |
| 113 | Proportioner module | Graco Cap Socket HD Screw | 114666 | 60449 | $5.00 | Add |
| 114 | Proportioner module | Graco Lock Spring (Hi-Collar) Washer | 106115 | 106115 | $4.30 | Add |
| 115 | Proportioner module | Graco Displ. W/lube .743 2007119 Pump | 246832 | 246832 | $3,020.00 | Add |
| 116 | Proportioner module | Graco Retaining Nut | 193394 | 60227 | $32.60 | Add |
| 118 | Proportioner module | WASHER, THRUST | 116192 | — | Ask us | Ask |
| 120 | Proportioner module | Graco Magnet (E20) | 116618 | 116618 | $9.80 | Add |
| 121 | Proportioner module | Graco Reed M8-4-PIN Switch | 24P728 | 60351 | $255.00 | Add |
| 122 | Proportioner module | Graco Hxhd Thd Cut Screw, 4-40 X .375 | 127301 | 60450 | $4.40 | Add |
| 125 | Proportioner module | LABEL, TORQUE | 187437 | — | Ask us | Ask |
| 126 | Proportioner module | LABEL, SAFETY, WARNING, PINCH | 192840 | — | Ask us | Ask |
| 201 | Fluid heater | Graco Machined Heater, 2Zone, 3500psi | 15K825 | 60385 | $722.00 | Add |
| 202 | Fluid heater | Graco O-Ring – 124132 – #315 | 124132 | 124132 | $3.10 | Add |
| 203 | Fluid heater | FITTING,PLUG HOLOW HEX 1-3/16 SAE | 15H305 | — | Ask us | Ask |
| 204 | Fluid heater | Graco Conn Fitting, 3/4SAE X 1/2 JIC | 121309 | 121309 | $21.50 | Add |
| 205 | Fluid heater | FITTING,PLUG 9/16 SAE | 15H304 | — | Ask us | Ask |
| 206 | Fluid heater | Graco Thermocouple Adapter | 15H306 | 60414 | $91.25 | Add |
| 207 | Fluid heater | O-RING,PACKING | 120336 | — | Ask us | Ask |
| 208 | Fluid heater | Graco Immerson (2550W Heater, 230V) 2007112 | 16A110 | 57608 | $506.00 | Add |
| 209 | Fluid heater | KIT,SWITCH, OVER TEMP. | 2007109 was 15B137 | — | Ask us | Ask |
| 210 | Fluid heater | Graco Mixer, Immersion Heater #309 | 15B135 | 57744 | $51.25 | Add |
| 211 | Fluid heater | Graco Fitting, compression | — | — | Ask us | Ask |
| 212 | Fluid heater | Graco Sensor, rtd | — | — | Ask us | Ask |
| 213 | Fluid heater | Graco Burst Disc Kit | 247520 | 247520 | $233.00 | Add |
| 701 | Flow meter | Graco Housing, 3/4” orb, w/ pins, sub-assembly | — | — | Ask us | Ask |
| 703 | Flow meter | GEAR, OVAL, METERING, FLAT | 25C298 | — | Ask us | Ask |
| 704 | Flow meter | GEAR,OVAL, METERING ELEMENT | 15V690PKG | — | Ask us | Ask |
| 705 | Flow meter | GASKET,METER | 17Y063PKG | — | Ask us | Ask |
| 706 | Flow meter | O-RING,031, FX75 | 131971PKG | — | Ask us | Ask |
| 707 | Flow meter | Graco Cap, meter | 17Y062PKG | — | Not sold separately | Ask |
| 708 | Flow meter | SCREW, CAP, SCH | 108787 | — | Ask us | Ask |
| 709 | Flow meter | Graco Screw, thd forming, pnh | 110163PKG | — | Not sold separately | Ask |
| 710 | Flow meter | Graco Board, assembly, ratio monitor | 24E134PKG | — | Not sold separately | Ask |
| 711 | Flow meter | Graco Cover, meter | — | — | Ask us | Ask |
| 712 | Flow meter | SCREW, MACH, TORX PAN HD | 131172 | — | Ask us | Ask |
| 716 | Flow meter | FITTING,SWIVEL,JIC-08,3/4-16 ORB | 25E486PKG | — | Ask us | Ask |
| 717 | Flow meter | Graco Reducer #5 X #8 JIC Fitting | 117502 | 117502 | $41.20 | Add |
| 718 | Flow meter | Graco Label, blank | — | — | Ask us | Ask |
| 719 | Flow meter | Graco Label, branding, g-2000 | — | — | Ask us | Ask |
| 720 | Flow meter | Graco Lubricant, grease | 070268 | — | Not sold separately | Ask |
| 721 | Flow meter | FITTING,45 DEG ELBOW, 3/4 X 3/4 | 17Y236 | — | Ask us | Ask |
| 722 | Flow meter | Graco Sealant, pipe, sst | 070408 | — | Not sold separately | Ask |
| 401 | Fluid manifold | Graco Manifold, fluid | 2008292 | — | Not sold separately | Ask |
| 402 | Fluid manifold | Graco Valve Drain Cartridge 247824 Kit | 247824 | 60522 | $401.00 | Add |
| 402a | Fluid manifold | PACKING, O-RING | 158674 | — | Ask us | Ask |
| 402b | Fluid manifold | KIT, SEAL, SEAT, VALVE | 247779 | — | Ask us | Ask |
| 403 | Fluid manifold | Graco Qfluid 102814 Gauge, 5000PSI | 102814 | 102814 | $108.50 | Add |
| 404 | Fluid manifold | FITTING, (1/4 NPSM X 1/4 NPT) | 162453 | — | Ask us | Ask |
| 405 | Fluid manifold | KIT, SENSOR PRESSURE, FLUID OUTLET | 2007100 was 15M669 | — | Ask us | Ask |
| 406 | Fluid manifold | Graco Handle Left Red ISO Kit | 247788 | 247788 | $42.50 | Add |
| 407 | Fluid manifold | Graco Handle Right Blue Resin Kit | 247789 | 247789 | $42.50 | Add |
| 408 | Fluid manifold | Graco Hex Jam Nut | 112309 | 112309 | $6.45 | Add |
| 411 | Fluid manifold | FITTING,45 DEG ELBOW, 3/4 X 3/4 | 17Y236 | — | Ask us | Ask |
| 412 | Fluid manifold | Graco Elbow MA Fitting, 3/4SAE X 1/2J | 121312 | 121312 | $12.40 | Add |
| 413 | Fluid manifold | FITTING, ELBOW, STREET | 100840 | — | Ask us | Ask |
| 414 | Fluid manifold | O-Ring Packing, PTFE | 111457 | — | Ask us | Ask |
| 415 | Fluid manifold | LABEL, SAFETY, BURN | 189285 | — | Ask us | Ask |
| 416 | Fluid manifold | Graco Compression Spring | 150829 | 150829 | $11.40 | Add |
| 419 | Fluid manifold | FITTING,45 DEG ELBOW, 3/4 X 7/8 | 17Y235 | — | Ask us | Ask |
| 451 | Electrical enclosure | Graco Enclosure | 24U087 | — | Not sold separately | Ask |
| 453 | Electrical enclosure | Graco Module Gca Mzhp REACTOR2 Kit | 24U855 | 57605 | $944.00 | Add |
| 454 | Electrical enclosure | Graco Fan Cooling Kit, 80MM | 24U848 | 57606 | $115.00 | Add |
| 455 | Electrical enclosure | Graco Discnnt Door Mounted 24R736 Switch | 24R736 | 60518 | $492.00 | Add |
| 457 | Electrical enclosure | TERMINAL, GROUND | 117666 | — | Ask us | Ask |
| 458 | Electrical enclosure | KIT, NUT, STRAIN RLF, M40 | 255048 | — | Ask us | Ask |
| 459 | Electrical enclosure | KIT, BUSHING, STRAIN RLF, M40 | 255047 | — | Ask us | Ask |
| 460 | Electrical enclosure | Graco Knob, Operator Disconnect Yellow Red Switch | 123967 | 123967 | $86.75 | Add |
| 461 | Electrical enclosure | NUT, HEX, FLANGE HEAD | 115942 | — | Ask us | Ask |
| 462 | Electrical enclosure | WASHER, LOCK, EXT | 103181 | — | Ask us | Ask |
| 463 | Electrical enclosure | Graco Screw, machine, pan head | 124131 | — | Ask us | Ask |
| 464 | Electrical enclosure | Graco Wire, grounding, door | 194337 | — | Not sold separately | Ask |
| 466 | Electrical enclosure | KIT, SWIVEL, SD GREASE 3/8 | 133505 | — | Ask us | Ask |
| 468 | Electrical enclosure | Graco Cap, tube, square | 1112118 | — | Not sold separately | Ask |
| 469 | Electrical enclosure | GROMMET,RUBBER | 114269 | — | Ask us | Ask |
| 470 | Electrical enclosure | GROMMET, RUBBER | 127282 | — | Ask us | Ask |
| 471 | Electrical enclosure | Graco Keps Hex Nut | 127278 | 60470 | $4.40 | Add |
| 472 | Electrical enclosure | GASKET, ENCLOSURE, FOAM | 16W925 | — | Ask us | Ask |
| 473 | Electrical enclosure | GASKET, ENCLOSURE, FOAM | 16W926 | — | Ask us | Ask |
| 474 | Electrical enclosure | Graco Can Power M12 Fem Pigtail 24R735 Cable | 24R735 | 60241 | $181.00 | Add |
| 475 | Electrical enclosure | Graco Can Female/Female 1.0M Cable | 127068 | 127068 | $23.70 | Add |
| 476 | Electrical enclosure | KIT, MODULE, BRKR, HG REACTOR | 24U850 | — | Ask us | Ask |
| 477 | Electrical enclosure | CABLE, 4-PIN, MF, 1.3M, MOLDED | 127290 | — | Ask us | Ask |
| 478 | Electrical enclosure | LABEL, SAFETY | 16X050 | — | Ask us | Ask |
| 479 | Electrical enclosure | Graco Label, Safety, Multi Language | 16X049 | 60421 | $19.10 | Add |
| 501 | DIN rail module | HARNESS, BRKR MOD, NG REACTOR | 16U529 | — | Ask us | Ask |
| 502 | DIN rail module | HARNESS,HOSE OUT, NG REACTOR | 16V515 | — | Ask us | Ask |
| 503 | DIN rail module | MODULE, DIN RAIL, TERM BLK, PWR SUP | 16U522 | — | Ask us | Ask |
| 504 | DIN rail module | Graco Module, din rail, circuit breakers | 16U526 | — | Not sold separately | Ask |
| 505 | DIN rail module | KIT,MODULE, SYS SRG PROT | 2007103 was 16U530 | — | Ask us | Ask |
| 511 | Terminal block module | RAIL,DIN, 35MM X 7.5MM | 24T315 | — | Ask us | Ask |
| 512 | Terminal block module | Clamp End Block | 126811 | — | Ask us | Ask |
| 513 | Terminal block module | Graco Cover, end | 126383 | — | Not sold separately | Ask |
| 514 | Terminal block module | Graco Block, terminal | 126382 | — | Not sold separately | Ask |
| 515 | Terminal block module | BLOCK,TERMINAL | 120570 | — | Ask us | Ask |
| 516 | Terminal block module | BLOCK,TERMINAL, UT-2.5, RED | 24R758 | — | Ask us | Ask |
| 517 | Terminal block module | BLOCK,TERMINAL, UT-2.5, BLACK | 24R759 | — | Ask us | Ask |
| 518 | Terminal block module | BRIDGE,PLUG-IN,(JUMPER) | 120573 | — | Ask us | Ask |
| 521 | Circuit breaker module | Graco Rail, din | 514014 | — | Not sold separately | Ask |
| 522 | Circuit breaker module | KIT, BLOCK, CLAMP END | 255045 was 120838 | — | Ask us | Ask |
| 523 | Circuit breaker module | KIT, CKT BRKR, 1 POLE, 50A, C CRV | 255026 was 17A319 | — | Ask us | Ask |
| 524 | Circuit breaker module | CIRCUIT,BREAKER, 2P,20A, UL489,AB | 17A314 | — | Ask us | Ask |
| 525 | Circuit breaker module | CIRCUIT,BREAKER, 2P,40A, UL489,AB | 17A317 | — | Ask us | Ask |
| 531 | Circuit breaker module | Graco Rail, din | 514014 | — | Not sold separately | Ask |
| 532 | Circuit breaker module | KIT, BLOCK, CLAMP END | 255045 was 120838 | — | Ask us | Ask |
| 533 | Circuit breaker module | BLOCK, TERMINAL PE, QUAD, ABB | 24R722 | — | Ask us | Ask |
| 534 | Circuit breaker module | BLOCK, TERMINAL, QUAD M4, ABB | 24R723 | — | Ask us | Ask |
| 535 | Circuit breaker module | Graco Power Supply, 24V | 126453 | 126453 | $235.00 | Add |
| 536 | Circuit breaker module | BLOCK,TERMINAL, UT35 | 24R724 | — | Ask us | Ask |
| 601 | Fluid inlet kits | FITTING, UNION, ADAPTER, 90 DEG | 160327 | — | Ask us | Ask |
| 602 | Fluid inlet kits | Graco Union Swivel Fitting, 3/4″ | 118459 | 118459 | $19.80 | Add |
| 603 | Fluid inlet kits | Graco Manifold Strainer Wye Kit | 247503 | 247503 | $502.00 | Add |
| 604 | Fluid inlet kits | Graco Thermometer Dial Kit | 24U852 | 57735 | $155.00 | Add |
| 605 | Fluid inlet kits | Graco Gauge Pressure Fluid 24U853 Kit | 24U853 | 59348 | $123.00 | Add |
| 606 | Fluid inlet kits | Graco Filter, replacement | — | — | Ask us | Ask |
| 607 | Fluid inlet kits | Graco O-Ring FX75 Packing – Y-Strainer O-Ring | 128061 | 128061 | $37.90 | Add |
| 608 | Fluid inlet kits | Graco Filter Cap | 16V879 | 57592 | $88.25 | Add |
| 609 | Fluid inlet kits | Graco Plug, 1/4MP with Hex HD | 555808 | 555808 | $3.90 | Add |
| 610 | Fluid inlet kits | Graco Thermometer Viscon HP Housing | 15D757 | 60131 | $69.00 | Add |
| 613 | Fluid inlet kits | Graco Ball 3/4 NPT Fem Valve, 6000PSI | 109077 | 109077 | $126.50 | Add |
| 614 | Fluid inlet kits | Graco Nipple Hex Fitting | C20487 | 59585 | $28.40 | Add |
| 615 | Fluid inlet kits | KIT, TRANSDUCER, PRESS, TEMP | 24U851 | — | Ask us | Ask |
| 616 | Fluid inlet kits | FITTING, BUSHING | 158586 | — | Ask us | Ask |
| 617 | Fluid inlet kits | FITTING, UNION, ADAPTER, STRAIGHT | 158383 | — | Ask us | Ask |
| 618 | Fluid inlet kits | FITTING,TEE 3/4M RUN X 1/4F BRANC | 624545 | — | Ask us | Ask |
