Parts diagram
Graco Reactor 3 E-20 — Spray Foam Proportioner
Hover or tap any number on the drawing to see the part and add it to your cart.

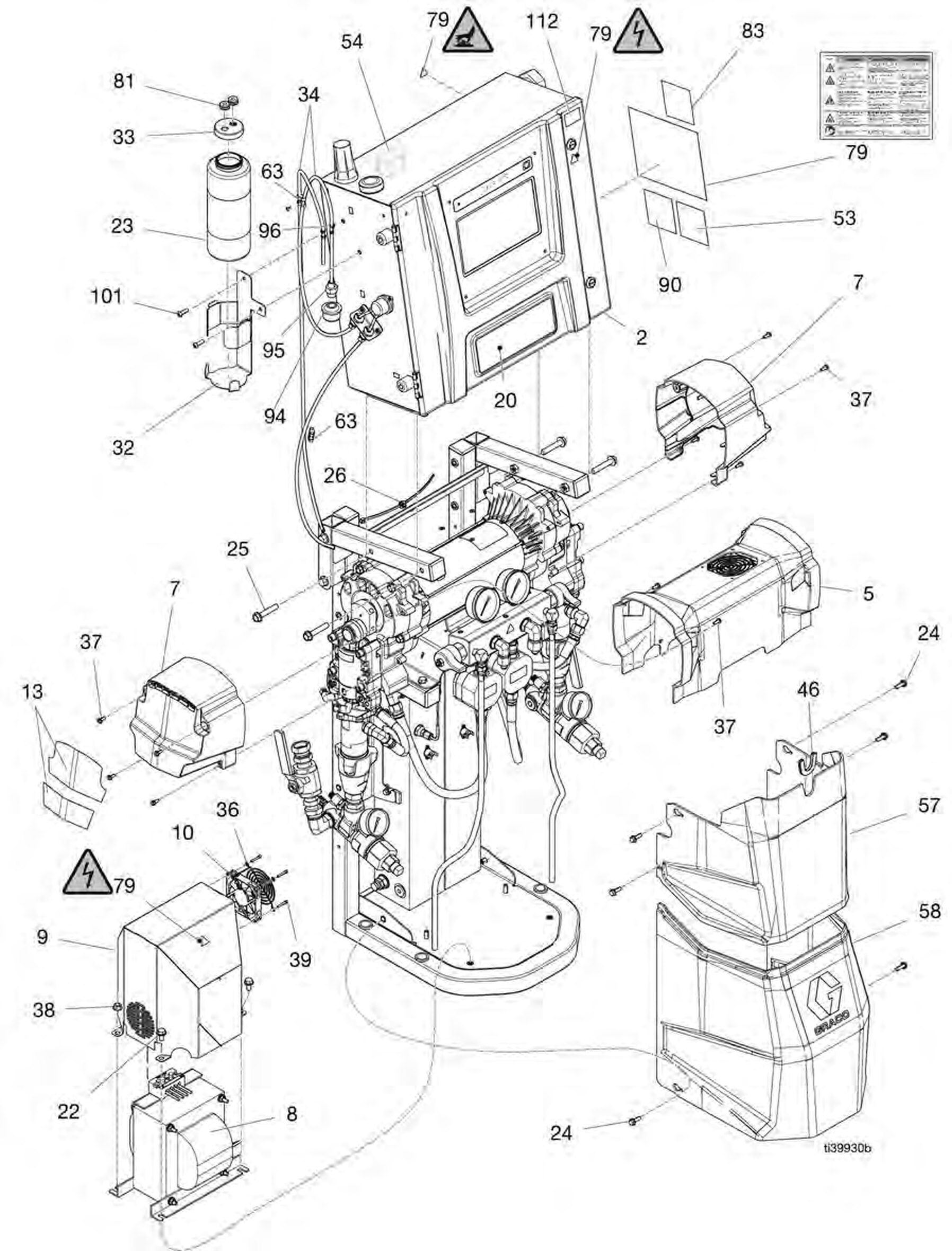

The machineDrawing from Graco manual 3A8501L, page 49
Priced onlineAsk us for a price
79
Graco Label, safety
Ref 79
Graco 25T998
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
112
Graco Pump, displacement, tsl cir, .396
Ref 112
Graco 2007126 replaces 25P857
KIT,REACTOR PUMP,DISPLACEMENT,TSL CIR,.396Ask for a price
KIT,REACTOR PUMP,DISPLACEMENT,TSL CIR,.396Ask for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
Listed with the drawing.
83
Graco Artwork, identification
Ref 83
Graco 29A382
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Graco no longer lists this part number.
Also on the Reactor 3 E-30.
79
Graco Label, safety
Ref 79
Graco 25T998
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
54
Graco Module, sys srg prot
Ref 54
Graco 2007103 replaces 16U530
KIT,MODULE, SYS SRG PROT · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT,MODULE, SYS SRG PROT · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
81
Graco Grommet
Ref 81
Graco 112738
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
34
Graco ref 34
on the The machine drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us33
Graco Cap, bottle, tsl
Ref 33
Graco 18C779
CAP,ISO-LUBE,R3 · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
CAP,ISO-LUBE,R3 · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
79
Graco Label, safety
Ref 79
Graco 25T998
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
63
Graco Clip, t-clip, snap-in
Ref 63
Graco 25B524
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
53
Graco ref 53
on the The machine drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us23

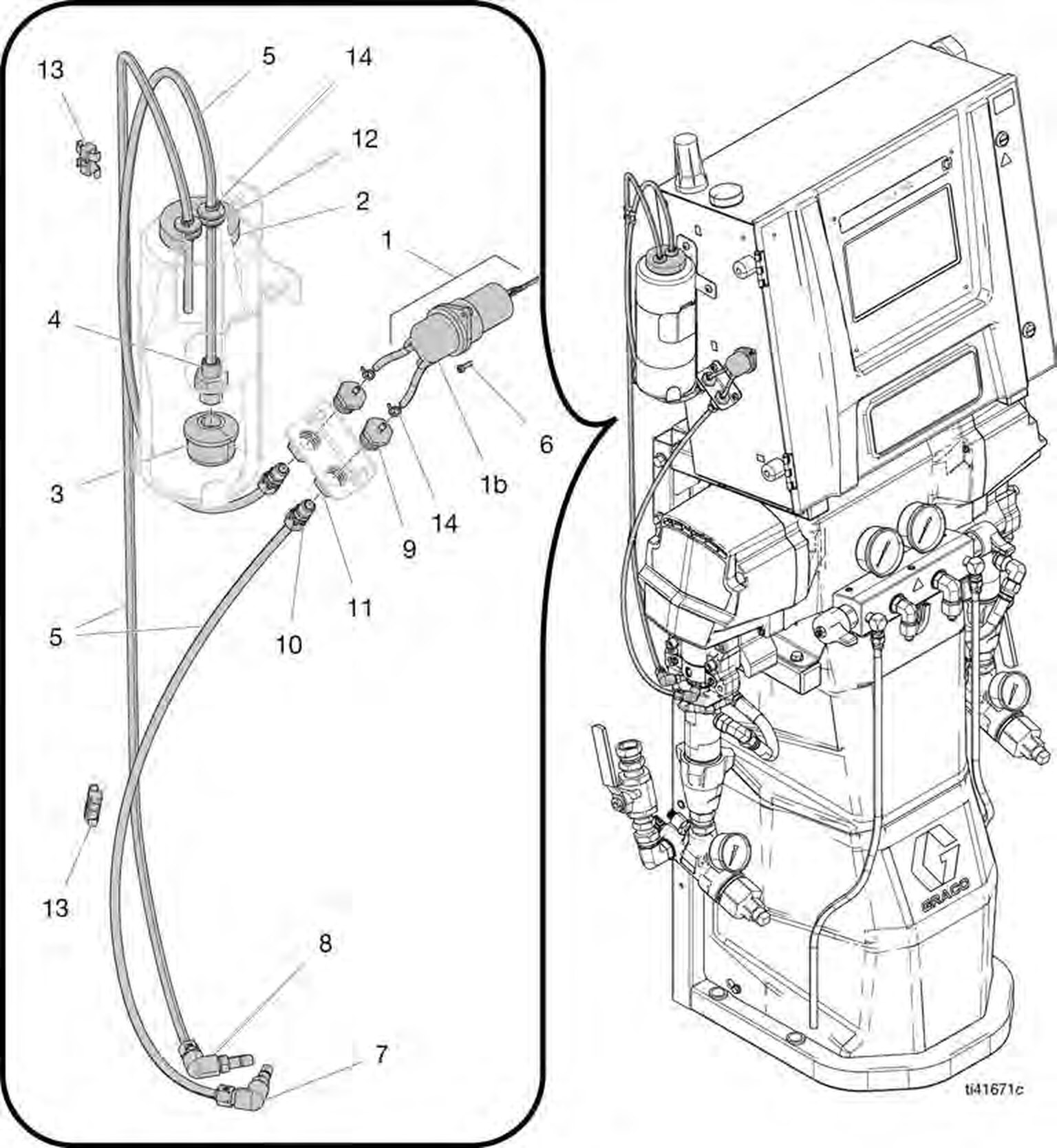

Graco Fluid, tsl, 25 oz (750 ml)
Ref 23
Graco 25T859
FLUID, 25 OZ (750 ML) (sold in multiples of 6) · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
FLUID, 25 OZ (750 ML) (sold in multiples of 6) · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
96
Graco Strap, tie wiring
Ref 96
Graco 102478
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
7
Graco Cover, front, 695, painted
Ref 7
Graco 24V023
KIT,REPAIR,COVER,659/795/MARK · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT,REPAIR,COVER,659/795/MARK · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
90
Graco ref 90
on the The machine drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us101
Graco Screw, button head, 1/4-20 x 3/4
Ref 101
Graco 112689
SCREW, BUTTON HD · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
SCREW, BUTTON HD · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
2
Graco Enclosure, elec, r3, 6-15 kw
Ref 2
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us95
Graco Fitting, connector, male, straight
Ref 95
Graco 16E254
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
20
Graco Label, brand
Ref 20
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us37
Graco Machine Slot Hex 118444 Screw
Ref 37 · Graco 118444 · SKU 60187
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$5.25
94
Graco Strainer, suction, 1/4 npt
Ref 94
Graco 133416
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
63
Graco Clip, t-clip, snap-in
Ref 63
Graco 25B524
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
32
Graco Bracket, r3, iso-lube, painted
Ref 32
Graco 19C041
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
26
Graco ref 26
on the The machine drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us25
Graco Screw, fl hex head, 3/8-16 x 2
Ref 25
Graco 111194
SCREW, CAP FLANG HD · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
SCREW, CAP FLANG HD · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
7
Graco Cover, front, 695, painted
Ref 7
Graco 24V023
KIT,REPAIR,COVER,659/795/MARK · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT,REPAIR,COVER,659/795/MARK · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
5
Graco Cover, motor, fan, assembly
Ref 5
Graco 18E190
KIT,REPAIR,MOTOR COVER W/FAN · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT,REPAIR,MOTOR COVER W/FAN · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
24
Graco Flanged Hex HD Screw
Ref 24 · Graco 113796 · SKU 60511
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$2.75
37
Graco Machine Slot Hex 118444 Screw
Ref 37 · Graco 118444 · SKU 60187
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$5.25
46
Graco Trim, edge protection
Ref 46
Graco 114225
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
13
Graco Label, reactor 3, elite, side, e-20
Ref 13 · 3 versions
Graco 25S137
LABEL,REACTOR 3,STD,SIDE,E-20 · Standard 7 kWAsk for a price
LABEL,REACTOR 3,STD,SIDE,E-20 · Standard 7 kWAsk for a price
Graco 25S138
LABEL,REACTOR 3,PRO,SIDE,E-20 · Pro 10 kW, Pro 7 kWAsk for a price
LABEL,REACTOR 3,PRO,SIDE,E-20 · Pro 10 kW, Pro 7 kWAsk for a price
Graco 25S139
Elite 10 kWAsk for a price
Elite 10 kWAsk for a price
37
Graco Machine Slot Hex 118444 Screw
Ref 37 · Graco 118444 · SKU 60187
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$5.25
57
Graco Cover, r3, lower-top, painted
Ref 57
Graco 18E201
Not sold on its own. It comes in the lower shroud repair kit, with the lower-bottom cover (ref 58).
Ask us36
Graco Guard, finger, 80 mm fan
Ref 36
Graco 132560PKG
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
10
Graco Fan, 24 vdc, 80 mm square x 15 mm
Ref 10
Graco 132561PKG
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
79
Graco Label, safety
Ref 79
Graco 25T998
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
58
Graco Cover, r3, lower-bottom, painted
Ref 58
Graco 18E201
KIT,REPAIR,R3,LOWER SHROUDS · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT,REPAIR,R3,LOWER SHROUDS · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
9
Graco Cover, weldment, transformer
Ref 9
Graco 18E202
KIT,REPAIR,R3,TRANSFORMER CVR · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT,REPAIR,R3,TRANSFORMER CVR · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
39
Graco Screw, socket cap #6-32 x 7/8
Ref 39
Graco 110631
SCREW, SOCKET HD · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
SCREW, SOCKET HD · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
38
Graco Flange nut, 5/16-18
Ref 38
Graco 110996
NUT, HEX, FLANGED · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
NUT, HEX, FLANGED · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
22
Graco Cap Hex HD Screw
Ref 22 · Graco 111800 · SKU 60512
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$5.38
8
Graco Transformer, 2790va, 230/62
Ref 8
Graco 18E130
KIT,TRANSFORMER 62V · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT,TRANSFORMER 62V · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
24
Graco Flanged Hex HD Screw
Ref 24 · Graco 113796 · SKU 60511
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$2.75

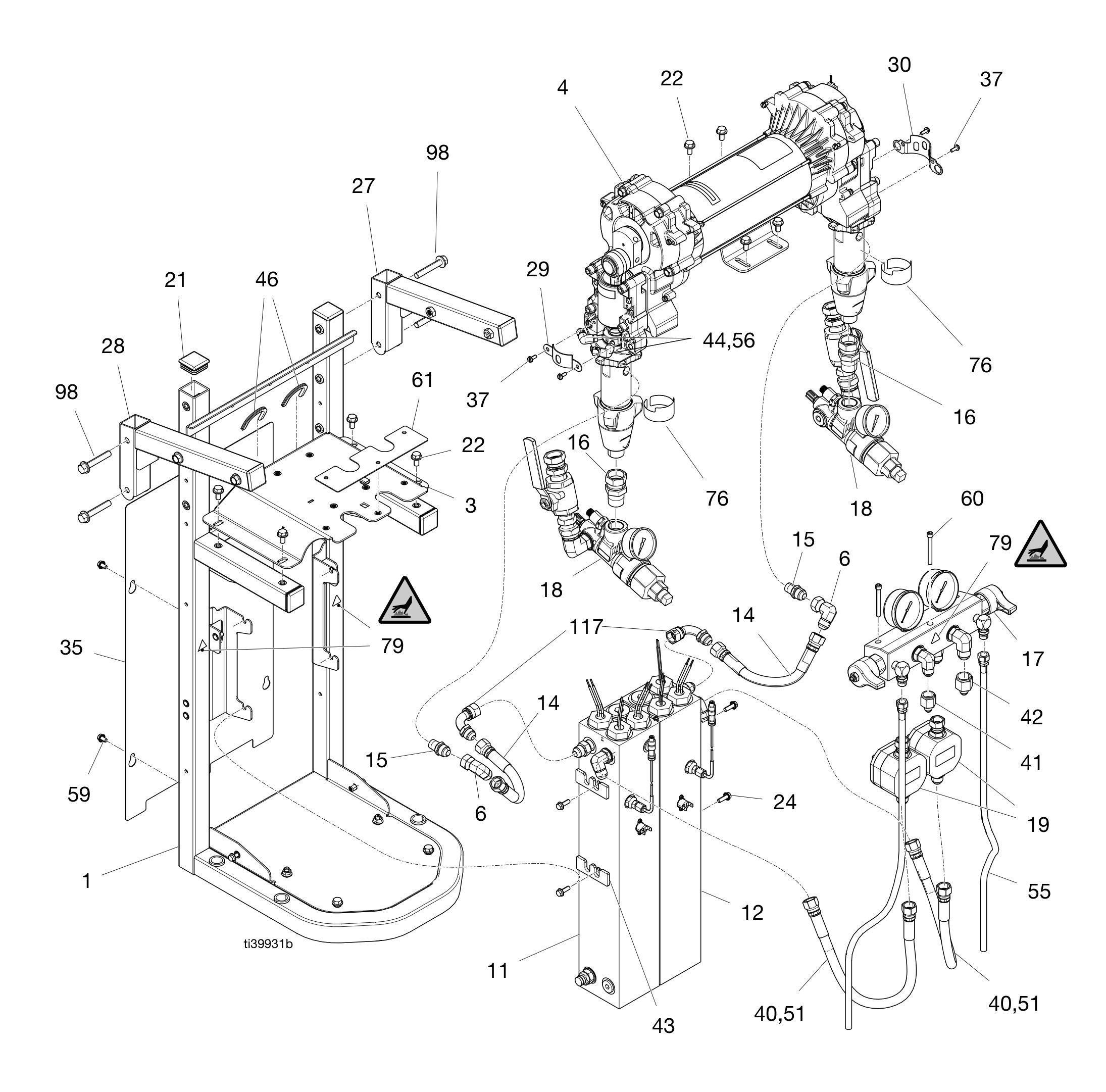

Drawing from Graco manual 3A8501L, page 50
Graco documents the E-20 one assembly at a time. Ten of them — pick one, or follow a link from the machine above.
37
Graco Machine Slot Hex 118444 Screw
Ref 37 · Graco 118444 · SKU 60187
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$5.25
30
Graco Shield, pump rod
Ref 30
Graco 15C762PKG
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
46
Graco Trim, edge protection
Ref 46
Graco 114225
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
46
Graco Trim, edge protection
Ref 46
Graco 114225
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
35
Graco Panel, back, r3
Ref 35
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us59
Graco HH Flanged Screw, 1/4-20 X .375
Ref 59 · Graco 119865 · SKU 60429
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$5.10
79
Graco Label, safety
Ref 79
Graco 25T998
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
37
Graco Machine Slot Hex 118444 Screw
Ref 37 · Graco 118444 · SKU 60187
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$5.25
29
Graco Shield, pump rod
Ref 29
Graco 19Y569PKG
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
22
Graco Cap Hex HD Screw
Ref 22 · Graco 111800 · SKU 60512
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$5.38
76
Graco ref 76
on the The machine, inside drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us76
Graco ref 76
on the The machine, inside drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us79
Graco Label, safety
Ref 79
Graco 25T998
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
14
Graco Hose, coupled, r3, fluid, -8 jic
Ref 14
Graco 18E205
KIT, REPAIR, R3, HP FLEX HOSE · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT, REPAIR, R3, HP FLEX HOSE · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
21
Graco Cap, hose, square
Ref 21
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us44,56
Refs 44,56
2 parts on one leader
Graco Fitting, 1/8 in. npt, 1/16 in. npt
Ref 44
Graco 18D006
FITTING,1/8NPT,1/16NPT · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
FITTING,1/8NPT,1/16NPT · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
Graco Fitting, compression, adapt, 90, 1/4 in.
Ref 56
Graco 25B521
FITTING,COMPRESSION,ADAPT,90,1/4 · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
FITTING,COMPRESSION,ADAPT,90,1/4 · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
28
Graco Bracket, pivot, left, r3, painted
Ref 28
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us27
Graco Bracket, pivot, right, r3, painted
Ref 27
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us98
Graco Bolt, flange hd, serrated, 3/8
Ref 98
Graco 132001
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
98
Graco Bolt, flange hd, serrated, 3/8
Ref 98
Graco 132001
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
22
Graco Cap Hex HD Screw
Ref 22 · Graco 111800 · SKU 60512
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$5.38
3
Graco Bracket, proportioner, painted
Ref 3
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us61
Graco Gasket, manifold
Ref 61
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us18

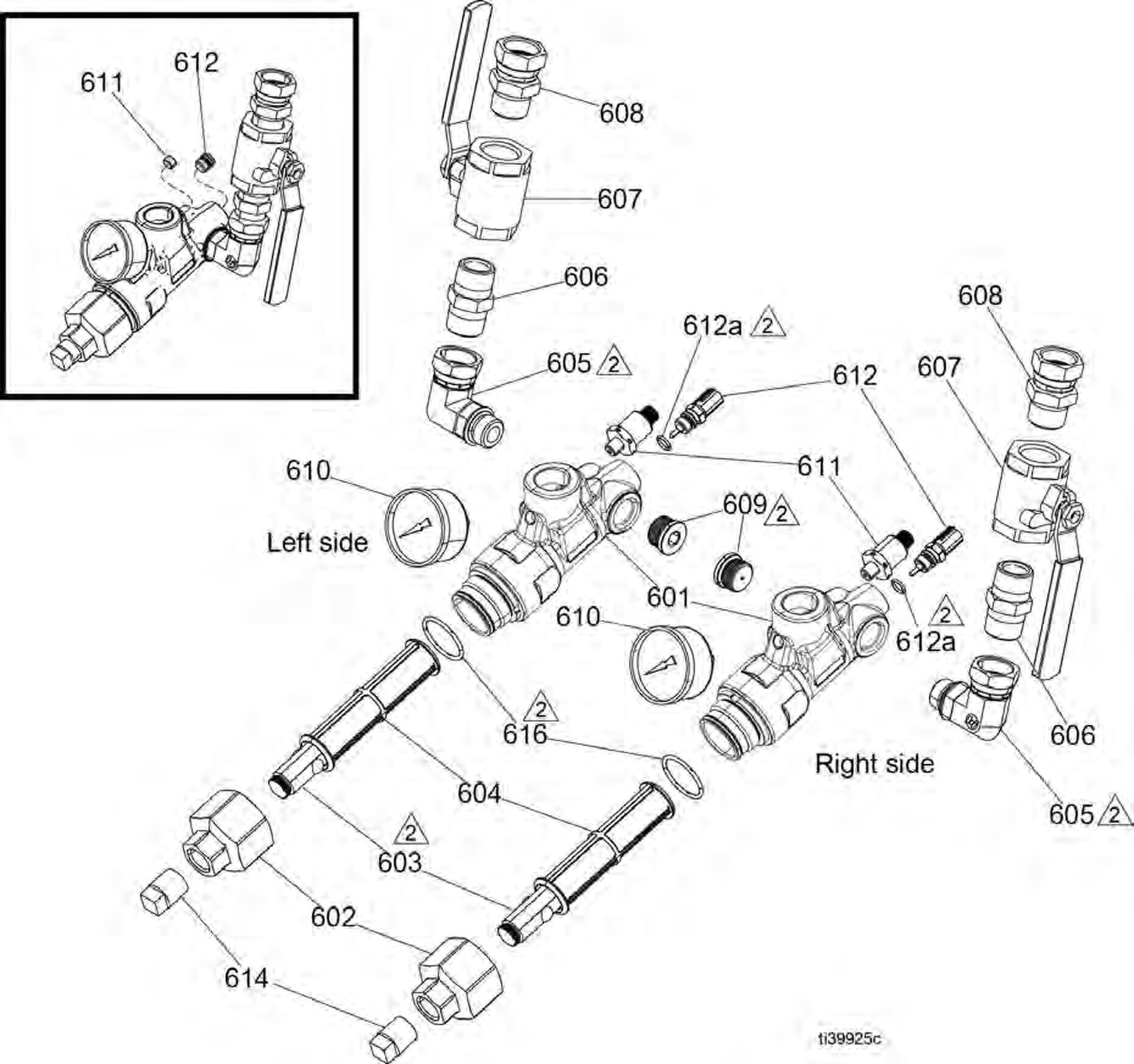

Graco Strainer,r3, assembly, pair, elite
Ref 18 · 3 versions
Graco 18E246
KIT,STRAINER,R3,PAIR,PRO · Pro 10 kW, Pro 7 kWAsk for a price
KIT,STRAINER,R3,PAIR,PRO · Pro 10 kW, Pro 7 kWAsk for a price
Graco 18E247
KIT,STRAINER,R3,PAIR,ELITE · Elite 10 kWAsk for a price
KIT,STRAINER,R3,PAIR,ELITE · Elite 10 kWAsk for a price
Graco 18D475
KIT,ACCESSORY, INLET PAIR · Standard 7 kWAsk for a price
KIT,ACCESSORY, INLET PAIR · Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
18
Graco Strainer,r3, assembly, pair, elite
Ref 18 · 3 versions
Graco 18E246
KIT,STRAINER,R3,PAIR,PRO · Pro 10 kW, Pro 7 kWAsk for a price
KIT,STRAINER,R3,PAIR,PRO · Pro 10 kW, Pro 7 kWAsk for a price
Graco 18E247
KIT,STRAINER,R3,PAIR,ELITE · Elite 10 kWAsk for a price
KIT,STRAINER,R3,PAIR,ELITE · Elite 10 kWAsk for a price
Graco 18D475
KIT,ACCESSORY, INLET PAIR · Standard 7 kWAsk for a price
KIT,ACCESSORY, INLET PAIR · Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
4
Graco Proportioner, module, (see drivers parts, page 54.)
Ref 4
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us60
Graco Screw, socket cap 1/4-20 x 2-1/4
Ref 60
Graco C19817
SCREW, CAP, SOCKET HD, 1/4-20 X 2.25 · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
SCREW, CAP, SOCKET HD, 1/4-20 X 2.25 · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
17
Graco Housing, outlet, assembly
Ref 17 · 2 versions

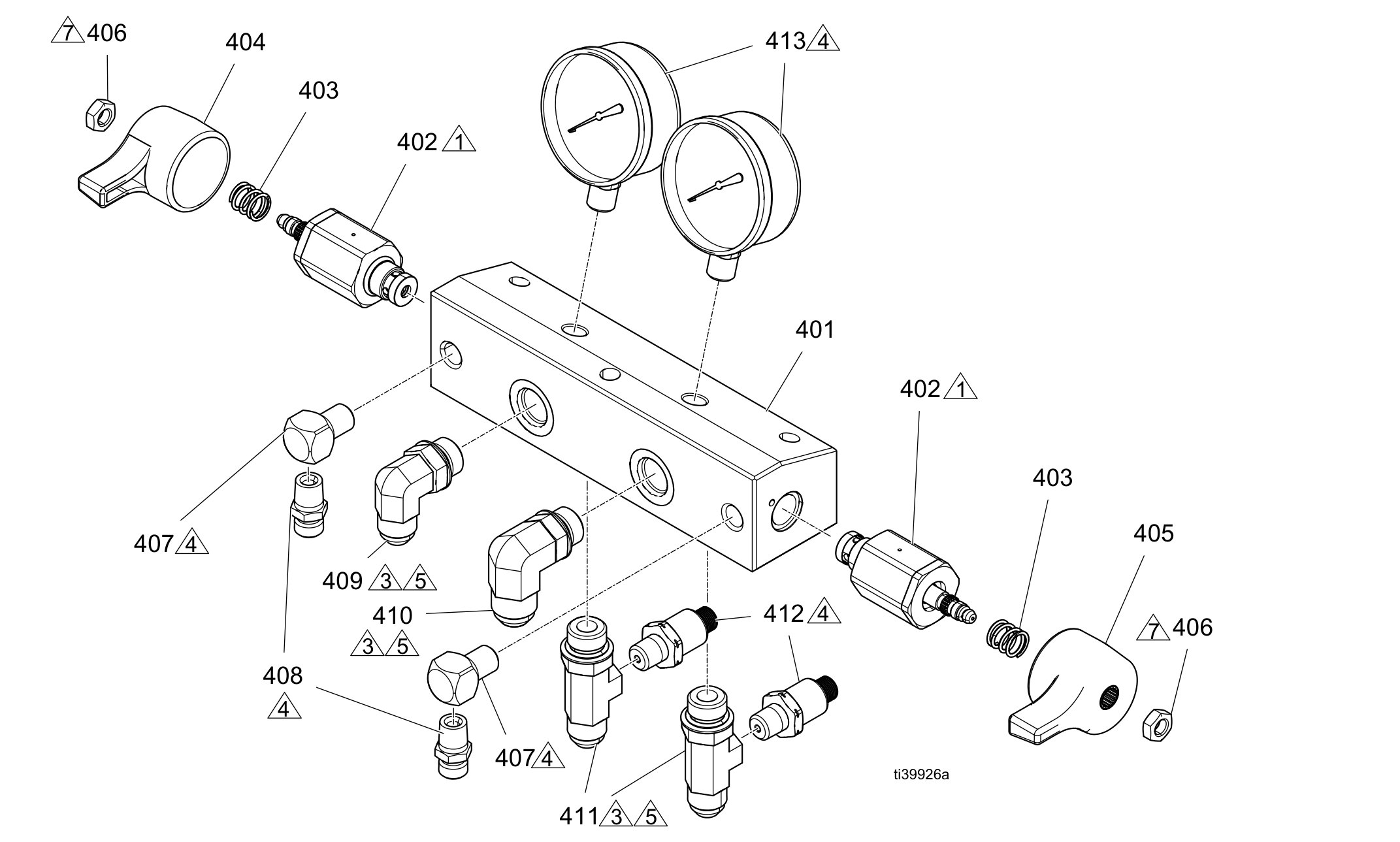

Graco 18E207
KIT,REPAIR,R3,OUTLET MANIFOLD · Elite 10 kW, Pro 10 kW, Pro 7 kWAsk for a price
KIT,REPAIR,R3,OUTLET MANIFOLD · Elite 10 kW, Pro 10 kW, Pro 7 kWAsk for a price

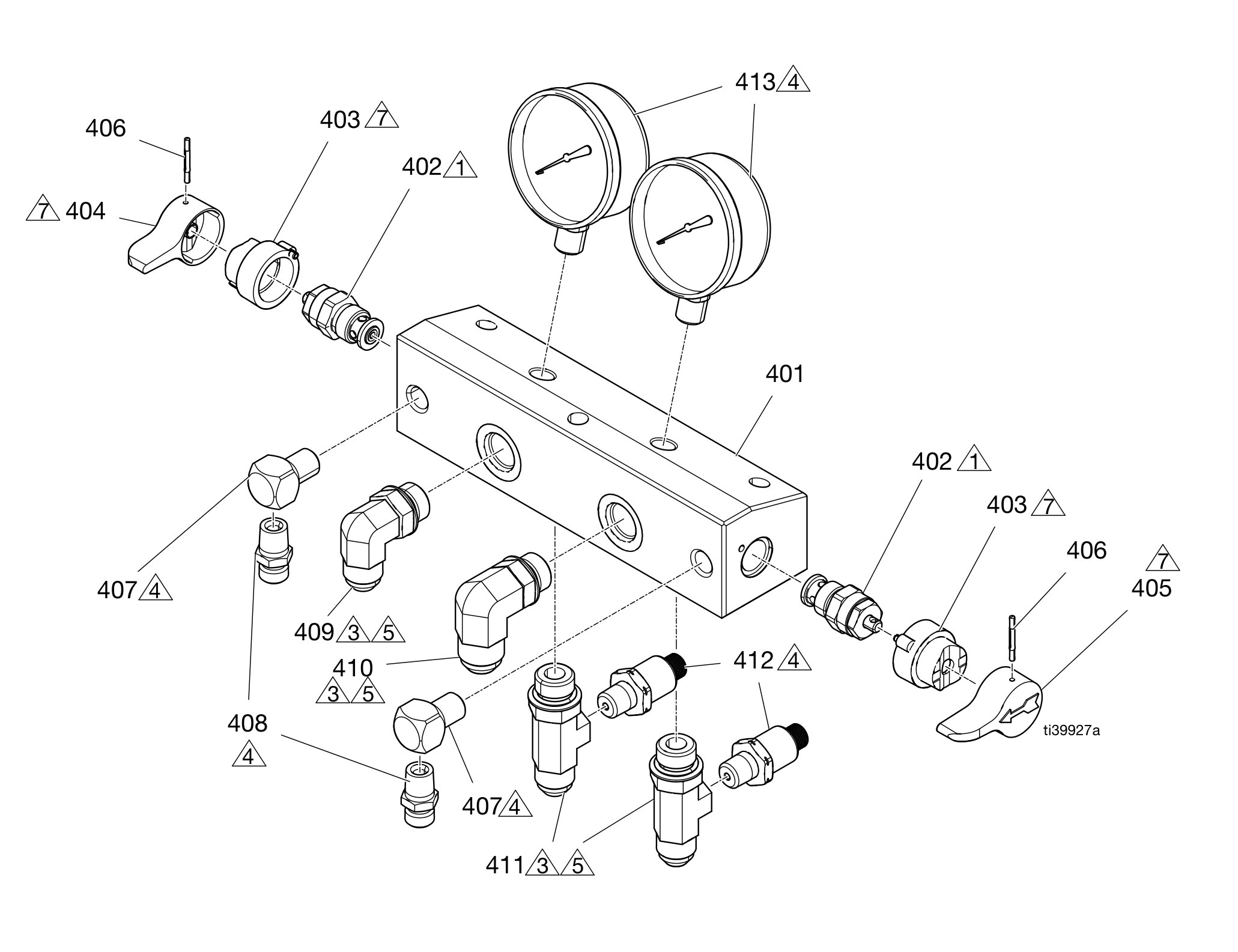

Graco 18E208
KIT,REPAIR,R3,OUTLET MANIFOLD · Standard 7 kWAsk for a price
KIT,REPAIR,R3,OUTLET MANIFOLD · Standard 7 kWAsk for a price
42
Graco Reducer #6 X #10 JIC Fitting
Ref 42 · Graco 117677 · SKU 117677
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$44.80
41
Graco Reducer #5 X #8 JIC Fitting
Ref 41 · Graco 117502 · SKU 117502
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$41.20
19
Graco Meter, flow, r3, high pressure
Ref 19
Graco 18E136
KIT,METER,FLOW,R3 · Elite 10 kWAsk for a price
KIT,METER,FLOW,R3 · Elite 10 kWAsk for a price
19
Graco Meter, flow, r3, high pressure
Ref 19
Graco 18E136
KIT,METER,FLOW,R3 · Elite 10 kWAsk for a price
KIT,METER,FLOW,R3 · Elite 10 kWAsk for a price
16
Graco Union Swivel Fitting, 3/4″
Ref 16 · Graco 118459 · SKU 118459
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$19.80
1
Graco Frame, weldment, r3, painted
Ref 1
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us11
Graco Heater, assembly, dual-zone, 7.6 kw
Ref 11 · 2 versions
Graco 18E142
KIT,HEATER,DUAL-ZONE,7.6 KW · Pro 7 kW, Standard 7 kWAsk for a price
KIT,HEATER,DUAL-ZONE,7.6 KW · Pro 7 kW, Standard 7 kWAsk for a price
Graco 18E141
KIT,HEATER,DUAL-ZONE,9.6 KW · Elite 10 kW, Pro 10 kWAsk for a price
KIT,HEATER,DUAL-ZONE,9.6 KW · Elite 10 kW, Pro 10 kWAsk for a price
12
40,51
Refs 40,51
2 parts on one leader
Graco Hose, coupled, r3, fluid, -8 jic
Ref 40
Graco 18B272
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
Graco Insulator, insolex, 0.75 id x 1.5 od
Ref 51
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us40,51
Refs 40,51
2 parts on one leader
Graco Hose, coupled, r3, fluid, -8 jic
Ref 40
Graco 18B272
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
Graco Insulator, insolex, 0.75 id x 1.5 od
Ref 51
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us55
Graco Hose, pressure relief
Ref 55
Graco 24U845
KIT, TUBE, PRESSURE RELIEF · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT, TUBE, PRESSURE RELIEF · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
24
Graco Flanged Hex HD Screw
Ref 24 · Graco 113796 · SKU 60511
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$2.75
43
Graco Insulator, foam, heater
Ref 43
Graco 16W654
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
79
Graco Label, safety
Ref 79
Graco 25T998
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
117
Graco Fitting, elbow, swpt, 08 x 08, mf, cs
Ref 117
Graco 18E275
KIT, FITTING, R3, SWEPT ELBOW · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT, FITTING, R3, SWEPT ELBOW · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
14
Graco Hose, coupled, r3, fluid, -8 jic
Ref 14
Graco 18E205
KIT, REPAIR, R3, HP FLEX HOSE · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT, REPAIR, R3, HP FLEX HOSE · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
6
Graco Fitting, elbow 8 jic swivel x 8 jicm
Ref 6
Graco 16W608
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
15
Graco Fitting, connector, npt x jic
Ref 15
Graco 121310
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
6
Graco Fitting, elbow 8 jic swivel x 8 jicm
Ref 6
Graco 16W608
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Also on the Reactor 3 E-30.
15
Graco Fitting, connector, npt x jic
Ref 15
Graco 121310
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
107
Graco Machine Torx Hex Wash Screw
Ref 107 · Graco 15C753 · SKU 57596
$1.70
114
Graco Jam Pump 17A257 Nut
Ref 114 · Graco 17A257 · SKU 56857
$17.50
115
Graco Pin Connecting
Ref 115 · Graco 176818 · SKU 176818
$7.60
111
Graco Rod, connecting
Ref 111
Graco 287180
Ask for a price
Ask for a price
Graco supplies this inside an assembly rather than as a separate part.

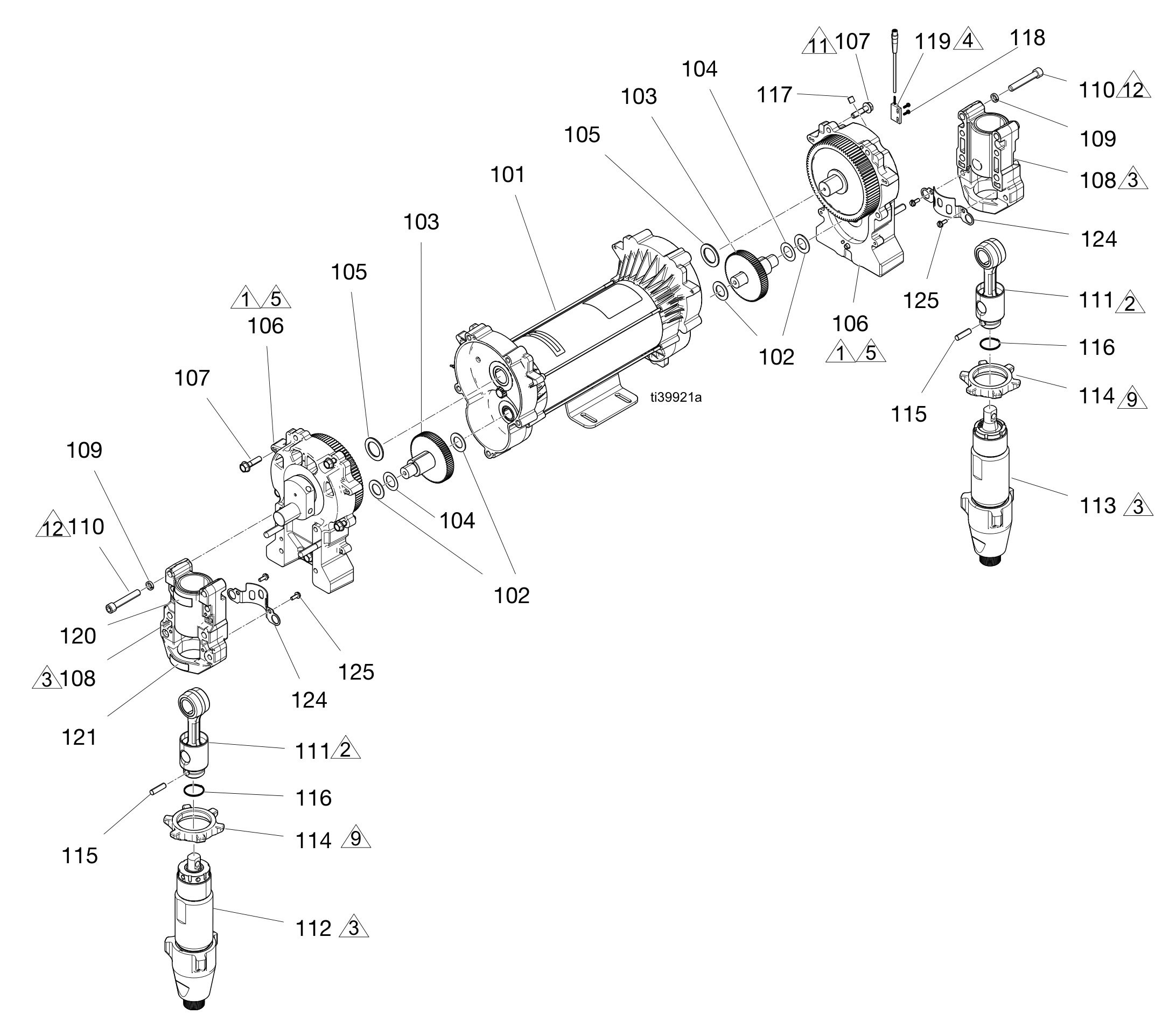

124
Graco ref 124
on the Drivers drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us108
106
8
Graco Transformer, 2790va, 230/62
Ref 8
Graco 18E130
KIT,TRANSFORMER 62V · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT,TRANSFORMER 62V · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Listed with the drawing.
102
105
104
106
101
Graco Motor, bldc, 1.75hp, 2-end, 1-way
Ref 101
Graco 25R357
KIT,MOTOR, R3, 1.75 HP, 1-WAYAsk for a price
KIT,MOTOR, R3, 1.75 HP, 1-WAYAsk for a price
8
Graco Transformer, 2790va, 230/62
Ref 8
Graco 18E130
KIT,TRANSFORMER 62V · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
KIT,TRANSFORMER 62V · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Listed with the drawing.
102
105
110
109
Graco Washer, lock (hi-collar)
Ref 109
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us112
Graco Pump, displacement, tsl cir, .396
Ref 112
Graco 2007126 replaces 25P857
KIT,REACTOR PUMP,DISPLACEMENT,TSL CIR,.396Ask for a price
KIT,REACTOR PUMP,DISPLACEMENT,TSL CIR,.396Ask for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
116
Graco ref 116
on the Drivers drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us120
103
103
125
Graco ref 125
on the Drivers drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us113
Graco Pump, displacement(.396/255.79)
Ref 113
Graco 2007129 replaces 18D010
KIT,PUMP,DISPLACEMENT(.396/255.79)Ask for a price
KIT,PUMP,DISPLACEMENT(.396/255.79)Ask for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
114
Graco Jam Pump 17A257 Nut
Ref 114 · Graco 17A257 · SKU 56857
$17.50
116
Graco ref 116
on the Drivers drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us111
Graco Rod, connecting
Ref 111
Graco 287180
Ask for a price
Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
115
Graco Pin Connecting
Ref 115 · Graco 176818 · SKU 176818
$7.60
124
Graco ref 124
on the Drivers drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us125
Graco ref 125
on the Drivers drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us108
110
109
Graco Washer, lock (hi-collar)
Ref 109
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us121
202

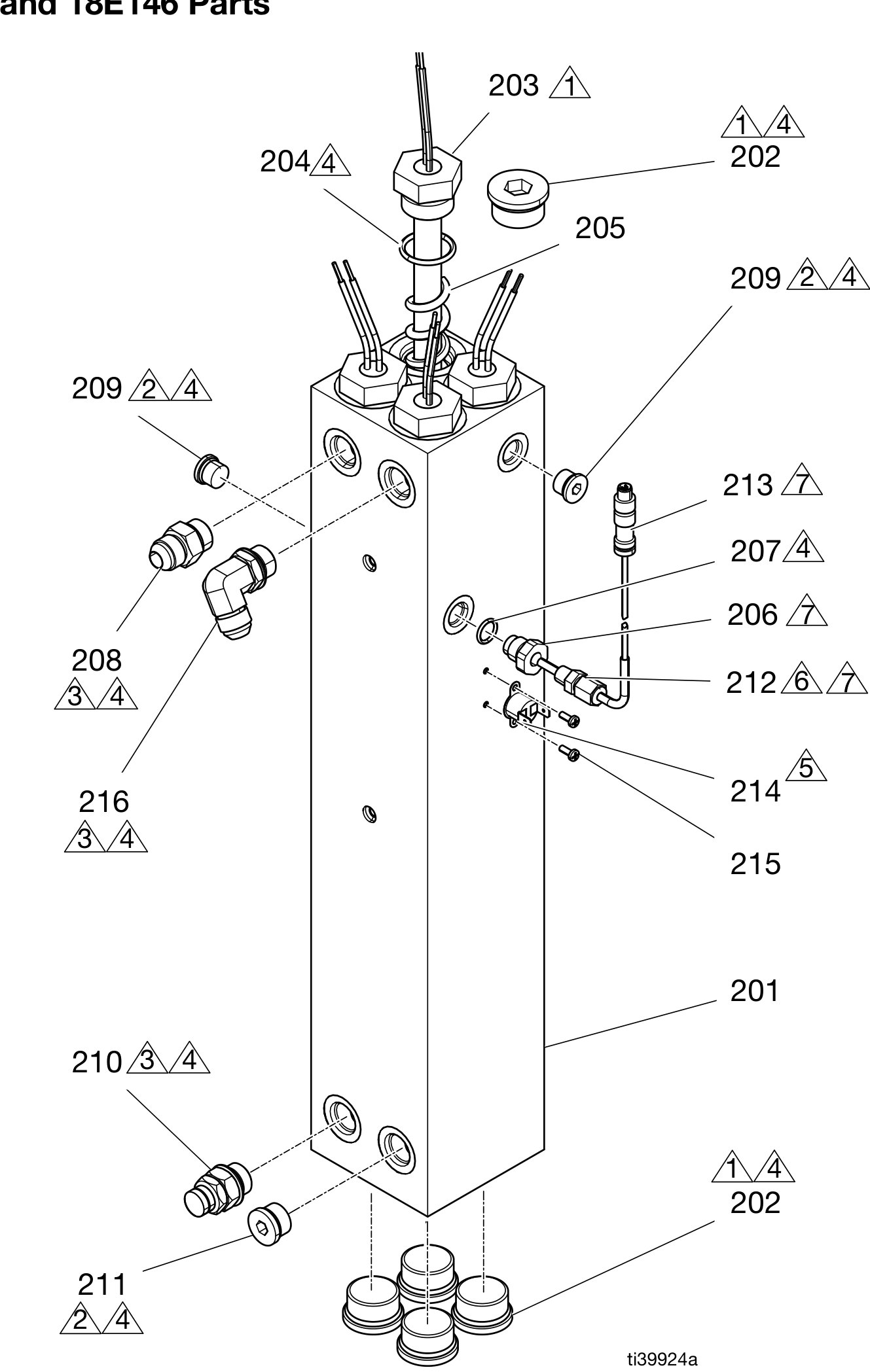

Graco Fitting, plug hollow hex 1-3/16 sae
Ref 202
Graco 15H305
FITTING,PLUG HOLOW HEX 1-3/16 SAE · 10 kW machines, 7 kW machinesAsk for a price
FITTING,PLUG HOLOW HEX 1-3/16 SAE · 10 kW machines, 7 kW machinesAsk for a price
209
Graco ref 209
on the Heater drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us211
210
Graco Burst Disc Kit
Ref 210 · Graco 247520 · SKU 247520
10 kW machines, 7 kW machines
$233.00
202
Graco Fitting, plug hollow hex 1-3/16 sae
Ref 202
Graco 15H305
FITTING,PLUG HOLOW HEX 1-3/16 SAE · 10 kW machines, 7 kW machinesAsk for a price
FITTING,PLUG HOLOW HEX 1-3/16 SAE · 10 kW machines, 7 kW machinesAsk for a price
201
Graco Block, heater, machined, r3, dual
Ref 201
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us216
Graco Elbow MA Fitting, 3/4SAE X 1/2J
Ref 216 · Graco 121312 · SKU 121312
10 kW machines, 7 kW machines
$12.40
208
Graco Conn Fitting, 3/4SAE X 1/2 JIC
Ref 208 · Graco 121309 · SKU 121309
10 kW machines, 7 kW machines
$21.50
209
Graco ref 209
on the Heater drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-20’s own parts list — tell us your machine and we will work out what you need.
Ask us214
Graco Switch, over temperature
Ref 214
Graco 2007109 replaces 15B137
KIT,SWITCH, OVER TEMP. · 10 kW machines, 7 kW machinesAsk for a price
KIT,SWITCH, OVER TEMP. · 10 kW machines, 7 kW machinesAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
215
213
Graco Heater RTD Kit
Ref 213 · Graco 24L973 · SKU 57353
10 kW machines, 7 kW machines
$620.00
212
Graco Fitting, compression, 1/8 npt, ss
Ref 212
Graco 123325
10 kW machines, 7 kW machinesAsk for a price
10 kW machines, 7 kW machinesAsk for a price
206
Graco Adapter, thermocouple, 9/16 x 1/8
Ref 206
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us207
204
Graco O-Ring – 124132 – #315
Ref 204 · Graco 124132 · SKU 124132
10 kW machines, 7 kW machines
$3.10
205
Graco Spring, mixer, heater
Ref 205
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us203
406
Graco Hex Jam Nut
Ref 406 · Graco 112309 · SKU 112309
$6.45
413
Graco Qfluid 102814 Gauge, 5000PSI
Ref 413 · Graco 102814 · SKU 102814
$108.50
404
403
Graco Compression Spring
Ref 403 · Graco 150829 · SKU 150829
$11.40
402
Graco Valve Drain Cartridge 247824 Kit
Ref 402 · Graco 247824 · SKU 60522
$401.00
401
Graco Housing, outlet
Ref 401
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us402
Graco Valve Drain Cartridge 247824 Kit
Ref 402 · Graco 247824 · SKU 60522
$401.00
403
Graco Compression Spring
Ref 403 · Graco 150829 · SKU 150829
$11.40
405
407
409
Graco Fitting, elbow, jic-8 x orb-8
Ref 409
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us412
Graco Transducer, pressure, 5000 psi
Ref 412
Graco 18B074PKG
TRANSDUCER,PRESSURE,5000 PSIGAsk for a price
TRANSDUCER,PRESSURE,5000 PSIGAsk for a price
410
Graco Fitting, elbow, jic-10 x orb-8
Ref 410
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us406
Graco Hex Jam Nut
Ref 406 · Graco 112309 · SKU 112309
$6.45
408
407
411
Graco Fitting, tee, orb-8, jic-8, 1/4-npt
Ref 411
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us410
Graco Fitting, elbow, jic-10 x orb-8
Ref 410
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us409
Graco Fitting, elbow, jic-8 x orb-8
Ref 409
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us408
407
407
408
411
Graco Fitting, tee, orb-8, jic-8, 1/4-npt
Ref 411
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us411
Graco Fitting, tee, orb-8, jic-8, 1/4-npt
Ref 411
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us412
Graco Transducer, pressure, 5000 psi
Ref 412
Graco 18B074PKG
TRANSDUCER,PRESSURE,5000 PSIGAsk for a price
TRANSDUCER,PRESSURE,5000 PSIGAsk for a price
412
Graco Transducer, pressure, 5000 psi
Ref 412
Graco 18B074PKG
TRANSDUCER,PRESSURE,5000 PSIGAsk for a price
TRANSDUCER,PRESSURE,5000 PSIGAsk for a price
405
406
403
402
Graco Valve, drain
Ref 402
Graco 239914
Replacement Drain Valve KitAsk for a price
Replacement Drain Valve KitAsk for a price
Also on the Reactor 3 E-30.
406
404
403
402
Graco Valve, drain
Ref 402
Graco 239914
Replacement Drain Valve KitAsk for a price
Replacement Drain Valve KitAsk for a price
Also on the Reactor 3 E-30.
401
Graco Housing, outlet
Ref 401
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us413
Graco Qfluid 102814 Gauge, 5000PSI
Ref 413 · Graco 102814 · SKU 102814
$108.50
413
Graco Qfluid 102814 Gauge, 5000PSI
Ref 413 · Graco 102814 · SKU 102814
$108.50

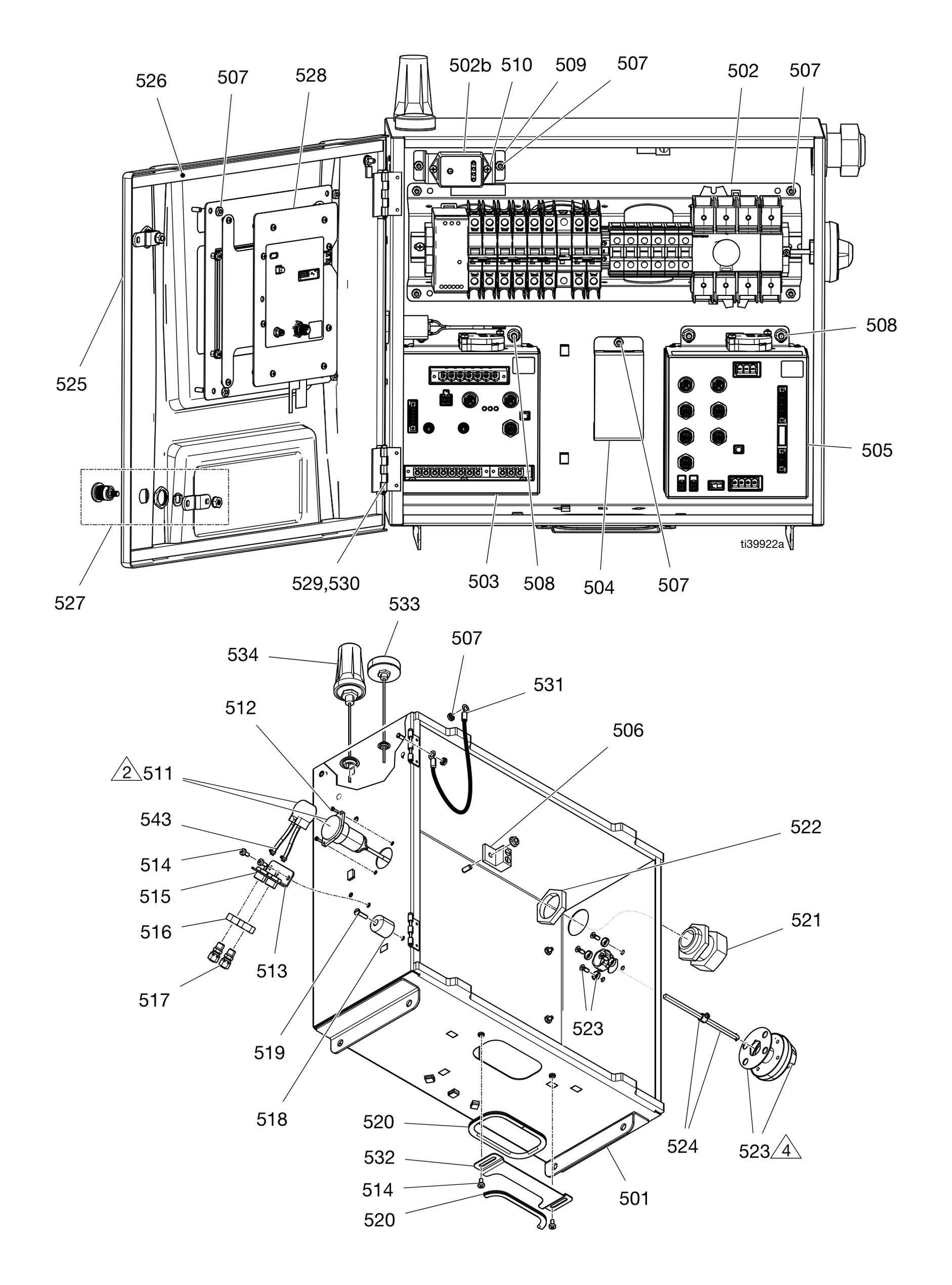

531
Graco Wire, grounding, door
Ref 531
Graco 194337
with the cell moduleAsk for a price
with the cell moduleAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
507
533
534
529,530
Refs 529,530
2 parts on one leader
Graco Pin, weld hinge
Ref 529
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask usGraco Ring, retaining, e ring, 9/64
Ref 530
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us527
Graco Latch, door
Ref 527
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us520
514
Graco Screw, ph #10-24 x 3/8
Ref 514
Graco 110637
SCREW, MACH, PNHD · with the cell moduleAsk for a price
SCREW, MACH, PNHD · with the cell moduleAsk for a price
532
Graco Plate, enclosure guard
Ref 532
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us525
Graco Door, stamped, r3, painted
Ref 525
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us507
528
Graco Module Gca Adm 2 Kit, 9 in
Ref 528 · Graco 18E139 · SKU 60356
with the cell module
$671.00
526
Graco Foam, enclosure, r3
Ref 526
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us522
Graco Nut, strain relief, m40 thread
Ref 522
Graco 120859
with the cell moduleAsk for a price
with the cell moduleAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
521
Graco Bushing, strain relief, m40 thread
Ref 521
Graco 255047 replaces 120858
KIT, BUSHING, STRAIN RLF, M40 · with the cell moduleAsk for a price
KIT, BUSHING, STRAIN RLF, M40 · with the cell moduleAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
Also on the Reactor 3 E-30.
24
Graco Flanged Hex HD Screw
Ref 24 · Graco 113796 · SKU 60511
Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kW
$2.75
Listed with the drawing.
524
23

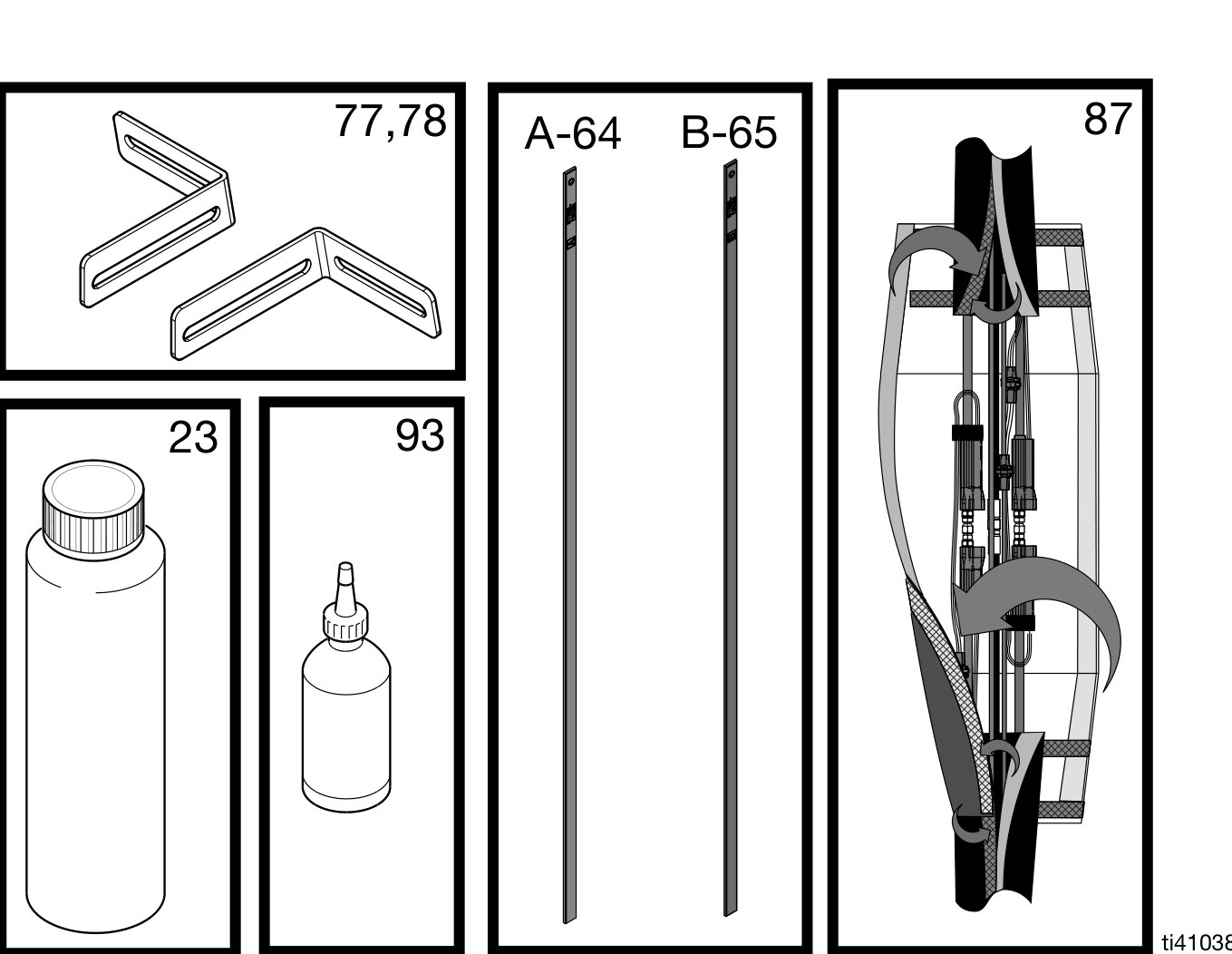

Graco Fluid, tsl, 25 oz (750 ml)
Ref 23
Graco 25T859
FLUID, 25 OZ (750 ML) (sold in multiples of 6) · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
FLUID, 25 OZ (750 ML) (sold in multiples of 6) · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Listed with the drawing.
523
23
Graco Fluid, tsl, 25 oz (750 ml)
Ref 23
Graco 25T859
FLUID, 25 OZ (750 ML) (sold in multiples of 6) · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
FLUID, 25 OZ (750 ML) (sold in multiples of 6) · Elite 10 kW, Pro 10 kW, Pro 7 kW, Standard 7 kWAsk for a price
Listed with the drawing.
523
512
Graco Screw, ph #4-40 x 3/8
Ref 512
Graco 107388
with the cell moduleAsk for a price
with the cell moduleAsk for a price
Graco supplies this inside an assembly rather than as a separate part.
11
Graco Heater, assembly, dual-zone, 7.6 kw
Ref 11 · 2 versions
Graco 18E142
KIT,HEATER,DUAL-ZONE,7.6 KW · Pro 7 kW, Standard 7 kWAsk for a price
KIT,HEATER,DUAL-ZONE,7.6 KW · Pro 7 kW, Standard 7 kWAsk for a price
Graco 18E141
KIT,HEATER,DUAL-ZONE,9.6 KW · Elite 10 kW, Pro 10 kWAsk for a price
KIT,HEATER,DUAL-ZONE,9.6 KW · Elite 10 kW, Pro 10 kWAsk for a price
Listed with the drawing.
511
Graco Pump, peristaltic, 24v, 3mm id
Ref 511
Graco 18E137
KIT,PUMP,PERISTALTIC · with the cell moduleAsk for a price
KIT,PUMP,PERISTALTIC · with the cell moduleAsk for a price
Also on the Reactor 3 E-30.
513
Graco Bracket, iso fittings, painted
Ref 513
Graco 18E276
KIT, R3, BRACKET, TSL FITTINGS · with the cell moduleAsk for a price
KIT, R3, BRACKET, TSL FITTINGS · with the cell moduleAsk for a price
Also on the Reactor 3 E-30.
515
Graco Fitting, barb to 1/8 nptf
Ref 515
Graco 18C769
with the cell moduleAsk for a price
with the cell moduleAsk for a price
Also on the Reactor 3 E-30.
514
Graco Screw, ph #10-24 x 3/8
Ref 514
Graco 110637
SCREW, MACH, PNHD · with the cell moduleAsk for a price
SCREW, MACH, PNHD · with the cell moduleAsk for a price
516
Graco Nut, hex, jam, 5/8
Ref 516
Graco 100155
NUT · with the cell moduleAsk for a price
NUT · with the cell moduleAsk for a price
Also on the Reactor 3 E-30.
517
Graco Fitting, straight, 1/4t x 1/8 npt
Ref 517
Graco 127553
Tube Fitting - 1/4 in. Tube x 1/8 in. Straight Fitting · with the cell moduleAsk for a price
Tube Fitting - 1/4 in. Tube x 1/8 in. Straight Fitting · with the cell moduleAsk for a price
Also on the Reactor 3 E-30.
518
Graco Bumper, enclosure door, r3
Ref 518
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us519
Graco Screw, ph #10-24 x 3/4
Ref 519
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us543
Graco Strap, tie, wiring
Ref 543
Graco 102478
with the cell moduleAsk for a price
with the cell moduleAsk for a price
Also on the Reactor 3 E-30.
520
508
Graco Nut, flanged, 1/4-20
Ref 508
Graco 115942
NUT, HEX, FLANGE HEAD · with the cell moduleAsk for a price
NUT, HEX, FLANGE HEAD · with the cell moduleAsk for a price
505
Graco Module, gca, mcm2
Ref 505
Graco 18B011
KIT,MODULE,GCA,MCM2,R3 · with the cell moduleAsk for a price
KIT,MODULE,GCA,MCM2,R3 · with the cell moduleAsk for a price
Also on the Reactor 3 E-30.
507
504
Graco Label, installation
Ref 504
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us503
Graco Module, gca, tcm
Ref 503
Graco 25P036
KIT,MODULE,GCA,MZHP2,R3 · with the cell moduleAsk for a price
KIT,MODULE,GCA,MZHP2,R3 · with the cell moduleAsk for a price
508
Graco Nut, flanged, 1/4-20
Ref 508
Graco 115942
NUT, HEX, FLANGE HEAD · with the cell moduleAsk for a price
NUT, HEX, FLANGE HEAD · with the cell moduleAsk for a price
502

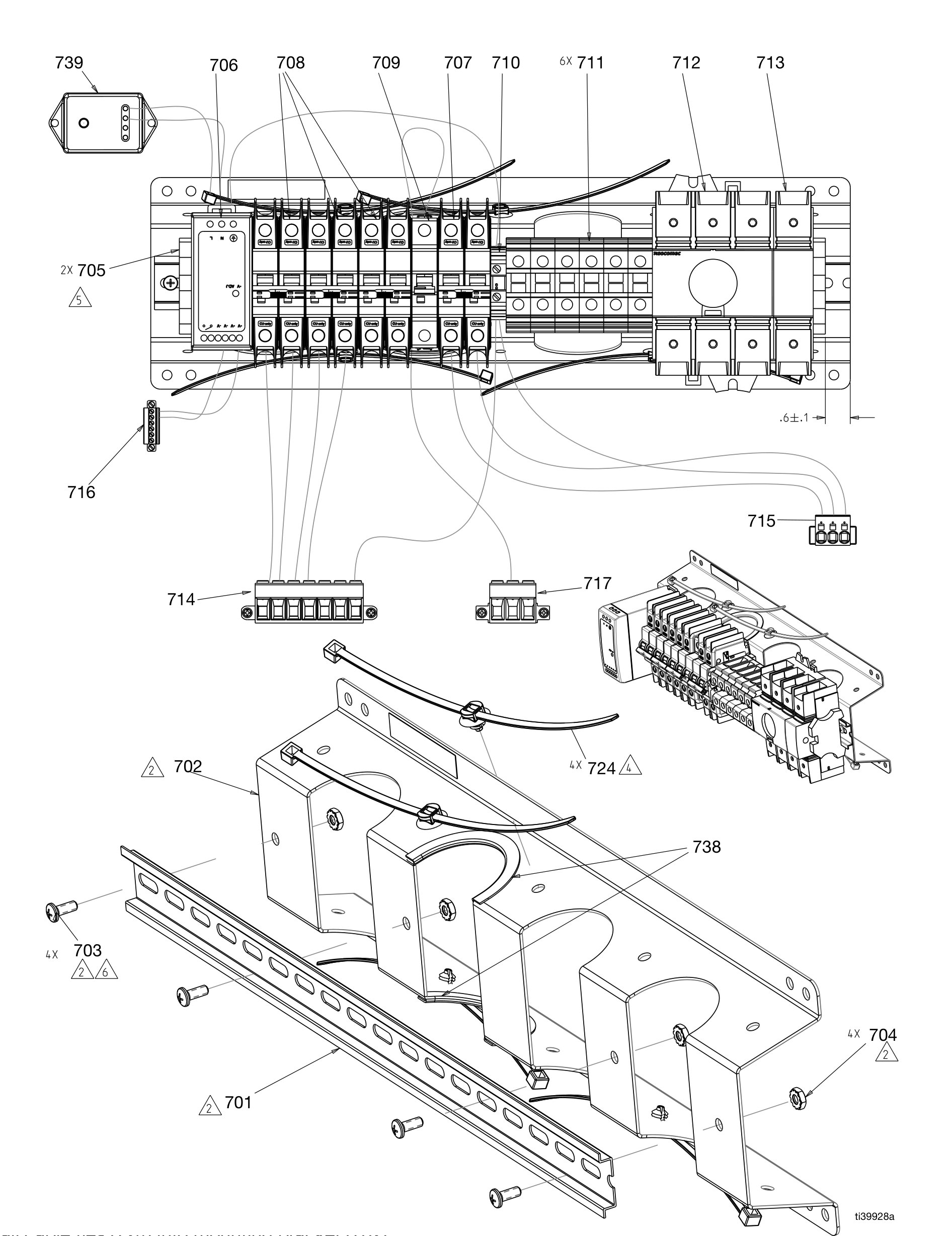

Graco Module, din rail, see rail module parts, page 64
Ref 502
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us507
509
Graco Bracket, mov
Ref 509
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us507
502b
Graco Module, din rail, see rail module parts, page 64
Ref 502b
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us510
Graco Screw, phlw #6-32 x 3/8
Ref 510
Graco 114331
SCREW MACH,PNH,SEMS · with the cell moduleAsk for a price
SCREW MACH,PNH,SEMS · with the cell moduleAsk for a price
501
Graco Enclosure, weldment, r3, painted
Ref 501
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us506
612
Graco Sensor, temperature
Ref 612 · 2 versions
Graco 20B457
KIT,R3,TEMP SENSOR · EliteAsk for a price
KIT,R3,TEMP SENSOR · EliteAsk for a price
Graco 18D158
PLUG,TEMP SENSOR, W/ O-RING · ProAsk for a price
PLUG,TEMP SENSOR, W/ O-RING · ProAsk for a price
611
Graco Transducer, pressure, 1000 psi
Ref 611 · 2 versions
Graco Plug Pipe Headles
Graco 104765 · Pro$17.80 · Add
Graco 104765 · Pro$17.80 · Add
Graco 18B075PKG
EliteAsk for a price
EliteAsk for a price
611
Graco Transducer, pressure, 1000 psi
Ref 611 · 2 versions
Graco Plug Pipe Headles
Graco 104765 · Pro$17.80 · Add
Graco 104765 · Pro$17.80 · Add
Graco 18B075PKG
EliteAsk for a price
EliteAsk for a price
608
Graco Union Swivel Fitting, 3/4″
Ref 608 · Graco 118459 · SKU 118459
Elite, Pro
$19.80
607
Graco Ball 3/4 NPT Fem Valve, 6000PSI
Ref 607 · Graco 109077 · SKU 109077
Elite, Pro
$126.50
606
608
Graco Union Swivel Fitting, 3/4″
Ref 608 · Graco 118459 · SKU 118459
Elite, Pro
$19.80
612a
Graco Packing O-Ring P2 Air Control
Ref 612a · Graco 106555 · SKU 56677
Elite, Pro
$5.60
605
Graco Fitting, elbow, orb-10 x 3/4 npsm
Ref 605
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us607
Graco Ball 3/4 NPT Fem Valve, 6000PSI
Ref 607 · Graco 109077 · SKU 109077
Elite, Pro
$126.50
612
Graco Sensor, temperature
Ref 612 · 2 versions
Graco 20B457
KIT,R3,TEMP SENSOR · EliteAsk for a price
KIT,R3,TEMP SENSOR · EliteAsk for a price
Graco 18D158
PLUG,TEMP SENSOR, W/ O-RING · ProAsk for a price
PLUG,TEMP SENSOR, W/ O-RING · ProAsk for a price
607
Graco Ball 3/4 NPT Fem Valve, 6000PSI
Ref 607 · Graco 109077 · SKU 109077
Elite, Pro
$126.50
611
Graco Transducer, pressure, 1000 psi
Ref 611 · 2 versions
Graco Plug Pipe Headles
Graco 104765 · Pro$17.80 · Add
Graco 104765 · Pro$17.80 · Add
Graco 18B075PKG
EliteAsk for a price
EliteAsk for a price
610
Graco Gauge, pressure, 500 psi
Ref 610
Graco 18E272
KIT,GAUGE,R3,INLET,PRESSURE · Elite, ProAsk for a price
KIT,GAUGE,R3,INLET,PRESSURE · Elite, ProAsk for a price
609
Graco Plug, pipe stl rd 7/8-14 sae mg
Ref 609
Graco 556424
Trabon MGO Divider Valve Port Plug · Elite, ProAsk for a price
Trabon MGO Divider Valve Port Plug · Elite, ProAsk for a price
601
Graco Strainer, housing, r3, machined
Ref 601
Graco 18D179
HOUSING,STRAINER, BARE · Elite, ProAsk for a price
HOUSING,STRAINER, BARE · Elite, ProAsk for a price
610
Graco Gauge, pressure, 500 psi
Ref 610
Graco 18E272
KIT,GAUGE,R3,INLET,PRESSURE · Elite, ProAsk for a price
KIT,GAUGE,R3,INLET,PRESSURE · Elite, ProAsk for a price
612a
Graco Packing O-Ring P2 Air Control
Ref 612a · Graco 106555 · SKU 56677
Elite, Pro
$5.60
616
606
604
605
Graco Fitting, elbow, orb-10 x 3/4 npsm
Ref 605
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us603
602
614
739
Graco Module, sys srg prot
Ref 739
Graco 2007103 replaces 16U530
KIT,MODULE, SYS SRG PROTAsk for a price
KIT,MODULE, SYS SRG PROTAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
706
Graco Power Supply, 24V
Ref 706 · Graco 126453 · SKU 126453
$235.00
708
709
Graco Circuit, breaker, 1p, 50a, ul1077, ab
Ref 709
Graco 255026 replaces 17A319
KIT, CKT BRKR, 1 POLE, 50A, C CRVAsk for a price
KIT, CKT BRKR, 1 POLE, 50A, C CRVAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
707
710
711
712
713
705
Graco Block, clamp end
Ref 705
Graco 255045 replaces 120838
KIT, BLOCK, CLAMP ENDAsk for a price
KIT, BLOCK, CLAMP ENDAsk for a price
Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.
716
714
717
715
Graco 3-pin connector, mcm
Ref 715
Graco 133471PKG
CONNECTOR,PLUG,7.62MM,3 POSITIONAsk for a price
CONNECTOR,PLUG,7.62MM,3 POSITIONAsk for a price
Also on the Reactor 3 E-30 and Reactor 3 H-30.
724
738
704
701
Graco Rail, mount, 18mm slot
Ref 701
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us703
Graco Screw, mach, phil, pan, #10
Ref 703
Graco 116610
SCREW, MACH, PHILLIPS PAN HD, #10Ask for a price
SCREW, MACH, PHILLIPS PAN HD, #10Ask for a price
702
Graco Bracket, din rail
Ref 702
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us87
23
Graco Fluid, tsl, 32 oz bottle
Ref 23
Graco 25T859
FLUID, 25 OZ (750 ML) (sold in multiples of 6)Ask for a price
FLUID, 25 OZ (750 ML) (sold in multiples of 6)Ask for a price
77,78
Refs 77,78
2 parts on one leader
Graco Bracket, wall mount, left
Ref 78
Graco 18E266
Supplied as a pair in the wall bracket kit, with the left-hand bracket (ref 77).
Ask usA-64
Graco Bar, 55 gallon chemical measure, a side
Ref A-64
Graco 24M174
KIT,DRUM LEVEL, METALAsk for a price
KIT,DRUM LEVEL, METALAsk for a price
B-65
Graco Bar, 55 gallon chemical measure, b side
Ref B-65
Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.
Ask us93
Graco Fluid, tsl, 8 oz bottle
Ref 93
Graco 206994
TSL Throat Seal Liquid, 8 oz (sold in multiples of 6)Ask for a price
TSL Throat Seal Liquid, 8 oz (sold in multiples of 6)Ask for a price
5
14
13
12
2
1
Graco Pump, peristaltic, 24v, 3mm id
Ref 1
Graco 18E137
KIT,PUMP,PERISTALTICAsk for a price
KIT,PUMP,PERISTALTICAsk for a price
Also on the Reactor 3 E-30.
4
6
Graco Screw, mach, pnh
Ref 6
Graco 107388
Ask for a price
Ask for a price
Graco supplies this inside an assembly rather than as a separate part.
1b
Graco Pump, peristaltic, head only
Ref 1b
Graco 18D007
PUMP,PERISTALTIC,3MM IDAsk for a price
PUMP,PERISTALTIC,3MM IDAsk for a price
Also on the Reactor 3 E-30.
3
14
9
Graco Fitting, barn to 1/8 nptf
Ref 9
Graco 18C769
FITTING,BARB TO 1/8 NPTFAsk for a price
FITTING,BARB TO 1/8 NPTFAsk for a price
Also on the Reactor 3 E-30.
11
5
10
Graco Fitting, straight, 1/4 x 1/8 npt
Ref 10
Graco 127553
Tube Fitting - 1/4 in. Tube x 1/8 in. Straight FittingAsk for a price
Tube Fitting - 1/4 in. Tube x 1/8 in. Straight FittingAsk for a price
Also on the Reactor 3 E-30.
13
8
Graco Fitting, compression, adapter, 90, 1/4 in.
Ref 8
Graco 25B521
FITTING,COMPRESSION,ADAPT,90,1/4Ask for a price
FITTING,COMPRESSION,ADAPT,90,1/4Ask for a price
Also on the Reactor 3 E-30.
7
Graco Fitting, 1/8 in. npt, 1/16 in. npt
Ref 7
Graco 18D006
FITTING,1/8NPT,1/16NPTAsk for a price
FITTING,1/8NPT,1/16NPTAsk for a price
Also on the Reactor 3 E-30.
Resources
Service Parts, Manuals & the Machine
What a Reactor 3 actually gets through. The drive housing, bearing housing, connecting rod and gear kits are the driver rebuild; the RTD, burst disc and drain valve cartridge are the heater and manifold wear items.
Rebuilding something not listed here? Tell us what you need and we will quote it.
Repair & Parts ManualGraco 3A8501LOperation ManualGraco 3A8500HSafety Warnings & Isocyanate Informationmanual p. 7E-20 parts listsmanual p. 49Reactor Parts & Accessories BrochureGraco 349104
PDFs open in a new tab. The reference numbers on the diagram above match manual 3A8501L.
The complete Reactor 3 E-20. Machines are ordered in — ask us for current lead time.
Buy this machine
Graco Reactor 3 E-20 Standard Tier Prprtnr Pck, 200′ Htd Hose, 7kw
View machine →Graco IHR310 · SKU 60485
$40,140.00
Machines are usually special order. Ask us for availability and lead time.
47 of 298 dots are priced online. The rest we quote. Reference numbers match Graco manual 3A8501L.
| Ref | Assembly | Part | Graco # | SKU | Price | |
|---|---|---|---|---|---|---|
| 1 | The machine | Graco Frame, weldment, r3, painted | — | — | Ask us | Ask |
| 2 | The machine | Graco Enclosure, elec, r3, 6-15 kw | — | — | Ask us | Ask |
| 3 | The machine | Graco Bracket, proportioner, painted | — | — | Ask us | Ask |
| 4 | The machine | Graco Proportioner, module, (see drivers parts, page 54.) | — | — | Ask us | Ask |
| 5 | The machine | KIT,REPAIR,MOTOR COVER W/FAN | 18E190 | — | Ask us | Ask |
| 6 | The machine | FITTING, ELBOW 8JIC SWIVEL X 8JICM | 16W608 | — | Ask us | Ask |
| 7 | The machine | KIT,REPAIR,COVER,659/795/MARK | 24V023 | — | Ask us | Ask |
| 8 | The machine | KIT,TRANSFORMER 62V | 18E130 | — | Ask us | Ask |
| 9 | The machine | KIT,REPAIR,R3,TRANSFORMER CVR | 18E202 | — | Ask us | Ask |
| 10 | The machine | FAN,24VDC, 80MM SQUARE X 15MM | 132561PKG | — | Ask us | Ask |
| 11 | The machine | KIT,HEATER,DUAL-ZONE,7.6 KW | 18E142 | — | Ask us | Ask |
| 13 | The machine | LABEL,REACTOR 3,STD,SIDE,E-20 | 25S137 | — | Ask us | Ask |
| 14 | The machine | KIT, REPAIR, R3, HP FLEX HOSE | 18E205 | — | Ask us | Ask |
| 15 | The machine | FITTING,CONNECTOR,NPT X JIC | 121310 | — | Ask us | Ask |
| 16 | The machine | Graco Union Swivel Fitting, 3/4″ | 118459 | 118459 | $19.80 | Add |
| 17 | The machine | KIT,REPAIR,R3,OUTLET MANIFOLD | 18E207 | — | Ask us | Ask |
| 18 | The machine | KIT,STRAINER,R3,PAIR,PRO | 18E246 | — | Ask us | Ask |
| 19 | The machine | KIT,METER,FLOW,R3 | 18E136 | — | Ask us | Ask |
| 20 | The machine | Graco Label, brand | — | — | Ask us | Ask |
| 21 | The machine | Graco Cap, hose, square | — | — | Ask us | Ask |
| 22 | The machine | Graco Cap Hex HD Screw | 111800 | 60512 | $5.38 | Add |
| 23 | The machine | FLUID, 25 OZ (750 ML) (sold in multiples of 6) | 25T859 | — | Ask us | Ask |
| 24 | The machine | Graco Flanged Hex HD Screw | 113796 | 60511 | $2.75 | Add |
| 25 | The machine | SCREW, CAP FLANG HD | 111194 | — | Ask us | Ask |
| 27 | The machine | Graco Bracket, pivot, right, r3, painted | — | — | Ask us | Ask |
| 28 | The machine | Graco Bracket, pivot, left, r3, painted | — | — | Ask us | Ask |
| 29 | The machine | SHIELD,PUMP ROD | 19Y569PKG | — | Ask us | Ask |
| 30 | The machine | SHIELD, PUMP ROD | 15C762PKG | — | Ask us | Ask |
| 31 | The machine | SCREW, MACH, PNHD | 110637 | — | Ask us | Ask |
| 32 | The machine | BRACKET,R3,ISO-LUBE,PAINTED | 19C041 | — | Ask us | Ask |
| 33 | The machine | CAP,ISO-LUBE,R3 | 18C779 | — | Ask us | Ask |
| 35 | The machine | Graco Panel, back, r3 | — | — | Ask us | Ask |
| 36 | The machine | GUARD,FINGER, 80MM FAN | 132560PKG | — | Ask us | Ask |
| 37 | The machine | Graco Machine Slot Hex 118444 Screw | 118444 | 60187 | $5.25 | Add |
| 38 | The machine | NUT, HEX, FLANGED | 110996 | — | Ask us | Ask |
| 39 | The machine | SCREW, SOCKET HD | 110631 | — | Ask us | Ask |
| 40 | The machine | HOSE,COUPLED,R3,FLUID, -8 JIC | 18B272 | — | Ask us | Ask |
| 41 | The machine | Graco Reducer #5 X #8 JIC Fitting | 117502 | 117502 | $41.20 | Add |
| 42 | The machine | Graco Reducer #6 X #10 JIC Fitting | 117677 | 117677 | $44.80 | Add |
| 43 | The machine | INSULATOR, FOAM, HEATER | 16W654 | — | Ask us | Ask |
| 44 | The machine | FITTING,1/8NPT,1/16NPT | 18D006 | — | Ask us | Ask |
| 46 | The machine | TRIM,EDGE PROTECTION | 114225 | — | Ask us | Ask |
| 47 | The machine | CABLE,THERMISTOR | 132478PKG | — | Ask us | Ask |
| 48 | The machine | CABLE,GCA,M12-5P,M/F,1.2M | 18C473 | — | Ask us | Ask |
| 49 | The machine | CABLE,OVER-TEMP,HEATER,SINGLE | 132476PKG | — | Ask us | Ask |
| 51 | The machine | Graco Insulator, insolex, 0.75 id x 1.5 od | — | — | Ask us | Ask |
| 54 | The machine | KIT,MODULE, SYS SRG PROT | 2007103 was 16U530 | — | Ask us | Ask |
| 55 | The machine | KIT, TUBE, PRESSURE RELIEF | 24U845 | — | Ask us | Ask |
| 56 | The machine | FITTING,COMPRESSION,ADAPT,90,1/4 | 25B521 | — | Ask us | Ask |
| 57 | The machine | Graco Cover, r3, lower-top, painted | — | — | Ask us | Ask |
| 58 | The machine | KIT,REPAIR,R3,LOWER SHROUDS | 18E201 | — | Ask us | Ask |
| 59 | The machine | Graco HH Flanged Screw, 1/4-20 X .375 | 119865 | 60429 | $5.10 | Add |
| 60 | The machine | SCREW, CAP, SOCKET HD, 1/4-20 X 2.25 | C19817 | — | Ask us | Ask |
| 61 | The machine | Graco Gasket, manifold | — | — | Ask us | Ask |
| 63 | The machine | CLIP,T-CLIP,SNAP-IN | 25B524 | — | Ask us | Ask |
| 64 | The machine | Graco Bar, 55 gal chem. meas. a side (see ship loose parts, page 67) | — | — | Ask us | Ask |
| 65 | The machine | Graco Bar, 55 gal chem. meas. b side (see ship loose parts, page 67) | — | — | Ask us | Ask |
| 66 | The machine | Graco Bridge, plug-in jumper, ut35 | 24U846 | — | Not sold separately | Ask |
| 69 | The machine | CABLE,REED SWITCH | 132482PKG | — | Ask us | Ask |
| 70 | The machine | HARNESS,FAN,TRANSFORMER | 132518PKG | — | Ask us | Ask |
| 71 | The machine | CONNECTOR,PLUG,7.62MM,4-POSITION | 133231PKG | — | Ask us | Ask |
| 72 | The machine | CONNECTOR,PLUG,3.81MM (8 POSITION) | 132484PKG | — | Ask us | Ask |
| 73 | The machine | CONNECTOR,PLUG,10.16MM (8 POSITION) | 132485PKG | — | Ask us | Ask |
| 77 | The machine | Graco Bracket, wall mount, left (see ship loose parts, page 67) | — | — | Ask us | Ask |
| 78 | The machine | Graco Bracket, wall mount, right (see ship loose parts, page 67) | — | — | Ask us | Ask |
| 79 | The machine | Graco Label, safety | 25T998 | — | Not sold separately | Ask |
| 80 | The machine | Tube Fitting - 1/4 in. Tube x 1/8 in. Straight Fitting | 127553 | — | Ask us | Ask |
| 81 | The machine | GROMMET | 112738 | — | Ask us | Ask |
| 83 | The machine | Graco Artwork, identification | 29A382 | — | Not sold separately | Ask |
| 87 | The machine | Graco Jacket, scuff, r3, machine joint (see ship loose parts, page 67) | — | — | Ask us | Ask |
| 88 | The machine | 0.3M Male/Female M12-5P GCA Cable | 17R703 | — | Ask us | Ask |
| 89 | The machine | CONNECTOR,SPLITTER | 25E540PKG | — | Ask us | Ask |
| 92 | The machine | SHIELD,MEMBRANE,ADM,10-PAK | 18D314PKG | — | Ask us | Ask |
| 93 | The machine | TSL Throat Seal Liquid, 8 oz (sold in multiples of 6) | 206994 | — | Ask us | Ask |
| 94 | The machine | STRAINER,SUCTION, 1/4 NPT | 133416 | — | Ask us | Ask |
| 95 | The machine | FITTING,CONNECTOR,MALE,STRAIGHT | 16E254 | — | Ask us | Ask |
| 96 | The machine | STRAP, TIE WIRING | 102478 | — | Ask us | Ask |
| 98 | The machine | BOLT,FLANGE HD,SERRATED,3/8 | 132001 | — | Ask us | Ask |
| 101 | The machine | SCREW, BUTTON HD | 112689 | — | Ask us | Ask |
| 105 | The machine | SLEEVE, SPLIT, WIRE, 0.63 ID | 128036 | — | Ask us | Ask |
| 117 | The machine | KIT, FITTING, R3, SWEPT ELBOW | 18E275 | — | Ask us | Ask |
| 101 | Drivers | KIT,MOTOR, R3, 1.75 HP, 1-WAY | 25R357 | — | Ask us | Ask |
| 102 | Drivers | WASHER, THRUST | 114672 | — | Ask us | Ask |
| 103 | Drivers | KIT, REPAIR, GEAR, 695/795 | 287289 | — | Ask us | Ask |
| 104 | Drivers | WASHER, THRUST | 114699 | — | Ask us | Ask |
| 105 | Drivers | WASHER, THRUST | 116191 | — | Ask us | Ask |
| 106 | Drivers | KIT,REPAIR,DRIVE HOUSING,E-20 | 18E189 | — | Ask us | Ask |
| 107 | Drivers | Graco Machine Torx Hex Wash Screw | 15C753 | 57596 | $1.70 | Add |
| 108 | Drivers | KIT, REPAIR, BEARING HOUSING | 20B456 | — | Ask us | Ask |
| 109 | Drivers | Graco Washer, lock (hi-collar) | — | — | Ask us | Ask |
| 110 | Drivers | SCREW, CAP, SCH, 3/8 X 1.5, SST | 17E788 | — | Ask us | Ask |
| 111 | Drivers | Graco Rod, connecting | 287180 | — | Not sold separately | Ask |
| 112 | Drivers | KIT,REACTOR PUMP,DISPLACEMENT,TSL CIR,.396 | 2007126 was 25P857 | — | Ask us | Ask |
| 113 | Drivers | KIT,PUMP,DISPLACEMENT(.396/255.79) | 2007129 was 18D010 | — | Ask us | Ask |
| 114 | Drivers | Graco Jam Pump 17A257 Nut | 17A257 | 56857 | $17.50 | Add |
| 115 | Drivers | Graco Pin Connecting | 176818 | 176818 | $7.60 | Add |
| 117 | Drivers | Graco Magnet (E20) | 116618 | 116618 | $9.80 | Add |
| 118 | Drivers | Graco Hxhd Thd Cut Screw, 4-40 X .375 | 127301 | 60450 | $4.40 | Add |
| 119 | Drivers | SWITCH,REED, ASSEMBLY | 25R301PKG | — | Ask us | Ask |
| 120 | Drivers | LABEL, TORQUE | 187436 | — | Ask us | Ask |
| 121 | Drivers | LABEL, SAFETY, WARNING, PINCH | 192840 | — | Ask us | Ask |
| 201 | Heater | Graco Block, heater, machined, r3, dual | — | — | Ask us | Ask |
| 202 | Heater | FITTING,PLUG HOLOW HEX 1-3/16 SAE | 15H305 | — | Ask us | Ask |
| 203a | Heater | HEATER, IMMERSION, 2400W, 230V | 18C668 | — | Ask us | Ask |
| 203b | Heater | HEATER, FIREROD, 230V, 1380W, E-10HP | 16U942 | — | Ask us | Ask |
| 204 | Heater | Graco O-Ring – 124132 – #315 | 124132 | 124132 | $3.10 | Add |
| 205 | Heater | Graco Spring, mixer, heater | — | — | Ask us | Ask |
| 206 | Heater | Graco Adapter, thermocouple, 9/16 x 1/8 | — | — | Ask us | Ask |
| 207 | Heater | O-RING,PACKING | 120336 | — | Ask us | Ask |
| 208 | Heater | Graco Conn Fitting, 3/4SAE X 1/2 JIC | 121309 | 121309 | $21.50 | Add |
| 210 | Heater | Graco Burst Disc Kit | 247520 | 247520 | $233.00 | Add |
| 211 | Heater | PLUG,HEX | 295607 | — | Ask us | Ask |
| 212 | Heater | FITTING,COMPRESSION,1/8NPT,SS | 123325 | — | Ask us | Ask |
| 213 | Heater | Graco Heater RTD Kit | 24L973 | 57353 | $620.00 | Add |
| 214 | Heater | KIT,SWITCH, OVER TEMP. | 2007109 was 15B137 | — | Ask us | Ask |
| 215 | Heater | Graco Screw, mach, pnh | 124131 | — | Ask us | Ask |
| 216 | Heater | Graco Elbow MA Fitting, 3/4SAE X 1/2J | 121312 | 121312 | $12.40 | Add |
| 401 | Manifold - Pro & Elite | Graco Housing, outlet | — | — | Ask us | Ask |
| 402 | Manifold - Pro & Elite | Graco Valve Drain Cartridge 247824 Kit | 247824 | 60522 | $401.00 | Add |
| 403 | Manifold - Pro & Elite | Graco Compression Spring | 150829 | 150829 | $11.40 | Add |
| 404 | Manifold - Pro & Elite | HANDLE, RED | 15J915 | — | Ask us | Ask |
| 405 | Manifold - Pro & Elite | HANDLE,BLUE | 15J916 | — | Ask us | Ask |
| 406 | Manifold - Pro & Elite | Graco Hex Jam Nut | 112309 | 112309 | $6.45 | Add |
| 407 | Manifold - Pro & Elite | FITTING, ELBOW, STREET | 100840 | — | Ask us | Ask |
| 408 | Manifold - Pro & Elite | FITTING, (1/4 NPSM X 1/4 NPT) | 162453 | — | Ask us | Ask |
| 409 | Manifold - Pro & Elite | Graco Fitting, elbow, jic-8 x orb-8 | — | — | Ask us | Ask |
| 410 | Manifold - Pro & Elite | Graco Fitting, elbow, jic-10 x orb-8 | — | — | Ask us | Ask |
| 411 | Manifold - Pro & Elite | Graco Fitting, tee, orb-8, jic-8, 1/4-npt | — | — | Ask us | Ask |
| 412 | Manifold - Pro & Elite | TRANSDUCER,PRESSURE,5000 PSIG | 18B074PKG | — | Ask us | Ask |
| 413 | Manifold - Pro & Elite | Graco Qfluid 102814 Gauge, 5000PSI | 102814 | 102814 | $108.50 | Add |
| 401 | Manifold - Standard | Graco Housing, outlet | — | — | Ask us | Ask |
| 402 | Manifold - Standard | Replacement Drain Valve Kit | 239914 | — | Ask us | Ask |
| 403 | Manifold - Standard | BASE VALVE | 224807 | — | Ask us | Ask |
| 404 | Manifold - Standard | HANDLE, VALVE, DRAIN, RED | 17X499 | — | Ask us | Ask |
| 405 | Manifold - Standard | HANDLE, VALVE, DRAIN, BLUE | 17X521 | — | Ask us | Ask |
| 406 | Manifold - Standard | PIN, GROOVED | 111600 | — | Ask us | Ask |
| 407 | Manifold - Standard | FITTING, ELBOW, STREET | 100840 | — | Ask us | Ask |
| 408 | Manifold - Standard | FITTING, (1/4 NPSM X 1/4 NPT) | 162453 | — | Ask us | Ask |
| 409 | Manifold - Standard | Graco Fitting, elbow, jic-8 x orb-8 | — | — | Ask us | Ask |
| 410 | Manifold - Standard | Graco Fitting, elbow, jic-10 x orb-8 | — | — | Ask us | Ask |
| 411 | Manifold - Standard | Graco Fitting, tee, orb-8, jic-8, 1/4-npt | — | — | Ask us | Ask |
| 412 | Manifold - Standard | TRANSDUCER,PRESSURE,5000 PSIG | 18B074PKG | — | Ask us | Ask |
| 413 | Manifold - Standard | Graco Qfluid 102814 Gauge, 5000PSI | 102814 | 102814 | $108.50 | Add |
| 501 | Electrical enclosure | Graco Enclosure, weldment, r3, painted | — | — | Ask us | Ask |
| 502 | Electrical enclosure | Graco Module, din rail, see rail module parts, page 64 | — | — | Ask us | Ask |
| 503 | Electrical enclosure | KIT,MODULE,GCA,MZHP2,R3 | 25P036 | — | Ask us | Ask |
| 504 | Electrical enclosure | Graco Label, installation | — | — | Ask us | Ask |
| 505 | Electrical enclosure | KIT,MODULE,GCA,MCM2,R3 | 18B011 | — | Ask us | Ask |
| 506 | Electrical enclosure | TERMINAL, GROUND | 117666 | — | Ask us | Ask |
| 507 | Electrical enclosure | NUT,KEPS,HEX HD | 113505 | — | Ask us | Ask |
| 508 | Electrical enclosure | NUT, HEX, FLANGE HEAD | 115942 | — | Ask us | Ask |
| 509 | Electrical enclosure | Graco Bracket, mov | — | — | Ask us | Ask |
| 510 | Electrical enclosure | SCREW MACH,PNH,SEMS | 114331 | — | Ask us | Ask |
| 511 | Electrical enclosure | KIT,PUMP,PERISTALTIC | 18E137 | — | Ask us | Ask |
| 512 | Electrical enclosure | Graco Screw, ph #4-40 x 3/8 | 107388 | — | Not sold separately | Ask |
| 513 | Electrical enclosure | KIT, R3, BRACKET, TSL FITTINGS | 18E276 | — | Ask us | Ask |
| 514 | Electrical enclosure | SCREW, MACH, PNHD | 110637 | — | Ask us | Ask |
| 515 | Electrical enclosure | FITTING,BARB TO 1/8 NPTF | 18C769 | — | Ask us | Ask |
| 516 | Electrical enclosure | NUT | 100155 | — | Ask us | Ask |
| 517 | Electrical enclosure | Tube Fitting - 1/4 in. Tube x 1/8 in. Straight Fitting | 127553 | — | Ask us | Ask |
| 518 | Electrical enclosure | Graco Bumper, enclosure door, r3 | — | — | Ask us | Ask |
| 519 | Electrical enclosure | Graco Screw, ph #10-24 x 3/4 | — | — | Ask us | Ask |
| 520 | Electrical enclosure | TRIM,EDGE PROTECTION | 114225 | — | Ask us | Ask |
| 521 | Electrical enclosure | KIT, BUSHING, STRAIN RLF, M40 | 255047 was 120858 | — | Ask us | Ask |
| 522 | Electrical enclosure | Graco Nut, strain relief, m40 thread | 120859 | — | Not sold separately | Ask |
| 523 | Electrical enclosure | KNOB, DOOR INTERLOCKED | 18B671 | — | Ask us | Ask |
| 524 | Electrical enclosure | SHAFT,DOOR INTERLOCKED | 18B672 | — | Ask us | Ask |
| 525 | Electrical enclosure | Graco Door, stamped, r3, painted | — | — | Ask us | Ask |
| 526 | Electrical enclosure | Graco Foam, enclosure, r3 | — | — | Ask us | Ask |
| 527 | Electrical enclosure | Graco Latch, door | — | — | Ask us | Ask |
| 528 | Electrical enclosure | Graco Module Gca Adm 2 Kit, 9 in | 18E139 | 60356 | $671.00 | Add |
| 529 | Electrical enclosure | Graco Pin, weld hinge | — | — | Ask us | Ask |
| 530 | Electrical enclosure | Graco Ring, retaining, e ring, 9/64 | — | — | Ask us | Ask |
| 531 | Electrical enclosure | Graco Wire, grounding, door | 194337 | — | Not sold separately | Ask |
| 532 | Electrical enclosure | Graco Plate, enclosure guard | — | — | Ask us | Ask |
| 533 | Electrical enclosure | ANTENNA,GPS | 132949PKG | — | Ask us | Ask |
| 534 | Electrical enclosure | ANTENNA,CELLULAR | 132948PKG | — | Ask us | Ask |
| 535 | Electrical enclosure | CABLE,CAN,FEMALE/FEMALE 0.9M | 18D084 | — | Ask us | Ask |
| 536 | Electrical enclosure | Graco Cable, can, female/female 0.6 m | — | — | Ask us | Ask |
| 538 | Electrical enclosure | KIT,R3,ELECTRICAL CONNECTOR | 18E184 | — | Ask us | Ask |
| 543 | Electrical enclosure | STRAP, TIE WIRING | 102478 | — | Ask us | Ask |
| 544 | Electrical enclosure | CABLE,4 PIN,MALE/90DEG FEM 1.0M | 18D295 | — | Ask us | Ask |
| 601 | Inlet strainers | HOUSING,STRAINER, BARE | 18D179 | — | Ask us | Ask |
| 602 | Inlet strainers | KIT, CAP, INLET STRAINER | 18E271 | — | Ask us | Ask |
| 603 | Inlet strainers | INSERT, MANIFOLD | 15E288 | — | Ask us | Ask |
| 604 | Inlet strainers | FILTER,FLUID, 30 MESH | 132675 | — | Ask us | Ask |
| 605 | Inlet strainers | Graco Fitting, elbow, orb-10 x 3/4 npsm | — | — | Ask us | Ask |
| 606 | Inlet strainers | FITTING, PIPE, NIPPLE, 3/4 X 3/4 NPT | 119992 | — | Ask us | Ask |
| 607 | Inlet strainers | Graco Ball 3/4 NPT Fem Valve, 6000PSI | 109077 | 109077 | $126.50 | Add |
| 608 | Inlet strainers | Graco Union Swivel Fitting, 3/4″ | 118459 | 118459 | $19.80 | Add |
| 609 | Inlet strainers | Trabon MGO Divider Valve Port Plug | 556424 | — | Ask us | Ask |
| 610 | Inlet strainers | KIT,GAUGE,R3,INLET,PRESSURE | 18E272 | — | Ask us | Ask |
| 611 | Inlet strainers | Graco Plug Pipe Headles | 104765 | 104765 | $17.80 | Add |
| 612 | Inlet strainers | KIT,R3,TEMP SENSOR | 20B457 | — | Ask us | Ask |
| 612a | Inlet strainers | Graco Packing O-Ring P2 Air Control | 106555 | 56677 | $5.60 | Add |
| 614 | Inlet strainers | PLUG, PIPE | 100737 | — | Ask us | Ask |
| 616 | Inlet strainers | O-RING,125, FX75 | 132444 | — | Ask us | Ask |
| 701 | Rail module | Graco Rail, mount, 18mm slot | — | — | Ask us | Ask |
| 702 | Rail module | Graco Bracket, din rail | — | — | Ask us | Ask |
| 703 | Rail module | SCREW, MACH, PHILLIPS PAN HD, #10 | 116610 | — | Ask us | Ask |
| 704 | Rail module | NUT,KEPS,HEX HD | 113505 | — | Ask us | Ask |
| 705 | Rail module | KIT, BLOCK, CLAMP END | 255045 was 120838 | — | Ask us | Ask |
| 706 | Rail module | Graco Power Supply, 24V | 126453 | 126453 | $235.00 | Add |
| 707 | Rail module | CIRCUIT,BREAKER, 2P,20A, UL489,AB | 17A314 | — | Ask us | Ask |
| 708 | Rail module | CIRCUIT,BREAKER, 2P,40A, UL489,AB | 17A317 | — | Ask us | Ask |
| 709 | Rail module | KIT, CKT BRKR, 1 POLE, 50A, C CRV | 255026 was 17A319 | — | Ask us | Ask |
| 710 | Rail module | BLOCK,GROUND,TERMINAL | 132931 | — | Ask us | Ask |
| 711 | Rail module | BLOCK,TERMINAL, UT35 | 24R724 | — | Ask us | Ask |
| 712 | Rail module | SWITCH,ROTARY DISCONNECT,3P,100A | 132801 | — | Ask us | Ask |
| 713 | Rail module | SWITCH,FOURTH POLE,100A,UL98 | 132802 | — | Ask us | Ask |
| 714 | Rail module | CONNECTOR,PLUG,10.16MM,7 POSITION | 133472PKG | — | Ask us | Ask |
| 715 | Rail module | CONNECTOR,PLUG,7.62MM,3 POSITION | 133471PKG | — | Ask us | Ask |
| 716 | Rail module | CONNECTOR,PLUG,3.81MM,6 POSITION | 133470PKG | — | Ask us | Ask |
| 717 | Rail module | CONNECTOR,PLUG,10.16MM,3 POSITION | 133469PKG | — | Ask us | Ask |
| 724 | Rail module | TIE, CABLE, FIR TREE | 125625 | — | Ask us | Ask |
| 725 | Rail module | Graco Sleeve, split, wire, 1.00 id | — | — | Ask us | Ask |
| 729 | Rail module | SLEEVE, SPLIT, WIRE, 0.63 ID | 128036 | — | Ask us | Ask |
| 736 | Rail module | Graco Contact, connector, pin, size 8 | — | — | Ask us | Ask |
| 737 | Rail module | Graco Contact, connector, socket, size 8 | — | — | Ask us | Ask |
| 738 | Rail module | TRIM,EDGE PROTECTION | 114225 | — | Ask us | Ask |
| 739 | Rail module | KIT,MODULE, SYS SRG PROT | 2007103 was 16U530 | — | Ask us | Ask |
| 23 | Ship loose | FLUID, 25 OZ (750 ML) (sold in multiples of 6) | 25T859 | — | Ask us | Ask |
| 64 | Ship loose | KIT,DRUM LEVEL, METAL | 24M174 | — | Ask us | Ask |
| 65 | Ship loose | Graco Bar, 55 gallon chemical measure, b side | — | — | Ask us | Ask |
| 77 | Ship loose | KIT, WALL BRACKET | 18E266 | — | Ask us | Ask |
| 78 | Ship loose | Graco Bracket, wall mount, left | — | — | Ask us | Ask |
| 87 | Ship loose | JACKET,SCUFF,R3,MACHINE JOINT | 18D240PKG | — | Ask us | Ask |
| 93 | Ship loose | TSL Throat Seal Liquid, 8 oz (sold in multiples of 6) | 206994 | — | Ask us | Ask |
| 1 | TSL system kit | KIT,PUMP,PERISTALTIC | 18E137 | — | Ask us | Ask |
| 1a | TSL system kit | TUBE,REPAIR KIT,R3 TSL PUMP | 18D008 | — | Ask us | Ask |
| 1b | TSL system kit | PUMP,PERISTALTIC,3MM ID | 18D007 | — | Ask us | Ask |
| 2 | TSL system kit | CAP,ISO-LUBE,R3 | 18C779 | — | Ask us | Ask |
| 3 | TSL system kit | STRAINER,SUCTION, 1/4 NPT | 133416 | — | Ask us | Ask |
| 4 | TSL system kit | FITTING,CONNECTOR,MALE,STRAIGHT | 16E254 | — | Ask us | Ask |
| 5 | TSL system kit | KIT, R3, TSL TUBING, 7.5FT | 18E274 | — | Ask us | Ask |
| 6 | TSL system kit | Graco Screw, mach, pnh | 107388 | — | Not sold separately | Ask |
| 7 | TSL system kit | FITTING,1/8NPT,1/16NPT | 18D006 | — | Ask us | Ask |
| 8 | TSL system kit | FITTING,COMPRESSION,ADAPT,90,1/4 | 25B521 | — | Ask us | Ask |
| 9 | TSL system kit | FITTING,BARB TO 1/8 NPTF | 18C769 | — | Ask us | Ask |
| 10 | TSL system kit | Tube Fitting - 1/4 in. Tube x 1/8 in. Straight Fitting | 127553 | — | Ask us | Ask |
| 11 | TSL system kit | NUT | 100155 | — | Ask us | Ask |
| 12 | TSL system kit | GROMMET | 112738 | — | Ask us | Ask |
| 13 | TSL system kit | CLIP,T-CLIP,SNAP-IN | 25B524 | — | Ask us | Ask |
| 14 | TSL system kit | STRAP, TIE WIRING | 102478 | — | Ask us | Ask |
