Graco Reactor 2 E-XP2
Parts diagram
Graco Reactor 2 E-XP2 — Spray Foam Proportioner
Hover or tap any number on the drawing to see the part and add it to your cart.

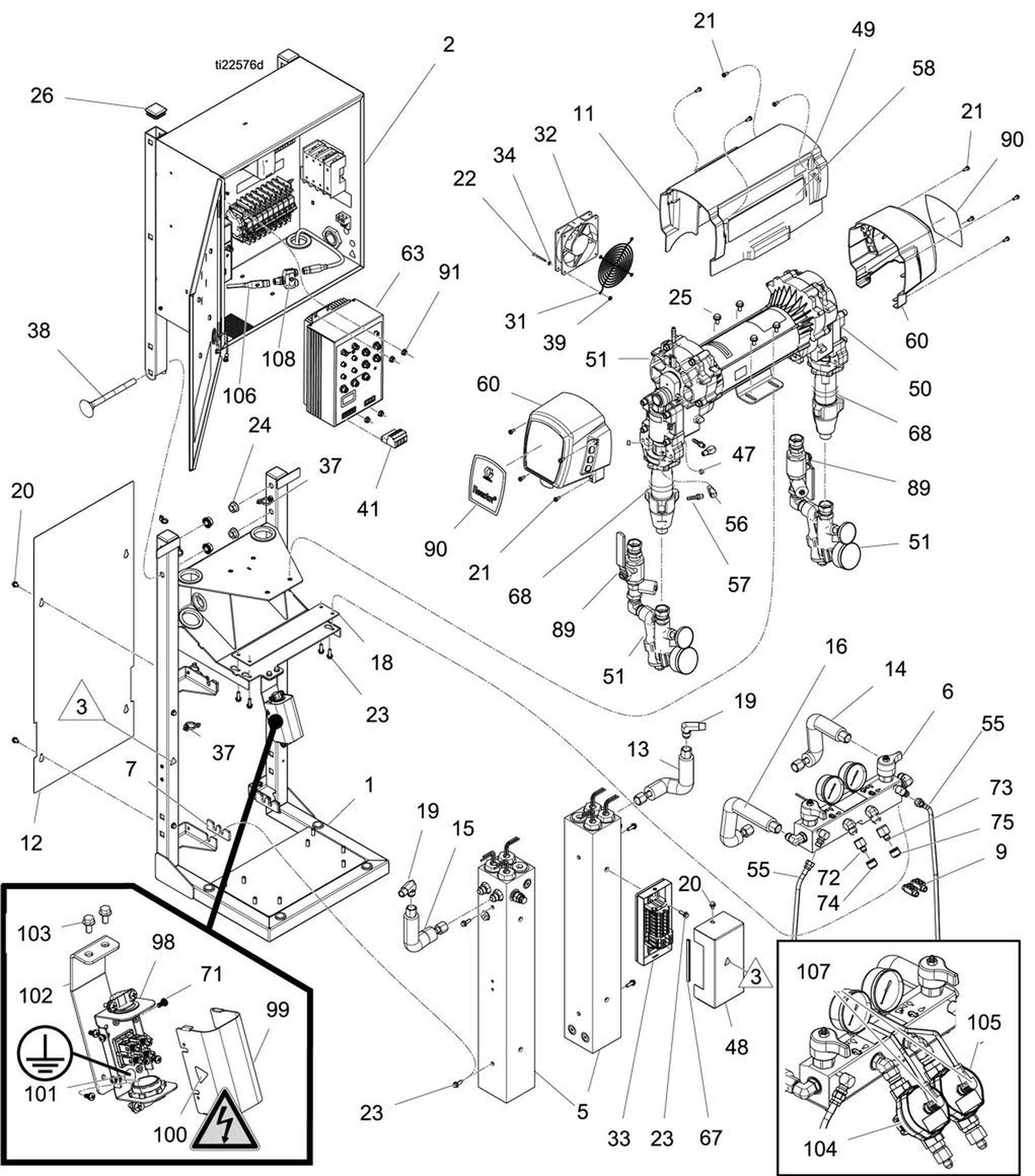

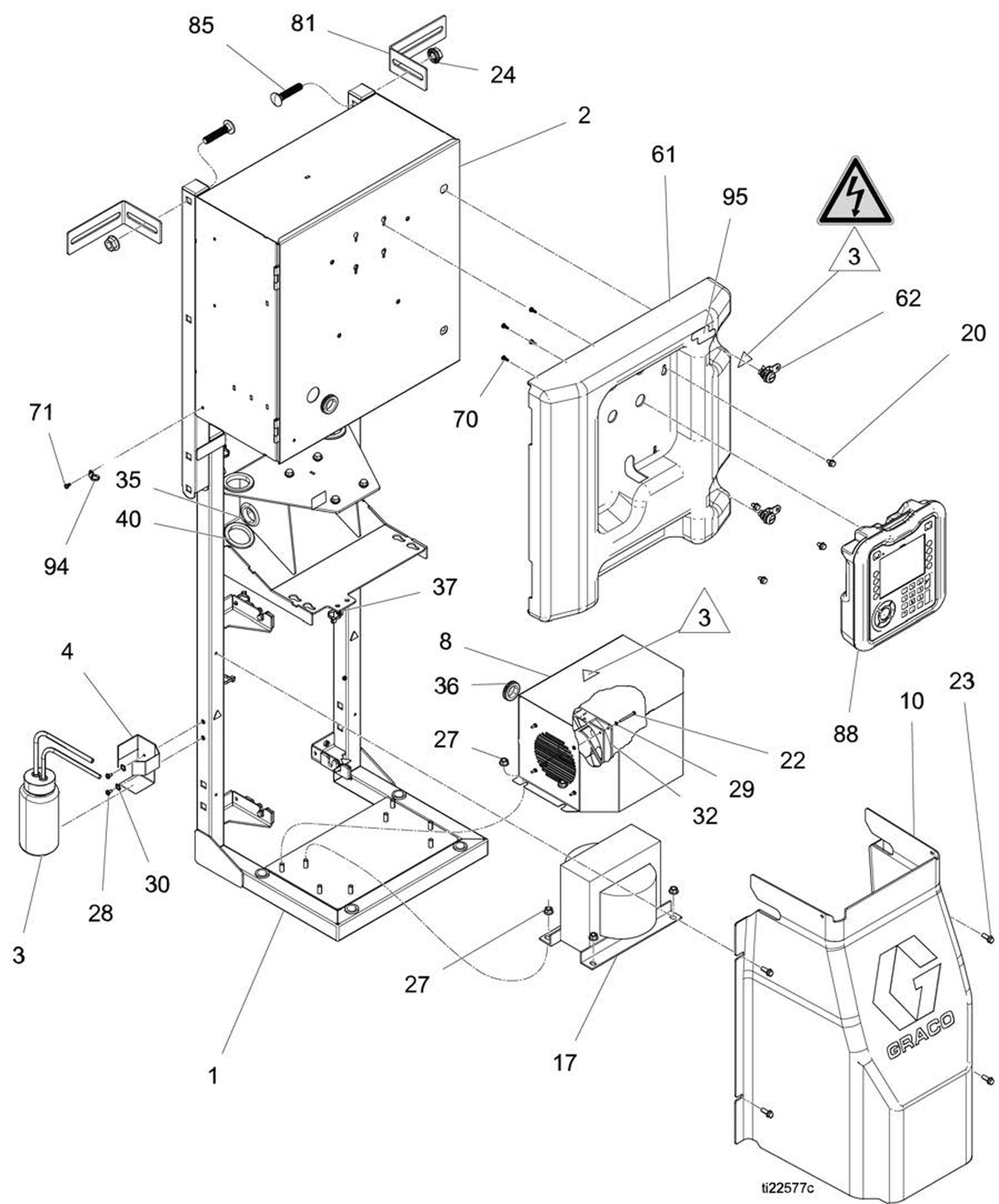

The machineDrawing from Graco manual 333024W, page 76
Priced onlineAsk us for a price
21
Graco Machine Slot Hex 118444 Screw
Ref 21 · Graco 118444 · SKU 60187
15 kW, Elite 15 kW
$5.25
49
Graco Label, made in the usa 1 1
Ref 49
Graco 15Y118
LABEL, made in the USA 1 1 · 15 kW, Elite 15 kWAsk for a price
LABEL, made in the USA 1 1 · 15 kW, Elite 15 kWAsk for a price
2
58
Graco Label, branding, e-xp2, elite
Ref 58 · 2 versions
Graco 16W215
LABEL, branding, E-XP2 · 15 kWAsk for a price
LABEL, branding, E-XP2 · 15 kWAsk for a price
Graco 16W322
LABEL, branding, E-XP2, elite · Elite 15 kWAsk for a price
LABEL, branding, E-XP2, elite · Elite 15 kWAsk for a price
26
Graco Cap, tube, square 2 2
Ref 26
Graco 111218
CAP, tube, square 2 2 · 15 kW, Elite 15 kWAsk for a price
CAP, tube, square 2 2 · 15 kW, Elite 15 kWAsk for a price
21
Graco Machine Slot Hex 118444 Screw
Ref 21 · Graco 118444 · SKU 60187
15 kW, Elite 15 kW
$5.25
11
32
Graco Fan Cooling Kit, 120MM
Ref 32 · Graco 24U847 · SKU 60144
15 kW, Elite 15 kW
$161.50
90
Graco Label, Branding, Reactor 16W213
Ref 90 · Graco 16W213 · SKU 60267
15 kW, Elite 15 kW
$10.50
34
Graco Flat Washer
Ref 34 · Graco 151395 · SKU 60469
15 kW, Elite 15 kW
$50.25
22
Graco Mch Phil Pan HD; 1.5in X #6-32 117683 Screw
Ref 22 · Graco 117683 · SKU 60467
15 kW, Elite 15 kW
$3.05
63
Graco 1 1 module, mcm
Ref 63 · 2 versions
Graco Module Gca MCM2200 Fio R2 Kit
Graco 24U832 · Elite 15 kW$1,220.00 · Add
Graco 24U832 · Elite 15 kW$1,220.00 · Add
Graco 24U831
1 1 MODULE, MCM · 15 kWAsk for a price
1 1 MODULE, MCM · 15 kWAsk for a price
91
Graco 4 4 nut, hex, flange head
Ref 91
Graco 115942
4 4 NUT, hex, flange head · 15 kW, Elite 15 kWAsk for a price
4 4 NUT, hex, flange head · 15 kW, Elite 15 kWAsk for a price
25
Graco Cap Hex HD Screw
Ref 25 · Graco 111800 · SKU 60512
15 kW, Elite 15 kW
$5.38
31
Graco Guard, Finger
Ref 31 · Graco 115836 · SKU 60468
15 kW, Elite 15 kW
$5.30
38
Graco Bolt, carriage, 1/2-13 x 4 4 3.5 l
Ref 38
Graco 127277
BOLT, carriage, 1/2-13 x 4 4 3.5 L · 15 kW, Elite 15 kWAsk for a price
BOLT, carriage, 1/2-13 x 4 4 3.5 L · 15 kW, Elite 15 kWAsk for a price
60
Graco Repair Cover Kit, 1095, 1595
Ref 60 · Graco 287292 · SKU 60268
15 kW, Elite 15 kW
$97.25
39
Graco Keps Hex Nut
Ref 39 · Graco 127278 · SKU 60470
15 kW, Elite 15 kW
$4.40
108
Graco 4 washer, thrust, copper colored
Ref 108
Graco 114672
4 WASHER, thrust, copper coloredAsk for a price
4 WASHER, thrust, copper coloredAsk for a price
Listed with the drawing.
51
Graco Kit, asm, pair, std, reactor
Ref 51 · 2 versions
Graco Assembly Pair Std Reactor Kit
Graco 24U320 · 15 kW$1,450.00 · Add
Graco 24U320 · 15 kW$1,450.00 · Add
Graco 24U321
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 9 · Elite 15 kWAsk for a price
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 9 · Elite 15 kWAsk for a price
60
Graco Repair Cover Kit, 1095, 1595
Ref 60 · Graco 287292 · SKU 60268
15 kW, Elite 15 kW
$97.25
50
Graco Proportioner, module, e-xp2
Ref 50
Graco 24V151
PROPORTIONER, module, E-XP2; see Proportioner Module, page 8 · 15 kW, Elite 15 kWAsk for a price
PROPORTIONER, module, E-XP2; see Proportioner Module, page 8 · 15 kW, Elite 15 kWAsk for a price
106
Graco Displacement (.552/356.26)245971 Reactor Pump
Ref 106 · Graco 245971 · SKU 60236
$2,260.00
Listed with the drawing.
24
Graco Nut, hex, flanged 6 6
Ref 24
Graco 112731
NUT, hex, flanged 6 6 · 15 kW, Elite 15 kWAsk for a price
NUT, hex, flanged 6 6 · 15 kW, Elite 15 kWAsk for a price
68
Graco Label, identification 1 1
Ref 68
Graco 16X250
LABEL, identification 1 1 · 15 kW, Elite 15 kWAsk for a price
LABEL, identification 1 1 · 15 kW, Elite 15 kWAsk for a price
47
Graco Plug Pipe Headles
Ref 47 · Graco 104765 · SKU 104765
15 kW, Elite 15 kW
$17.80
37
Graco Tie, cable, fir tree 5 6
Ref 37
Graco 125625
TIE, cable, fir tree 5 6 · 15 kW, Elite 15 kWAsk for a price
TIE, cable, fir tree 5 6 · 15 kW, Elite 15 kWAsk for a price
89
Graco Union Swivel Fitting, 3/4″
Ref 89 · Graco 118459 · SKU 118459
15 kW, Elite 15 kW
$19.80
20
Graco HH Flanged Screw, 1/4-20 X .375
Ref 20 · Graco 119865 · SKU 60429
15 kW, Elite 15 kW
$5.10
41
Graco Connector, power, 1 1 male, 4 pin
Ref 41
Graco 16X095
CONNECTOR, power, 1 1 male, 4 pin · 15 kW, Elite 15 kWAsk for a price
CONNECTOR, power, 1 1 male, 4 pin · 15 kW, Elite 15 kWAsk for a price
56
Graco Fitting Elbow, 1/8 NPT
Ref 56 · Graco 191892 · SKU 191892
15 kW, Elite 15 kW
$38.70
51
Graco Kit, asm, pair, std, reactor
Ref 51 · 2 versions
Graco Assembly Pair Std Reactor Kit
Graco 24U320 · 15 kW$1,450.00 · Add
Graco 24U320 · 15 kW$1,450.00 · Add
Graco 24U321
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 9 · Elite 15 kWAsk for a price
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 9 · Elite 15 kWAsk for a price
90
Graco Label, Branding, Reactor 16W213
Ref 90 · Graco 16W213 · SKU 60267
15 kW, Elite 15 kW
$10.50
21
Graco Machine Slot Hex 118444 Screw
Ref 21 · Graco 118444 · SKU 60187
15 kW, Elite 15 kW
$5.25
57
Graco Plated 116746 Barbed Fitting
Ref 57 · Graco 116746 · SKU 116746
15 kW, Elite 15 kW
$10.70
68
Graco Label, identification 1 1
Ref 68
Graco 16X250
LABEL, identification 1 1 · 15 kW, Elite 15 kWAsk for a price
LABEL, identification 1 1 · 15 kW, Elite 15 kWAsk for a price
89
Graco Union Swivel Fitting, 3/4″
Ref 89 · Graco 118459 · SKU 118459
15 kW, Elite 15 kW
$19.80
16
Graco Tube, a-side, outlet, 1 15kw
Ref 16
Graco 24U835
TUBE, a-side, outlet, 1 15kw · 15 kW, Elite 15 kWAsk for a price
TUBE, a-side, outlet, 1 15kw · 15 kW, Elite 15 kWAsk for a price
18
Graco 1 1 gasket, manifold
Ref 18
Graco 15B456
1 1 GASKET, manifold · 15 kW, Elite 15 kWAsk for a price
1 1 GASKET, manifold · 15 kW, Elite 15 kWAsk for a price
14
Graco Tube, b-side, outlet, 1 15kw
Ref 14
Graco 24U839
TUBE, b-side, outlet, 1 15kw · 15 kW, Elite 15 kWAsk for a price
TUBE, b-side, outlet, 1 15kw · 15 kW, Elite 15 kWAsk for a price
51
Graco Kit, asm, pair, std, reactor
Ref 51 · 2 versions
Graco Assembly Pair Std Reactor Kit
Graco 24U320 · 15 kW$1,450.00 · Add
Graco 24U320 · 15 kW$1,450.00 · Add
Graco 24U321
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 9 · Elite 15 kWAsk for a price
KIT, asm, pair, elite, Reactor; see Fluid Inlet Kits, page 9 · Elite 15 kWAsk for a price
6
Graco Manifold, fluid
Ref 6
Graco 24U704
MANIFOLD, fluid; see 1 1 Fluid Manifold, page 90 · 15 kW, Elite 15 kWAsk for a price
MANIFOLD, fluid; see 1 1 Fluid Manifold, page 90 · 15 kW, Elite 15 kWAsk for a price
19
Graco Elbow Fitting, 3/8 NPT X #8 JIC
Ref 19 · Graco 125643 · SKU 60163
15 kW, Elite 15 kW
$42.10
23
Graco Flanged Hex HD Screw
Ref 23 · Graco 113796 · SKU 60511
15 kW, Elite 15 kW
$2.75
55
Graco 2 2 tube, pressure relief
Ref 55
Graco 24U845
2 2 TUBE, pressure relief · 15 kW, Elite 15 kWAsk for a price
2 2 TUBE, pressure relief · 15 kW, Elite 15 kWAsk for a price
13
Graco Tube, b-side, inlet, 1 15kw
Ref 13
Graco 24U837
TUBE, b-side, inlet, 1 15kw · 15 kW, Elite 15 kWAsk for a price
TUBE, b-side, inlet, 1 15kw · 15 kW, Elite 15 kWAsk for a price
37
Graco Tie, cable, fir tree 5 6
Ref 37
Graco 125625
TIE, cable, fir tree 5 6 · 15 kW, Elite 15 kWAsk for a price
TIE, cable, fir tree 5 6 · 15 kW, Elite 15 kWAsk for a price
7
Graco Insulator, foam, 2 4 heater
Ref 7
Graco 16W654
INSULATOR, foam, 2 4 heater · 15 kW, Elite 15 kWAsk for a price
INSULATOR, foam, 2 4 heater · 15 kW, Elite 15 kWAsk for a price
1
73
Graco Reducer #6 X #10 JIC Fitting
Ref 73 · Graco 117677 · SKU 117677
15 kW, Elite 15 kW
$44.80
19
Graco Elbow Fitting, 3/8 NPT X #8 JIC
Ref 19 · Graco 125643 · SKU 60163
15 kW, Elite 15 kW
$42.10
75
Graco Cap, 9/16-18 jic 1 1 cap-aluminum
Ref 75
Graco 299520
CAP, 9/16-18 JIC 1 1 cap-aluminum · 15 kW, Elite 15 kWAsk for a price
CAP, 9/16-18 JIC 1 1 cap-aluminum · 15 kW, Elite 15 kWAsk for a price
15
Graco Fluid Tube A Inlet 24U833 Kit
Ref 15 · Graco 24U833 · SKU 60246
15 kW, Elite 15 kW
$105.50
12
Graco 1 1 cover, heater, rear
Ref 12
Graco 16W764
1 1 COVER, heater, rear · 15 kW, Elite 15 kWAsk for a price
1 1 COVER, heater, rear · 15 kW, Elite 15 kWAsk for a price
9
Graco Connector, Wire, 6AWG
Ref 9 · Graco 261821 · SKU 261821
15 kW, Elite 15 kW
$76.50
72
Graco Reducer #5 X #8 JIC Fitting
Ref 72 · Graco 117502 · SKU 117502
15 kW, Elite 15 kW
$41.20
55
Graco 2 2 tube, pressure relief
Ref 55
Graco 24U845
2 2 TUBE, pressure relief · 15 kW, Elite 15 kWAsk for a price
2 2 TUBE, pressure relief · 15 kW, Elite 15 kWAsk for a price
72
Graco Reducer #5 X #8 JIC Fitting
Ref 72 · Graco 117502 · SKU 117502
15 kW, Elite 15 kW
$41.20
20
Graco HH Flanged Screw, 1/4-20 X .375
Ref 20 · Graco 119865 · SKU 60429
15 kW, Elite 15 kW
$5.10
74
Graco Cap, 1/2-20 jic 1 1 cap-aluminum
Ref 74
Graco 299521
CAP, 1/2-20 JIC 1 1 cap-aluminum · 15 kW, Elite 15 kWAsk for a price
CAP, 1/2-20 JIC 1 1 cap-aluminum · 15 kW, Elite 15 kWAsk for a price
103
Graco Screw, flange, hex hd 2 2
Ref 103
Graco 113161
SCREW, flange, hex hd 2 2 · 15 kW, Elite 15 kWAsk for a price
SCREW, flange, hex hd 2 2 · 15 kW, Elite 15 kWAsk for a price
98
Graco Enclosure, terminal 1 1 block
Ref 98
Graco 24W204
ENCLOSURE, terminal 1 1 block · 15 kW, Elite 15 kWAsk for a price
ENCLOSURE, terminal 1 1 block · 15 kW, Elite 15 kWAsk for a price
107
Graco Washer, thrust, steel colored 2
Ref 107
Graco 114699
WASHER, thrust, steel colored 2Ask for a price
WASHER, thrust, steel colored 2Ask for a price
Listed with the drawing.
71
Graco Screw, mach, phillips, 10 10 tooth wash
Ref 71
Graco 16X129
SCREW, mach, phillips, 10 10 tooth wash; 5/16 x 8-32 · 15 kW, Elite 15 kWAsk for a price
SCREW, mach, phillips, 10 10 tooth wash; 5/16 x 8-32 · 15 kW, Elite 15 kWAsk for a price
102
Graco Bracket, mounting 1 1
Ref 102
Graco 17D955
BRACKET, mounting 1 1 · 15 kW, Elite 15 kWAsk for a price
BRACKET, mounting 1 1 · 15 kW, Elite 15 kWAsk for a price
99
Graco Enclosure, cover 1 1
Ref 99
Graco 24A234
ENCLOSURE, cover 1 1 · 15 kW, Elite 15 kWAsk for a price
ENCLOSURE, cover 1 1 · 15 kW, Elite 15 kWAsk for a price
105
Graco Conn Rod Replacement Kit
Ref 105 · Graco 241279 · SKU 241279
$370.00
Listed with the drawing.
48
Graco 1 1 cover, top, din rail
Ref 48
Graco 16V268
1 1 COVER, top, din rail · 15 kW, Elite 15 kWAsk for a price
1 1 COVER, top, din rail · 15 kW, Elite 15 kWAsk for a price
101
Graco Label, Designation
Ref 101 · Graco 172953 · SKU 60386
15 kW, Elite 15 kW
$8.35
5
Graco Heater RTD Kit, 7.5KW, 1 Zone
Ref 5 · Graco 24U842 · SKU 59255
15 kW, Elite 15 kW
$1,734.00
23
Graco Flanged Hex HD Screw
Ref 23 · Graco 113796 · SKU 60511
15 kW, Elite 15 kW
$2.75
100
67
Graco Trim, edge protection
Ref 67
Graco 114225
TRIM, edge protection; 1 1 1.6 ft (0.48 m) · 15 kW, Elite 15 kWAsk for a price
TRIM, edge protection; 1 1 1.6 ft (0.48 m) · 15 kW, Elite 15 kWAsk for a price
33
Graco Enclosure, lower, din 1 1 rail
Ref 33
Graco 24R685
ENCLOSURE, lower, din 1 1 rail; includes 33a-33d · 15 kW, Elite 15 kWAsk for a price
ENCLOSURE, lower, din 1 1 rail; includes 33a-33d · 15 kW, Elite 15 kWAsk for a price
23
Graco Flanged Hex HD Screw
Ref 23 · Graco 113796 · SKU 60511
15 kW, Elite 15 kW
$2.75
104
Graco Repair Gear Kit, 1095, 1595
Ref 104 · Graco 287290 · SKU 287290
$266.50
Listed with the drawing.
Drawing from Graco manual 333024W, page 77
Graco documents the E-XP2 one assembly at a time. Nine of them — pick one, or follow a link from the machine above.
81
Graco Wall Mount Bracket
Ref 81 · Graco 16V806 · SKU 60547
15 kW, Elite 15 kW
$26.30
85
Graco Keps Hex Nut
Ref 85 · Graco 127278 · SKU 60470
15 kW, Elite 15 kW
$4.40
24
Graco Nut, hex, flanged 6 6
Ref 24
Graco 112731
NUT, hex, flanged 6 6 · 15 kW, Elite 15 kWAsk for a price
NUT, hex, flanged 6 6 · 15 kW, Elite 15 kWAsk for a price
2
61
Graco Painted Control Box Cover
Ref 61 · Graco 16W766 · SKU 60427
15 kW, Elite 15 kW
$428.00
95
62
Graco Latch, Door 16W596
Ref 62 · Graco 16W596 · SKU 60260
15 kW, Elite 15 kW
$42.40
20
Graco HH Flanged Screw, 1/4-20 X .375
Ref 20 · Graco 119865 · SKU 60429
15 kW, Elite 15 kW
$5.10
71
Graco Screw, mach, phillips, 10 10 tooth wash
Ref 71
Graco 16X129
SCREW, mach, phillips, 10 10 tooth wash; 5/16 x 8-32 · 15 kW, Elite 15 kWAsk for a price
SCREW, mach, phillips, 10 10 tooth wash; 5/16 x 8-32 · 15 kW, Elite 15 kWAsk for a price
70
Graco Mchn Pnh w/Ext Tooth Wash Screw
Ref 70 · Graco 127296 · SKU 60428
15 kW, Elite 15 kW
$4.40
35
40
94
37
Graco Tie, cable, fir tree 5 6
Ref 37
Graco 125625
TIE, cable, fir tree 5 6 · 15 kW, Elite 15 kWAsk for a price
TIE, cable, fir tree 5 6 · 15 kW, Elite 15 kWAsk for a price
8
Graco Cover, transformer 1 1
Ref 8
Graco 24R684
COVER, transformer 1 1 · 15 kW, Elite 15 kWAsk for a price
COVER, transformer 1 1 · 15 kW, Elite 15 kWAsk for a price
4
Graco Bracket, tsl, bottle 1 1
Ref 4
Graco 16X531
BRACKET, tsl, bottle 1 1 · 15 kW, Elite 15 kWAsk for a price
BRACKET, tsl, bottle 1 1 · 15 kW, Elite 15 kWAsk for a price
23
Graco Flanged Hex HD Screw
Ref 23 · Graco 113796 · SKU 60511
15 kW, Elite 15 kW
$2.75
10
Graco Heater Shroud 24U841 Kit
Ref 10 · Graco 24U841 · SKU 59497
15 kW, Elite 15 kW
$878.00
88
Graco Module Gca Adm ReCTR2 Kit
Ref 88 · Graco 24U854 · SKU 57684
15 kW, Elite 15 kW
$1,065.00
27
Graco 8 8 nut, hex, flange head
Ref 27
Graco 110996
8 8 NUT, hex, flange head · 15 kW, Elite 15 kWAsk for a price
8 8 NUT, hex, flange head · 15 kW, Elite 15 kWAsk for a price
22
Graco Mch Phil Pan HD; 1.5in X #6-32 117683 Screw
Ref 22 · Graco 117683 · SKU 60467
15 kW, Elite 15 kW
$3.05
29
Graco 4 4 washer, lock ext
Ref 29
Graco 103181
4 4 WASHER, lock ext · 15 kW, Elite 15 kWAsk for a price
4 4 WASHER, lock ext · 15 kW, Elite 15 kWAsk for a price
32
Graco Fan Cooling Kit, 120MM
Ref 32 · Graco 24U847 · SKU 60144
15 kW, Elite 15 kW
$161.50
30
28
Graco Screw, tapping pnhd
Ref 28
Graco 104859
SCREW, tapping pnhd; 2 2 5/16 in. x #10-16 · 15 kW, Elite 15 kWAsk for a price
SCREW, tapping pnhd; 2 2 5/16 in. x #10-16 · 15 kW, Elite 15 kWAsk for a price
3
Graco Bottle Assembly, Complete
Ref 3 · Graco 246995 · SKU 246995
15 kW, Elite 15 kW
$203.00
27
Graco 8 8 nut, hex, flange head
Ref 27
Graco 110996
8 8 NUT, hex, flange head · 15 kW, Elite 15 kWAsk for a price
8 8 NUT, hex, flange head · 15 kW, Elite 15 kWAsk for a price
17
Graco Transformer, 1 1 4090va, 230/90
Ref 17
Graco 15K742
TRANSFORMER, 1 1 4090va, 230/90 · 15 kW, Elite 15 kWAsk for a price
TRANSFORMER, 1 1 4090va, 230/90 · 15 kW, Elite 15 kWAsk for a price
1
114
Graco Lock Spring (Hi-Collar) Washer
Ref 114 · Graco 106115 · SKU 106115
$4.30
107
Graco Washer, thrust, steel colored 2
Ref 107
Graco 114699
WASHER, thrust, steel colored 2Ask for a price
WASHER, thrust, steel colored 2Ask for a price
113
Graco Cap Socket HD Screw
Ref 113 · Graco 114666 · SKU 60449
$5.00
104
Graco Repair Gear Kit, 1095, 1595
Ref 104 · Graco 287290 · SKU 287290
$266.50
118
125
126
101
Graco Motor Brushless Kit, 2HP
Ref 101 · Graco 24U050 · SKU 57595
$2,780.00
103
Graco Repair Housing Bearing 257355 Kit
Ref 103 · Graco 257355 · SKU 60325
$227.00
102
Graco Repair Drive Housing Kit
Ref 102 · Graco 17W869 · SKU 60087
$729.00
104
Graco Repair Gear Kit, 1095, 1595
Ref 104 · Graco 287290 · SKU 287290
$266.50
118
102
Graco Repair Drive Housing Kit
Ref 102 · Graco 17W869 · SKU 60087
$729.00
105
Graco Conn Rod Replacement Kit
Ref 105 · Graco 241279 · SKU 241279
$370.00
112
Graco Machine Torx Hex Wash Screw
Ref 112 · Graco 15C753 · SKU 57596
$1.70
108
Graco 4 washer, thrust, copper colored
Ref 108
Graco 114672
4 WASHER, thrust, copper coloredAsk for a price
4 WASHER, thrust, copper coloredAsk for a price
121
Graco Reed M8-4-PIN Switch
Ref 121 · Graco 24P728 · SKU 60351
$255.00
110
122
Graco Hxhd Thd Cut Screw, 4-40 X .375
Ref 122 · Graco 127301 · SKU 60450
$4.40
111
Graco Str Hdls Pin
Ref 111 · Graco 183210 · SKU 60226
$29.50
116
114
Graco Lock Spring (Hi-Collar) Washer
Ref 114 · Graco 106115 · SKU 106115
$4.30
113
Graco Cap Socket HD Screw
Ref 113 · Graco 114666 · SKU 60449
$5.00
107
Graco Washer, thrust, steel colored 2
Ref 107
Graco 114699
WASHER, thrust, steel colored 2Ask for a price
WASHER, thrust, steel colored 2Ask for a price
106
Graco Displacement (.552/356.26)245971 Reactor Pump
Ref 106 · Graco 245971 · SKU 60236
$2,260.00
108
Graco 4 washer, thrust, copper colored
Ref 108
Graco 114672
4 WASHER, thrust, copper coloredAsk for a price
4 WASHER, thrust, copper coloredAsk for a price
120
Graco Magnet (E20)
Ref 120 · Graco 116618 · SKU 116618
$9.80
125
103
Graco Repair Housing Bearing 257355 Kit
Ref 103 · Graco 257355 · SKU 60325
$227.00
126
105
Graco Conn Rod Replacement Kit
Ref 105 · Graco 241279 · SKU 241279
$370.00
110
111
Graco Str Hdls Pin
Ref 111 · Graco 183210 · SKU 60226
$29.50
116
115
Graco Displ. w/Lube .552 Pump – 246831/ 2007108
Ref 115 · Graco 246831 · SKU 246831
$2,380.00
209
213
Graco 2 screw, machine, pnhd
Ref 213 · 2 versions
Graco Burst Disc Kit
Graco 247520$233.00 · Add
Graco 247520$233.00 · Add
Graco 124131
2 SCREW, machine, pnhd; 5/16 in. x #6-32Ask for a price
2 SCREW, machine, pnhd; 5/16 in. x #6-32Ask for a price
212
211
206
Graco Thermocouple Adapter
Ref 206 · Graco 15H306 · SKU 60414
$91.25
204
Graco Conn Fitting, 3/4SAE X 1/2 JIC
Ref 204 · Graco 121309 · SKU 121309
$21.50
207
214

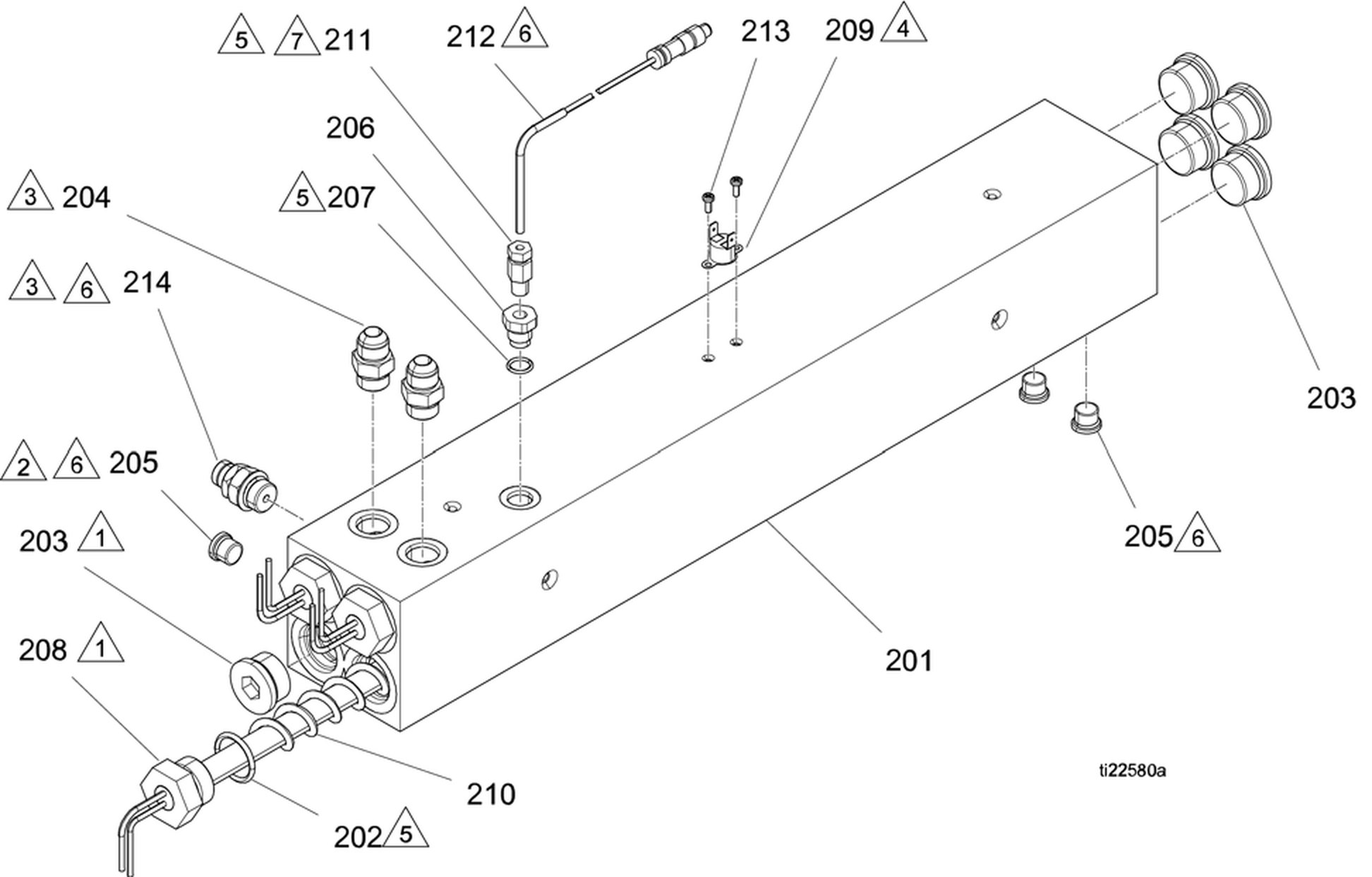

Graco ref 214
on the Fluid heater drawing
Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-XP2’s own parts list — tell us your machine and we will work out what you need.
Ask us203
Graco Fitting, plug, hollow, hex, 1-3/16 sae 4
Ref 203
Graco 15H305
FITTING, plug, hollow, hex, 1-3/16 sae 4Ask for a price
FITTING, plug, hollow, hex, 1-3/16 sae 4Ask for a price
205
205
203
Graco Fitting, plug, hollow, hex, 1-3/16 sae 4
Ref 203
Graco 15H305
FITTING, plug, hollow, hex, 1-3/16 sae 4Ask for a price
FITTING, plug, hollow, hex, 1-3/16 sae 4Ask for a price
208
Graco Immerson (2550W Heater, 230V) 2007112
Ref 208 · Graco 16A110 · SKU 57608
$506.00
201
210
Graco Mixer, Immersion Heater #309
Ref 210 · Graco 15B135 · SKU 57744
$51.25
202
Graco O-Ring – 124132 – #315
Ref 202 · Graco 124132 · SKU 124132
$3.10
817
810
813
816
808
Graco Board, assy reactor ratio monitor
Ref 808
Graco 25E134
BOARD, assy Reactor ratio monitorAsk for a price
BOARD, assy Reactor ratio monitorAsk for a price
809
806
807
804
802
818
805
811
Graco Fitting, swivel, jic, 10 x 3/4-16 orb
Ref 811 · 2 versions
Graco 25E486PKG
FITTING, swivel, JIC-08, 3/4-16 orbAsk for a price
FITTING, swivel, JIC-08, 3/4-16 orbAsk for a price
Graco 25E474PKG
FITTING, swivel, JIC, 10 x 3/4-16 orbAsk for a price
FITTING, swivel, JIC, 10 x 3/4-16 orbAsk for a price
812
Graco Fitting, reducer, #6 x #10 (jic)
Ref 812 · 2 versions
Graco Reducer #5 X #8 JIC Fitting
Graco 117502$41.20 · Add
Graco 117502$41.20 · Add
Graco Reducer #6 X #10 JIC Fitting
Graco 117677$44.80 · Add
Graco 117677$44.80 · Add
815
Graco Fitting, 45 deg elbow, 3/4 x 3/4
Ref 815 · 2 versions
Graco 17Y236
FITTING, 45 deg elbow, 3/4 x 3/4Ask for a price
FITTING, 45 deg elbow, 3/4 x 3/4Ask for a price
Graco 17Y235
FITTING, 45 deg elbow, 3/4 7/8Ask for a price
FITTING, 45 deg elbow, 3/4 7/8Ask for a price
408
Graco Hex Jam Nut
Ref 408 · Graco 112309 · SKU 112309
$6.45
406
Graco Handle Left Red ISO Kit
Ref 406 · Graco 247788 · SKU 247788
$42.50
403
Graco Qfluid 102814 Gauge, 5000PSI
Ref 403 · Graco 102814 · SKU 102814
$108.50
407
Graco Handle Right Blue Resin Kit
Ref 407 · Graco 247789 · SKU 247789
$42.50
408
Graco Hex Jam Nut
Ref 408 · Graco 112309 · SKU 112309
$6.45
416
Graco Compression Spring
Ref 416 · Graco 150829 · SKU 150829
$11.40
416
Graco Compression Spring
Ref 416 · Graco 150829 · SKU 150829
$11.40
402
Graco Valve Drain Cartridge 247824 Kit
Ref 402 · Graco 247824 · SKU 60522
$401.00
405
Graco Sensor, pressure, fluid outlet
Ref 405
Graco 15M669
SENSOR, pressure, fluid outletAsk for a price
SENSOR, pressure, fluid outletAsk for a price
412
Graco Elbow MA Fitting, 3/4SAE X 1/2J
Ref 412 · Graco 121312 · SKU 121312
$12.40
414
413
402
Graco Valve Drain Cartridge 247824 Kit
Ref 402 · Graco 247824 · SKU 60522
$401.00
404
401
412
Graco Elbow MA Fitting, 3/4SAE X 1/2J
Ref 412 · Graco 121312 · SKU 121312
$12.40
404
411
415
419
413
419
411
478
451
454
Graco Fan Cooling Kit, 80MM
Ref 454 · Graco 24U848 · SKU 57606
$115.00
468
471
Graco Keps Hex Nut
Ref 471 · Graco 127278 · SKU 60470
$4.40
455
Graco Discnnt Door Mounted 24R736 Switch
Ref 455 · Graco 24R736 · SKU 60518
$492.00
460
Graco Knob, Operator Disconnect Yellow Red Switch
Ref 460 · Graco 123967 · SKU 123967
$86.75
457
479
Graco Label, Safety, Multi Language
Ref 479 · Graco 16X049 · SKU 60421
$19.10
479
Graco Label, Safety, Multi Language
Ref 479 · Graco 16X049 · SKU 60421
$19.10
479
Graco Label, Safety, Multi Language
Ref 479 · Graco 16X049 · SKU 60421
$19.10
473
458
Graco Nut, strain relief, m40 thread
Ref 458
Graco 255048
NUT, strain relief, M40 threadAsk for a price
NUT, strain relief, M40 threadAsk for a price
469
459
Graco Bushing, strain relief, m40 thread
Ref 459
Graco 255047
BUSHING, strain relief, M40 threadAsk for a price
BUSHING, strain relief, M40 threadAsk for a price
478
479
Graco Label, Safety, Multi Language
Ref 479 · Graco 16X049 · SKU 60421
$19.10
470
461
466
476
472
464
466
453
Graco Module Gca Mzhp REACTOR2 Kit
Ref 453 · Graco 24U855 · SKU 57605
$944.00
502
462,463
Refs 462,463
2 parts on one leader
Graco Screw, machine, pan head
Ref 463
Graco 124131
SCREW, machine, pan head; 5/16 in. x #6-32Ask for a price
SCREW, machine, pan head; 5/16 in. x #6-32Ask for a price
503
Graco Module, din rail, term blk, power sup
Ref 503
Graco 16U522
MODULE, din rail, term blk, power sup; see System Circuit BrAsk for a price
MODULE, din rail, term blk, power sup; see System Circuit BrAsk for a price
505
504
Graco Module, din rail, circuit breakers
Ref 504
Graco 16U526
MODULE, din rail, circuit breakers; see Power Supply and TerAsk for a price
MODULE, din rail, circuit breakers; see Power Supply and TerAsk for a price
503
Graco Module, din rail, term blk, power sup
Ref 503
Graco 16U522
MODULE, din rail, term blk, power sup; see System Circuit BrAsk for a price
MODULE, din rail, term blk, power sup; see System Circuit BrAsk for a price
504
Graco Module, din rail, circuit breakers
Ref 504
Graco 16U526
MODULE, din rail, circuit breakers; see Power Supply and TerAsk for a price
MODULE, din rail, circuit breakers; see Power Supply and TerAsk for a price
504
Graco Module, din rail, circuit breakers
Ref 504
Graco 16U526
MODULE, din rail, circuit breakers; see Power Supply and TerAsk for a price
MODULE, din rail, circuit breakers; see Power Supply and TerAsk for a price
502
501
505
513
515
517
Graco Block, terminal, ut-2.5, black
Ref 517
Graco 24R759
BLOCK, terminal, UT-2.5, blackAsk for a price
BLOCK, terminal, UT-2.5, blackAsk for a price
511
518
512
514
512
516
521
522
525
Graco Circuit, breaker, 2p, 40a, ul489
Ref 525
Graco 17A317
CIRCUIT, breaker, 2P, 40A, UL489Ask for a price
CIRCUIT, breaker, 2P, 40A, UL489Ask for a price
523
Graco Circuit, breaker, 1 pole, 50a, c curve
Ref 523
Graco 17A319
CIRCUIT, breaker, 1 pole, 50A, C CurveAsk for a price
CIRCUIT, breaker, 1 pole, 50A, C CurveAsk for a price
524
Graco Circuit, breaker, 2p, 20a, ul489
Ref 524
Graco 17A314
CIRCUIT, breaker, 2P, 20A, UL489Ask for a price
CIRCUIT, breaker, 2P, 20A, UL489Ask for a price
522
531
534
535
Graco Power Supply, 24V
Ref 535 · Graco 126453 · SKU 126453
$235.00
532
532
532
533
536
617
602
Graco Union Swivel Fitting, 3/4″
Ref 602 · Graco 118459 · SKU 118459
Elite, Standard
$19.80
616
615
Graco Transducer, pressure, temperature (includes foam)
Ref 615
Graco 24U851
TRANSDUCER, pressure, temperature (includes foam) · EliteAsk for a price
TRANSDUCER, pressure, temperature (includes foam) · EliteAsk for a price
613
Graco Ball 3/4 NPT Fem Valve, 6000PSI
Ref 613 · Graco 109077 · SKU 109077
Elite, Standard
$126.50
614
Graco Nipple Hex Fitting
Ref 614 · Graco C20487 · SKU 59585
Elite, Standard
$28.40
601
Graco Fitting, union adapter, 90 degree
Ref 601
Graco 160327
FITTING, union adapter, 90 degree · Elite, StandardAsk for a price
FITTING, union adapter, 90 degree · Elite, StandardAsk for a price
618
Graco Fitting, tee 3/4m run x 1/4f
Ref 618
Graco 624545
FITTING, tee 3/4m run x 1/4f · EliteAsk for a price
FITTING, tee 3/4m run x 1/4f · EliteAsk for a price
610
Graco Thermometer Viscon HP Housing
Ref 610 · Graco 15D757 · SKU 60131
Elite, Standard
$69.00
604
Graco Thermometer Dial Kit
Ref 604 · Graco 24U852 · SKU 57735
Elite, Standard
$155.00
603
Graco Manifold Strainer Wye Kit
Ref 603 · Graco 247503 · SKU 247503
Elite, Standard
$502.00
606
605
Graco Gauge Pressure Fluid 24U853 Kit
Ref 605 · Graco 24U853 · SKU 59348
Elite, Standard
$123.00
607
Graco O-Ring FX75 Packing – Y-Strainer O-Ring
Ref 607 · Graco 128061 · SKU 128061
Elite, Standard
$37.90
608
Graco Filter Cap
Ref 608 · Graco 16V879 · SKU 57592
Elite, Standard
$88.25
609
Graco Plug, 1/4MP with Hex HD
Ref 609 · Graco 555808 · SKU 555808
Elite, Standard
$3.90
Resources
Manuals, Service Parts & the Machine
Repair & Parts ManualGraco 333024WSafety Warnings & Isocyanate Informationmanual p. 7E-XP2 parts listsmanual p. 76Reactor Parts & Accessories BrochureGraco 349104
PDFs open in a new tab. The reference numbers on the diagram above match manual 333024W.
What an electric Reactor 2 gets through: the displacement pumps and their seals, the heater RTD and shroud, the drain valve cartridge, the modules.
Rebuilding something not listed here? Tell us what you need and we will quote it.
The complete Reactor 2 E-XP2. Machines are ordered in — ask us for current lead time.
Buy this machine
Machines are usually special order. Ask us for availability and lead time.
110 of 269 dots are priced online. The rest we quote. Reference numbers match Graco manual 333024W.
| Ref | Assembly | Part | Graco # | SKU | Price | |
|---|---|---|---|---|---|---|
| 1 | r2e-machine | Graco Frame 1 1 | — | — | Ask us | Ask |
| 2 | r2e-machine | Graco Enclosure, electrical | — | — | Ask us | Ask |
| 3 | r2e-machine | Graco Bottle Assembly, Complete | 246995 | 246995 | $203.00 | Add |
| 4 | r2e-machine | Graco Bracket, tsl, bottle 1 1 | 16X531 | — | Ask us | Ask |
| 5 | r2e-machine | Graco Heater RTD Kit, 7.5KW, 1 Zone | 24U842 | 59255 | $1,734.00 | Add |
| 6 | r2e-machine | Graco Manifold, fluid | 24U704 | — | Ask us | Ask |
| 7 | r2e-machine | Graco Insulator, foam, 2 4 heater | 16W654 | — | Ask us | Ask |
| 8 | r2e-machine | Graco Cover, transformer 1 1 | 24R684 | — | Ask us | Ask |
| 9 | r2e-machine | Graco Connector, Wire, 6AWG | 261821 | 261821 | $76.50 | Add |
| 10 | r2e-machine | Graco Heater Shroud 24U841 Kit | 24U841 | 59497 | $878.00 | Add |
| 11 | r2e-machine | Graco Cover, motor 1 1 | 16W765 | — | Ask us | Ask |
| 12 | r2e-machine | Graco 1 1 cover, heater, rear | 16W764 | — | Ask us | Ask |
| 13 | r2e-machine | Graco Tube, b-side, inlet, 1 15kw | 24U837 | — | Ask us | Ask |
| 14 | r2e-machine | Graco Tube, b-side, outlet, 1 15kw | 24U839 | — | Ask us | Ask |
| 15 | r2e-machine | Graco Fluid Tube A Inlet 24U833 Kit | 24U833 | 60246 | $105.50 | Add |
| 16 | r2e-machine | Graco Tube, a-side, outlet, 1 15kw | 24U835 | — | Ask us | Ask |
| 17 | r2e-machine | Graco Transformer, 1 1 4090va, 230/90 | 15K742 | — | Ask us | Ask |
| 18 | r2e-machine | Graco 1 1 gasket, manifold | 15B456 | — | Ask us | Ask |
| 19 | r2e-machine | Graco Elbow Fitting, 3/8 NPT X #8 JIC | 125643 | 60163 | $42.10 | Add |
| 20 | r2e-machine | Graco HH Flanged Screw, 1/4-20 X .375 | 119865 | 60429 | $5.10 | Add |
| 21 | r2e-machine | Graco Machine Slot Hex 118444 Screw | 118444 | 60187 | $5.25 | Add |
| 22 | r2e-machine | Graco Mch Phil Pan HD; 1.5in X #6-32 117683 Screw | 117683 | 60467 | $3.05 | Add |
| 23 | r2e-machine | Graco Flanged Hex HD Screw | 113796 | 60511 | $2.75 | Add |
| 24 | r2e-machine | Graco Nut, hex, flanged 6 6 | 112731 | — | Ask us | Ask |
| 25 | r2e-machine | Graco Cap Hex HD Screw | 111800 | 60512 | $5.38 | Add |
| 26 | r2e-machine | Graco Cap, tube, square 2 2 | 111218 | — | Ask us | Ask |
| 27 | r2e-machine | Graco 8 8 nut, hex, flange head | 110996 | — | Ask us | Ask |
| 28 | r2e-machine | Graco Screw, tapping pnhd | 104859 | — | Ask us | Ask |
| 29 | r2e-machine | Graco 4 4 washer, lock ext | 103181 | — | Ask us | Ask |
| 30 | r2e-machine | Graco Washer, lock 2 2 | 100020 | — | Ask us | Ask |
| 31 | r2e-machine | Graco Guard, Finger | 115836 | 60468 | $5.30 | Add |
| 32 | r2e-machine | Graco Fan Cooling Kit, 120MM | 24U847 | 60144 | $161.50 | Add |
| 33 | r2e-machine | Graco Enclosure, lower, din 1 1 rail | 24R685 | — | Ask us | Ask |
| 33a | r2e-machine | Graco Kit, module, din rail, heater | 24U849 | — | Ask us | Ask |
| 33b | r2e-machine | Graco 1 1 insulator, foam | 16W667 | — | Ask us | Ask |
| 33c | r2e-machine | Graco Cover, bottom, din rail 1 1 | — | — | Ask us | Ask |
| 33d | r2e-machine | Graco Nut, keps, hex hd 1 1 | 113505 | — | Ask us | Ask |
| 34 | r2e-machine | Graco Flat Washer | 151395 | 60469 | $50.25 | Add |
| 35 | r2e-machine | Graco 2 2 grommet | 120685 | — | Ask us | Ask |
| 36 | r2e-machine | Graco Grommet, rubber 1 1 | 114269 | — | Ask us | Ask |
| 37 | r2e-machine | Graco Tie, cable, fir tree 5 6 | 125625 | — | Ask us | Ask |
| 38 | r2e-machine | Graco Bolt, carriage, 1/2-13 x 4 4 3.5 l | 127277 | — | Ask us | Ask |
| 39 | r2e-machine | Graco Keps Hex Nut | 127278 | 60470 | $4.40 | Add |
| 40 | r2e-machine | Graco Grommet, rubber 4 4 | 127282 | — | Ask us | Ask |
| 41 | r2e-machine | Graco Connector, power, 1 1 male, 4 pin | 16X095 | — | Ask us | Ask |
| 42 | r2e-machine | Graco Tie, cable, 7.5 in. 25 25 | 125871 | — | Ask us | Ask |
| 43 | r2e-machine | Graco Fts RTD Single Hose Kit | 24K207 | 57278 | $611.00 | Add |
| 44 | r2e-machine | Graco Bridge, plug-in jumper, 4 4 ut35 | 24R725 | — | Ask us | Ask |
| 45 | r2e-machine | Graco 1 1 tape, electrical | 106569 | — | Ask us | Ask |
| 46 | r2e-machine | Graco Cable, over-temp, 1 15kw reactor | 24P970 | — | Ask us | Ask |
| 47 | r2e-machine | Graco Plug Pipe Headles | 104765 | 104765 | $17.80 | Add |
| 48 | r2e-machine | Graco 1 1 cover, top, din rail | 16V268 | — | Ask us | Ask |
| 49 | r2e-machine | Graco Label, made in the usa 1 1 | 15Y118 | — | Ask us | Ask |
| 50 | r2e-machine | Graco Proportioner, module, e-xp2 | 24V151 | — | Ask us | Ask |
| 51 | r2e-machine | Graco Assembly Pair Std Reactor Kit | 24U320 | 59561 | $1,450.00 | Add |
| 53 | r2e-machine | Graco M8 4P F TO M12 8P M 1.5M Cable | 24T050 | 60146 | $222.00 | Add |
| 54 | r2e-machine | Graco Cable, m12 5p, fem-male, 2.0m | 16W130 | — | Ask us | Ask |
| 55 | r2e-machine | Graco 2 2 tube, pressure relief | 24U845 | — | Ask us | Ask |
| 56 | r2e-machine | Graco Fitting Elbow, 1/8 NPT | 191892 | 191892 | $38.70 | Add |
| 57 | r2e-machine | Graco Plated 116746 Barbed Fitting | 116746 | 116746 | $10.70 | Add |
| 58 | r2e-machine | Graco Label, branding, e-xp2, elite | 16W215 | — | Ask us | Ask |
| 59 | r2e-machine | Graco Module, system surge 1 1 protector (spare) | 16U530 | — | Ask us | Ask |
| 60 | r2e-machine | Graco Repair Cover Kit, 1095, 1595 | 287292 | 60268 | $97.25 | Add |
| 61 | r2e-machine | Graco Painted Control Box Cover | 16W766 | 60427 | $428.00 | Add |
| 62 | r2e-machine | Graco Latch, Door 16W596 | 16W596 | 60260 | $42.40 | Add |
| 63 | r2e-machine | Graco Module Gca MCM2200 Fio R2 Kit | 24U832 | 59524 | $1,220.00 | Add |
| 64 | r2e-machine | Graco Tsl, 1 Quart Bottle | 206995 | 206995 | $47.90 | Add |
| 65 | r2e-machine | Graco Fluid, tsl, 8 oz bottle 1 1 | 206994 | — | Ask us | Ask |
| 67 | r2e-machine | Graco Trim, edge protection | 114225 | — | Ask us | Ask |
| 68 | r2e-machine | Graco Label, identification 1 1 | 16X250 | — | Ask us | Ask |
| 70 | r2e-machine | Graco Mchn Pnh w/Ext Tooth Wash Screw | 127296 | 60428 | $4.40 | Add |
| 71 | r2e-machine | Graco Screw, mach, phillips, 10 10 tooth wash | 16X129 | — | Ask us | Ask |
| 72 | r2e-machine | Graco Reducer #5 X #8 JIC Fitting | 117502 | 117502 | $41.20 | Add |
| 73 | r2e-machine | Graco Reducer #6 X #10 JIC Fitting | 117677 | 117677 | $44.80 | Add |
| 74 | r2e-machine | Graco Cap, 1/2-20 jic 1 1 cap-aluminum | 299521 | — | Ask us | Ask |
| 75 | r2e-machine | Graco Cap, 9/16-18 jic 1 1 cap-aluminum | 299520 | — | Ask us | Ask |
| 79 | r2e-machine | Graco Fluid, oxide inhibitor 1 1 | 261843 | — | Ask us | Ask |
| 81 | r2e-machine | Graco Wall Mount Bracket | 16V806 | 60547 | $26.30 | Add |
| 82 | r2e-machine | Graco Shield, membrane, 1 1 adm (10 pack) | 15V551 | — | Ask us | Ask |
| 83 | r2e-machine | Graco Bar, 55 gal chem. 1 1 measure | 24K409 | — | Ask us | Ask |
| 84 | r2e-machine | Graco Bar, 55 gal chem. 1 1 measure | 24K411 | — | Ask us | Ask |
| 85 | r2e-machine | Graco Keps Hex Nut | 127278 | 60470 | $4.40 | Add |
| 88 | r2e-machine | Graco Module Gca Adm ReCTR2 Kit | 24U854 | 57684 | $1,065.00 | Add |
| 89 | r2e-machine | Graco Union Swivel Fitting, 3/4″ | 118459 | 118459 | $19.80 | Add |
| 90 | r2e-machine | Graco Label, Branding, Reactor 16W213 | 16W213 | 60267 | $10.50 | Add |
| 91 | r2e-machine | Graco 4 4 nut, hex, flange head | 115942 | — | Ask us | Ask |
| 92 | r2e-machine | Graco Suppressor, round 1 1 snap ferrite .260 | 15D906 | — | Ask us | Ask |
| 93 | r2e-machine | Graco Sleeve, split, wire, 1.50 2 2 id | 127368 | — | Ask us | Ask |
| 94 | r2e-machine | Graco Tie, cable, 6 in. | 127377 | — | Ask us | Ask |
| 95 | r2e-machine | Graco Label, insite | 16X154 | — | Ask us | Ask |
| 96 | r2e-machine | Graco Manual, quick guide, 1 1 startup | 333091 | — | Ask us | Ask |
| 97 | r2e-machine | Graco Manual, quick guide, 1 1 shutdown | 333092 | — | Ask us | Ask |
| 98 | r2e-machine | Graco Enclosure, terminal 1 1 block | 24W204 | — | Ask us | Ask |
| 99 | r2e-machine | Graco Enclosure, cover 1 1 | 24A234 | — | Ask us | Ask |
| 100 | r2e-machine | Graco Label, caution 1 1 | 189930 | — | Ask us | Ask |
| 101 | r2e-machine | Graco Label, Designation | 172953 | 60386 | $8.35 | Add |
| 102 | r2e-machine | Graco Bracket, mounting 1 1 | 17D955 | — | Ask us | Ask |
| 103 | r2e-machine | Graco Screw, flange, hex hd 2 2 | 113161 | — | Ask us | Ask |

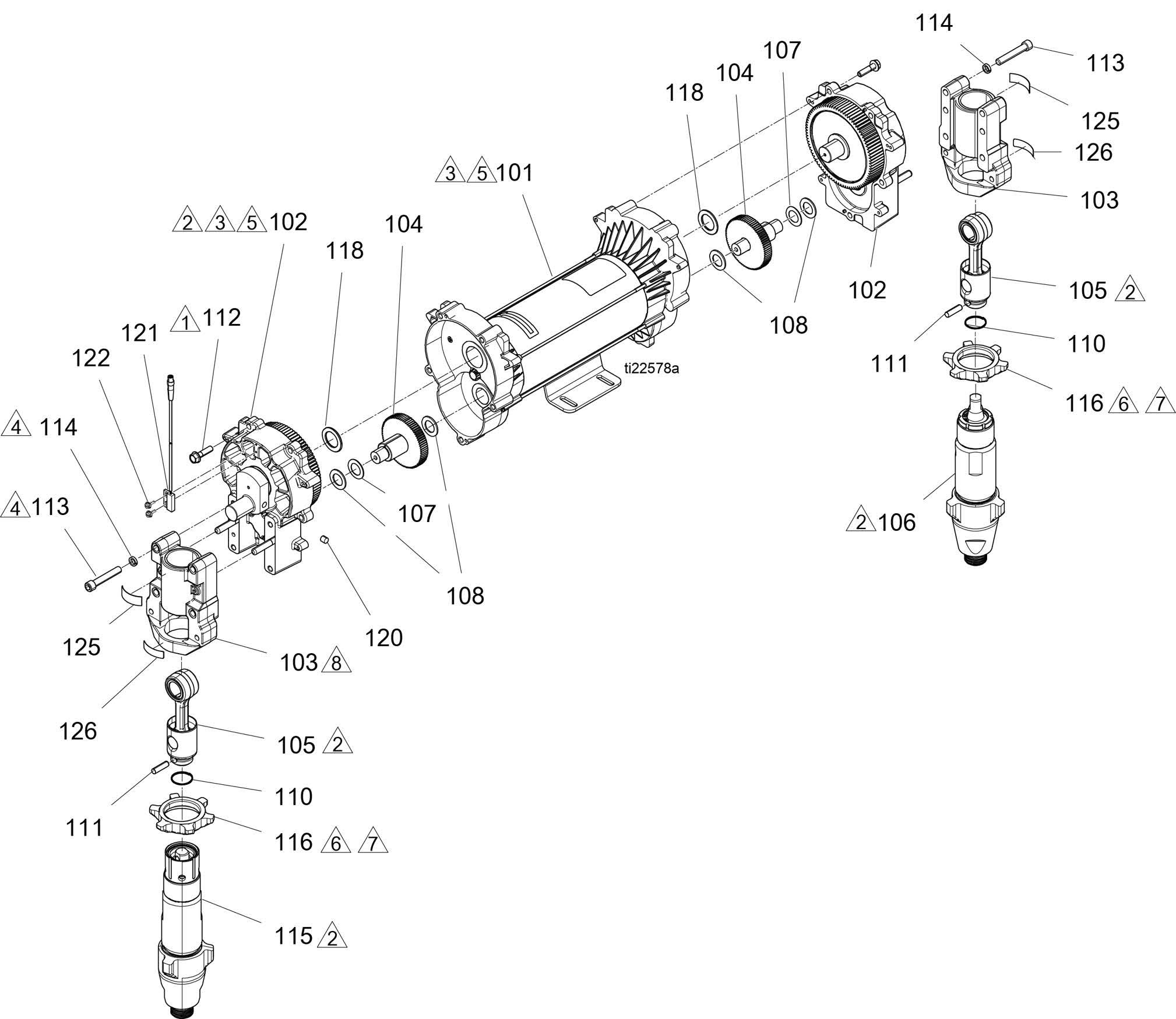

| 101 | Proportioner module | Graco Motor Brushless Kit, 2HP | 24U050 | 57595 | $2,780.00 | Add |
| 102 | Proportioner module | Graco Repair Drive Housing Kit | 17W869 | 60087 | $729.00 | Add |
| 103 | Proportioner module | Graco Repair Housing Bearing 257355 Kit | 257355 | 60325 | $227.00 | Add |
| 104 | Proportioner module | Graco Repair Gear Kit, 1095, 1595 | 287290 | 287290 | $266.50 | Add |
| 105 | Proportioner module | Graco Conn Rod Replacement Kit | 241279 | 241279 | $370.00 | Add |
| 106 | Proportioner module | Graco Displacement (.552/356.26)245971 Reactor Pump | 245971 | 60236 | $2,260.00 | Add |
| 107 | Proportioner module | Graco Washer, thrust, steel colored 2 | 114699 | — | Ask us | Ask |
| 108 | Proportioner module | Graco 4 washer, thrust, copper colored | 114672 | — | Ask us | Ask |
| 110 | Proportioner module | Graco Spring, retaining 2 | 183169 | — | Ask us | Ask |
| 111 | Proportioner module | Graco Str Hdls Pin | 183210 | 60226 | $29.50 | Add |
| 112 | Proportioner module | Graco Machine Torx Hex Wash Screw | 15C753 | 57596 | $1.70 | Add |
| 113 | Proportioner module | Graco Cap Socket HD Screw | 114666 | 60449 | $5.00 | Add |
| 114 | Proportioner module | Graco Lock Spring (Hi-Collar) Washer | 106115 | 106115 | $4.30 | Add |
| 115 | Proportioner module | Graco Displ. w/Lube .552 Pump – 246831/ 2007108 | 246831 | 246831 | $2,380.00 | Add |
| 116 | Proportioner module | Graco Nut, retaining | 193031 | — | Ask us | Ask |
| 118 | Proportioner module | Graco Washer, thrust (1595) 2 | 116192 | — | Ask us | Ask |
| 120 | Proportioner module | Graco Magnet (E20) | 116618 | 116618 | $9.80 | Add |
| 121 | Proportioner module | Graco Reed M8-4-PIN Switch | 24P728 | 60351 | $255.00 | Add |
| 122 | Proportioner module | Graco Hxhd Thd Cut Screw, 4-40 X .375 | 127301 | 60450 | $4.40 | Add |
| 125 | Proportioner module | Graco Label, torque 2 | 187437 | — | Ask us | Ask |
| 126 | Proportioner module | Graco Label, warning 2 | 192840 | — | Ask us | Ask |
| 201 | Fluid heater | Graco Heater, machined, 1 zone | 15J090 | — | Ask us | Ask |
| 202 | Fluid heater | Graco O-Ring – 124132 – #315 | 124132 | 124132 | $3.10 | Add |
| 203 | Fluid heater | Graco Fitting, plug, hollow, hex, 1-3/16 sae 4 | 15H305 | — | Ask us | Ask |
| 204 | Fluid heater | Graco Conn Fitting, 3/4SAE X 1/2 JIC | 121309 | 121309 | $21.50 | Add |
| 205 | Fluid heater | Graco 2 fitting, plug 9/16 sae | 15H304 | — | Ask us | Ask |
| 206 | Fluid heater | Graco Thermocouple Adapter | 15H306 | 60414 | $91.25 | Add |
| 207 | Fluid heater | Graco O-ring, packing 2 | 120336 | — | Ask us | Ask |
| 208 | Fluid heater | Graco Immerson (2550W Heater, 230V) 2007112 | 16A110 | 57608 | $506.00 | Add |
| 209 | Fluid heater | Graco 1 swtich, over temperature | 15B137 | — | Ask us | Ask |
| 210 | Fluid heater | Graco Mixer, Immersion Heater #309 | 15B135 | 57744 | $51.25 | Add |
| 211 | Fluid heater | Graco Fitting, compression 2 | — | — | Ask us | Ask |
| 212 | Fluid heater | Graco Sensor, rtd 2 | — | — | Ask us | Ask |
| 213 | Fluid heater | Graco Burst Disc Kit | 247520 | 247520 | $233.00 | Add |

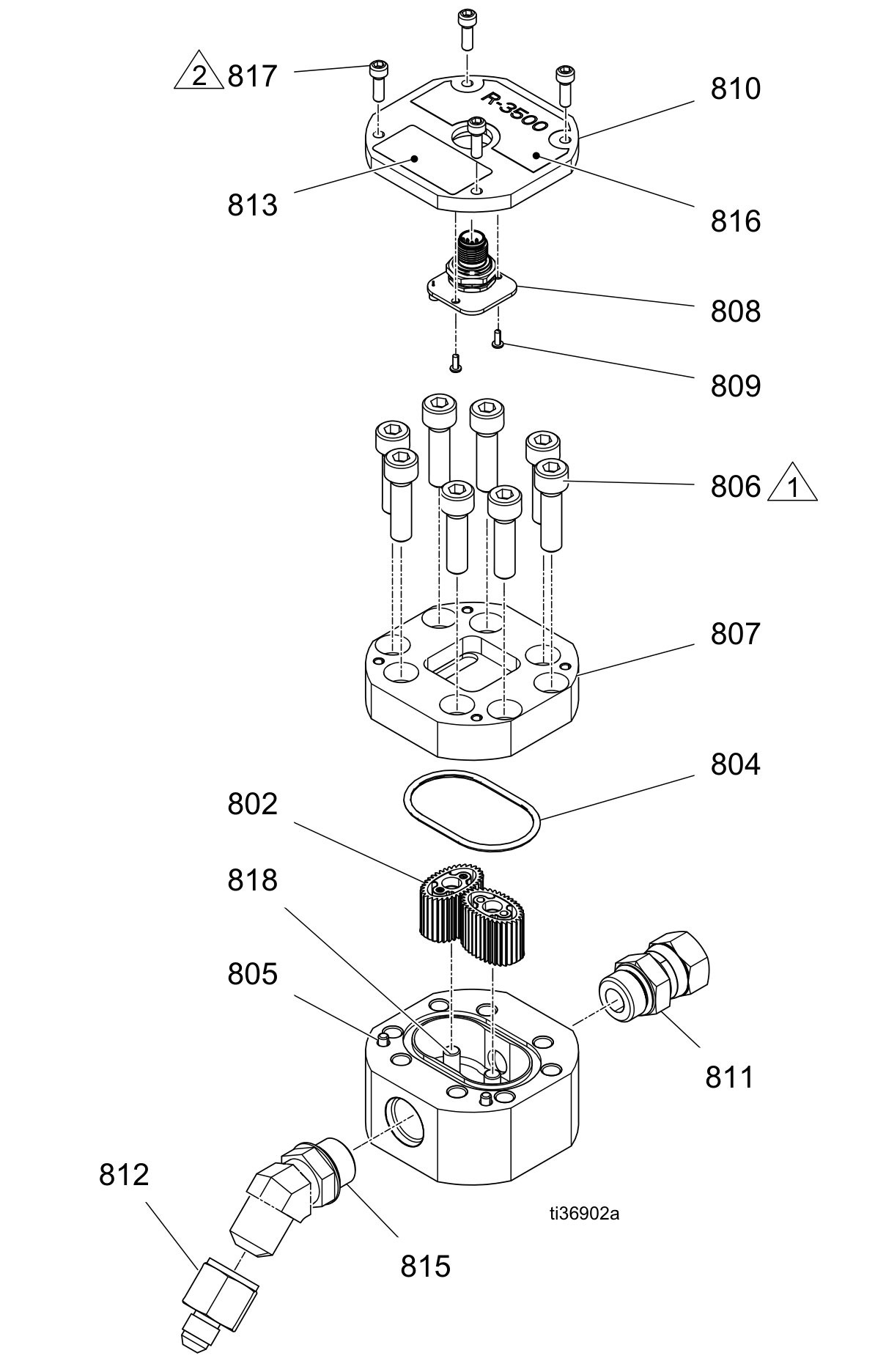

| 801 | Flow meter | Graco Housing, high pressure meter | 18A877 | — | Ask us | Ask |
| 802 | Flow meter | Graco Gear, magnets, sd/matrix | 25C298 | — | Ask us | Ask |
| 803 | Flow meter | Graco Gear, oval, metering element | 15V690 | — | Ask us | Ask |
| 804 | Flow meter | Graco Packing, o-ring | 166623 | — | Ask us | Ask |
| 805 | Flow meter | Graco Pin, dowel | 192387 | — | Ask us | Ask |
| 806 | Flow meter | Graco Screw, cap, sch | 109114 | — | Ask us | Ask |
| 807 | Flow meter | Graco Cap, high pressure meter | 18A878 | — | Ask us | Ask |
| 808 | Flow meter | Graco Board, assy reactor ratio monitor | 25E134 | — | Ask us | Ask |
| 809 | Flow meter | Graco Screw, thd forming, pnh | 110163 | — | Ask us | Ask |
| 810 | Flow meter | Graco Cover, high pressure meter | 18A879 | — | Ask us | Ask |
| 811 | Flow meter | Graco Fitting, swivel, jic, 10 x 3/4-16 orb | 25E486PKG | — | Ask us | Ask |
| 812 | Flow meter | Graco Reducer #5 X #8 JIC Fitting | 117502 | 117502 | $41.20 | Add |
| 813 | Flow meter | Graco Label, blank | 113360 | — | Ask us | Ask |
| 814 | Flow meter | Graco Lubricant, grease | 070268 | — | Ask us | Ask |
| 815 | Flow meter | Graco Fitting, 45 deg elbow, 3/4 x 3/4 | 17Y236 | — | Ask us | Ask |
| 816 | Flow meter | Graco Label, branding, g-3500 | 18A979 | — | Ask us | Ask |
| 817 | Flow meter | Graco Screw, cap, sch | 112310 | — | Ask us | Ask |
| 818 | Flow meter | Graco Pin, dowel | 120853 | — | Ask us | Ask |

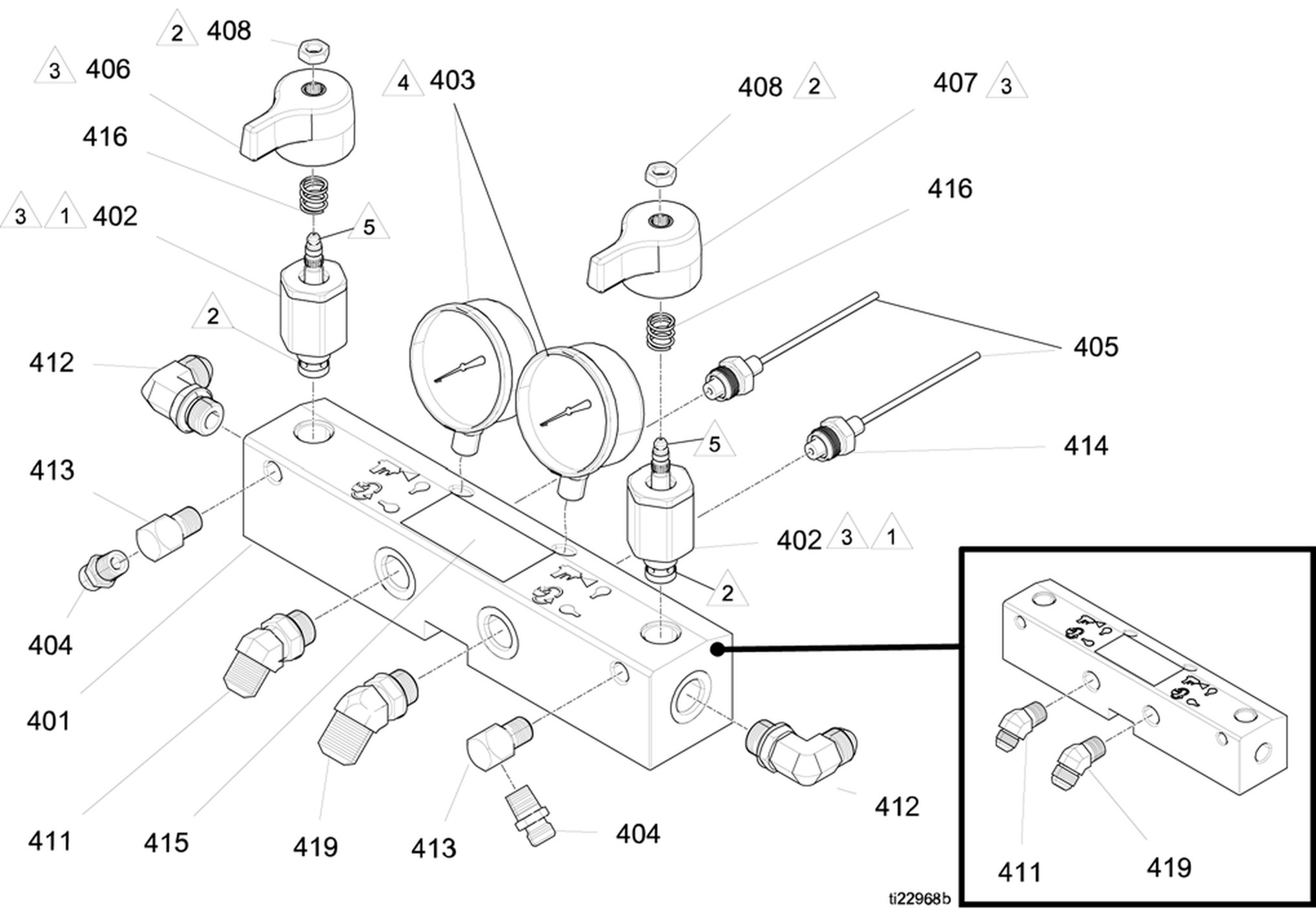

| 401 | Fluid manifold | Graco Manifold, fluid | 2008292 | — | Ask us | Ask |
| 402 | Fluid manifold | Graco Valve Drain Cartridge 247824 Kit | 247824 | 60522 | $401.00 | Add |
| 402a | Fluid manifold | Graco O-ring, buna-n | 158674 | — | Ask us | Ask |
| 402b | Fluid manifold | Graco Seal, seat, valve | 247779 | — | Ask us | Ask |
| 403 | Fluid manifold | Graco Qfluid 102814 Gauge, 5000PSI | 102814 | 102814 | $108.50 | Add |
| 404 | Fluid manifold | Graco Fitting, 1/4 npsm x 1/4 npt | 162453 | — | Ask us | Ask |
| 405 | Fluid manifold | Graco Sensor, pressure, fluid outlet | 15M669 | — | Ask us | Ask |
| 406 | Fluid manifold | Graco Handle Left Red ISO Kit | 247788 | 247788 | $42.50 | Add |
| 407 | Fluid manifold | Graco Handle Right Blue Resin Kit | 247789 | 247789 | $42.50 | Add |
| 408 | Fluid manifold | Graco Hex Jam Nut | 112309 | 112309 | $6.45 | Add |
| 411 | Fluid manifold | Graco Fitting, 3/4 orb x #8 jic | 17Y236 | — | Ask us | Ask |
| 412 | Fluid manifold | Graco Elbow MA Fitting, 3/4SAE X 1/2J | 121312 | 121312 | $12.40 | Add |
| 413 | Fluid manifold | Graco Fitting, elbow, street | 100840 | — | Ask us | Ask |
| 414 | Fluid manifold | Graco O-ring, ptfe | 111457 | — | Ask us | Ask |
| 415 | Fluid manifold | Graco Label, caution | 189285 | — | Ask us | Ask |
| 416 | Fluid manifold | Graco Compression Spring | 150829 | 150829 | $11.40 | Add |
| 419 | Fluid manifold | Graco Fitting, 3/4 orb x #10 jic | 17Y235 | — | Ask us | Ask |

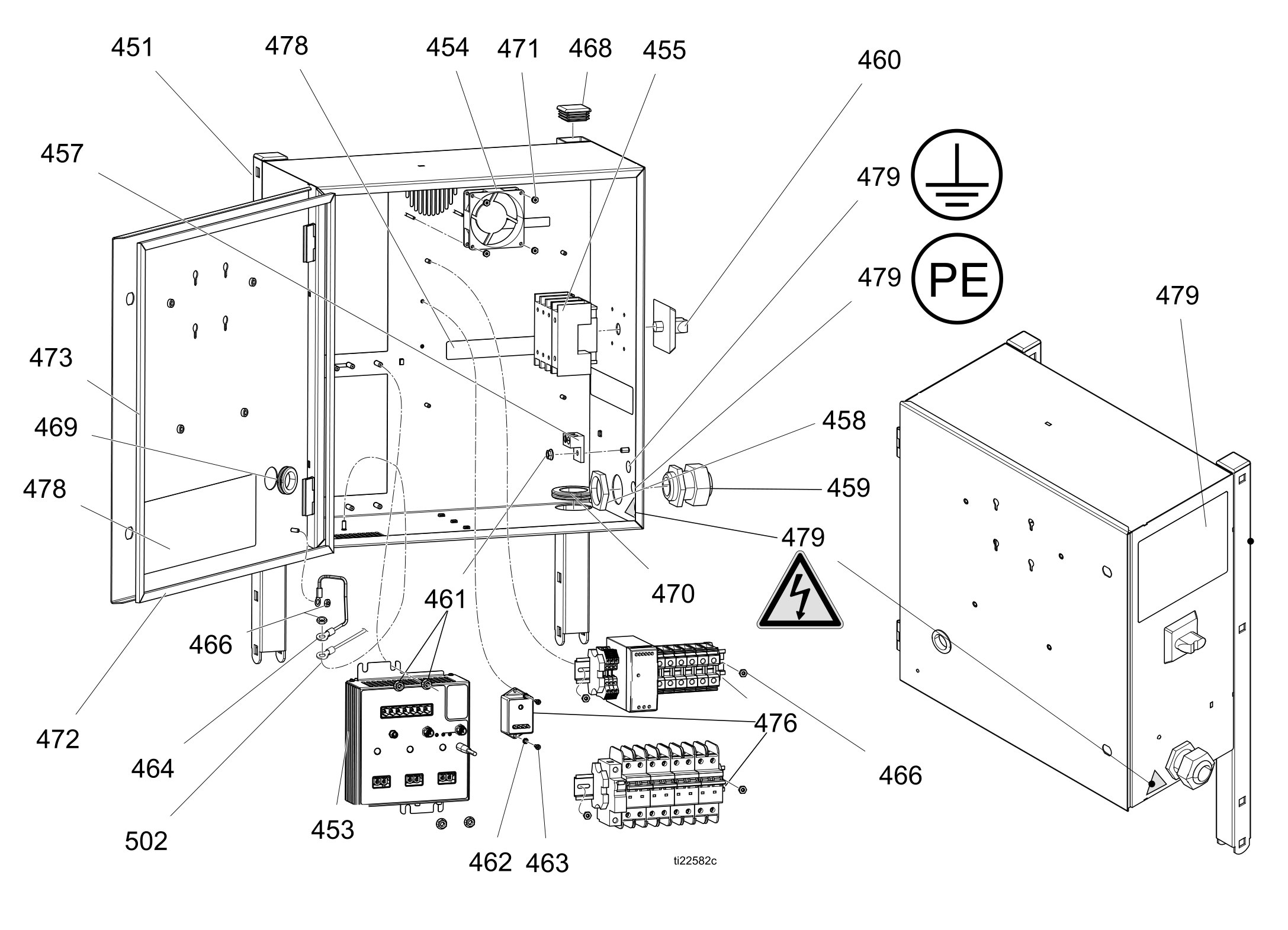

| 451 | Electrical enclosure | Graco Enclosure | 24U087 | — | Ask us | Ask |
| 453 | Electrical enclosure | Graco Module Gca Mzhp REACTOR2 Kit | 24U855 | 57605 | $944.00 | Add |
| 454 | Electrical enclosure | Graco Fan Cooling Kit, 80MM | 24U848 | 57606 | $115.00 | Add |
| 455 | Electrical enclosure | Graco Discnnt Door Mounted 24R736 Switch | 24R736 | 60518 | $492.00 | Add |
| 457 | Electrical enclosure | Graco Terminal, ground | 117666 | — | Ask us | Ask |
| 458 | Electrical enclosure | Graco Nut, strain relief, m40 thread | 255048 | — | Ask us | Ask |
| 459 | Electrical enclosure | Graco Bushing, strain relief, m40 thread | 255047 | — | Ask us | Ask |
| 460 | Electrical enclosure | Graco Knob, Operator Disconnect Yellow Red Switch | 123967 | 123967 | $86.75 | Add |
| 461 | Electrical enclosure | Graco Nut, hex, flange head | 115942 | — | Ask us | Ask |
| 462 | Electrical enclosure | Graco Washer, lock external | 103181 | — | Ask us | Ask |
| 463 | Electrical enclosure | Graco Screw, machine, pan head | 124131 | — | Ask us | Ask |
| 464 | Electrical enclosure | Graco Wire, grounding, door | 194337 | — | Ask us | Ask |
| 466 | Electrical enclosure | Graco Nut, keps, hex head | 133505 | — | Ask us | Ask |
| 468 | Electrical enclosure | Graco Cap, tube, square | 1112118 | — | Ask us | Ask |
| 469 | Electrical enclosure | Graco Grommet, rubber | 114269 | — | Ask us | Ask |
| 470 | Electrical enclosure | Graco Grommet, rubber | 127282 | — | Ask us | Ask |
| 471 | Electrical enclosure | Graco Keps Hex Nut | 127278 | 60470 | $4.40 | Add |
| 472 | Electrical enclosure | Graco Gasket, enclosure, foam | 16W925 | — | Ask us | Ask |
| 473 | Electrical enclosure | Graco Gasket, enclosure, foam | 16W926 | — | Ask us | Ask |
| 474 | Electrical enclosure | Graco Can Power M12 Fem Pigtail 24R735 Cable | 24R735 | 60241 | $181.00 | Add |
| 475 | Electrical enclosure | Graco Can Female/Female 1.0M Cable | 127068 | 127068 | $23.70 | Add |
| 476 | Electrical enclosure | Graco Module, breaker | 24U850 | — | Ask us | Ask |
| 477 | Electrical enclosure | Graco Cable, 4-pin, male/female, 1.3 meter, molded (hose rtd) | 127290 | — | Ask us | Ask |
| 478 | Electrical enclosure | Graco Label, safety | 16X050 | — | Ask us | Ask |
| 479 | Electrical enclosure | Graco Label, Safety, Multi Language | 16X049 | 60421 | $19.10 | Add |

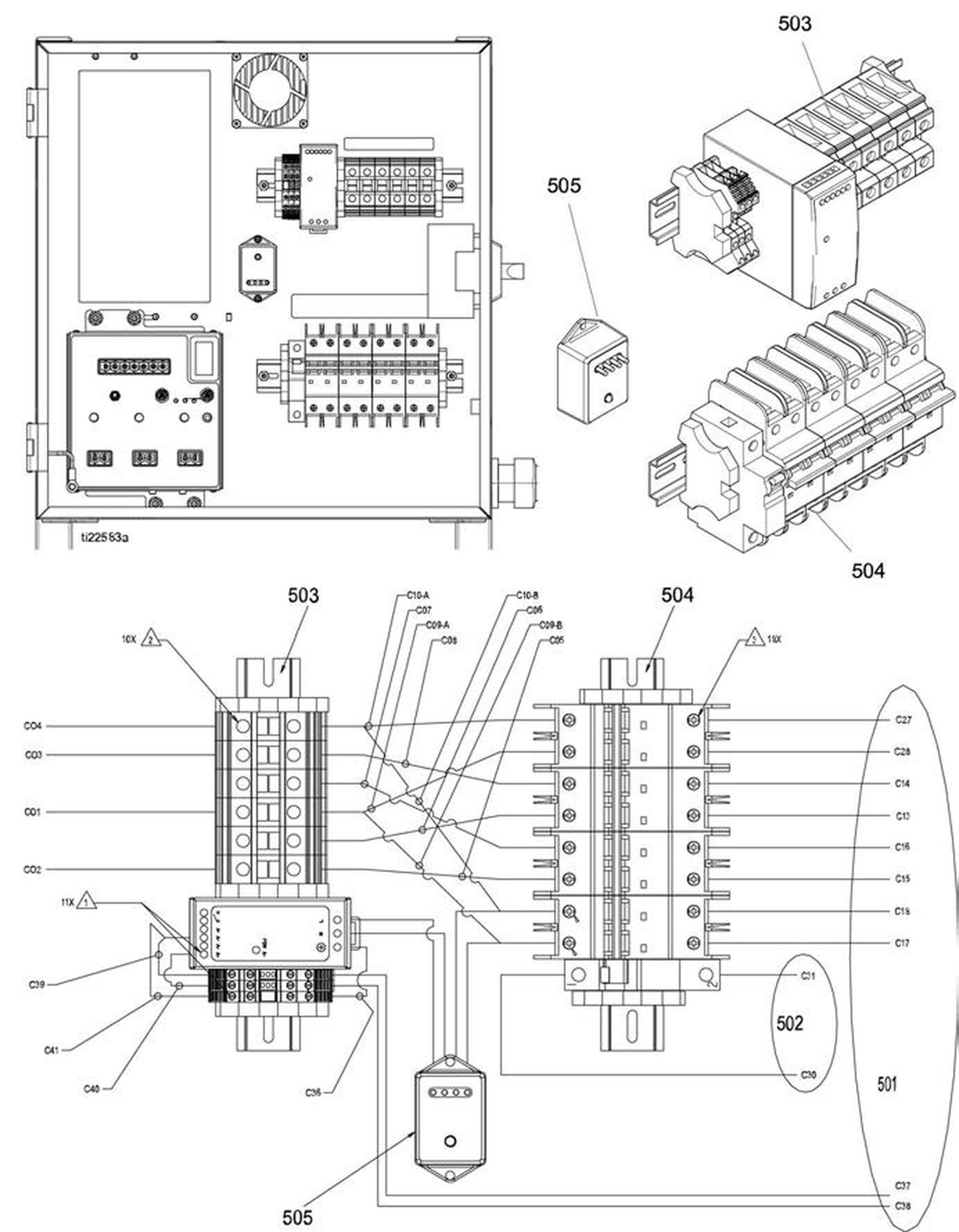

| 501 | DIN rail module | Graco Harness, breaker module | 16U529 | — | Ask us | Ask |
| 502 | DIN rail module | Graco Harness, hose out | 16V515 | — | Ask us | Ask |
| 503 | DIN rail module | Graco Module, din rail, term blk, power sup | 16U522 | — | Ask us | Ask |
| 504 | DIN rail module | Graco Module, din rail, circuit breakers | 16U526 | — | Ask us | Ask |
| 505 | DIN rail module | Graco Module, sys surge protector | 16U530 | — | Ask us | Ask |

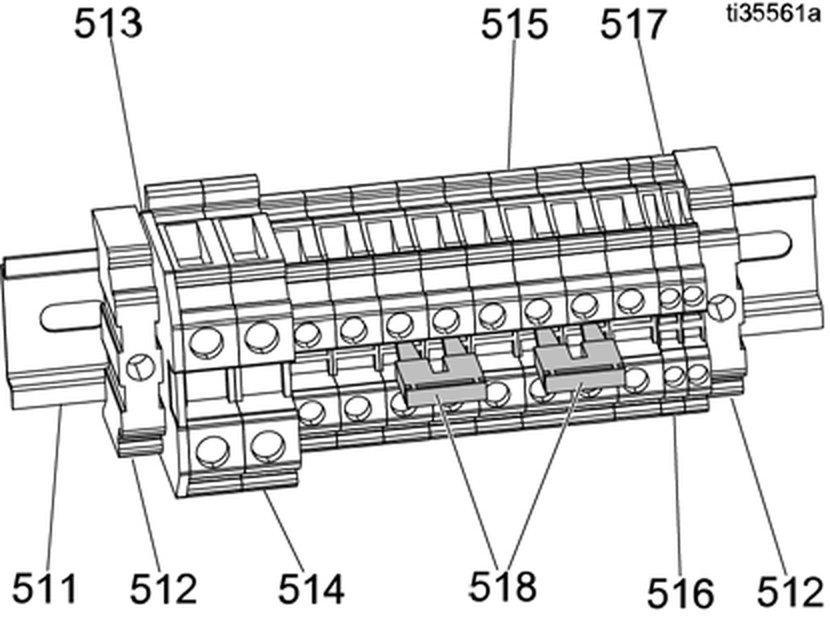

| 511 | Terminal block module | Graco Rail, din | 24T315 | — | Ask us | Ask |
| 512 | Terminal block module | Graco Block, clamp, end | 126811 | — | Ask us | Ask |
| 513 | Terminal block module | Graco Cover, end | 126383 | — | Ask us | Ask |
| 514 | Terminal block module | Graco Block, terminal | 126382 | — | Ask us | Ask |
| 515 | Terminal block module | Graco Block, terminal | 120570 | — | Ask us | Ask |
| 516 | Terminal block module | Graco Block, terminal, ut-2.5, red | 24R758 | — | Ask us | Ask |
| 517 | Terminal block module | Graco Block, terminal, ut-2.5, black | 24R759 | — | Ask us | Ask |
| 518 | Terminal block module | Graco Bridge, jumper | 120573 | — | Ask us | Ask |

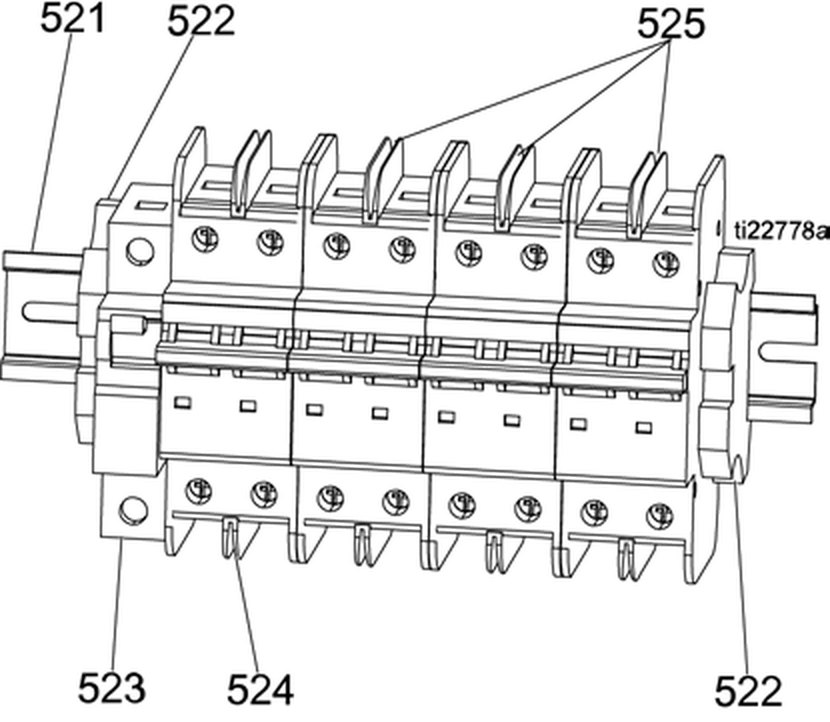

| 521 | Circuit breaker module | Graco Rail, din | 514014 | — | Ask us | Ask |
| 522 | Circuit breaker module | Graco Terminal, end stop | 120838 | — | Ask us | Ask |
| 523 | Circuit breaker module | Graco Circuit, breaker, 1 pole, 50a, c curve | 17A319 | — | Ask us | Ask |
| 524 | Circuit breaker module | Graco Circuit, breaker, 2p, 20a, ul489 | 17A314 | — | Ask us | Ask |
| 525 | Circuit breaker module | Graco Circuit, breaker, 2p, 40a, ul489 | 17A317 | — | Ask us | Ask |

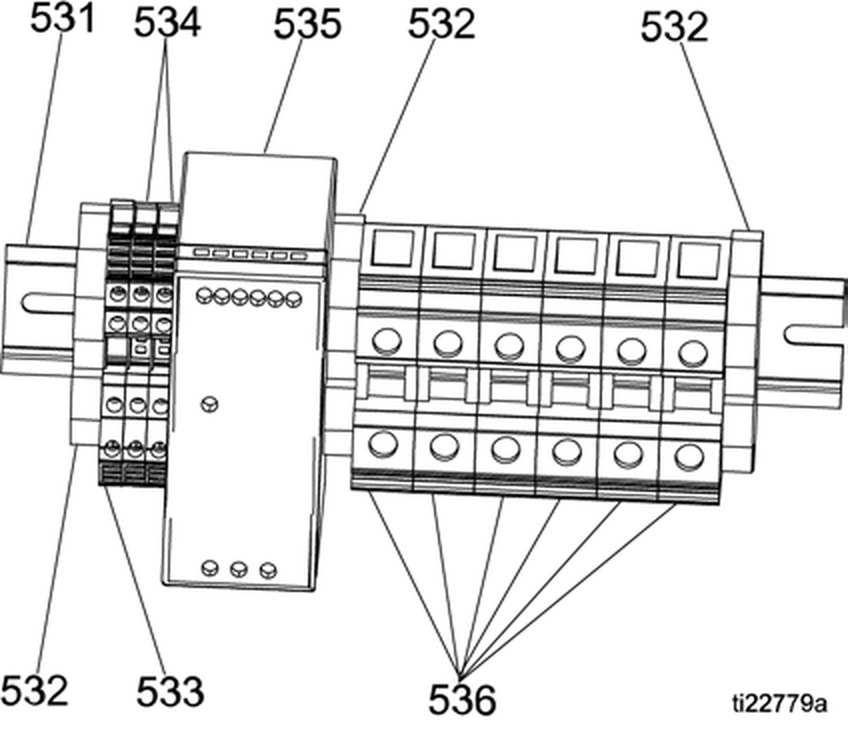

| 531 | Circuit breaker module | Graco Rail, din | 514014 | — | Ask us | Ask |
| 532 | Circuit breaker module | Graco Terminal, end stop | 120838 | — | Ask us | Ask |
| 533 | Circuit breaker module | Graco Block, terminal pe, quad, abb | 24R722 | — | Ask us | Ask |
| 534 | Circuit breaker module | Graco Block, terminal, quad m4, abb | 24R723 | — | Ask us | Ask |
| 535 | Circuit breaker module | Graco Power Supply, 24V | 126453 | 126453 | $235.00 | Add |
| 536 | Circuit breaker module | Graco Block, terminal, ut35 | 24R724 | — | Ask us | Ask |

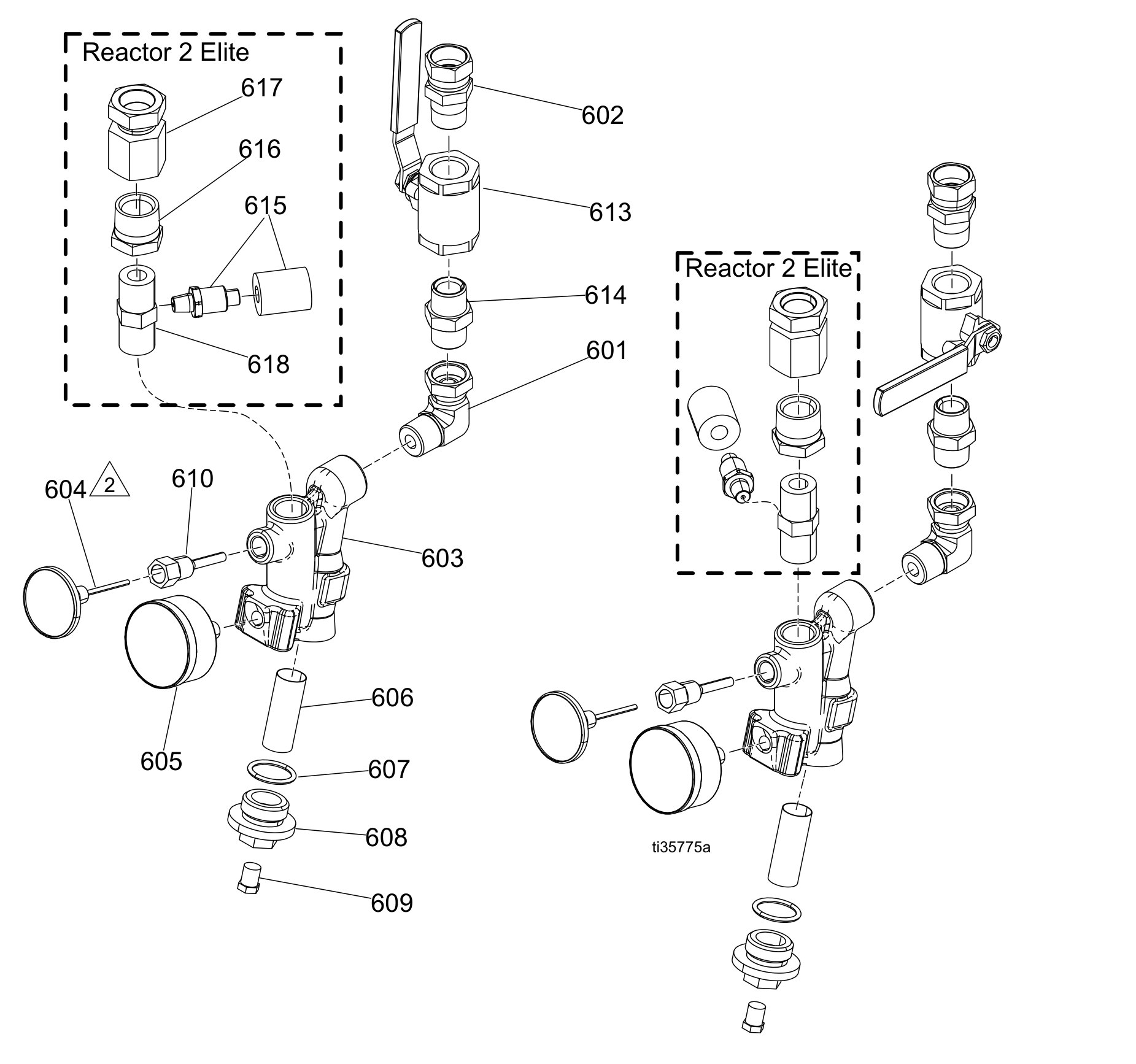

| 601 | Fluid inlet kits | Graco Fitting, union adapter, 90 degree | 160327 | — | Ask us | Ask |
| 602 | Fluid inlet kits | Graco Union Swivel Fitting, 3/4″ | 118459 | 118459 | $19.80 | Add |
| 603 | Fluid inlet kits | Graco Manifold Strainer Wye Kit | 247503 | 247503 | $502.00 | Add |
| 604 | Fluid inlet kits | Graco Thermometer Dial Kit | 24U852 | 57735 | $155.00 | Add |
| 605 | Fluid inlet kits | Graco Gauge Pressure Fluid 24U853 Kit | 24U853 | 59348 | $123.00 | Add |
| 606 | Fluid inlet kits | Graco Filter, replacement | — | — | Ask us | Ask |
| 607 | Fluid inlet kits | Graco O-Ring FX75 Packing – Y-Strainer O-Ring | 128061 | 128061 | $37.90 | Add |
| 608 | Fluid inlet kits | Graco Filter Cap | 16V879 | 57592 | $88.25 | Add |
| 609 | Fluid inlet kits | Graco Plug, 1/4MP with Hex HD | 555808 | 555808 | $3.90 | Add |
| 610 | Fluid inlet kits | Graco Thermometer Viscon HP Housing | 15D757 | 60131 | $69.00 | Add |
| 613 | Fluid inlet kits | Graco Ball 3/4 NPT Fem Valve, 6000PSI | 109077 | 109077 | $126.50 | Add |
| 614 | Fluid inlet kits | Graco Nipple Hex Fitting | C20487 | 59585 | $28.40 | Add |
| 615 | Fluid inlet kits | Graco Transducer, pressure, temperature (includes foam) | 24U851 | — | Ask us | Ask |
| 616 | Fluid inlet kits | Graco Fitting, bushing | 158586 | — | Ask us | Ask |
| 617 | Fluid inlet kits | Graco Fitting, union adapter | 158383 | — | Ask us | Ask |
| 618 | Fluid inlet kits | Graco Fitting, tee 3/4m run x 1/4f | 624545 | — | Ask us | Ask |
