Graco Reactor 3 H-50 — Spray Foam Proportioner

Hover or tap any number on the drawing to see the part and add it to your cart.

The machineDrawing from Graco manual X024616, page 76

Priced onlineAsk us for a price

Graco Reactor 3 H-50 proportioner parts diagram

Graco Kit, grommet, 3/8 id

Ref 56

Graco 2010677
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, clip, snap in

Ref 58

Graco 2010679
Ask for a price

Also on the Reactor 3 H-30.

61b

Graco Label, shock, warning

Ref 61b

Graco supplies replacement safety labels, tags and cards at no cost. Ask us and we will request one for you.

Ask us

Graco Kit, tube, 3/8 od, tsl

Ref 59

Graco 2010680
KIT,TUBE,3/8 OD,TSL,HR3Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, grommet, 1/2 id

Ref 57

Graco 2010678
Ask for a price

Also on the Reactor 3 H-30.

61c

Graco Label, hot surface, warning

Ref 61c

Graco supplies replacement safety labels, tags and cards at no cost. Ask us and we will request one for you.

Ask us

Graco Kit, cap, bottle, tsl

Ref 30

Graco 2010566
KIT,HOSE,COUPLED,PUMP INLETAsk for a price

Also on the Reactor 3 H-30.

61a

Graco Label, danger, warning

Ref 61a

Graco supplies replacement safety labels, tags and cards at no cost. Ask us and we will request one for you.

Ask us

Graco Kit, tsl, system

Ref 3

Graco 2010494
KIT,TSL,SYSTEM,HR3Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, module, emi filter

Ref 17

Graco 2010528
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, valve, electronic pressure regulator (epr)

Ref 10

Graco 2010502
KIT,VALVE,EPRAsk for a price

Also on the Reactor 3 H-30.

Graco Kit, bracket, epr

Ref 19

Graco 2010530
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, electronic pressure regulator controller (edx)

Ref 18

Graco 2010529
KIT,EDXAsk for a price

Also on the Reactor 3 H-30.

61b

Graco Label, shock, warning

Ref 61b

Graco supplies replacement safety labels, tags and cards at no cost. Ask us and we will request one for you.

Ask us

Graco Kit, shim, enclosure

Ref 54

Graco 2010675
Ask for a price

Also on the Reactor 3 H-30.

Graco Label, branding, h-50 elite

Ref 31 · 2 versions

Graco 2008930
LABEL,BRANDING,R3, H-50 ELITEAsk for a price

Graco 2008929
LABEL,BRANDING,R3, H-50 PROAsk for a price

Graco Screw, flanged, hex hd, 1/4"-20 x 0.75"

Ref 5 · 4 versions

Graco Flanged Hex HD Screw
Graco 113796$2.75 · Add

Graco 2010496
Kit, cover, top, eliteAsk for a price

Graco 2010497
Kit, cover, top, proAsk for a price

Also on the Reactor 2 H-30, Reactor 2 H-40, Reactor 2 E-30 and 4 more.

Graco Kit, module, hcm2

Ref 1

Graco 2010146
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, hose, hydraulic, supply, pump outlet

Ref 25

Graco 2010562
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, adapter, hydro gauge

Ref 32

Graco 17V497
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, fitting, elbow, -6 jic x -6 bspt

Ref 60

Graco 2010681
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, bracket, mpr

Ref 20

Graco 2010531
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, grommet, 1/2 id

Ref 57

Graco 2010678
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, hose, coupled, pump inlet

Ref 29

Graco 2010566
Ask for a price

Also on the Reactor 3 H-30.

Graco Screw, cap, socket head, 1/4-20 x 2.25"

Ref 33 · 2 versions

Graco 18E207
KIT,REPAIR,R3,OUTLET MANIFOLDAsk for a price

Graco C19817
SCREW, CAP, SOCKET HD, 1/4-20 X 2.25Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

61c

Graco Label, hot surface, warning

Ref 61c

Graco supplies replacement safety labels, tags and cards at no cost. Ask us and we will request one for you.

Ask us

Graco Kit, upper, mpr

Ref 11

Graco 2010503
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, frame, painted

Ref 52

Graco 2010673
KIT,FRAME,PAINTED,HR3Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, valve, check

Ref 55

Graco 2010676
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, meter, flow

Ref 34

Graco 18E136
KIT,METER,FLOW,R3Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Kit, cable, thermistor

Ref 21

Graco 2010534
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, pump, hydraulic with iso and resin 140 (h-30, h-50)

Ref 2 · 3 versions

Graco 2010491
KIT,PUMP,HYDRL,W/ISO AND RESIN 120Ask for a price

Graco 2010492
KIT,PUMP,HYDRL,W/ISO AND RESIN 140Ask for a price

Graco 2010493
KIT,PUMP,HYDRL,W/ISO AND RESIN 120/88Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, lower, mpr

Ref 12

Graco 2010504
Ask for a price

Also on the Reactor 3 H-30.

Graco Screw, flanged, hex hd, 1/4"-20 x 0.75"

Ref 4 · 2 versions

Graco Flanged Hex HD Screw
Graco 113796$2.75 · Add

Graco 2010495
Kit, covers, bottom, left and rightAsk for a price

Also on the Reactor 2 H-30, Reactor 2 H-40, Reactor 2 E-30 and 4 more.

61c

Graco Label, hot surface, warning

Ref 61c

Graco supplies replacement safety labels, tags and cards at no cost. Ask us and we will request one for you.

Ask us

61c

Graco Label, hot surface, warning

Ref 61c

Graco supplies replacement safety labels, tags and cards at no cost. Ask us and we will request one for you.

Ask us

Graco Kit, strainer, pair, elite

Ref 37

Graco 18E247
KIT,STRAINER,R3,PAIR,ELITEAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Kit, cover, transformer, rear

Ref 8

Graco 2010500
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, harness, fan

Ref 22

Graco 2010535
Ask for a price

Also on the Reactor 3 H-30.

Graco ref 38

on the The machine drawing

Graco draws the Reactor 3 range once and lists each machine separately. This number is printed here but is not in the E-30’s own parts list — tell us your machine and we will work out what you need.

Ask us

61b

Graco Label, shock, warning

Ref 61b

Graco supplies replacement safety labels, tags and cards at no cost. Ask us and we will request one for you.

Ask us

Graco Kit, manifold, hydraulid

Ref 35

Graco 17G531
KIT,MANIFOLD,HYD,HR2Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, cover, hydro pump, clear

Ref 36

Graco 17V459
Ask for a price

Also on the Reactor 3 H-30.

61b

Graco Label, shock, warning

Ref 61b

Graco supplies replacement safety labels, tags and cards at no cost. Ask us and we will request one for you.

Ask us

Graco Kit, cover, transformer, front

Ref 7

Graco 2010499
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, reservoir

Ref 14

Graco 2010514
Ask for a price

Also on the Reactor 3 H-30.

Graco Fltr Oil Kit, 18-23 PSI Bypass 247792

Ref 62 · Graco 247792 · SKU 247792

$68.50

View Add to cart

Also on the Reactor 2 H-30, Reactor 2 H-40 and Reactor 3 H-30.

Graco Kit, hose, hydraulic, cooler, outlet

Ref 28

Graco 2010565
Ask for a price

Also on the Reactor 3 H-30.

Graco Screw, mach, hex wash hd, 10-14 x 0.5"

Ref 16 · 2 versions

Graco 2010516
KIT,GUARD,FANAsk for a price

Graco 114000
SCREW, MACH, HEX WASH HDAsk for a price

Also on the Reactor 3 H-30.

Graco Kit, fan

Ref 15

Graco 2010515
Ask for a price

Also on the Reactor 3 H-30.

Graco Screw, flanged, hex hd, 1/4"-20 x 0.75"

Ref 6 · 2 versions

Graco Flanged Hex HD Screw
Graco 113796$2.75 · Add

Graco 2010498
Kit, cover, bottom, frontAsk for a price

Also on the Reactor 2 H-30, Reactor 2 H-40, Reactor 2 E-30 and 4 more.

Graco Kit, transformer, 5400 va, 230/120

Ref 9

Graco 2010501
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, hose, hydraulic, cooler, inlet

Ref 27

Graco 2010564
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, fitting, straight, -6 jic x -6 bspt

Ref 48

Graco 2010669
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, hose, gauge, pressure

Ref 23

Graco 2010560
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, radiator

Ref 13

Graco 2010513
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, hose, hydraulic supply, tank inlet

Ref 26

Graco 2010563
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, strainer, suction, 1-1/2 npt x 3/4 npt

Ref 50

Graco 2010671
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, hose, hydraulic, supply, epr

Ref 24

Graco 2010561
Ask for a price

Also on the Reactor 3 H-30.

The assembliesDrawing from Graco manual X024616, page 82

Graco documents the H-50 one assembly at a time. Eight of them — pick one, or follow a link from the machine above.

All 8Driver & pumpsHeaterFluid manifoldElectrical enclosureInlet strainersRail moduleShip looseTSL system kit

Driver & pumps11 callouts

Heater18 callouts

Fluid manifold17 callouts

Electrical enclosure38 callouts

Inlet strainers26 callouts

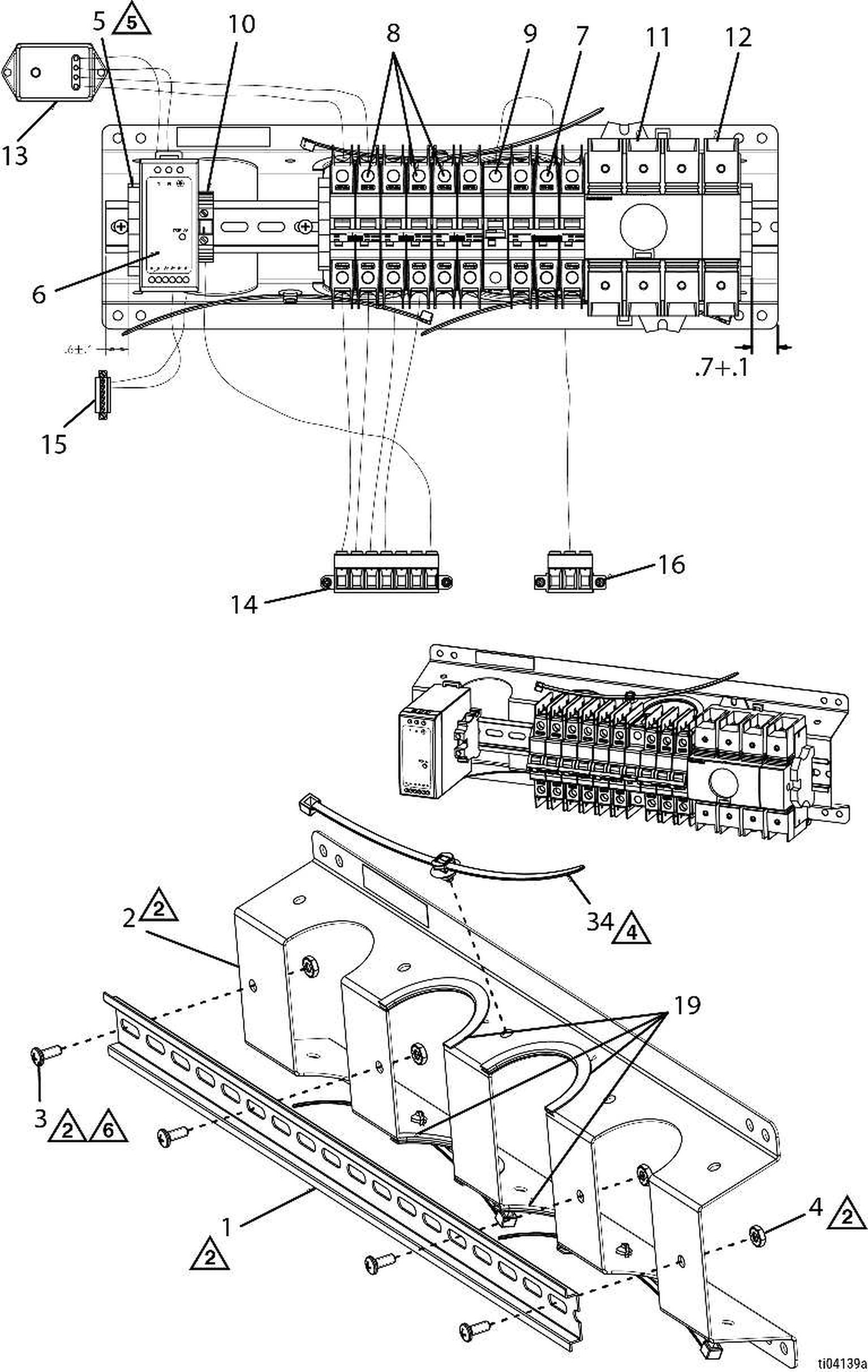

Rail module18 callouts

Ship loose6 callouts

TSL system kit6 callouts

Graco Reactor 3 H-50 Driver and MPR to EPR parts parts diagram

61b

Graco Label, shock, warning

Ref 61b

Graco 25T998
Ask for a price

Graco supplies this inside an assembly rather than as a separate part.

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Kit, motor, 4hp, 60 hz

Ref 40 · 3 versions

Graco 2010521
Ask for a price

Graco 2010522
KIT,MOTOR,4HP,50HZAsk for a price

Graco 2010523
KIT,MOTOR,7.5HPAsk for a price

Also on the Reactor 3 H-30.

Graco Kit, coupler, motor/pump adapter

Ref 44 · 2 versions

Graco 2010527
Ask for a price

Graco 100018
WASHER, LOCK, SPRINGAsk for a price

Also on the Reactor 3 H-30.

Graco Kit, couplet, 1-1/8", keyed

Ref 42

Graco 2010525
KIT,COUPLER,1-1/8,KEYEDAsk for a price

Also on the Reactor 3 H-30.

Graco Kit, spider

Ref 43

Graco 2010526
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, coupler, 3/4", keyed

Ref 41

Graco 2010524
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, pump, elite, h-50/h-xp3 230v

Ref 39 · 4 versions

Graco 2010507
Ask for a price

Graco 2010508
KIT,PUMP,ELITE,H-50/H-XP3 400VAsk for a price

Graco 2010511
KIT,PUMP,PRO,H-50/H-XP3 230VAsk for a price

Graco 2010512
KIT,PUMP,PRO,H-50/H-XP3 400VAsk for a price

Graco Kit, flange, pump inlet

Ref 45

Graco 2010532
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, flange, pump outlet

Ref 46

Graco 2010533
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, fitting, elbow, -16 jic x -16 orb

Ref 49

Graco 2010670
Ask for a price

Also on the Reactor 3 H-30.

47a,47b,47c,47d

Refs 47a,47b,47c,47d

4 parts on one leader

Graco Screw, cap, socket hd, 10-24 x 2.25"

Ref 47a

Graco C19988
SCREW,CAP,SOCKET HDAsk for a price

Also on the Reactor 3 H-30.

Graco Screw, cap, socket hd, 10-24 x 2.25"

Ref 47b · 3 versions

Graco 2010530
KIT,BRACKET,EPRAsk for a price

Graco 2010502
KIT,VALVE,EPRAsk for a price

Graco C19988
SCREW,CAP,SOCKET HDAsk for a price

Also on the Reactor 3 H-30.

Graco Kit, mpr to epr conversion, h-50/h-xp3, 230v

Ref 47c · 5 versions

Graco 2010519
Ask for a price

Graco 2010507
KIT,PUMP,ELITE,H-50/H-XP3 230VAsk for a price

Graco 2010530
KIT,BRACKET,EPRAsk for a price

Graco 2010502
KIT,VALVE,EPRAsk for a price

Graco C19988
SCREW,CAP,SOCKET HDAsk for a price

Graco Kit, mpr to epr conversion, h-50/h-xp3, 400v

Ref 47d · 5 versions

Graco 2010520
Ask for a price

Graco 2010508
KIT,PUMP,ELITE,H-50/H-XP3 400VAsk for a price

Graco 2010530
KIT,BRACKET,EPRAsk for a price

Graco 2010502
KIT,VALVE,EPRAsk for a price

Graco C19988
SCREW,CAP,SOCKET HDAsk for a price

Graco Reactor 3 H-50 Primary heater parts diagram

203

Graco Heater, immersion, 2400w, 230v 4 4

Ref 203

Graco 18C668
HEATER, IMMERSION, 2400W, 230V · zone A, zone BAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

202

Graco Fitting, plug hollow hex 1-3/16 sae 4 4

Ref 202

Graco 15H305
FITTING,PLUG HOLOW HEX 1-3/16 SAE · zone A, zone BAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

204

Graco O-Ring – 124132 – #315

Ref 204 · Graco 124132 · SKU 124132

zone A, zone B

$3.10

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

205

Graco Spring, mixer, heater 4 4

Ref 205

Graco 18B279
SPRING,MIXER,HEATER · zone A, zone BAsk for a price

Also on the Reactor 3 H-30.

209

Graco Fitting, plug 9/16 sae 2 2

Ref 209

Graco 15H304
FITTING,PLUG 9/16 SAE · zone A, zone BAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 1 more.

209

Graco Fitting, plug 9/16 sae 2 2

Ref 209

Graco 15H304
FITTING,PLUG 9/16 SAE · zone A, zone BAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 1 more.

213

Graco Heater RTD Kit

Ref 213 · Graco 24L973 · SKU 57353

zone A, zone B

$620.00

View Add to cart

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

207

Graco O-ring, packing 1 1

Ref 207

Graco 120336
O-RING,PACKING · zone A, zone BAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

206

Graco Thermocouple Adapter

Ref 206 · Graco 15H306 · SKU 60414

zone A, zone B

$91.25

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2 and Reactor 3 H-30.

208

Graco Conn Fitting, 3/4SAE X 1/2 JIC

Ref 208 · Graco 121309 · SKU 121309

zone A, zone B

$21.50

View Add to cart

Also on the Reactor 2 H-30, Reactor 2 H-40, Reactor 2 E-30 and 4 more.

212

Graco Fitting, compression, 1/8 npt 1 1

Ref 212

Graco 123325
FITTING,COMPRESSION,1/8NPT,SS · zone A, zone BAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

214

Graco Kit, switch, over-temperature 1 1

Ref 214

Graco 2007109
KIT,SWITCH, OVER TEMP. · zone A, zone BAsk for a price

Also on the Reactor 3 H-30, Reactor 2 E-30, Reactor 2 E-XP2 and 2 more.

216

Graco Elbow MA Fitting, 3/4SAE X 1/2J

Ref 216 · Graco 121312 · SKU 121312

zone A, zone B

$12.40

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

215

Graco Screw, mach, pnh 1 1

Ref 215

Graco 124131
zone A, zone BAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

201

Graco Block, heater, machined, dual 1 1

Ref 201

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

210

Graco Burst Disc Kit

Ref 210 · Graco 247520 · SKU 247520

zone A, zone B

$233.00

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

202

Graco Fitting, plug hollow hex 1-3/16 sae 4 4

Ref 202

Graco 15H305
FITTING,PLUG HOLOW HEX 1-3/16 SAE · zone A, zone BAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

211

Graco Plug, hex 1 1

Ref 211

Graco 295607
PLUG,HEX · zone A, zone BAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Reactor 3 H-50 Fluid manifold parts diagram

406

Graco Hex Jam Nut

Ref 406 · Graco 112309 · SKU 112309

$6.45

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

413

Graco Qfluid 102814 Gauge, 5000PSI

Ref 413 · Graco 102814 · SKU 102814

$108.50

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

404

Graco Handle, red

Ref 404

Graco 15J915
Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

403

Graco Compression Spring

Ref 403 · Graco 150829 · SKU 150829

$11.40

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

402

Graco Valve Drain Cartridge 247824 Kit

Ref 402 · Graco 247824 · SKU 60522

$401.00

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

401

Graco Housing, outlet

Ref 401

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

402

Graco Valve Drain Cartridge 247824 Kit

Ref 402 · Graco 247824 · SKU 60522

$401.00

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

403

Graco Compression Spring

Ref 403 · Graco 150829 · SKU 150829

$11.40

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

405

Graco Handle, blue

Ref 405

Graco 15J916
Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

407

Graco Fitting, elbow, street

Ref 407

Graco 100840
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

409

Graco Fitting, elbow, jic-8 x orb-8

Ref 409

Graco 132443
Ask for a price

Also on the Reactor 3 H-30.

412

Graco Transducer, pressure, 5000 psi

Ref 412

Graco 18B074PKG
TRANSDUCER,PRESSURE,5000 PSIGAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

410

Graco Fitting, elbow, jic-10 x orb-8

Ref 410

Graco 132513
Ask for a price

Also on the Reactor 3 H-30.

406

Graco Hex Jam Nut

Ref 406 · Graco 112309 · SKU 112309

$6.45

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

408

Graco Fitting, 1/4 npsm x 1/4 npt

Ref 408

Graco 162453
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

407

Graco Fitting, elbow, street

Ref 407

Graco 100840
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

411

Graco Fitting, tee, orb-8, jic-8, ¼ npt

Ref 411

Graco 132173
FITTING, TEE, ORB-8, JIC-8, 1/4-NPTAsk for a price

Also on the Reactor 3 H-30.

Graco Reactor 3 H-50 Electrical enclosure parts diagram

61d

Graco Label, ground, warning

Ref 61d

Graco 25T998
Ask for a price

Graco supplies this inside an assembly rather than as a separate part.

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

502b,510

Refs 502b,510

2 parts on one leader

Graco Module, din rail

Ref 502b

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

Graco Screw, mach, pan head, #6-32 x 3/8"

Ref 510

Graco 114331
SCREW MACH,PNH,SEMSAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

509

Graco Bracket, mov

Ref 509

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

507

Graco Nut, keps, hex hd, 10-24

Ref 507

Graco 113505
NUT,KEPS,HEX HDAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

502

Graco Module, din rail

Ref 502

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

507

Graco Nut, keps, hex hd, 10-24

Ref 507

Graco 113505
NUT,KEPS,HEX HDAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

528

Graco Module Gca Adm 2 Kit, 9 in

Ref 528 · Graco 18E139 · SKU 60356

$671.00

View Add to cart

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

507

Graco Nut, keps, hex hd, 10-24

Ref 507

Graco 113505
NUT,KEPS,HEX HDAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

526

Graco Foam, enlcosure

Ref 526

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

508

Graco Nut, hex, flange head

Ref 508

Graco 115942
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

525

Graco Door, stamped, painted

Ref 525

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

505

Graco Kit, module, hcm2

Ref 505

Graco 2010146
Ask for a price

Also on the Reactor 3 H-30.

503

Graco Module, gca, tcm

Ref 503

Graco 25P036
KIT,MODULE,GCA,MZHP2,R3Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

529,530

Refs 529,530

2 parts on one leader

Graco Pin, weld hinge

Ref 529

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

Graco Ring, retaining, e-ring, 9/64"

Ref 530

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

508

Graco Nut, hex, flange head

Ref 508

Graco 115942
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

507

Graco Nut, keps, hex hd, 10-24

Ref 507

Graco 113505
NUT,KEPS,HEX HDAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

504

Graco Label, installation

Ref 504

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

527

Graco Latch, Door 16W596

Ref 527 · Graco 16W596 · SKU 60260

$42.40

View Add to cart

Also on the Reactor 2 H-30, Reactor 2 H-40, Reactor 2 E-30 and 2 more.

533

Graco Antenna, gps

Ref 533

Graco 132949PKG
Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

507

Graco Nut, keps, hex hd, 10-24

Ref 507

Graco 113505
NUT,KEPS,HEX HDAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

534

Graco Antenna, cellular

Ref 534

Graco 132948PKG
Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

531

Graco Wire, grounding, door

Ref 531

Graco 194337
Ask for a price

Graco supplies this inside an assembly rather than as a separate part.

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

506

Graco Terminal, ground

Ref 506

Graco 117666
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

512

Graco Screw, mach, pan head, #4-40 x 3/8"

Ref 512

Graco 107388
Ask for a price

Graco supplies this inside an assembly rather than as a separate part.

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

522

Graco Nut, strain relief, m40 thread

Ref 522

Graco 120859
Ask for a price

Graco supplies this inside an assembly rather than as a separate part.

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

514

Graco Screw, mach, pan head, #10-24 x 3/8"

Ref 514

Graco 110637
SCREW, MACH, PNHDAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

511

Graco Plate, cover, painted

Ref 511

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

521

Graco Bushing, strain relief, m40 thread

Ref 521

Graco 255047
KIT, BUSHING, STRAIN RLF, M40Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 H-30 and 2 more.

523

Graco Knob, door interlocked

Ref 523

Graco 18B671
Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

519

Graco Screw, mach, pan, #10-24 x 3/4"

Ref 519

Graco 102790
SCREW, MACH, PAN HDAsk for a price

Also on the Reactor 3 H-30.

518

Graco Bumper, enclosure door

Ref 518

Graco 18C189
BUMPER,ENCLOSURE DOOR,R3Ask for a price

Also on the Reactor 3 H-30.

520

Graco Trim, edge protection (1.6 ft)

Ref 520

Graco 114225
TRIM,EDGE PROTECTIONAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

524

Graco Shaft, door interlocked

Ref 524

Graco 18B672
Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

523

Graco Knob, door interlocked

Ref 523

Graco 18B671
Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

532

Graco Plate, enclosure guard

Ref 532

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

514

Graco Screw, mach, pan head, #10-24 x 3/8"

Ref 514

Graco 110637
SCREW, MACH, PNHDAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

501

Graco Enclosure, weldment, painted

Ref 501

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

520

Graco Trim, edge protection (1.6 ft)

Ref 520

Graco 114225
TRIM,EDGE PROTECTIONAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

Graco Reactor 3 H-50 Inlet strainers parts diagram

612

Graco Sensor, temperature

Ref 612 · 2 versions

Graco 20B457
KIT,R3,TEMP SENSOR · Elite, ProAsk for a price

Graco 18D158
PLUG,TEMP SENSOR, W/ O-RING · Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

611

Graco Transducer, pressure, 1000 psi

Ref 611 · 2 versions

Graco Plug Pipe Headles
Graco 104765 · Elite, Pro$17.80 · Add

Graco 18B075PKG
Elite, ProAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

608

Graco Union Swivel Fitting, 3/4″

Ref 608 · Graco 118459 · SKU 118459

Elite, Pro

$19.80

View Add to cart

Also on the Reactor 2 H-30, Reactor 2 H-40, Reactor 2 E-30 and 4 more.

607

Graco Ball 3/4 NPT Fem Valve, 6000PSI

Ref 607 · Graco 109077 · SKU 109077

Elite, Pro

$126.50

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

606

Graco Fitting, pipe, nipple, 3/4 x 3/4 npt

Ref 606

Graco 119992
Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

608

Graco Union Swivel Fitting, 3/4″

Ref 608 · Graco 118459 · SKU 118459

Elite, Pro

$19.80

View Add to cart

Also on the Reactor 2 H-30, Reactor 2 H-40, Reactor 2 E-30 and 4 more.

612a

Graco Packing O-Ring P2 Air Control

Ref 612a · Graco 106555 · SKU 56677

Elite, Pro

$5.60

View Add to cart

Also on the Reactor 3 E-30, Reactor 3 E-20, Reactor 3 H-30 and 1 more.

607

Graco Ball 3/4 NPT Fem Valve, 6000PSI

Ref 607 · Graco 109077 · SKU 109077

Elite, Pro

$126.50

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

605

Graco Fitting, elbow, orb-10 x 3/4 npsm

Ref 605

Graco 132437
Elite, ProAsk for a price

Also on the Reactor 3 H-30.

612

Graco Sensor, temperature

Ref 612 · 2 versions

Graco 20B457
KIT,R3,TEMP SENSOR · Elite, ProAsk for a price

Graco 18D158
PLUG,TEMP SENSOR, W/ O-RING · Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

611

Graco Transducer, pressure, 1000 psi

Ref 611 · 2 versions

Graco Plug Pipe Headles
Graco 104765 · Elite, Pro$17.80 · Add

Graco 18B075PKG
Elite, ProAsk for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

610

Graco Gauge, pressure, 500 psi

Ref 610

Graco 18E272
KIT,GAUGE,R3,INLET,PRESSURE · Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

609

Graco Plug, pipe stl rd 7/8-14 saw mg

Ref 609

Graco 556424
Trabon MGO Divider Valve Port Plug · Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

601

Graco Strainer, housing, machined

Ref 601

Graco 18D179
HOUSING,STRAINER, BARE · Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

610

Graco Gauge, pressure, 500 psi

Ref 610

Graco 18E272
KIT,GAUGE,R3,INLET,PRESSURE · Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

612a

Graco Packing O-Ring P2 Air Control

Ref 612a · Graco 106555 · SKU 56677

Elite, Pro

$5.60

View Add to cart

Also on the Reactor 3 E-30, Reactor 3 E-20, Reactor 3 H-30 and 1 more.

618

Graco Packing, o-ring

Ref 618

Graco C24035
Elite, ProAsk for a price

Also on the Reactor 3 H-30.

617

Graco Packing, o-ring

Ref 617

Graco 107067
Elite, ProAsk for a price

Also on the Reactor 3 H-30.

606

Graco Fitting, pipe, nipple, 3/4 x 3/4 npt

Ref 606

Graco 119992
Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

615

Graco Insert, thread, cap, strainer

Ref 615

Graco 133171
INSERT,THREAD, CAP, STRAINER, R3 · Elite, ProAsk for a price

Also on the Reactor 3 H-30.

605

Graco Fitting, elbow, orb-10 x 3/4 npsm

Ref 605

Graco 132437
Elite, ProAsk for a price

Also on the Reactor 3 H-30.

616

Graco O-ring, 125, fx75

Ref 616

Graco 132444
Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

604

Graco Filter, fluid, 30 mesh

Ref 604

Graco 132675
Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

603

Graco Insert, manifold

Ref 603

Graco 15E288
Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

602

Graco Cap, strainer

Ref 602

Graco 18E271
KIT, CAP, INLET STRAINER · Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

614

Graco Plug, pipe

Ref 614

Graco 100737
Elite, ProAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Reactor 3 H-50 DIN rail module (H-50 and H-XP3) parts diagram

Graco Block, clamp end

Ref 5

Graco 255045 replaces 120838
KIT, BLOCK, CLAMP ENDAsk for a price

Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

Graco Block, terminal, ground

Ref 10

Graco 132931
BLOCK,GROUND,TERMINALAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Circuit, breaker, 2p, 40a, ul489, ab

Ref 8

Graco 17A317
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

Graco Ckt Brkr C Kit, 1 Pole, 50A

Ref 9 · Graco 255026 · SKU 255026

$147.50

View Add to cart

Also on the Reactor 3 H-30, Reactor 2 E-30, Reactor 2 E-XP2 and 2 more.

Graco Circuit, breaker, 3p, 20a, ul489, ab

Ref 7

Graco 17G724
KIT,CIRCUIT, BREAKER, 3P, 20AAsk for a price

Graco Switch, rotary disconnect

Ref 11

Graco 132801
SWITCH,ROTARY DISCONNECT,3P,100AAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Switch, fourth-pole

Ref 12

Graco 132802
SWITCH,FOURTH POLE,100A,UL98Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Module, sys srg prot

Ref 13

Graco 2007103 replaces 16U530
KIT,MODULE, SYS SRG PROTAsk for a price

Graco has replaced this part. Order the new number; the old one is kept here so it can still be found.

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

Graco Power Supply, 24V

Ref 6 · Graco 126453 · SKU 126453

$235.00

View Add to cart

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

Graco 6-pin connector, tcm

Ref 15

Graco 133470PKG
CONNECTOR,PLUG,3.81MM,6 POSITIONAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco 3-pin connector, tcm

Ref 16

Graco 133469PKG
CONNECTOR,PLUG,10.16MM,3 POSITIONAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco 7-pin connector, tcm

Ref 14

Graco 133472PKG
CONNECTOR,PLUG,10.16MM,7 POSITIONAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Bracket, din rail

Ref 2

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

Graco Tie, cable, fir tree

Ref 34

Graco 125625
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

Graco Trim, edge protection

Ref 19

Graco 114225
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

Graco Screw, mach, phil, pan, #10

Ref 3

Graco 116610
SCREW, MACH, PHILLIPS PAN HD, #10Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Nut, keps, hex hd

Ref 4

Graco 113505
Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

Graco Rail, mount

Ref 1

Graco prints no part number for this reference — it is supplied as part of the assembly rather than on its own.

Ask us

Graco Reactor 3 H-50 Ship loose parts parts diagram

Graco Jacket, scuff, machine joint

Ref 87

Graco 18D240PKG
JACKET,SCUFF,R3,MACHINE JOINTAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

77,78

Refs 77,78

2 parts on one leader

Graco Bracket, wall mount, left

Ref 77

Graco 18E266
KIT, WALL BRACKETAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Bracket, wall mount, right

Ref 78

Graco 18E266

Supplied as a pair in the wall bracket kit, with the left-hand bracket (ref 77).

Ask us

Graco Bar, 55 gallon chemical measure, b side

Ref 65

Graco 24M174

Supplied as a pair in the drum level kit, with the A-side bar (ref 64).

Ask us

Graco Bar, 55 gallon chemical measure, a side

Ref 64

Graco 24M174
KIT,DRUM LEVEL, METALAsk for a price

Also on the Reactor 3 E-30, Reactor 3 E-20, Reactor 3 H-30 and 2 more.

Graco Fluid, tsl, 8 oz bottle

Ref 93

Graco 206994
TSL Throat Seal Liquid, 8 oz (sold in multiples of 6)Ask for a price

Also on the Reactor 2 E-30, Reactor 2 E-XP2, Reactor 3 E-30 and 2 more.

Graco Fluid, tsl, 32 oz bottle

Ref 23

Graco 25T859
FLUID, 25 OZ (750 ML) (sold in multiples of 6)Ask for a price

Also on the Reactor 3 E-30, Reactor 3 E-20 and Reactor 3 H-30.

Graco Reactor 3 H-50 TSL system kit parts diagram

Graco Kit, clip, snap in

Ref 58

Graco 2010679
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, grommet, 1/2 id

Ref 57

Graco 2010678
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, cap, bottle, tsl

Ref 30

Graco 2010568
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, grommet, 3/8 id

Ref 56

Graco 2010677
Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, tube, 3/8 od, tsl

Ref 59

Graco 2010680
KIT,TUBE,3/8 OD,TSL,HR3Ask for a price

Also on the Reactor 3 H-30.

Graco Kit, clip, snap in

Ref 58

Graco 2010679
Ask for a price

Also on the Reactor 3 H-30.

Resources

Service Parts, Manuals & the Machine

Service & Wear PartsManuals & DocumentsBuy the Machine

What a hydraulic Reactor gets through: the hydraulic filter and TSL at every service, the heater RTD and burst disc, the drain valve cartridge and the display.

Graco Heater RTD Kit

Graco 24L973 · SKU 57353

$620.00

Add to cart

Graco Burst Disc Kit

Graco 247520 · SKU 247520

$233.00

Add to cart

Graco Valve Drain Cartridge 247824 Kit

Graco 247824 · SKU 60522

$401.00

Add to cart

Graco Power Supply, 24V

Graco 126453 · SKU 126453

$235.00

Add to cart

Graco Module Gca Adm 2 Kit, 9 in

Graco 18E139 · SKU 60356

$671.00

Add to cart

Graco Tsl, 1 Quart Bottle

Graco 206995 · SKU 206995

$47.90

Add to cart

Rebuilding something not listed here? Tell us what you need and we will quote it.

Repair & Parts ManualGraco X024616 Operation ManualGraco 3A8500H Safety Warnings & Isocyanate Informationmanual p. 22 H-50 parts listsmanual p. 76 Reactor Parts & Accessories BrochureGraco 349104

PDFs open in a new tab. The reference numbers on the diagram above match manual X024616.

The complete Reactor 3 H-50. Machines are ordered in — ask us for current lead time.

Buy this machine

Graco Reactor 3 H-50 Elite Tier Spray Foam Proportioner Package, 300 ft External Heated Hose, 20 ft Xcelerator Whip Hose, 230V

SKU EHR377

$68,980.00

View machine →

Machines are usually special order. Ask us for availability and lead time.

29 of 199 dots are priced online. The rest we quote. Reference numbers match Graco manual X024616.

Ref	Assembly	Part	Graco #	SKU	Price
1	The machine	KIT, MODULE, HCM2	2010146	—	Ask us	Ask
2	The machine	KIT,PUMP,HYDRL,W/ISO AND RESIN 120	2010491	—	Ask us	Ask
3	The machine	KIT,TSL,SYSTEM,HR3	2010494	—	Ask us	Ask
4	The machine	Graco Flanged Hex HD Screw	113796	60511	$2.75	Add
5	The machine	Graco Flanged Hex HD Screw	113796	60511	$2.75	Add
6	The machine	Graco Flanged Hex HD Screw	113796	60511	$2.75	Add
7	The machine	KIT,COVER, TRANSFORMER, FRONT	2010499	—	Ask us	Ask
8	The machine	KIT,COVER, TRANSFORMER, REAR	2010500	—	Ask us	Ask
9	The machine	KIT,TRANSFORMER, 5400 VA,230/120	2010501	—	Ask us	Ask
10	The machine	KIT,VALVE,EPR	2010502	—	Ask us	Ask
10a	The machine	KIT,FITTING,ELBOW,-6 JIC X -6 BSPT	2010681	—	Ask us	Ask
11	The machine	KIT,UPPER,MPR	2010503	—	Ask us	Ask
12	The machine	KIT,LOWER,MPR	2010504	—	Ask us	Ask
13	The machine	KIT, RADIATOR	2010513	—	Ask us	Ask
13a	The machine	KIT,FITTING,ELBOW,-6 JIC X -6 BSPT	2010681	—	Ask us	Ask
13b	The machine	SCREW, MACHINE TRUSS HD	112598	—	Ask us	Ask
14	The machine	KIT,RESERVOIR	2010514	—	Ask us	Ask
14a	The machine	SCREW, CAP, HEX HD	110982	—	Ask us	Ask
14b	The machine	WASHER, LOCK	100016	—	Ask us	Ask
14c	The machine	WASHER, #10 SAE (3/16) FLAT	100086	—	Ask us	Ask
15	The machine	KIT,FAN	2010515	—	Ask us	Ask
15a	The machine	SCREW, MACH, PNH	110037	—	Ask us	Ask
15b	The machine	SCREW, MACH	112381	—	Ask us	Ask
16	The machine	KIT,GUARD,FAN	2010516	—	Ask us	Ask
17	The machine	KIT,MODULE,EMI FILTER	2010528	—	Ask us	Ask
18	The machine	KIT,EDX	2010529	—	Ask us	Ask
19	The machine	KIT,BRACKET,EPR	2010530	—	Ask us	Ask
20	The machine	KIT,BRACKET,MPR	2010531	—	Ask us	Ask
21	The machine	KIT,CABLE,THERMISTOR	2010534	—	Ask us	Ask
22	The machine	KIT,HARNESS,FAN	2010535	—	Ask us	Ask
23	The machine	KIT,HOSE,GAUGE,PRESSURE	2010560	—	Ask us	Ask
24	The machine	KIT,HOSE,HYDRAULIC,SUPPLY,EPR	2010561	—	Ask us	Ask
25	The machine	KIT,HOSE,HYDRAULIC,SUPPLY,PUMP OUTLET	2010562	—	Ask us	Ask
26	The machine	KIT,HOSE,HYDRAULIC,SUPPLY,TANK INLET	2010563	—	Ask us	Ask
27	The machine	KIT,HOSE,HYDRAULIC,COOLER,INLET	2010564	—	Ask us	Ask
28	The machine	KIT,HOSE,HYDRAULIC,COOLER,OUTLET	2010565	—	Ask us	Ask
29	The machine	KIT,HOSE,COUPLED,PUMP INLET	2010566	—	Ask us	Ask
30	The machine	KIT,HOSE,COUPLED,PUMP INLET	2010566	—	Ask us	Ask
30a	The machine	KIT,GROMMET,1/2 ID	2010678	—	Ask us	Ask
30b	The machine	KIT,GROMMET,3/8 ID	2010677	—	Ask us	Ask
31	The machine	LABEL,BRANDING,R3, H-50 ELITE	2008930	—	Ask us	Ask
32	The machine	KIT,ADAPTER,HYDRO GAUGE	17V497	—	Ask us	Ask
33	The machine	KIT,REPAIR,R3,OUTLET MANIFOLD	18E207	—	Ask us	Ask
34	The machine	KIT,METER,FLOW,R3	18E136	—	Ask us	Ask
35	The machine	KIT,MANIFOLD,HYD,HR2	17G531	—	Ask us	Ask
36	The machine	KIT,COVER,HYDRO PUMP,CLEAR	17V459	—	Ask us	Ask
37	The machine	KIT,STRAINER,R3,PAIR,ELITE	18E247	—	Ask us	Ask
48	The machine	KIT,FITTING,STRAIGHT,-6 JIC X -6 BSPT	2010669	—	Ask us	Ask
50	The machine	KIT,STRAINER,SUCTION,1-1/2 NPT X 3/4 NPT	2010671	—	Ask us	Ask
51	The machine	KIT,BRACKET,PIVOT,LEFT & RIGHT	2010672	—	Ask us	Ask
52	The machine	KIT,FRAME,PAINTED,HR3	2010673	—	Ask us	Ask
53	The machine	KIT,CAP,BREATHER,FILLER	2010674	—	Ask us	Ask
54	The machine	KIT,SHIM,ENCLOSURE	2010675	—	Ask us	Ask
55	The machine	KIT,VALVE,CHECK	2010676	—	Ask us	Ask
56	The machine	KIT,GROMMET,3/8 ID	2010677	—	Ask us	Ask
57	The machine	KIT,GROMMET,1/2 ID	2010678	—	Ask us	Ask
58	The machine	KIT,CLIP,SNAP IN	2010679	—	Ask us	Ask
59	The machine	KIT,TUBE,3/8 OD,TSL,HR3	2010680	—	Ask us	Ask
60	The machine	KIT,FITTING,ELBOW,-6 JIC X -6 BSPT	2010681	—	Ask us	Ask
61	The machine	Graco Label, safety, includes 61a, 61b, 61c and 61d	25T998	—	Not sold separately	Ask
61a	The machine	Graco Label, danger, warning	—	—	Ask us	Ask
61b	The machine	Graco Label, shock, warning	—	—	Ask us	Ask
61c	The machine	Graco Label, hot surface, warning	—	—	Ask us	Ask
61d	The machine	Graco See electrical enclosure parts	—	—	Ask us	Ask
62	The machine	Graco Fltr Oil Kit, 18-23 PSI Bypass 247792	247792	247792	$68.50	Add
39	Driver & pumps	KIT,PUMP,ELITE,H-50/H-XP3 230V	2010507	—	Ask us	Ask
40	Driver & pumps	KIT,MOTOR,4HP,60HZ	2010521	—	Ask us	Ask
41	Driver & pumps	KIT,COUPLER,3/4,KEYED	2010524	—	Ask us	Ask
42	Driver & pumps	KIT,COUPLER,1-1/8,KEYED	2010525	—	Ask us	Ask
43	Driver & pumps	KIT,SPIDER	2010526	—	Ask us	Ask
44	Driver & pumps	KIT,COUPLER,MOTOR/PUMP ADAPTER	2010527	—	Ask us	Ask
45	Driver & pumps	KIT,FLANGE,PUMP INLET	2010532	—	Ask us	Ask
46	Driver & pumps	KIT,FLANGE,PUMP OUTLET	2010533	—	Ask us	Ask
47a	Driver & pumps	SCREW,CAP,SOCKET HD	C19988	—	Ask us	Ask
47b	Driver & pumps	KIT,BRACKET,EPR	2010530	—	Ask us	Ask
47c	Driver & pumps	KIT,MPR TO EPR CONVERSION,H-50/H-XP3 230V	2010519	—	Ask us	Ask
47d	Driver & pumps	KIT,MPR TO EPR CONVERSION,H-50/H-XP3 400V	2010520	—	Ask us	Ask
49	Driver & pumps	KIT,FITTING,ELBOW,-16 JIC X -16 ORB	2010670	—	Ask us	Ask
61b	Driver & pumps	Graco Label, shock, warning	25T998	—	Not sold separately	Ask
201	Heater	Graco Block, heater, machined, dual 1 1	—	—	Ask us	Ask
202	Heater	FITTING,PLUG HOLOW HEX 1-3/16 SAE	15H305	—	Ask us	Ask
203	Heater	HEATER, IMMERSION, 2400W, 230V	18C668	—	Ask us	Ask
204	Heater	Graco O-Ring – 124132 – #315	124132	124132	$3.10	Add
205	Heater	SPRING,MIXER,HEATER	18B279	—	Ask us	Ask
206	Heater	Graco Thermocouple Adapter	15H306	60414	$91.25	Add
207	Heater	O-RING,PACKING	120336	—	Ask us	Ask
208	Heater	Graco Conn Fitting, 3/4SAE X 1/2 JIC	121309	121309	$21.50	Add
209	Heater	FITTING,PLUG 9/16 SAE	15H304	—	Ask us	Ask
210	Heater	Graco Burst Disc Kit	247520	247520	$233.00	Add
211	Heater	PLUG,HEX	295607	—	Ask us	Ask
212	Heater	FITTING,COMPRESSION,1/8NPT,SS	123325	—	Ask us	Ask
213	Heater	Graco Heater RTD Kit	24L973	57353	$620.00	Add
214	Heater	KIT,SWITCH, OVER TEMP.	2007109	—	Ask us	Ask
215	Heater	Graco Screw, mach, pnh 1 1	124131	—	Ask us	Ask
216	Heater	Graco Elbow MA Fitting, 3/4SAE X 1/2J	121312	121312	$12.40	Add
218	Heater	Graco Lubricant, temporary assembly 1 1	—	—	Ask us	Ask
219	Heater	Graco Sealant, pipe, sst 1 1	—	—	Ask us	Ask
220	Heater	Graco Lubricant, thermal 1 1	—	—	Ask us	Ask
401	Fluid manifold	Graco Housing, outlet	—	—	Ask us	Ask
402	Fluid manifold	Graco Valve Drain Cartridge 247824 Kit	247824	60522	$401.00	Add
403	Fluid manifold	Graco Compression Spring	150829	150829	$11.40	Add
404	Fluid manifold	HANDLE, RED	15J915	—	Ask us	Ask
405	Fluid manifold	HANDLE,BLUE	15J916	—	Ask us	Ask
406	Fluid manifold	Graco Hex Jam Nut	112309	112309	$6.45	Add
407	Fluid manifold	FITTING, ELBOW, STREET	100840	—	Ask us	Ask
408	Fluid manifold	FITTING, (1/4 NPSM X 1/4 NPT)	162453	—	Ask us	Ask
409	Fluid manifold	FITTING,ELBOW, JIC-8 X ORB-8	132443	—	Ask us	Ask
410	Fluid manifold	FITTING,ELBOW, JIC-10 X ORB-8	132513	—	Ask us	Ask
411	Fluid manifold	FITTING, TEE, ORB-8, JIC-8, 1/4-NPT	132173	—	Ask us	Ask
412	Fluid manifold	TRANSDUCER,PRESSURE,5000 PSIG	18B074PKG	—	Ask us	Ask
413	Fluid manifold	Graco Qfluid 102814 Gauge, 5000PSI	102814	102814	$108.50	Add
414	Fluid manifold	Graco Lubricant, grease (not shown)	—	—	Ask us	Ask
415	Fluid manifold	Graco Tape, tfe, sealant (not shown)	—	—	Ask us	Ask
416	Fluid manifold	Graco Sealant, pipe, sst (not shown)	—	—	Ask us	Ask
417	Fluid manifold	Graco Sealant, anaerobic, blue (not shown)	—	—	Ask us	Ask
61d	Electrical enclosure	Graco Label, ground, warning	25T998	—	Not sold separately	Ask
501	Electrical enclosure	Graco Enclosure, weldment, painted	—	—	Ask us	Ask
502	Electrical enclosure	Graco Module, din rail	—	—	Ask us	Ask
503	Electrical enclosure	KIT,MODULE,GCA,MZHP2,R3	25P036	—	Ask us	Ask
504	Electrical enclosure	Graco Label, installation	—	—	Ask us	Ask
505	Electrical enclosure	KIT, MODULE, HCM2	2010146	—	Ask us	Ask
506	Electrical enclosure	TERMINAL, GROUND	117666	—	Ask us	Ask
507	Electrical enclosure	NUT,KEPS,HEX HD	113505	—	Ask us	Ask
508	Electrical enclosure	NUT, HEX, FLANGE HEAD	115942	—	Ask us	Ask
509	Electrical enclosure	Graco Bracket, mov	—	—	Ask us	Ask
510	Electrical enclosure	SCREW MACH,PNH,SEMS	114331	—	Ask us	Ask
511	Electrical enclosure	Graco Plate, cover, painted	—	—	Ask us	Ask
512	Electrical enclosure	Graco Screw, mach, pan head, #4-40 x 3/8"	107388	—	Not sold separately	Ask
514	Electrical enclosure	SCREW, MACH, PNHD	110637	—	Ask us	Ask
518	Electrical enclosure	BUMPER,ENCLOSURE DOOR,R3	18C189	—	Ask us	Ask
519	Electrical enclosure	SCREW, MACH, PAN HD	102790	—	Ask us	Ask
520	Electrical enclosure	TRIM,EDGE PROTECTION	114225	—	Ask us	Ask
521	Electrical enclosure	KIT, BUSHING, STRAIN RLF, M40	255047	—	Ask us	Ask
522	Electrical enclosure	Graco Nut, strain relief, m40 thread	120859	—	Not sold separately	Ask
523	Electrical enclosure	KNOB, DOOR INTERLOCKED	18B671	—	Ask us	Ask
524	Electrical enclosure	SHAFT,DOOR INTERLOCKED	18B672	—	Ask us	Ask
525	Electrical enclosure	Graco Door, stamped, painted	—	—	Ask us	Ask
526	Electrical enclosure	Graco Foam, enlcosure	—	—	Ask us	Ask
527	Electrical enclosure	Graco Latch, Door 16W596	16W596	60260	$42.40	Add
528	Electrical enclosure	Graco Module Gca Adm 2 Kit, 9 in	18E139	60356	$671.00	Add
529	Electrical enclosure	Graco Pin, weld hinge	—	—	Ask us	Ask
530	Electrical enclosure	Graco Ring, retaining, e-ring, 9/64"	—	—	Ask us	Ask
531	Electrical enclosure	Graco Wire, grounding, door	194337	—	Not sold separately	Ask
532	Electrical enclosure	Graco Plate, enclosure guard	—	—	Ask us	Ask
533	Electrical enclosure	ANTENNA,GPS	132949PKG	—	Ask us	Ask
534	Electrical enclosure	ANTENNA,CELLULAR	132948PKG	—	Ask us	Ask
535	Electrical enclosure	CABLE,CAN,FEMALE/FEMALE 0.9M	18D084	—	Ask us	Ask
536	Electrical enclosure	Graco Cable, can, female/ female 0.6m (not shown)	—	—	Ask us	Ask
537	Electrical enclosure	KIT,R3,ELECTRICAL CONNECTOR	18E184	—	Ask us	Ask
544	Electrical enclosure	CABLE,4 PIN,MALE/90DEG FEM 1.0M	18D295	—	Ask us	Ask
601	Inlet strainers	HOUSING,STRAINER, BARE	18D179	—	Ask us	Ask
602	Inlet strainers	KIT, CAP, INLET STRAINER	18E271	—	Ask us	Ask
603	Inlet strainers	INSERT, MANIFOLD	15E288	—	Ask us	Ask
604	Inlet strainers	FILTER,FLUID, 30 MESH	132675	—	Ask us	Ask
605	Inlet strainers	FITTING,ELBOW, ORB-10 X 3/4 NPSM	132437	—	Ask us	Ask
606	Inlet strainers	FITTING, PIPE, NIPPLE, 3/4 X 3/4 NPT	119992	—	Ask us	Ask
607	Inlet strainers	Graco Ball 3/4 NPT Fem Valve, 6000PSI	109077	109077	$126.50	Add
608	Inlet strainers	Graco Union Swivel Fitting, 3/4″	118459	118459	$19.80	Add
609	Inlet strainers	Trabon MGO Divider Valve Port Plug	556424	—	Ask us	Ask
610	Inlet strainers	KIT,GAUGE,R3,INLET,PRESSURE	18E272	—	Ask us	Ask
611	Inlet strainers	Graco Plug Pipe Headles	104765	104765	$17.80	Add
612	Inlet strainers	KIT,R3,TEMP SENSOR	20B457	—	Ask us	Ask
612a	Inlet strainers	Graco Packing O-Ring P2 Air Control	106555	56677	$5.60	Add
614	Inlet strainers	PLUG, PIPE	100737	—	Ask us	Ask
615	Inlet strainers	INSERT,THREAD, CAP, STRAINER, R3	133171	—	Ask us	Ask
616	Inlet strainers	O-RING,125, FX75	132444	—	Ask us	Ask
617	Inlet strainers	PACKING, O-RING	107067	—	Ask us	Ask
618	Inlet strainers	PACKING, O-RING	C24035	—	Ask us	Ask
619	Inlet strainers	Graco Sealant, pipe, sst (not shown)	—	—	Ask us	Ask
620	Inlet strainers	Graco Lubricant, grease (not shown)	—	—	Ask us	Ask
621	Inlet strainers	Graco Adhesive, epoxy, gray (not shown)	—	—	Ask us	Ask
1	Rail module	Graco Rail, mount	—	—	Ask us	Ask
2	Rail module	Graco Bracket, din rail	—	—	Ask us	Ask
3	Rail module	SCREW, MACH, PHILLIPS PAN HD, #10	116610	—	Ask us	Ask
4	Rail module	NUT,KEPS,HEX HD	113505	—	Ask us	Ask
5	Rail module	KIT, BLOCK, CLAMP END	255045 was 120838	—	Ask us	Ask
6	Rail module	Graco Power Supply, 24V	126453	126453	$235.00	Add
7	Rail module	KIT,CIRCUIT, BREAKER, 3P, 20A	17G724	—	Ask us	Ask
8	Rail module	CIRCUIT,BREAKER, 2P,40A, UL489,AB	17A317	—	Ask us	Ask
9	Rail module	Graco Ckt Brkr C Kit, 1 Pole, 50A	255026	255026	$147.50	Add
10	Rail module	BLOCK,GROUND,TERMINAL	132931	—	Ask us	Ask
11	Rail module	SWITCH,ROTARY DISCONNECT,3P,100A	132801	—	Ask us	Ask
12	Rail module	SWITCH,FOURTH POLE,100A,UL98	132802	—	Ask us	Ask
13	Rail module	KIT,MODULE, SYS SRG PROT	2007103 was 16U530	—	Ask us	Ask
14	Rail module	CONNECTOR,PLUG,10.16MM,7 POSITION	133472PKG	—	Ask us	Ask
15	Rail module	CONNECTOR,PLUG,3.81MM,6 POSITION	133470PKG	—	Ask us	Ask
16	Rail module	CONNECTOR,PLUG,10.16MM,3 POSITION	133469PKG	—	Ask us	Ask
19	Rail module	TRIM,EDGE PROTECTION	114225	—	Ask us	Ask
34	Rail module	TIE, CABLE, FIR TREE	125625	—	Ask us	Ask
23	Ship loose	FLUID, 25 OZ (750 ML) (sold in multiples of 6)	25T859	—	Ask us	Ask
64	Ship loose	KIT,DRUM LEVEL, METAL	24M174	—	Ask us	Ask
65	Ship loose	Graco Bar, 55 gallon chemical measure, b side	—	—	Ask us	Ask
77	Ship loose	KIT, WALL BRACKET	18E266	—	Ask us	Ask
78	Ship loose	Graco Bracket, wall mount, right	—	—	Ask us	Ask
87	Ship loose	JACKET,SCUFF,R3,MACHINE JOINT	18D240PKG	—	Ask us	Ask
93	Ship loose	TSL Throat Seal Liquid, 8 oz (sold in multiples of 6)	206994	—	Ask us	Ask
3	TSL system kit	KIT,TSL,SYSTEM,HR3	2010494	—	Ask us	Ask
30	TSL system kit	KIT,CAP,BOTTLE,TSL	2010568	—	Ask us	Ask
56	TSL system kit	KIT,GROMMET,3/8 ID	2010677	—	Ask us	Ask
57	TSL system kit	KIT,GROMMET,1/2 ID	2010678	—	Ask us	Ask
58	TSL system kit	KIT,CLIP,SNAP IN	2010679	—	Ask us	Ask
59	TSL system kit	KIT,TUBE,3/8 OD,TSL,HR3	2010680	—	Ask us	Ask
