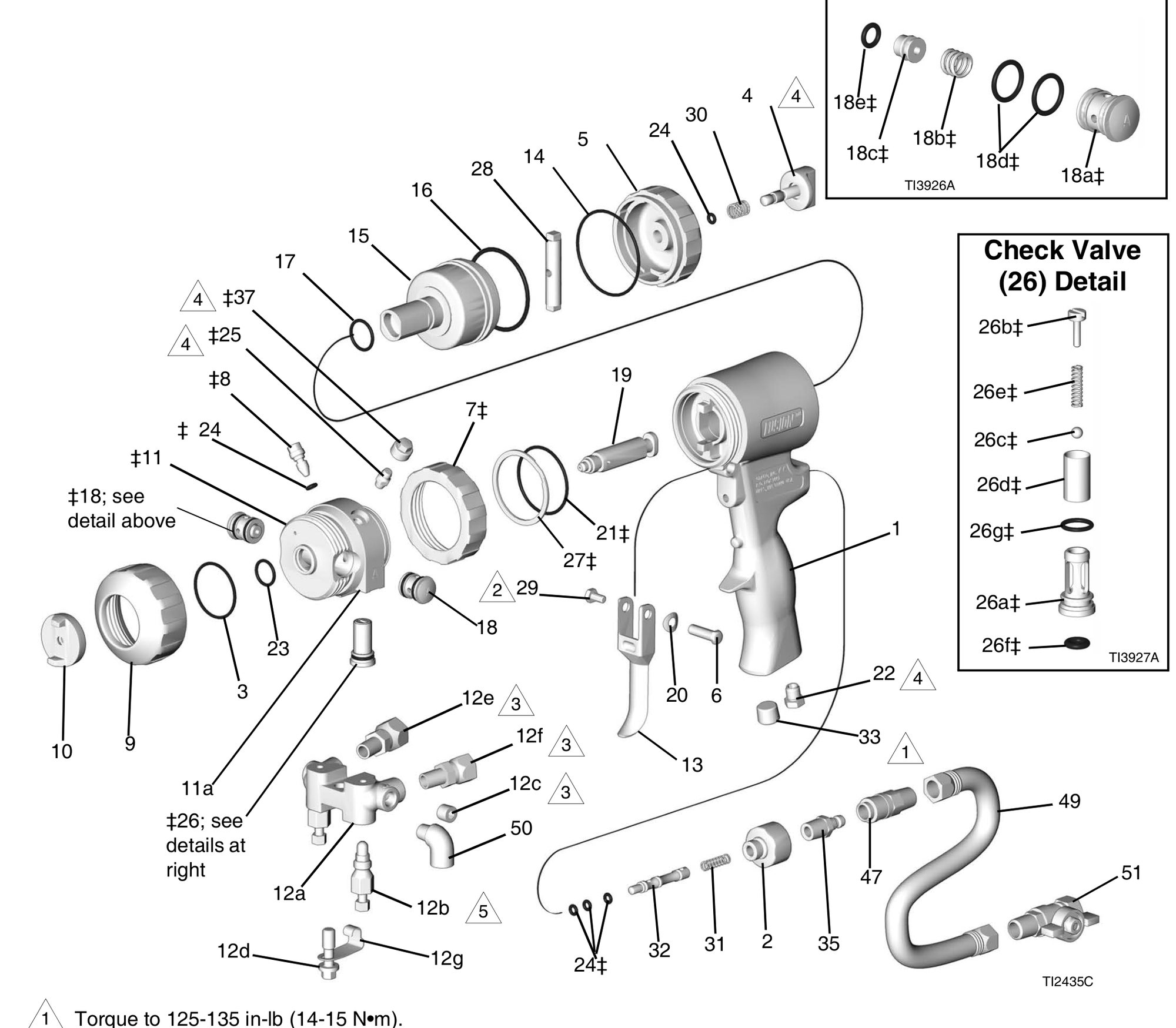

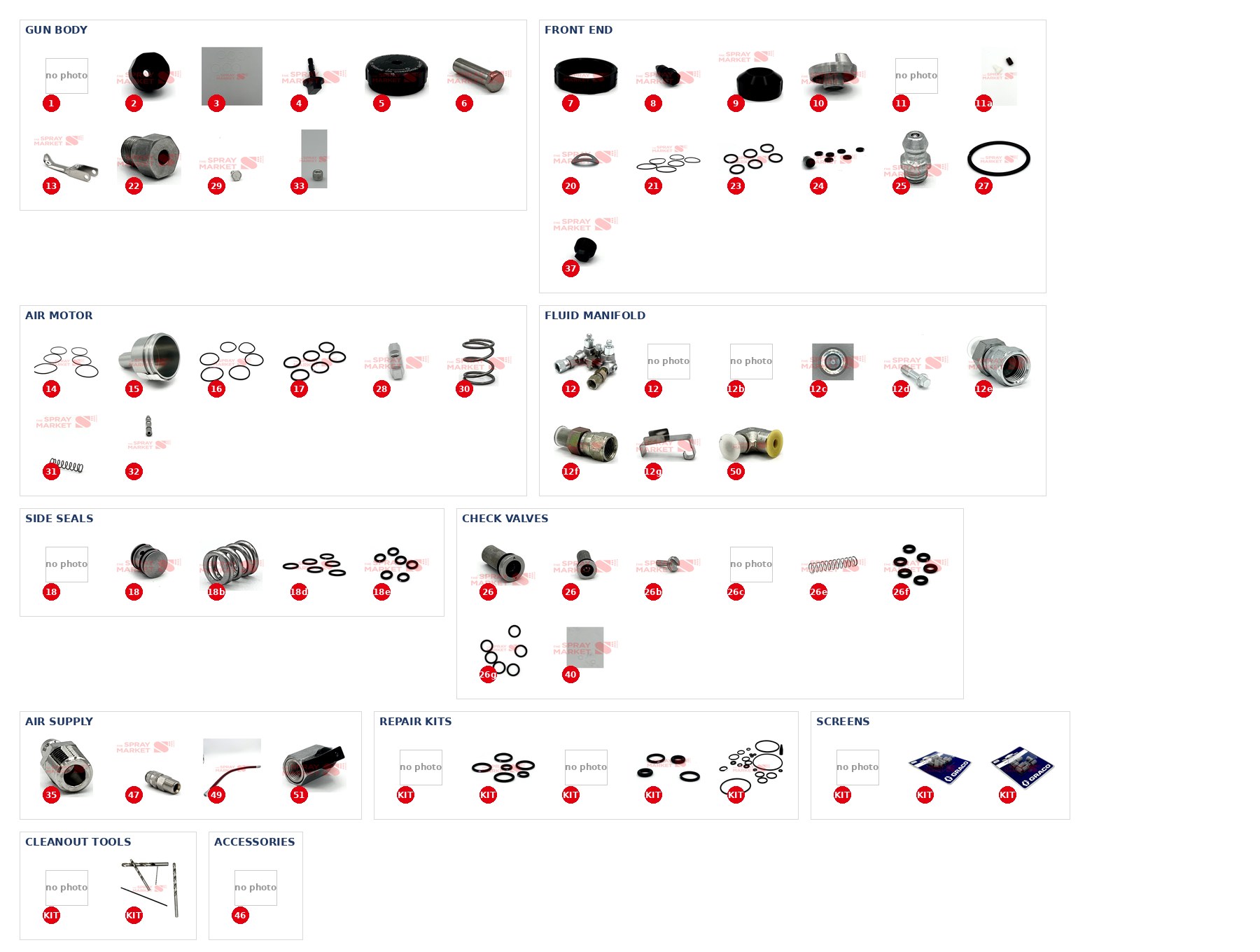

Graco Fusion AP Parts Diagram

18e

Graco 248128 – 6-111450SIDE Seal Org #35 #18E

Ref 18e · Graco 248128 · SKU 248128

$52.75

Graco Spring #30

Ref 30 · Graco 114070 · SKU 114070

$20.60

Graco Repair Kit, #007 O-Rings #24

Ref 24 · Graco 246354 · SKU 246354

$25.20

18b

Graco Spring Side Seal #18b

Ref 18b · Graco 117491 · SKU 117491

$6.85

Graco Cylinder Gun Cap

Ref 5 · Graco 15B204 · SKU 18990

$155.50

18c

Graco Seal kit, see side seal kits, page

Ref 18c

SEAL KIT, see Side Seal Kits, page.

Supplied inside its assembly — tell us the gun and we will work out what you need.

Graco O-ring, cylinder cap, package of 6

Ref 14 · Graco 248136

O-RING, cylinder cap, package of 6.

Not listed online yet — we can order it for you.

18d

Graco 248130 – 6-117724 Hsg O-Ring #7 #18d

Ref 18d · Graco 248130 · SKU 248130

$67.75

Graco Stop, Piston #28

Ref 28 · Graco 15B205 · SKU 18937

$24.10

18a

Graco Cartridge body

Ref 18a

CARTRIDGE BODY.

Supplied inside its assembly — tell us the gun and we will work out what you need.

Graco 6-Pack Bulk, LG Pstn O-Ring – #16*

Ref 16 · Graco 248135 · SKU 248135

$113.00

Graco Piston – #15

Ref 15 · Graco 15B203 · SKU 18989

$178.00

Graco 6-Pack Black, SM, AP Pstn Org – #17*

Ref 17 · Graco 248134 · SKU 248134

$47.30

Graco Cover Grease #37

Ref 37 · Graco 15B689 · SKU 56610

$26.90

26b

Graco Spring #26b Retaining Screw

Ref 26b · Graco 15B214 · SKU 18942

$19.70

Graco Grease Ref #25± & #12 Fitting

Ref 25 · Graco 100846 · SKU 100846

$7.50

Graco Chamber, mix

Ref 19

CHAMBER, mix.

Supplied inside its assembly — tell us the gun and we will work out what you need.

Graco Clean Off Air Valve – #8

Ref 8 · Graco 15B223 · SKU 19001

$30.70

26e

Graco Spring Check Valve #26e

Ref 26e · Graco 117490 · SKU 117490

$4.30

Graco Fusion Gun Ring Lock – #7

Ref 7 · Graco 15B215 · SKU 18998

$140.00

Graco Repair Kit, #007 O-Rings #24

Ref 24 · Graco 246354 · SKU 246354

$25.20

26c

Graco Accessry Check Ball 10K #26c Kit

Ref 26c · Graco 257420 · SKU 257420

$40.40

Graco Housing Fluid Assembly – #11

Ref 11 · Graco 246491 · SKU 246491

$679.00

26d

Graco Screen, see check valve filter screen kits, page 38

Ref 26d

SCREEN, see Check Valve Filter Screen Kits, page 38.

Supplied inside its assembly — tell us the gun and we will work out what you need.

Graco Fusion AP Gun Handle – #1

Ref 1 · Graco 15K365 · SKU 19004

$1,195.00

26g

Graco 248129 – 6-118594)BLKCK Valve Radseal #26g

Ref 26g · Graco 248129 · SKU 248129

$41.10

Graco 248132 – 6-Pack Black, Fluid Hsg Orng #21

Ref 21 · Graco 248132 · SKU 248132

$97.75

Graco Fusion Apgun Ring Retaining #27

Ref 27 · Graco 116550 · SKU 116550

$11.10

Graco Screw Cap Hex HD #29

Ref 29 · Graco 203953 · SKU 203953

$5.00

26a

Graco Housing

Ref 26a

HOUSING.

Supplied inside its assembly — tell us the gun and we will work out what you need.

Ref 18 — 2 versions

2 of 2 in stock

Graco A Cartridge #18 Repair Kit
Graco 246349$152.00 · Add

Graco B Cartridge #18 Repair Kit
Graco 246350$152.00 · Add

26f

Graco 248133 – (6-117520BLKCK Valve Face OR #26f

Ref 26f · Graco 248133 · SKU 248133

$79.25

Graco 248131 – 6 Air Cap SM Org #36 #23

Ref 23 · Graco 248131 · SKU 248131

$51.00

Graco Breather #22 Plug

Ref 22 · Graco 119626 · SKU 119626

$20.70

Graco Bulk PTFE Air Cap O-Ring #3 Kit

Ref 3 · Graco 248137 · SKU 248137

$43.80

Graco Washer Curve – #20

Ref 20 · Graco 15C480 · SKU 56608

$21.40

Graco Pin Pivot – #6

Ref 6 · Graco 192272 · SKU 192272

$26.60

12e

Graco Swivel U 4 Hose Manifold #4 #12e

Ref 12e · Graco 117634 · SKU 117634

$16.20

12f

Graco Swivel U 2 Hose Manifold #5 #12f

Ref 12f · Graco 117635 · SKU 117635

$16.80

Graco Pipe; 1/4-18 NPT #33 Plug

Ref 33 · Graco 100721 · SKU 100721

$16.70

Graco Ring Cartridge Retaining 15B211 – Cover – #9

Ref 9 · Graco 15B211 · SKU 18941

$214.00

Ref 10 — 3 versions

3 of 3 in stock

Graco Air Cap Round Pattern Guns #10
Graco 15B210$107.50 · Add

Graco Air Cap Flat Pattern Gun -#10
Graco 15B801$63.25 · Add

Graco Foam Adhesive Ait Cap
Graco 15D973$131.00 · Add

Graco Fusion Gun Trigger – #13

Ref 13 · Graco 15B209 · SKU 18994

$63.25

12c

Graco Pipe; 1/8-27 NPT Plug – #12c

Ref 12c · Graco 100139 · SKU 100139

$7.40

11a

Graco Thread Insert Fusn Kit – Heely Coil

Ref 11a · Graco 248860 · SKU 248860

$30.70

Graco Hose Air, 18 Inc – #6* #49

Ref 49 · Graco 15B772 · SKU 56611

$41.30

Graco Street #50 Elbow Fitting

Ref 50 · Graco 112307 · SKU 56612

$25.00

Graco Ball Valve, 1/4 NPT #51

Ref 51 · Graco 15B565 · SKU 19002

$20.80

Graco Coupler Line, Air, 1/4NPT – #47

Ref 47 · Graco 117510 · SKU 117510

$52.00

12a

Graco Manifold

Ref 12a

MANIFOLD.

Supplied inside its assembly — tell us the gun and we will work out what you need.

12b

Graco Fluid Valve – #12b

Ref 12b · Graco 246356 · SKU 246356

$81.75

Graco Air Valve Plug – #2

Ref 2 · Graco 15B208 · SKU 18993

$39.00

Graco Air Line Fitting, 1/4NPT #35

Ref 35 · Graco 117509 · SKU 117509

$16.20

Graco Spring #31

Ref 31 · Graco 117485 · SKU 117485

$7.00

Graco Valve #32 Spool

Ref 32 · Graco 15B202 · SKU 18988

$29.50

12d

Graco Bolt 5/16 – #12d

Ref 12d · Graco 15B221 · SKU 19000

$27.90

12g

Graco Spring Ring Lock – #12g

Ref 12g · Graco 15B993 · SKU 56603

$48.60

Graco Repair Kit, #007 O-Rings #24

Ref 24 · Graco 246354 · SKU 246354

$25.20

Detail viewsDrawing from Graco manual 309550ZAT, page 35

Parts specific to the other models. Six separate assemblies — pick one.

All 6Flat PatternStud Wall FoamSplatter TipSupplied Tools4-Hose Fluid ManifoldFlush Manifold

Flat Pattern4 callouts Stud Wall Foam detail drawing

Stud Wall Foam5 callouts Splatter Tip detail drawing

Splatter Tip4 callouts Supplied Tools detail drawing

Supplied Tools3 callouts 4-Hose Fluid Manifold detail drawing

4-Hose Fluid Manifold9 callouts Flush Manifold detail drawing

Flush Manifold4 callouts

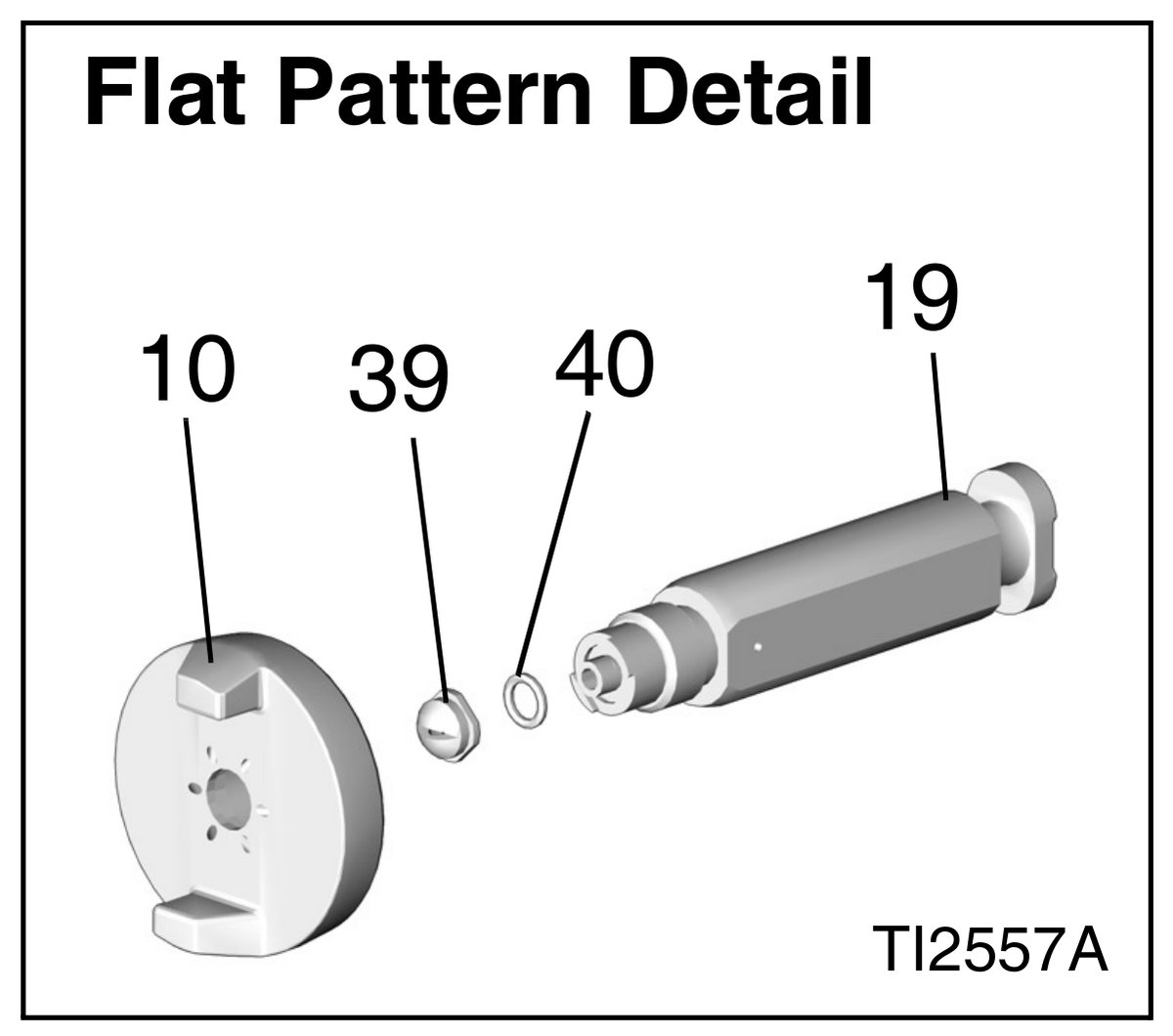

Graco Fusion AP Flat Pattern detail parts diagram

Graco Chamber, mix

Ref 19

CHAMBER, mix.

Supplied inside its assembly — tell us the gun and we will work out what you need.

Graco Repair FT O-Ring PTFE #40* Kit

Ref 40 · Graco 246360 · SKU 246360

$24.60

Ref 10 — 3 versions

3 of 3 in stock

Graco Air Cap Round Pattern Guns #10
Graco 15B210$107.50 · Add

Graco Air Cap Flat Pattern Gun -#10
Graco 15B801$63.25 · Add

Graco Foam Adhesive Ait Cap
Graco 15D973$131.00 · Add

Graco Tip, flat, see flat tip kits, page 37

Ref 39 · Graco FTxxxx

TIP, flat, see Flat Tip Kits, page 37.

Not listed online yet — we can order it for you.

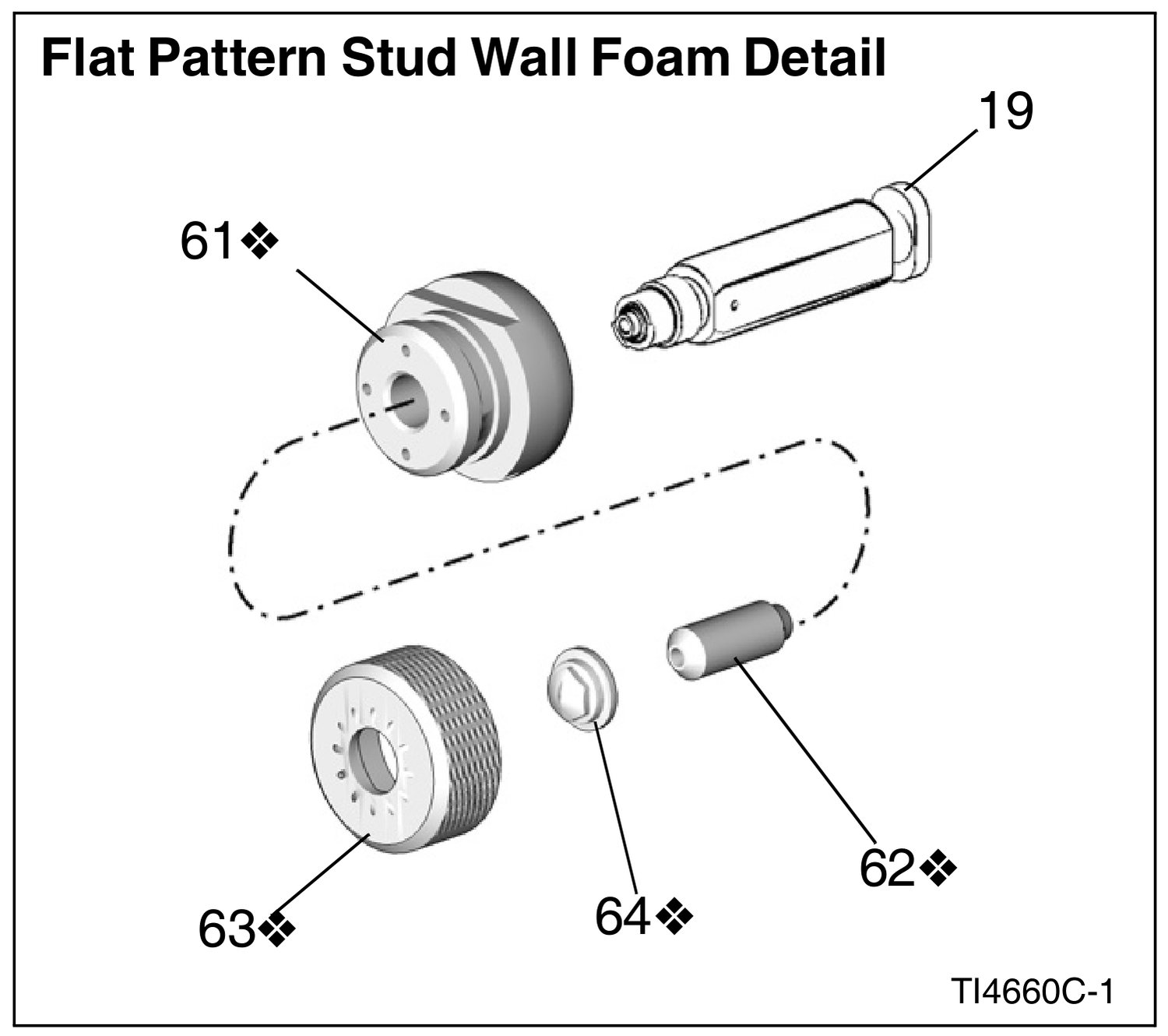

Graco Fusion AP Stud Wall Foam detail parts diagram

Graco Chamber, mix

Ref 19

CHAMBER, mix.

Supplied inside its assembly — tell us the gun and we will work out what you need.

Graco Adapter, stud wall

Ref 61 · Graco 15F240

ADAPTER, stud wall.

Not listed online yet — we can order it for you.

Graco Packing, tip, stud wall

Ref 62 · Graco 15F854

PACKING, tip, stud wall.

Not listed online yet — we can order it for you.

Graco Tip, flat, stud wall

Ref 64 · Graco FTM979

TIP, flat, stud wall.

Not listed online yet — we can order it for you.

Graco Cap, air, stud wall

Ref 63 · Graco 15F241

CAP, air, stud wall.

Not listed online yet — we can order it for you.

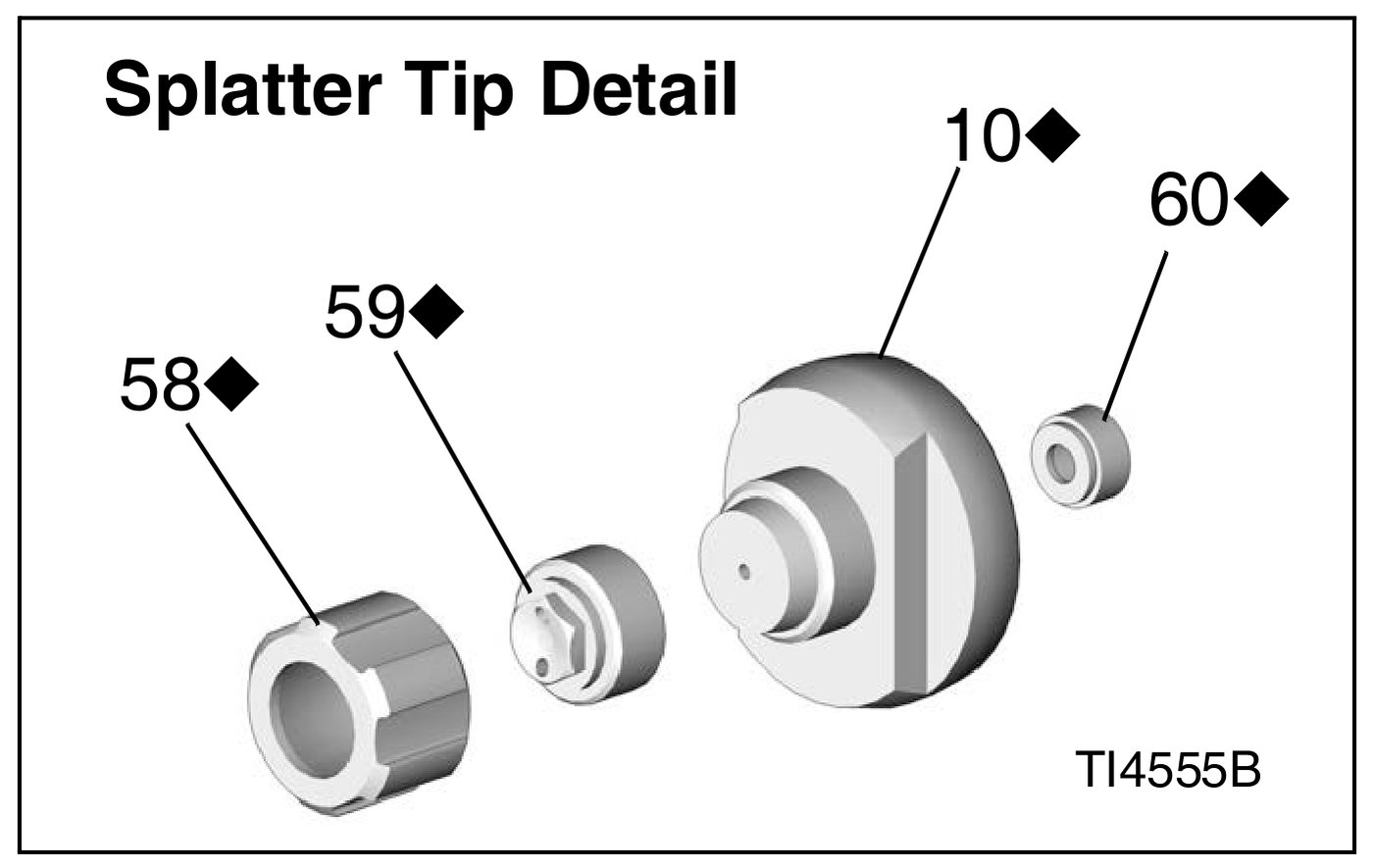

Graco Fusion AP Splatter Tip detail parts diagram

Ref 10 — 3 versions

3 of 3 in stock

Graco Air Cap Round Pattern Guns #10
Graco 15B210$107.50 · Add

Graco Air Cap Flat Pattern Gun -#10
Graco 15B801$63.25 · Add

Graco Foam Adhesive Ait Cap
Graco 15D973$131.00 · Add

Graco Accessory Extension. Seal Round 248019 Kit

Ref 60 · Graco 248019 · SKU 248019

$83.00

Graco Tip, spatter pattern gun only

Ref 59 · Graco 15D971

TIP, spatter pattern gun only.

Not listed online yet — we can order it for you.

Graco Retainer, tip, spatter pattern gun only

Ref 58 · Graco 15D972

RETAINER, tip, spatter pattern gun only.

Not listed online yet — we can order it for you.

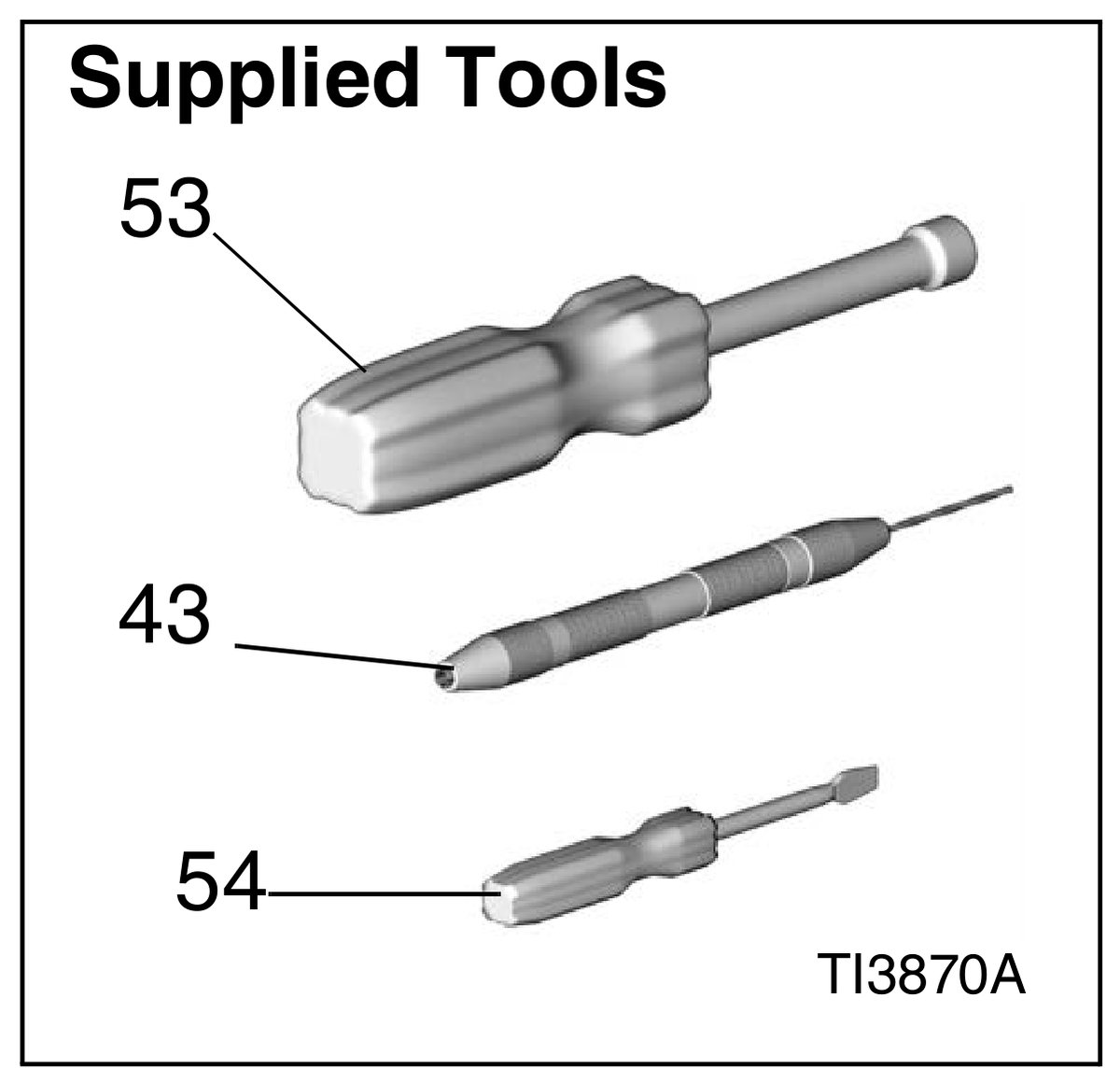

Graco Fusion AP Supplied Tools detail parts diagram

Graco Tool Driver, Nut

Ref 53 · Graco 117642 · SKU 117642

$24.90

Graco Vise, pin, dual reversible chucks

Ref 43 · Graco 117661

VISE, pin, dual reversible chucks.

Not listed online yet — we can order it for you.

Graco Tool Screwdriver, 1/8 BL

Ref 54 · Graco 118575 · SKU 56987

$5.70

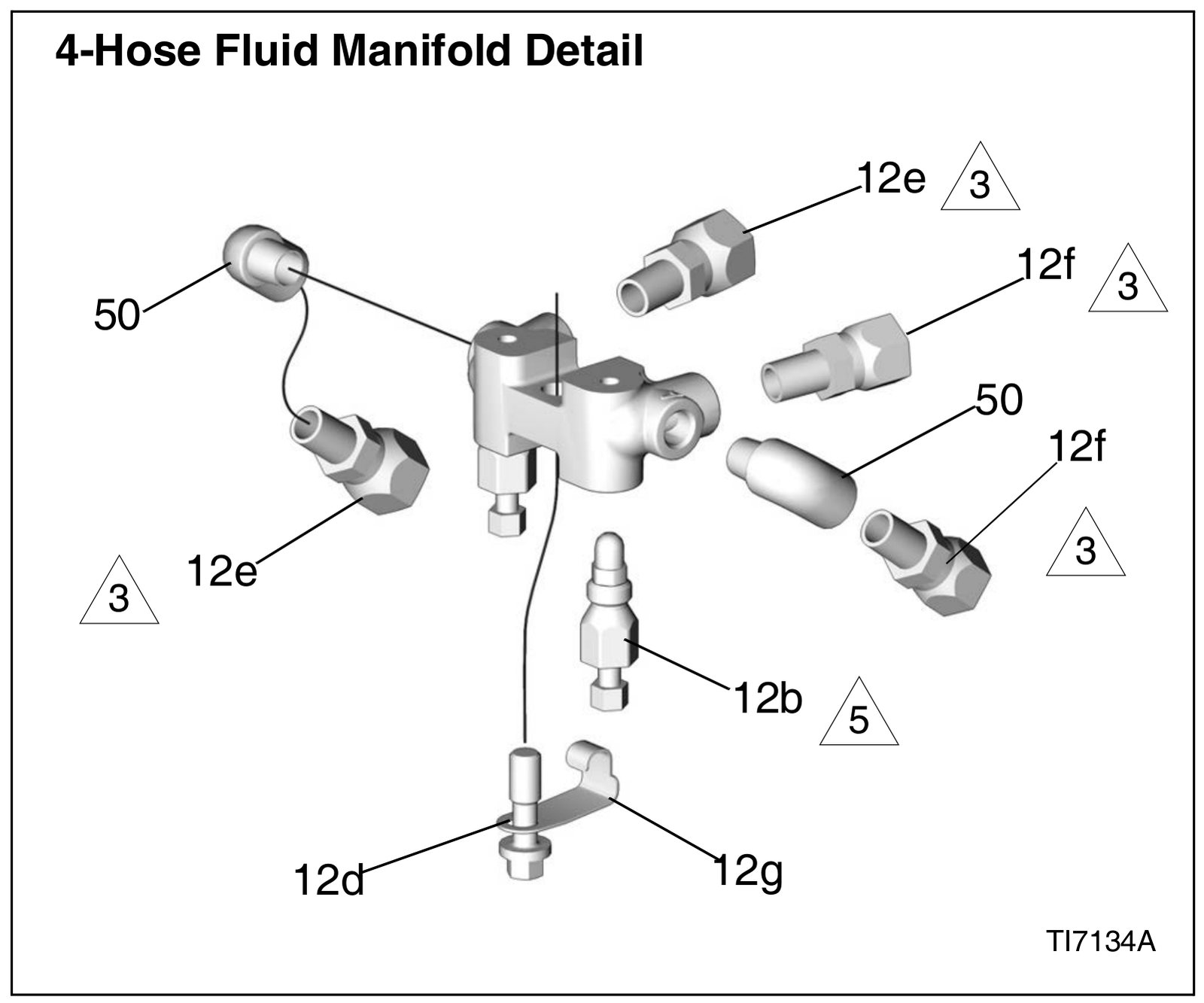

Graco Fusion AP 4-Hose Fluid Manifold detail parts diagram

12e

Graco Swivel U 4 Hose Manifold #4 #12e

Ref 12e · Graco 117634 · SKU 117634

$16.20

12f

Graco Swivel U 2 Hose Manifold #5 #12f

Ref 12f · Graco 117635 · SKU 117635

$16.80

Graco Street #50 Elbow Fitting

Ref 50 · Graco 112307 · SKU 56612

$25.00

Graco Street #50 Elbow Fitting

Ref 50 · Graco 112307 · SKU 56612

$25.00

12f

Graco Swivel U 2 Hose Manifold #5 #12f

Ref 12f · Graco 117635 · SKU 117635

$16.80

12e

Graco Swivel U 4 Hose Manifold #4 #12e

Ref 12e · Graco 117634 · SKU 117634

$16.20

12b

Graco Fluid Valve – #12b

Ref 12b · Graco 246356 · SKU 246356

$81.75

12g

Graco Spring Ring Lock – #12g

Ref 12g · Graco 15B993 · SKU 56603

$48.60

12d

Graco Bolt 5/16 – #12d

Ref 12d · Graco 15B221 · SKU 19000

$27.90

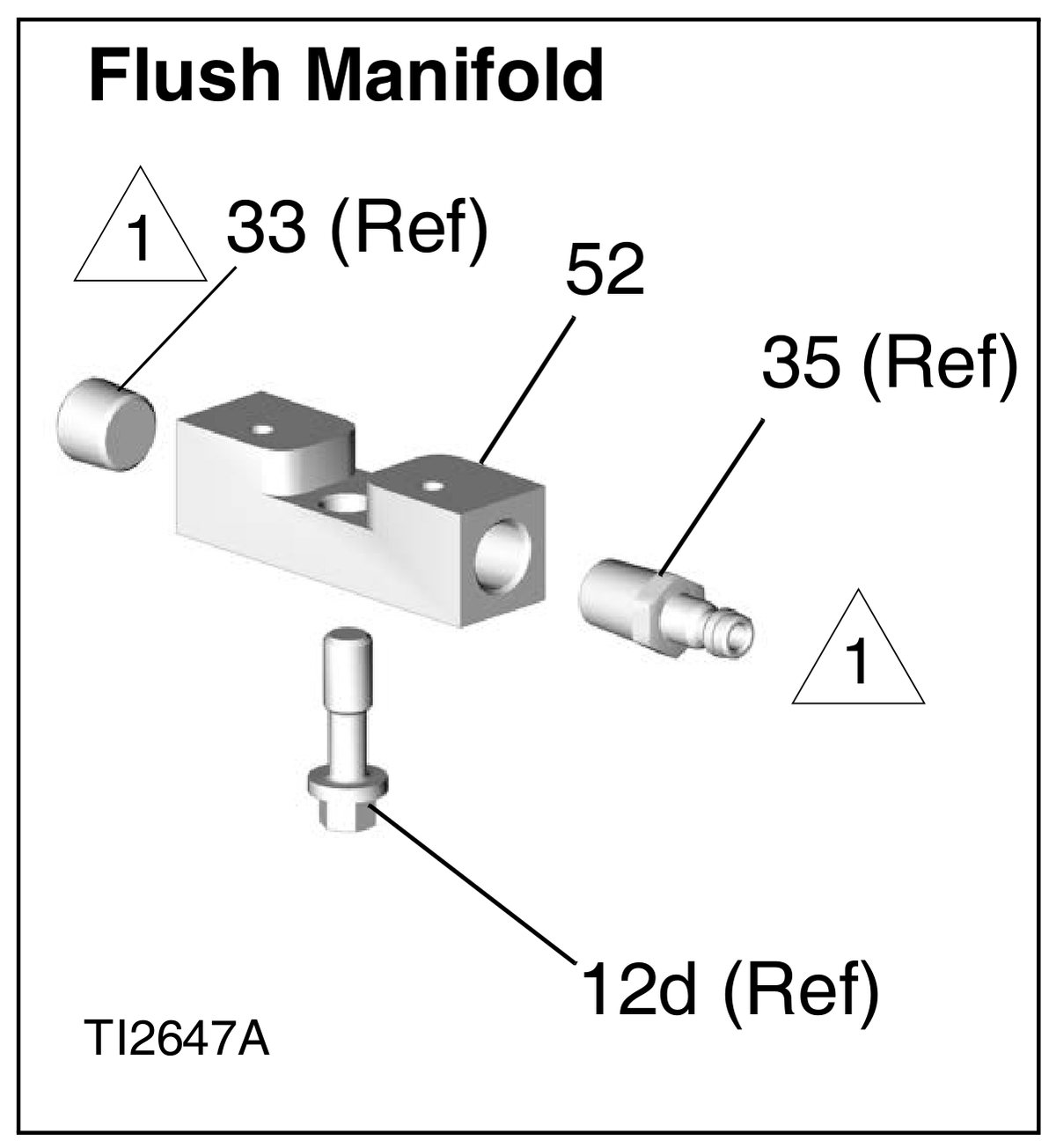

Graco Fusion AP Flush Manifold detail parts diagram

Graco Pipe; 1/4-18 NPT #33 Plug

Ref 33 · Graco 100721 · SKU 100721

$16.70

Graco Flush Gun Manifold

Ref 52 · Graco 15B817 · SKU 56653

$66.00

Graco Air Line Fitting, 1/4NPT #35

Ref 35 · Graco 117509 · SKU 117509

$16.20

12d

Graco Bolt 5/16 – #12d

Ref 12d · Graco 15B221 · SKU 19000

$27.90

Operation & Parts ManualGraco 309550ZAT Safety Warnings & Isocyanate Informationmanual p. 8 Parts & exploded drawingsmanual p. 33 Repair kits and mix chamber chartsmanual p. 36 Gun repair kits — what each one containsmanual p. 38 Reactor Parts & Accessories BrochureGraco 349104

Resources

Manuals, Rebuild Kits & the Gun

Manuals & DocumentsRebuild & Repair KitsBuy the Gun

PDFs open in a new tab. The reference numbers on the diagram above match manual 309550ZAT.

The complete o-ring kit covers every wear seal on the manual’s repair-kit chart. The four smaller kits below it are the cheaper fix when only one area has gone — side seals, check valve seals or the seal cartridges.

Graco Compl. O-Rings Repair Kit

Graco 246355 · SKU 246355

$180.50

Graco Cart O-Ring Repair Kit

Graco 246347 · SKU 246347

$48.70

Graco Repair Cartridge. Side Seal Metal Kit

Graco 246348 · SKU 246348

$52.50

Graco Polycarbonate Seal Repair Kit

Graco 249990 · SKU 249990

$34.48

Graco Check Valve Seal Repair Kit

Graco 246351 · SKU 246351

$54.00

Graco A Cartridge #18 Repair Kit

Graco 246349 · SKU 246349

$152.00

Graco B Cartridge #18 Repair Kit

Graco 246350 · SKU 246350

$152.00

Graco Accessory Front End Spa Kit

Graco 246361 · SKU 246361

$1,880.00

Graco AF2020 FT0438 Fusion AP Gun

Rebuilding something not listed here? Tell us what you need and we will quote it.

Complete Fusion AP guns, sold by mix chamber size. Tell us your output and pattern and we will confirm the chamber.

Buy this gun

SKU 247102

$2,630.00
