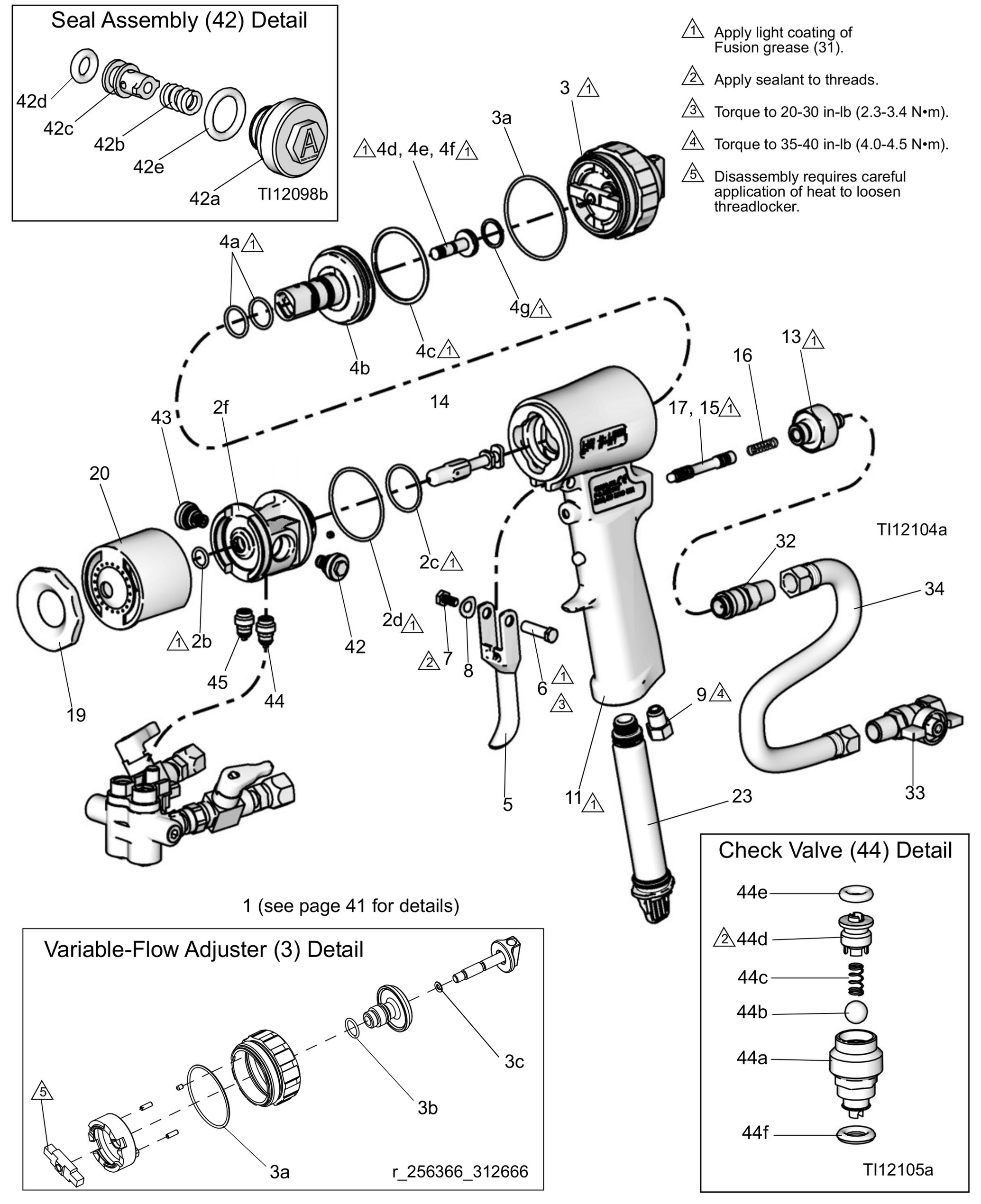

Graco Fusion CS ClearShot Spray Gun

42d

Graco Side Seal O-Ring, 6-Pack – #42d

Ref 42d · Graco 256467

KIT,SIDE SEAL ORINGS

Not listed online yet - we can order it for you.

Graco Adj LG Fusn CS O-Ring Kit, 6-Pack

Ref 3a · Graco 256774 · SKU 256774

$183.50

42c

Graco Side Seals Kit

Ref 42c · Graco 256464 · SKU 60320

$154.00

42b

Graco Bulk Spring Side Seal Kit

Ref 42b · Graco 256923 · SKU 256923

$29.10

Graco Piston Dosing W/orings Kit

Ref 4d · Graco 257424 · SKU 257424

$30.00

Supplied in the dosing piston assembly.

Graco Piston Dosing W/orings Kit

Ref 4e · Graco 257424 · SKU 257424

$30.00

Graco O-Ring 6 Pack Kit

Ref 4f · Graco 257426 · SKU 56838

$37.90

42e

Graco Side Seal Housing O-Ring, 6-Pack – #42e

Ref 42e · Graco 256468

KIT,SIDE SEAL HOUSING ORINGS

Not listed online yet - we can order it for you.

42a

Graco Side Seal. Fusion CS ISO Kit

Ref 42a · Graco 257429 · SKU 257429

$116.50

Seal housing is supplied in the side seal kit.

Graco Pstn SM Fusn CS O-Ring Kit, 6-Pack

Ref 4a · Graco 256772 · SKU 256772

$52.50

Graco Retaining Internal Spiral Ring

Ref 4g · Graco 121642 · SKU 121642

$6.60

Graco Air Valve Plug – #13

Ref 13 · Graco 15T897

PLUG,AIR VALVE,FUSION CS

Not listed online yet - we can order it for you.

Graco Pstn LG Fusn CS O-Ring Kit, 6-Pack

Ref 4c · Graco 256775 · SKU 256775

$167.00

Graco Spring #31

Ref 16 · Graco 117485 · SKU 117485

$7.00

Also on the Fusion AP, Fusion FX and Fusion PC.

Graco Air Piston Kit

Ref 4b · Graco 256454 · SKU 256454

$624.00

Piston is supplied in the air piston assembly.

Mix chamber - #14

Ref 14 · Graco RD/FL/WDxxxx

RD0101, RD0202, RD0303, RD4747 and FL0101 in stock - other sizes to order.

See mix chamber sizes

Graco Front End Replacement Kit

Ref 2f · Graco 256457 · SKU 256457

$1,285.00

Housing is supplied in the fluid housing assembly.

Graco Spool Valve Kit

Ref 17 · Graco 256455 · SKU 256455

$200.00

Graco Spool Valve Kit

Ref 15 · Graco 256455 · SKU 256455

$200.00

O-rings are supplied with the spool valve.

Graco Side Seal Fusion CS Res Kit

Ref 43 · Graco 257430 · SKU 257430

$112.50

Graco Front Cover Round Kit, 5 Pack

Ref 20 · Graco 256415 · SKU 256415

$52.50

Flat-pattern front cover is 256416.

Graco Coupler Line, Air, 1/4NPT – #47

Ref 32 · Graco 117510 · SKU 117510

$52.00

Also on the Fusion AP, Fusion FX and Fusion PC.

Graco Hsg SM Fusn CS O-Ring Kit, 6-Pack

Ref 2c · Graco 256773 · SKU 256773

$76.75

Also on the Fusion FX.

Graco Hose Air, 18 Inc – #6* #49

Ref 34 · Graco 15B772 · SKU 56611

$41.30

Also on the Fusion AP, Fusion FX and Fusion PC.

Graco 248132 – 6-Pack Black, Fluid Hsg Orng #21

Ref 2d · Graco 248132 · SKU 248132

$97.75

Also on the Fusion AP and Fusion PC.

Graco Kit Repair, #012 Orings

Ref 2b · Graco 248648 · SKU 248648

$31.60

Graco Side Seal. Fusion CS ISO Kit

Ref 42 · Graco 257429 · SKU 257429

$116.50

Graco Screw Cap Hex HD #29

Ref 7 · Graco 203953 · SKU 203953

$5.00

Also on the Fusion AP and Fusion PC.

Graco Washer Curve – #20

Ref 8 · Graco 15C480 · SKU 56608

$21.40

Also on the Fusion AP and Fusion PC.

Graco Check Valve Fusion CS Res Kit

Ref 45 · Graco 257423 · SKU 257423

$144.50

Graco Pin Pivot – #6

Ref 6 · Graco 192272 · SKU 192272

$26.60

Also on the Fusion AP and Fusion PC.

Graco Breather Plug – #9

Ref 9 · Graco 121540

PLUG,BREATHER

Not listed online yet - we can order it for you.

Graco Check Valve Fusion CS ISO Kit

Ref 44 · Graco 257422 · SKU 257422

$144.50

Graco Cover Retainer Kit, 5 Pack

Ref 19 · Graco 256414 · SKU 256414

$42.00

Graco Ball Valve, 1/4 NPT #51

Ref 33 · Graco 15B565 · SKU 19002

$20.80

Also on the Fusion AP, Fusion FX and Fusion PC.

Graco Clearshot Cartridge Kit, 25-PACK

Ref 23 · Graco 256385 · SKU 256385

$282.50

Also sold in 50-packs and 100-packs.

Graco Handle Fusion CS Kit

Ref 11 · Graco 256458 · SKU 60319

$1,025.00

Graco Fusion Gun Trigger – #13

Ref 5 · Graco 15B209 · SKU 18994

$63.25

Also on the Fusion AP and Fusion PC.

44e

Graco Repair Kit, #007 O-Rings #24

Ref 44e · Graco 246354 · SKU 246354

$25.20

Also on the Fusion AP and Fusion PC.

44d

Graco Accessory Retainer Kit, 10-Pack

Ref 44d · Graco 257421 · SKU 257421

$188.00

44c

Graco Accessry Spring Kit, 10-Pack

Ref 44c · Graco 257419 · SKU 257419

$38.40

44b

Graco Accessry Check Ball 10K #26c Kit

Ref 44b · Graco 257420 · SKU 257420

$40.40

Also on the Fusion AP and Fusion PC.

44a

Graco Check Valve Housing, A Side, 10-Pack – #44a

Ref 44a · Graco 257427

KIT,HSG,CHK VALVE,10 PK,ISO

Not listed online yet - we can order it for you.

Graco O-Ring Kit, 6 Pack 257425

Ref 3c · Graco 257425 · SKU 257425

$80.25

Graco O-Ring 6 Pack Kit

Ref 3b · Graco 257426 · SKU 56838

$37.90

44f

Graco Valve Fusion CS O-Ring Kit, 6-Pack

Ref 44f · Graco 256771 · SKU 256771

$52.50

Graco Adj LG Fusn CS O-Ring Kit, 6-Pack

Ref 3a · Graco 256774 · SKU 256774

$183.50

Detail viewsDrawing from Graco manual 312666Z, page 41

Five separate assemblies on Graco’s detail sheet - pick one.

All 5Flat PatternSupplied ToolsFluid Inlet Cover2-Hose Fluid ManifoldFlush Manifold

Flat Pattern4 callouts

Supplied Tools3 callouts

Fluid Inlet Cover2 callouts

2-Hose Fluid Manifold18 callouts

Flush Manifold4 callouts

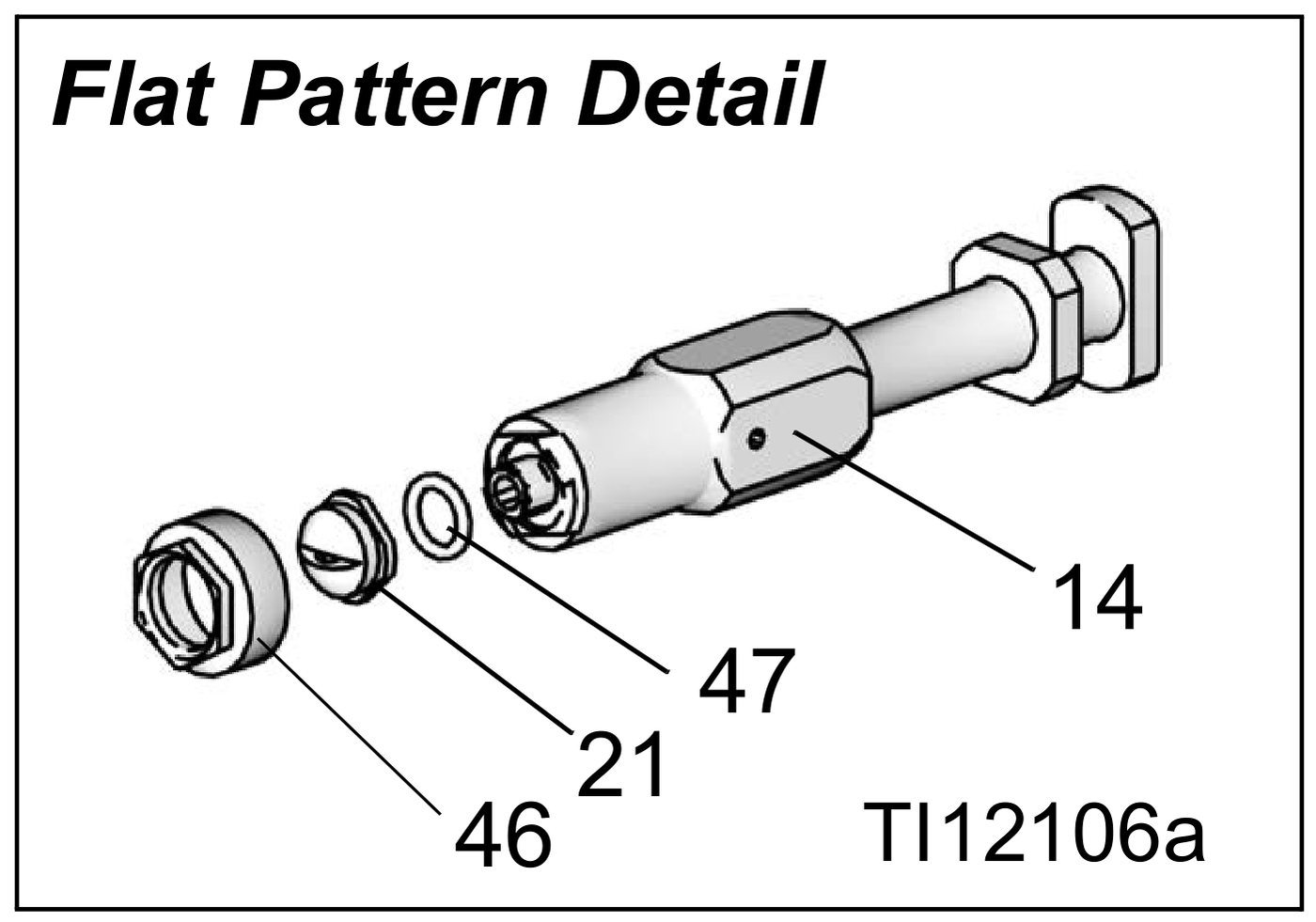

Graco Fusion CS Flat Pattern detail parts diagram

Mix chamber - #14

Ref 14 · Graco RD/FL/WDxxxx

RD0101, RD0202, RD0303, RD4747 and FL0101 in stock - other sizes to order.

See mix chamber sizes

Graco Repair FT O-Ring PTFE #40* Kit

Ref 47 · Graco 246360 · SKU 246360

$24.60

Also on the Fusion AP and Fusion PC.

Flat spray tip - #21

Ref 21 · Graco FTxxxx

FT0424 to FT0848. Tell us your pattern size and we will quote it.

Graco Tip Retainer Kit

Ref 46 · Graco 256567 · SKU 256567

$48.60

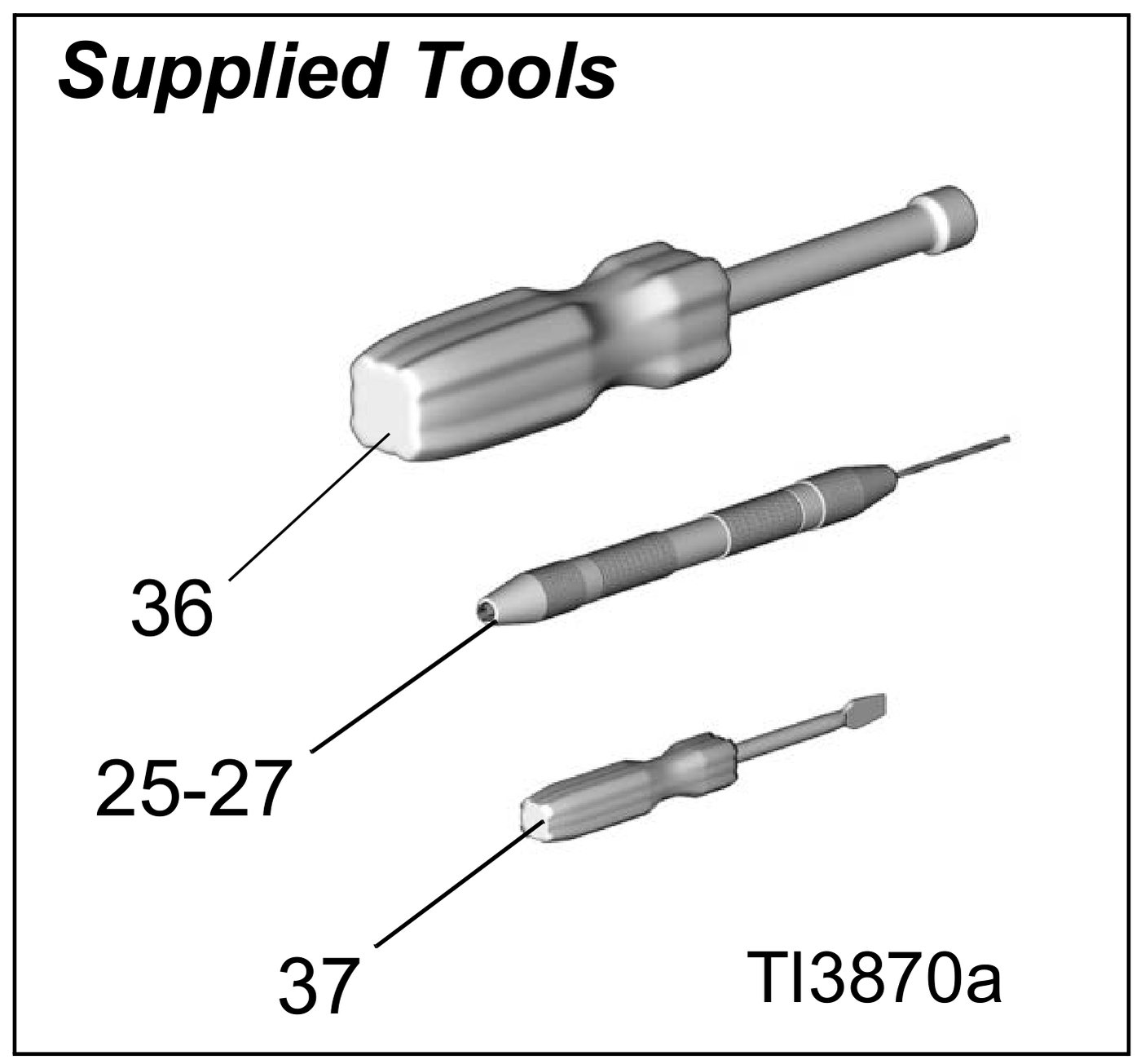

Graco Fusion CS Supplied Tools detail parts diagram

Graco Tool Driver, Nut

Ref 36 · Graco 117642 · SKU 117642

$24.90

Also on the Fusion AP, Fusion FX and Fusion PC.

25-27

Mix chamber cleanout tools - #25-27

Ref 25-27 · Graco varies by chamber

The right cleanout tools ship with each mix chamber kit. Tell us your chamber size.

See mix chamber kits

Graco Tool Screwdriver, 1/8 BL

Ref 37 · Graco 118575 · SKU 56987

$5.70

Also on the Fusion AP, Fusion FX and Fusion PC.

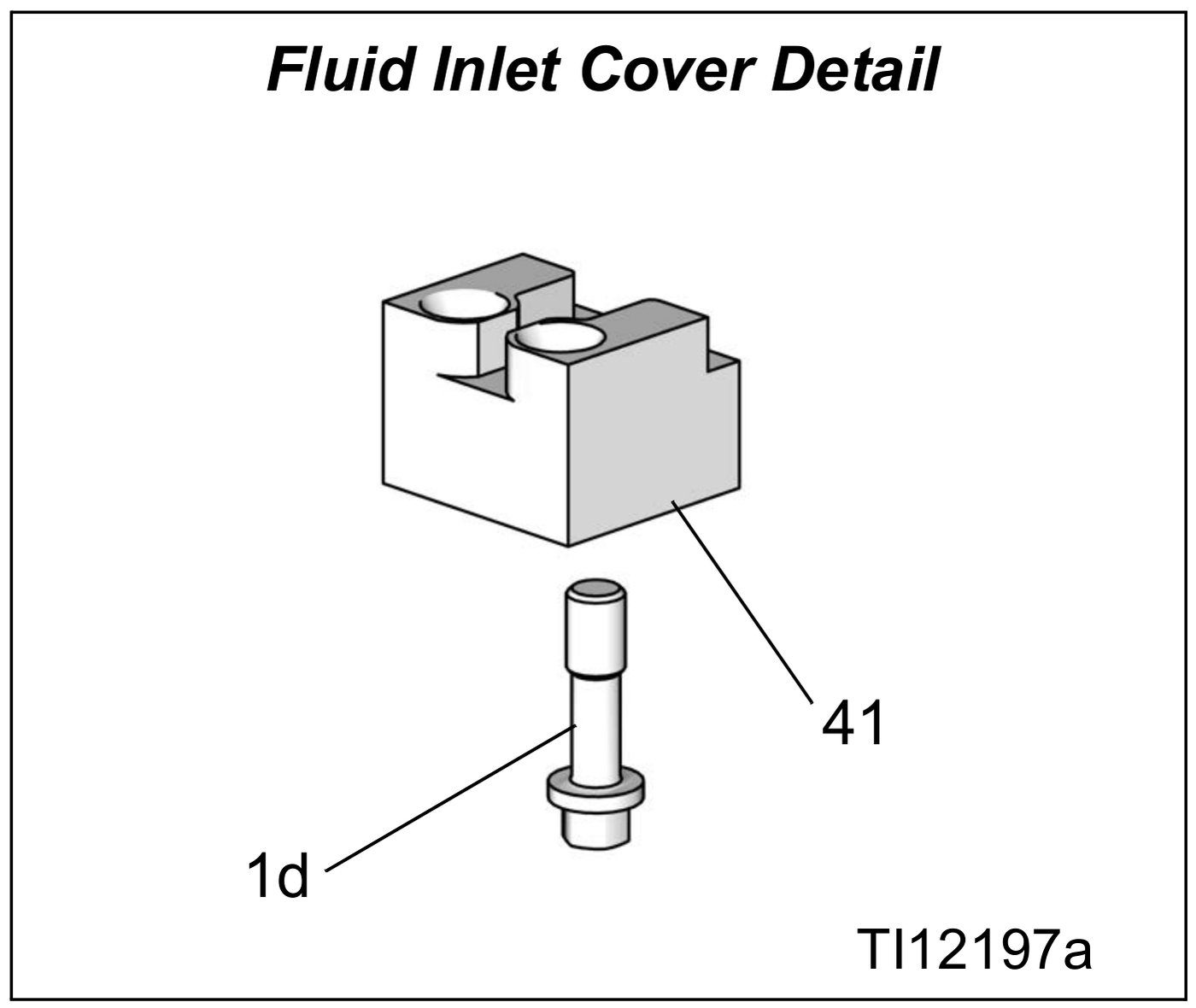

Graco Fusion CS Fluid Inlet Cover detail parts diagram

Graco Fluid Inlet Cap Kit – #41

Ref 41 · Graco 256642

KIT,INLET CAP,FUSION CS

Not listed online yet - we can order it for you.

Graco Bolt 5/16 – #12d

Ref 1d · Graco 15B221 · SKU 19000

$27.90

Also on the Fusion AP and Fusion PC.

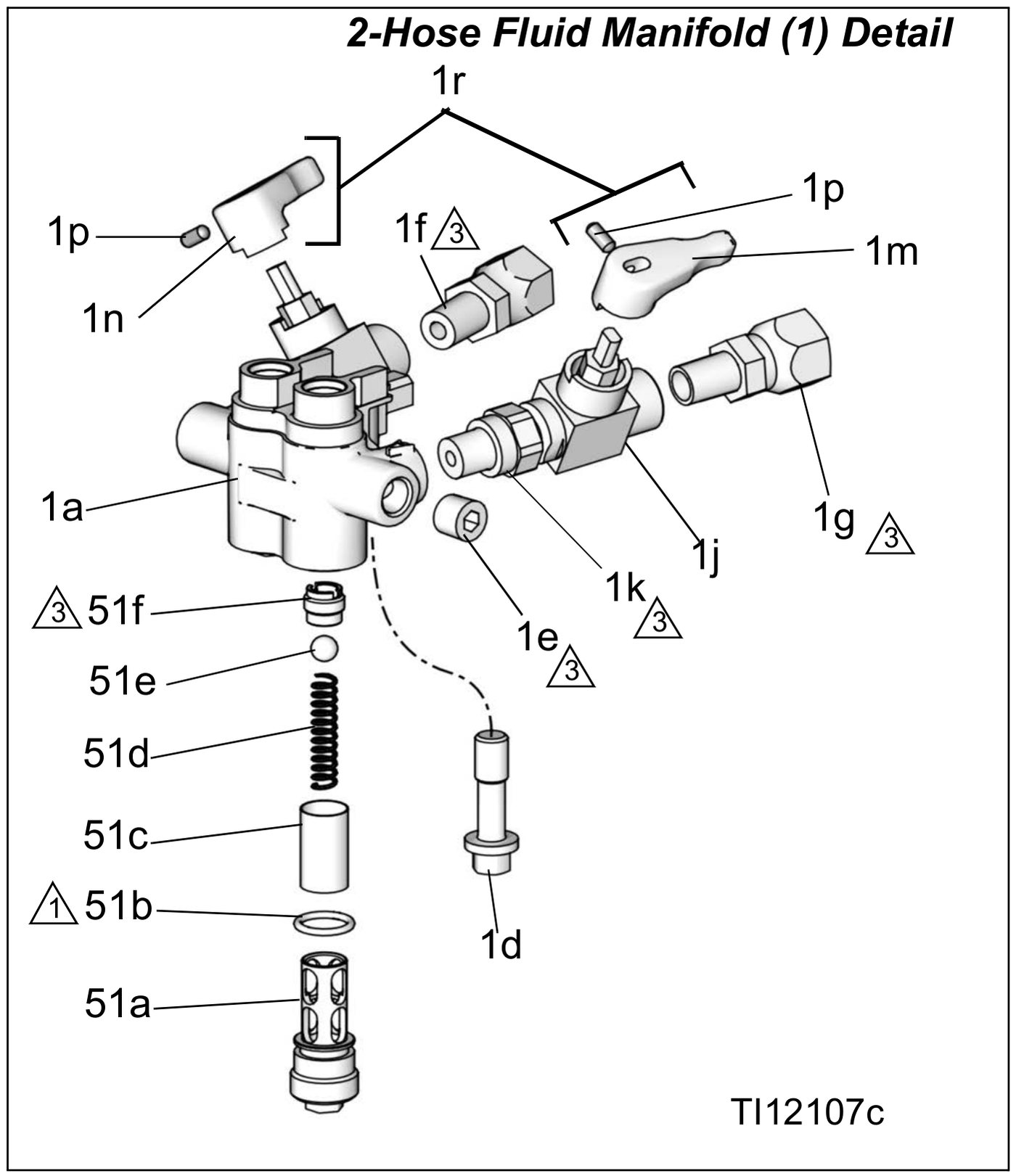

Graco Fusion CS 2-Hose Fluid Manifold detail parts diagram

Graco Valve Handle Repair Kit – #1r

Ref 1r · Graco 24W375

KIT, REPAIR, HANDLE, VALVE

Not listed online yet - we can order it for you.

Graco Set Screw, Socket with Patch – #1p

Ref 1p · Graco 118123

SCREW, SET, SOCKET W/PATCH

Not listed online yet - we can order it for you.

Graco Swivel U 4 Hose Manifold #4 #12e

Ref 1f · Graco 117634 · SKU 117634

$16.20

Also on the Fusion AP, Fusion PC and Probler P2.

Graco Set Screw, Socket with Patch – #1p

Ref 1p · Graco 118123

SCREW, SET, SOCKET W/PATCH

Not listed online yet - we can order it for you.

Graco Valve Shut-Off Handle, ISO (Red) – #1m

Ref 1m · Graco 16G500

HANDLE,VALVE,SHUT-OFF,ISO

Not listed online yet - we can order it for you.

Graco Valve Shut-Off Handle, RES (Blue) – #1n

Ref 1n · Graco 16G501

HANDLE,VALVE,SHUT-OFF,RES

Not listed online yet - we can order it for you.

Graco Hose Manifold Kit

Ref 1a · Graco 256466 · SKU 256466

$841.00

Manifold body is supplied in the hose manifold assembly.

Graco Swivel U 2 Hose Manifold #5 #12f

Ref 1g · Graco 117635 · SKU 117635

$16.80

Also on the Fusion AP, Fusion PC and Probler P2.

Graco A Side Valve Kit – #1a

Ref 1j · Graco 256459 · SKU 256459

$259.50

Resin-side ball valve is 256460.

Also on the Probler P2.

Graco Mxf Adapter, 1/8 NPT – #51

Ref 1k · Graco 15U395 · SKU 57288

$17.50

Also on the Probler P2.

51f

Graco Ball Check Retainer – #51f

Ref 51f · Graco 25A680

KIT,CHECK RETAINER

Not listed online yet - we can order it for you.

Graco Pipe; 1/8-27 NPT Plug – #12c

Ref 1e · Graco 100139 · SKU 100139

$7.40

Also on the Fusion AP and Fusion PC.

51e

Graco Check Ball, 10-Pack – #51e

Ref 51e · Graco 25A679

KIT,BALL,(PACK OF 10)

Not listed online yet - we can order it for you.

51d

Graco Check Valve Spring – #51d

Ref 51d · Graco 113876

SPRING,COMPRESSION

Not listed online yet - we can order it for you.

51c

Graco Kit- 10-Pack- Repair, Screen, 80MESH

Ref 51c · Graco 246359 · SKU 246359

$57.50

80 mesh as shipped; 40 and 60 mesh also stocked.

Also on the Fusion AP and Fusion PC.

51b

Graco Hose Manifold Check Valve O-Ring Kit, 6-Pack – #51b

Ref 51b · Graco 256469

KIT,HOSE MANIFOLD CHK ORING

Not listed online yet - we can order it for you.

Graco Bolt 5/16 – #12d

Ref 1d · Graco 15B221 · SKU 19000

$27.90

Also on the Fusion AP and Fusion PC.

51a

Graco Hose Manifold Check Valve, A Side – #51

Ref 51a · Graco 25A677

KIT,CHECK VALVE,A-SIDE,ASM

Not listed online yet - we can order it for you.

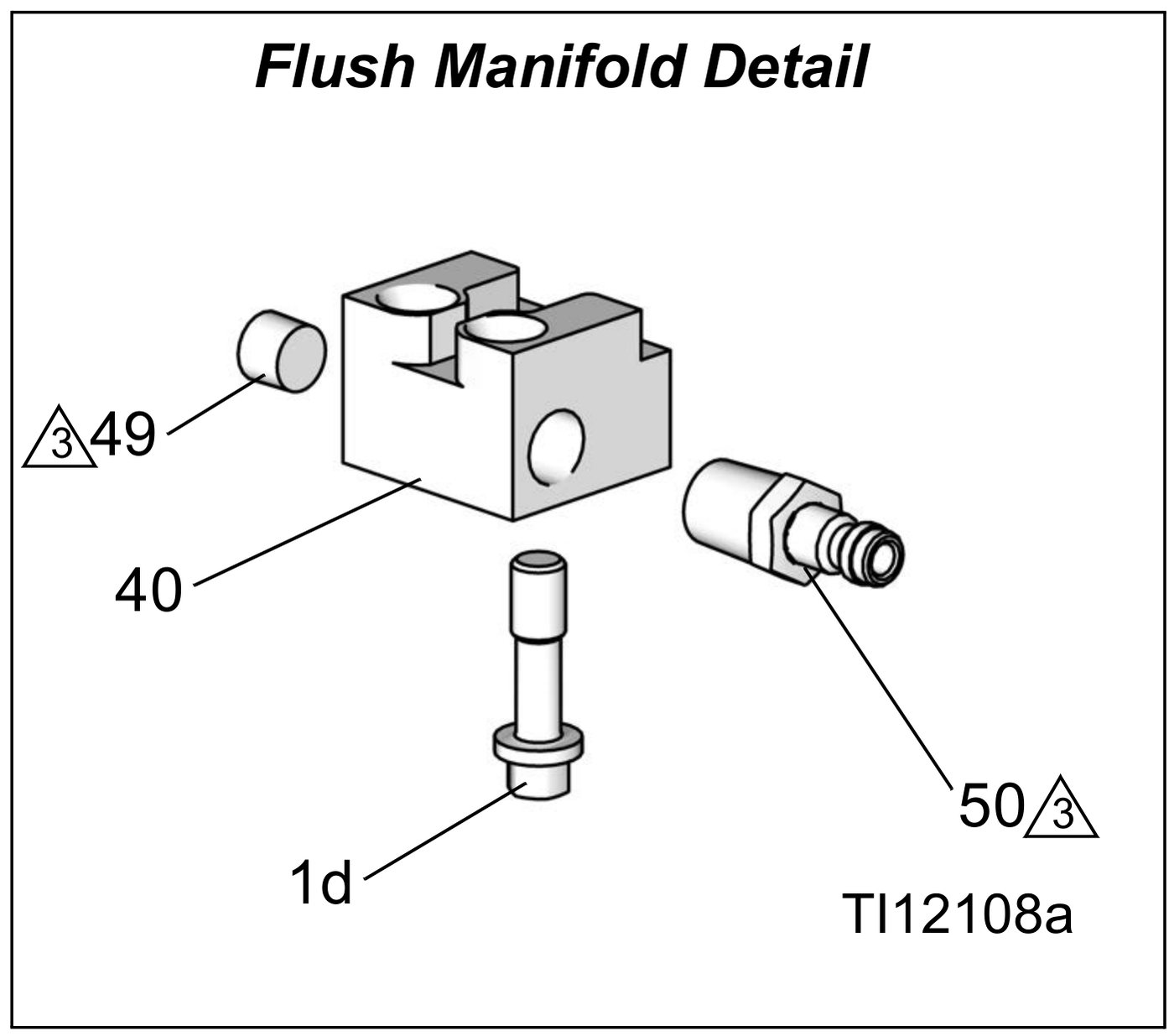

Graco Fusion CS Flush Manifold detail parts diagram

Graco Pipe; 1/4-18 NPT #33 Plug

Ref 49 · Graco 100721 · SKU 100721

$16.70

Also on the Fusion AP.

Graco Flush Manifold Block – #40

Ref 40 · Graco 256641

KIT,FLUSH MANIFOLD,FUSION CS

Not listed online yet - we can order it for you.

Graco Air Line Fitting, 1/4NPT #35

Ref 50 · Graco 117509 · SKU 117509

$16.20

Also on the Fusion AP, Fusion FX and Fusion PC.

Graco Bolt 5/16 – #12d

Ref 1d · Graco 15B221 · SKU 19000

$27.90

Graco Repair Complete O-Rings CS Kit

Also on the Fusion AP and Fusion PC.

Resources

Rebuild Kits, Manuals & the Gun

Rebuild & Repair KitsManuals & DocumentsBuy the Gun

The complete o-ring kit covers the wear seals called out in the manual. The side seal and check valve kits come in A (ISO) and B (resin) versions - the drawing above shows which is which. ClearShot cartridges and the cleaning kit are the two other things a CS gets through.

Graco 256490 · SKU 57181

$216.00

Graco Side Seal. Fusion CS ISO Kit

Graco 257429 · SKU 257429

$116.50

Graco Side Seal Fusion CS Res Kit

Graco 257430 · SKU 257430

$112.50

Graco Side Seals Kit

Graco 256464 · SKU 60320

$154.00

Graco Check Valve Fusion CS ISO Kit

Graco 257422 · SKU 257422

$144.50

Graco Check Valve Fusion CS Res Kit

Graco 257423 · SKU 257423

$144.50

Graco O-Ring Fluid Head Checks Kit

Graco 256640 · SKU 256640

$73.75

Graco Clearshot Cartridge Kit, 25-PACK

Graco 256385 · SKU 256385

$282.50

Graco Gun Cleaning Fusion CS Kit

Graco 256526 · SKU 256526

$94.50
