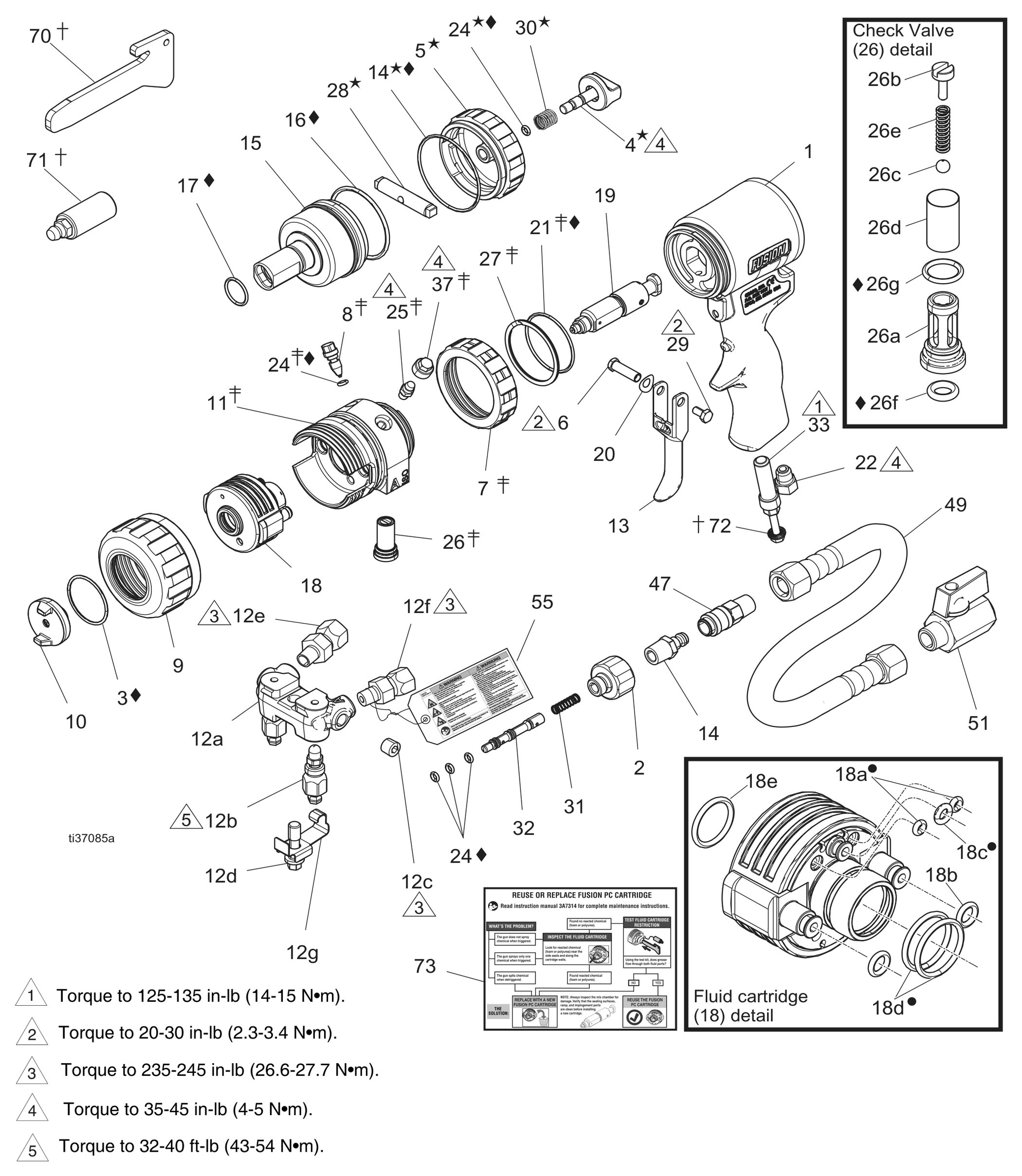

Graco Fusion PC Parts Diagram

Graco 6-Pack Black, SM, AP Pstn Org – #17*

Ref 17 · Graco 248134 · SKU 248134

$47.30

Graco 6-Pack Bulk, LG Pstn O-Ring – #16*

Ref 16 · Graco 248135 · SKU 248135

$113.00

Graco Stop, Piston #28

Ref 28 · Graco 15B205 · SKU 18937

$24.10

Graco Cylinder Cap O-Ring, 6-Pack – #14

Ref 14 · Graco 248136

Not listed online yet — we can order it for you.

Graco Cylinder Gun Cap

Ref 5 · Graco 15B204 · SKU 18990

$155.50

Graco Repair Kit, #007 O-Rings #24

Ref 24 · Graco 246354 · SKU 246354

$25.20

Graco Spring #30

Ref 30 · Graco 114070 · SKU 114070

$20.60

Graco Fusion Apgun Ring Retaining #27

Ref 27 · Graco 116550 · SKU 116550

$11.10

Graco Cover Grease #37

Ref 37 · Graco 15B689 · SKU 56610

$26.90

Graco Clean Off Air Valve – #8

Ref 8 · Graco 15B223 · SKU 19001

$30.70

Graco Grease Ref #25± & #12 Fitting

Ref 25 · Graco 100846 · SKU 100846

$7.50

Graco Repair Kit, #007 O-Rings #24

Ref 24 · Graco 246354 · SKU 246354

$25.20

Graco Shaft, Safety Stop 15B206

Ref 4 · Graco 15B206 · SKU 18992

$53.50

Graco Fusion AP Gun Handle – #1

Ref 1 · Graco 15K365 · SKU 19004

$1,195.00

Graco 248132 – 6-Pack Black, Fluid Hsg Orng #21

Ref 21 · Graco 248132 · SKU 248132

$97.75

Graco Screw Cap Hex HD #29

Ref 29 · Graco 203953 · SKU 203953

$5.00

Mix chamber, round — #19

Ref 19 · Graco PCxxRD

PC29RD, PC37RD, PC42RD, PC47RD, PC52RD and PC60RD in stock — other sizes to order.

See mix chamber sizes

26b

Graco Spring #26b Retaining Screw

Ref 26b · Graco 15B214 · SKU 18942

$19.70

26e

Graco Spring Check Valve #26e

Ref 26e · Graco 117490 · SKU 117490

$4.30

26c

Graco Accessry Check Ball 10K #26c Kit

Ref 26c · Graco 257420 · SKU 257420

$40.40

26d

Graco Kit- 10-Pack- Repair, Screen, 80MESH

Ref 26d · Graco 246359 · SKU 246359

$57.50

80 mesh as shipped; 40 and 60 mesh also stocked.

26g

Graco 248129 – 6-118594)BLKCK Valve Radseal #26g

Ref 26g · Graco 248129 · SKU 248129

$41.10

26a

Graco CK Valve ISO #26 Repair Kit

Ref 26a · Graco 246731 · SKU 246731

$125.50

Housing is supplied in the check valve assembly.

26f

Graco 248133 – (6-117520BLKCK Valve Face OR #26f

Ref 26f · Graco 248133 · SKU 248133

$79.25

Graco Fluid Head Fusion PC Kit

Ref 11 · Graco 19Y303 · SKU 60096

$535.00

Housing is supplied in the fluid housing kit.

Graco Lock Ring, Fusion PC, Blue – #7

Ref 7 · Graco 26C775

Not listed online yet — we can order it for you.

Graco CK Valve ISO #26 Repair Kit

Ref 26 · Graco 246731 · SKU 246731

$125.50

B-side check valve is 246352.

Graco Cartridge Fusion PC 1-Pack 19Y300 Kit

Ref 18 · Graco 19Y300 · SKU 60038

$235.50

Also sold in 3-packs and 5-packs.

Graco Front Ring Fusion PC Kit

Ref 9 · Graco 19Y302 · SKU 60097

$209.50

Graco Bulk PTFE Air Cap O-Ring #3 Kit

Ref 3 · Graco 248137 · SKU 248137

$43.80

Graco Pin Pivot – #6

Ref 6 · Graco 192272 · SKU 192272

$26.60

Graco Washer Curve – #20

Ref 20 · Graco 15C480 · SKU 56608

$21.40

Graco Tool Holder Plug, 1/4 NPT – #33

Ref 33 · Graco 26C937

Not listed online yet — we can order it for you.

Graco Breather #22 Plug

Ref 22 · Graco 119626 · SKU 119626

$20.70

Graco Air Cap Round Pattern Guns #10

Ref 10 · Graco 15B210 · SKU 18995

$107.50

12e

Graco Swivel U 4 Hose Manifold #4 #12e

Ref 12e · Graco 117634 · SKU 117634

$16.20

12f

Graco Swivel U 2 Hose Manifold #5 #12f

Ref 12f · Graco 117635 · SKU 117635

$16.80

Graco Manifold Fluid – #12

Ref 12 · Graco 246012 · SKU 246012

$551.00

12b

Graco Fluid Valve – #12b

Ref 12b · Graco 246356 · SKU 246356

$81.75

12d

Graco Bolt 5/16 – #12d

Ref 12d · Graco 15B221 · SKU 19000

$27.90

12g

Graco Spring Ring Lock – #12g

Ref 12g · Graco 15B993 · SKU 56603

$48.60

12c

Graco Pipe; 1/8-27 NPT Plug – #12c

Ref 12c · Graco 100139 · SKU 100139

$7.40

Graco Repair Kit, #007 O-Rings #24

Ref 24 · Graco 246354 · SKU 246354

$25.20

Graco Valve #32 Spool

Ref 32 · Graco 15B202 · SKU 18988

$29.50

Graco Cylinder Cap O-Ring, 6-Pack – #14

Ref 14 · Graco 248136

Not listed online yet — we can order it for you.

Graco Air Valve Plug – #2

Ref 2 · Graco 15B208 · SKU 18993

$39.00

Graco Spring #31

Ref 31 · Graco 117485 · SKU 117485

$7.00

Graco Hose Air, 18 Inc – #6* #49

Ref 49 · Graco 15B772 · SKU 56611

$41.30

Graco Fusion Gun Trigger – #13

Ref 13 · Graco 15B209 · SKU 18994

$63.25

Graco Coupler Line, Air, 1/4NPT – #47

Ref 47 · Graco 117510 · SKU 117510

$52.00

Graco Ball Valve, 1/4 NPT #51

Ref 51 · Graco 15B565 · SKU 19002

$20.80

18e

Graco 248131 – 6 Air Cap SM Org #36 #23

Ref 18e · Graco 248131 · SKU 248131

$51.00

18a

Graco O-Ring Air Fusion PC Kit

Ref 18a · Graco 25P850 · SKU 60506

$41.70

Supplied in the cartridge o-ring kit.

18c

Graco O-Ring Air Fusion PC Kit

Ref 18c · Graco 25P850 · SKU 60506

$41.70

Supplied in the cartridge o-ring kit.

18b

Graco Cartridge Fluid O-Ring, 6-Pack – #18b

Ref 18b · Graco 25P851

Not listed online yet — we can order it for you.

Graco Tools Fusion PC 25P660 Kit

Ref 70 · Graco 25P660 · SKU 60317

$34.70

Divider tool, supplied in the cartridge tool kit.

Graco Tools Fusion PC 25P660 Kit

Ref 71 · Graco 25P660 · SKU 60317

$34.70

Grease tool, supplied in the cartridge tool kit.

Graco Tools Fusion PC 25P660 Kit

Ref 72 · Graco 25P660 · SKU 60317

$34.70

Jack screw, supplied in the cartridge tool kit.

18d

Graco O-Ring Air Fusion PC Kit

Ref 18d · Graco 25P850 · SKU 60506

$41.70

Supplied in the cartridge o-ring kit.

Detail viewsDrawing from Graco manual 3A7314J, page 32

Four separate assemblies on Graco’s detail sheet — pick one.

All 4Flat PatternSupplied Tools4-Hose Fluid ManifoldFlush Manifold

Flat Pattern3 callouts Supplied Tools detail drawing

Supplied Tools3 callouts 4-Hose Fluid Manifold detail drawing

4-Hose Fluid Manifold10 callouts Flush Manifold detail drawing

Flush Manifold2 callouts

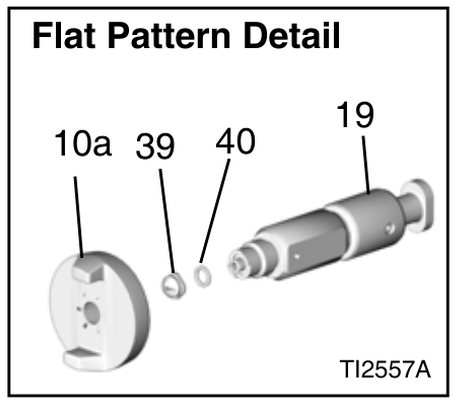

Graco Fusion PC Flat Pattern detail parts diagram

Graco Repair FT O-Ring PTFE #40* Kit

Ref 40 · Graco 246360 · SKU 246360

$24.60

10a

Graco Air Cap Flat Pattern Gun -#10

Ref 10a · Graco 15B801 · SKU 19003

$63.25

Flat spray tip — #39

Ref 39 · Graco FTxxxx

FT0424 to FT0848. Tell us your pattern size and we will quote it.

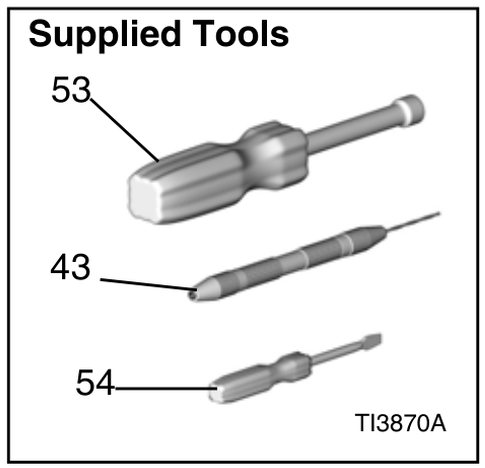

Graco Fusion PC Supplied Tools detail parts diagram

Graco Tool Driver, Nut

Ref 53 · Graco 117642 · SKU 117642

$24.90

Graco Pin Vise, Dual Reversible Chucks – #43

Ref 43 · Graco 117661

Not listed online yet — we can order it for you.

Graco Tool Screwdriver, 1/8 BL

Ref 54 · Graco 118575 · SKU 56987

$5.70

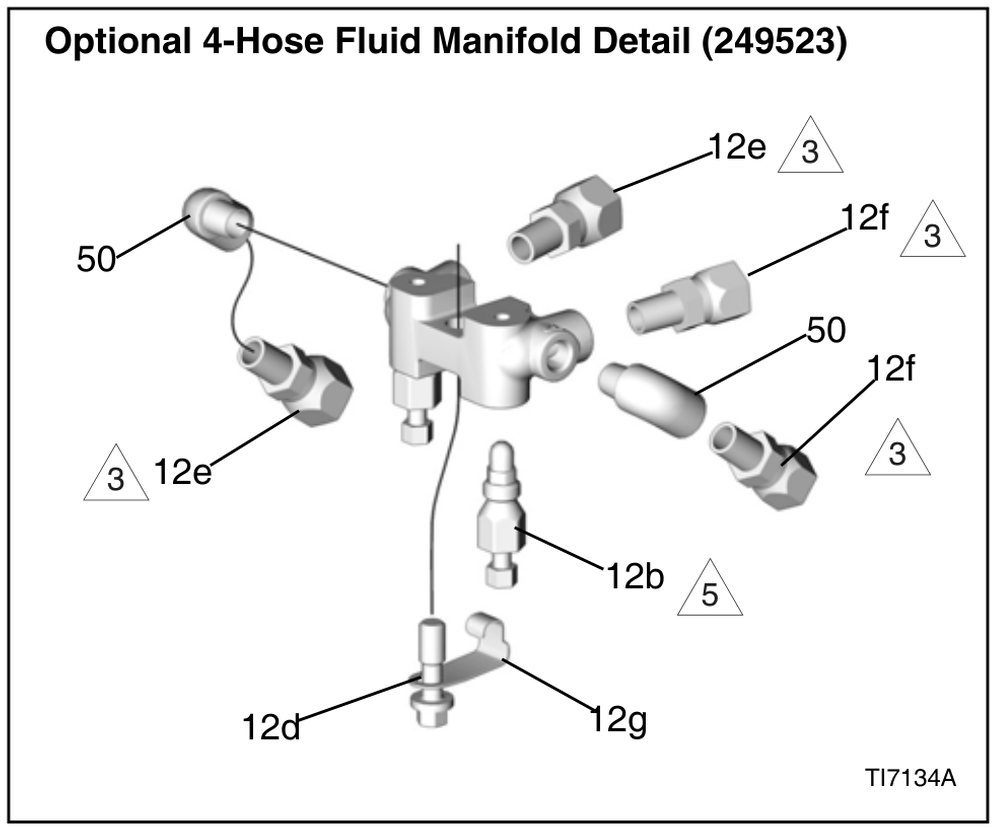

Graco Fusion PC 4-Hose Fluid Manifold detail parts diagram

12e

Graco Swivel U 4 Hose Manifold #4 #12e

Ref 12e · Graco 117634 · SKU 117634

$16.20

12f

Graco Swivel U 2 Hose Manifold #5 #12f

Ref 12f · Graco 117635 · SKU 117635

$16.80

Graco Street #50 Elbow Fitting

Ref 50 · Graco 112307 · SKU 56612

$25.00

Graco Street #50 Elbow Fitting

Ref 50 · Graco 112307 · SKU 56612

$25.00

Graco E10 Gun Manifold, 4 Hose – #12

Ref 12/4 · Graco 249523 · SKU 56859

$328.00

Optional 4-hose manifold.

12f

Graco Swivel U 2 Hose Manifold #5 #12f

Ref 12f · Graco 117635 · SKU 117635

$16.80

12e

Graco Swivel U 4 Hose Manifold #4 #12e

Ref 12e · Graco 117634 · SKU 117634

$16.20

12b

Graco Fluid Valve – #12b

Ref 12b · Graco 246356 · SKU 246356

$81.75

12g

Graco Spring Ring Lock – #12g

Ref 12g · Graco 15B993 · SKU 56603

$48.60

12d

Graco Bolt 5/16 – #12d

Ref 12d · Graco 15B221 · SKU 19000

$27.90

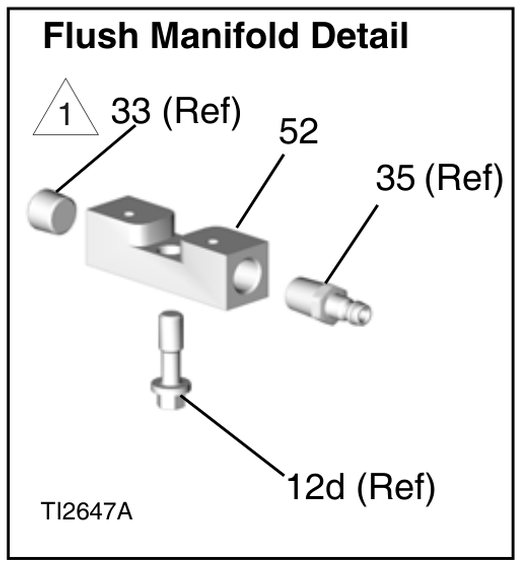

Graco Fusion PC Flush Manifold detail parts diagram

Graco Flush Gun Manifold

Ref 52 · Graco 15B817 · SKU 56653

$66.00

Graco Air Line Fitting, 1/4NPT #35

Ref 35 · Graco 117509 · SKU 117509

$16.20

Operation & Parts ManualGraco 3A7314J Safety Warnings & Isocyanate Informationmanual p. 6 Parts & exploded drawingsmanual p. 35 Repair kits & what each one containsmanual p. 36 ProConnect Conversion Kit instructionsGraco 3A7318C Reactor Parts & Accessories BrochureGraco 349104

Resources

Manuals, Rebuild Kits & the Gun

Manuals & DocumentsRebuild & Repair KitsBuy the Gun

PDFs open in a new tab. The reference numbers on the diagram above match manual 3A7314J.

The gun o-ring kit covers the wear seals marked on the drawing. On a PC the whole fluid section is a cartridge, so most rebuilds are a cartridge swap rather than a strip-down — the 5-pack is the cheapest way to buy them. The two retrofit kits at the bottom put a ProConnect front end on a Fusion AP you already own.

Graco Fusion PC Gun O-Rings Kit

Graco 18C115 · SKU 60136

$138.00

Graco O-Ring Air Fusion PC Kit

Graco 25P850 · SKU 60506

$41.70

Graco Tools Fusion PC 25P660 Kit

Graco 25P660 · SKU 60317

$34.70

Graco Fluid Head Fusion PC Kit

Graco 19Y303 · SKU 60096

$535.00

Graco Cartridge Fusion PC 1-Pack 19Y300 Kit

Graco 19Y300 · SKU 60038

$235.50

Graco Cartridge Fusion PC 3-Pack 19Y301 Kit

Graco 19Y301 · SKU 60037

$642.00

Graco Cartridge Fusion PC 19Y308 Kit, 5-Pack

Graco 19Y308 · SKU 60235

$981.00

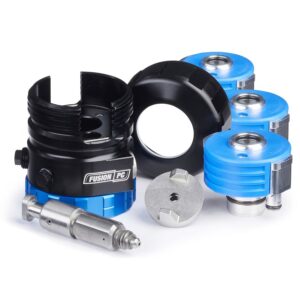

Graco Fusion PC Round 25P701 Kit, 42 Retro, 01

Graco 25P701 · SKU 60028

$1,555.00

Graco Fusion PC Round 25P702 Kit, 52 Retro, 02

Graco 25P702 · SKU 60027

$1,615.00
